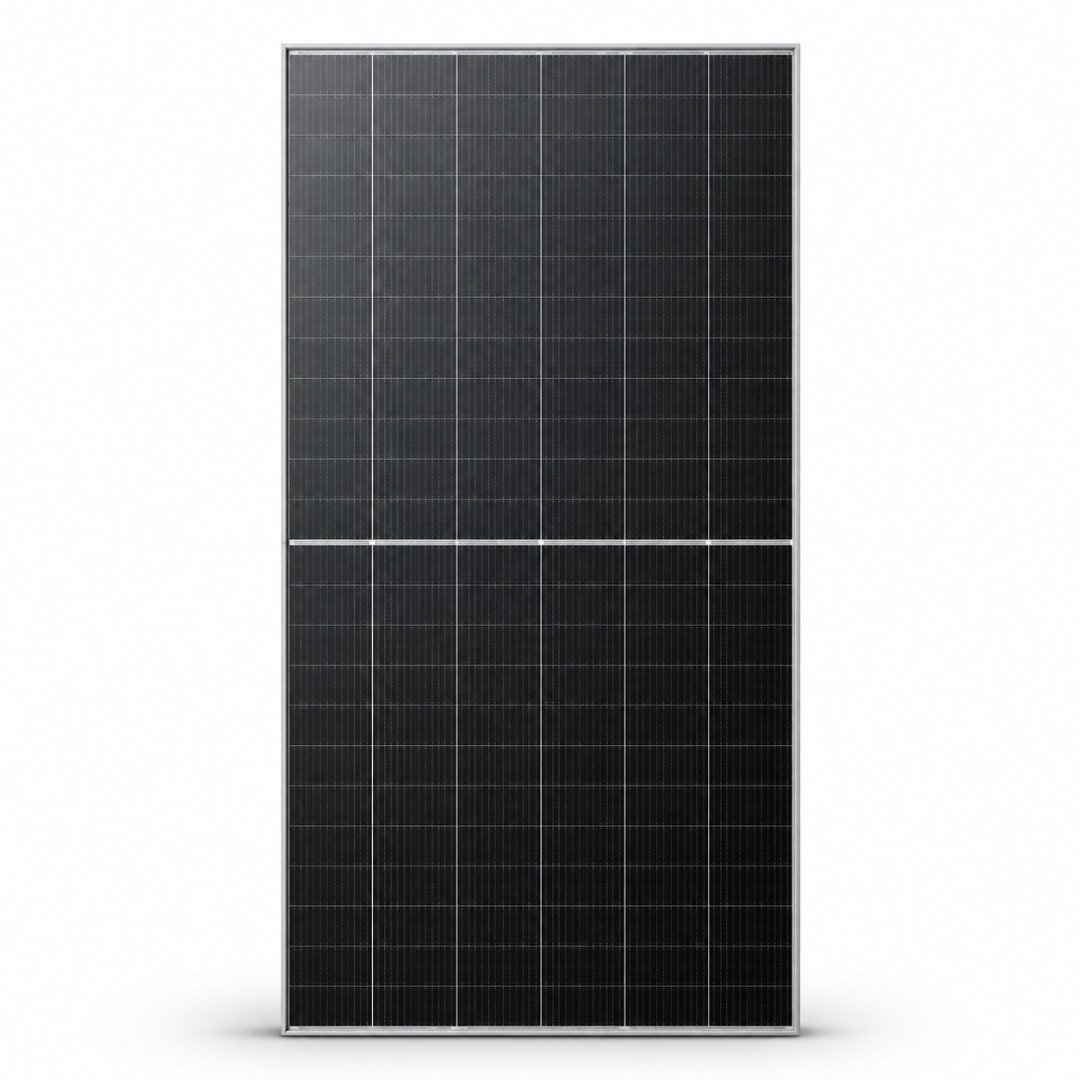

Jinko 590W Monofacial Solar Panel

Jinko 590W Monofacial Solar Panel Overview

The Jinko 590W Monofacial Solar Panel delivers high wattage for solar systems that require strong output from each module. It uses N-type cell architecture with Tunnel Oxide Passivating Contacts (TOPCon) technology, while HOT 2.0 technology focuses on module reliability and efficiency. Before buying, check the Jinko 590W Monofacial solar panel price in Pakistan and compare its specifications with your solar system requirements.

With 590W rated power and 22.84% module efficiency, this panel can help installers build solar arrays with fewer modules than lower-wattage options. However, the final number depends on the system’s total capacity and electrical design. Its monofacial construction generates solar power primarily through the front side. Therefore, it suits conventional rooftop and ground-mounted installations where rear-side generation is not a design requirement.

Moreover, the panel offers enhanced resistance to harsh environmental conditions, including salt mist and ammonia exposure. Its mechanical load ratings and durable construction also support outdoor installation planning. For buyers comparing Jinko solar panels in Pakistan, wattage, module dimensions, electrical compatibility and warranty coverage all matter when choosing a panel.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-type monocrystalline cells with TOPCon technology. This cell design helps reduce light-induced degradation and light- and elevated-temperature-induced degradation compared with conventional cell technologies.

For solar buyers, degradation matters because it affects how much power a module can continue producing over time. Consequently, lower degradation can help preserve long-term energy output. However, actual production still depends on installation quality, temperature, shading, cleanliness and operating conditions.

For more technical information and specifications, visit the link below:

Jinko Solar Panel Official Website

HOT 2.0 Technology

JinkoSolar’s HOT 2.0 technology focuses on improving module reliability and efficiency. In addition, its combination with N-type cell architecture supports the panel’s long-term solar generation performance.

590W Power Output

The panel delivers a rated output of 590 watts per panel. Therefore, installers can plan higher-capacity solar arrays using fewer modules than they would need with lower-wattage options. Nevertheless, the final panel count depends on the required system capacity, roof area, inverter limits and string configuration.

Monofacial Solar Generation

The panel uses a monofacial solar design, which generates power primarily through the front side. As a result, it suits conventional mounting arrangements where the system does not require rear-side power generation.

Durable Outdoor Construction

The module features anti-reflection coated, high-transmission tempered front glass and an anodized aluminium alloy frame. Furthermore, its junction box carries an IP68 rating. These features support outdoor use when installers follow the applicable installation requirements.

The panel also has a maximum static test load of 5400 Pa on the front side and 2400 Pa on the rear side. However, these test ratings do not remove the need to follow mounting instructions or assess local wind and structural requirements.

Low Power Degradation

The panel’s degradation profile includes 1% first-year degradation and 0.4% annual degradation thereafter. In addition, its linear power warranty provides a long-term output benchmark. Buyers can use this information to evaluate the module’s expected power retention over time.

Best For

The Jinko 590W Monofacial Solar Panel may suit the following applications:

• Residential solar systems: It can fit installations where the module’s dimensions and electrical characteristics match the roof and inverter design.
• Commercial rooftop installations: Its high wattage can support commercial solar arrays.
• Ground-mounted solar projects: Its monofacial design suits conventional panel layouts.
• Solar installers and dealers: It offers an N-type TOPCon option for projects with suitable electrical requirements.
• Long-term solar investments: Its degradation profile and warranty coverage help buyers assess long-term power retention.

Ultimately, buyers should consider the installation area, required capacity, inverter compatibility and electrical safety limits rather than choosing a panel by wattage alone.

When Another Solar Panel May Be Better

A different module may suit your project better in the following situations:

• The available roof space cannot accommodate the panel’s dimensions.
• The inverter has lower permissible PV input current or voltage limits.
• The project specifically requires rear-side power generation.
• The system design requires a different module voltage, current or string configuration.
• The installation site cannot meet the required mounting or structural conditions.

Therefore, always check the inverter’s maximum DC voltage, MPPT operating range, input current and permitted short-circuit current before finalising the solar array.

Cell and Module Technology

N-Type Monocrystalline Cells

N-type monocrystalline technology provides the cell platform for this module. Furthermore, the panel combines this architecture with TOPCon and HOT 2.0 technologies to support efficient energy conversion and lower degradation.

Monofacial Design

This panel generates power primarily from the front side, unlike modules designed to generate power from both sides. Consequently, actual energy production depends on available sunlight, panel orientation, tilt angle, shading, dust and operating temperature.

Mechanical Construction

The module uses tempered front glass with an anti-reflection coating and an anodized aluminium alloy frame. Additionally, its junction box carries an IP68 rating, while the electrical cables have a cross-sectional area of 4.0 mm². Installers should check the cable configuration during installation to ensure it suits the system requirements.

Technical Specifications

Important installation note: Maximum system voltage differs from module operating voltage. Therefore, the solar installer must calculate the number of modules per string using the module’s open-circuit voltage, temperature correction and the inverter’s permissible DC voltage and current limits.

Performance and Power Degradation

Solar panels gradually lose some of their power-generating capability during their operating life. The Jinko 590W Monofacial Solar Panel has a stated first-year degradation rate of 1%, followed by 0.4% annual degradation.

Moreover, its stated power-retention benchmark at year 30 is 87.4%. Buyers can use this figure as a long-term reference when evaluating the panel’s linear power warranty.

However, degradation is not the only factor that affects electricity production. Installation angle, orientation, shading, dust accumulation, temperature, wiring losses and inverter performance can all influence the energy a complete solar system delivers.

Performance Considerations for Pakistan

Pakistan’s hot summers, dust and seasonal weather conditions make proper panel selection and installation important.

• High temperatures: The Pmax temperature coefficient is -0.29%/°C. Therefore, module output can decrease as cell temperature rises above the standard test temperature.
• Dust and cleaning: Dust accumulation can reduce the sunlight reaching the cells. Consequently, periodic cleaning with appropriate methods helps maintain production.
• Mounting and ventilation: Correct mounting and sufficient airflow around the panel help manage operating temperature.
• String design: The installer must match the inverter and solar array using voltage and current limits, not just panel wattage. In addition, the design should account for temperature-related voltage changes.
• Structural safety: Mounting hardware and roof structures must suit the site’s wind conditions and installation requirements.

Although the panel offers durability features, correct installation and maintenance remain essential for reliable operation.

Jinko 590W Monofacial Solar Panel Price in Pakistan

The 590w Monofacial solar panel price in pakistan matters to homeowners, businesses, solar installers and dealers planning a new solar system.

However, the total cost of a complete solar installation depends on several factors, including the number of panels, inverter capacity, mounting structure, cables, protection equipment and installation requirements. Therefore, buyers planning a larger project should calculate the required panel quantity and confirm availability before placing an order.

Hajvery Solar Energy serves customers from Johar Town, Lahore. Buyers, installers and dealers can contact the team to confirm current availability and quantity-based pricing.

Tier 1, A-Grade and Product Authenticity

Solar panel buyers should evaluate a module’s actual quality rather than relying on wattage or brand name alone. Before purchasing, confirm the exact model, product condition, serial identification and applicable warranty.

Furthermore, buyers should rely on the term A-Grade only after verifying the actual product condition. Similarly, Tier 1 status should not replace checks of the exact module specifications, seller information and warranty terms.

For a long-term investment, retain the purchase record and confirm the warranty process before installation. These steps help buyers make a more informed decision.

Hajvery Solar Product Verification

Before ordering the Jinko 590W Monofacial Solar Panel, confirm that the delivered module matches the intended model and rated power.

Buyers should also check the following:

• The model identification and serial information on the product.
• The physical condition of the glass, frame, junction box and cables.
• The applicable product and linear power warranty terms.
• Compatibility with the selected inverter and solar string design.
• The required number of panels and the available installation space.

These checks help reduce the risk of selecting an unsuitable module for the intended solar project.

You can verify your Jinko Solar Panel at Hajvery Solar Energy. Use the following link to check panel authenticity:

Panel Verification Link: Jinko Solar Panel Verification

Warranty

The Jinko 590W Monofacial Solar Panel comes with a 12-year product warranty and a 30-year linear power warranty.

The product warranty covers applicable product-related conditions, while the linear power warranty addresses the module’s warranted power retention over time. Therefore, buyers should treat these as separate forms of coverage rather than interchangeable benefits.

Before purchasing, confirm the applicable warranty terms, exclusions, claim procedure and required purchase records with the seller. In addition, keep your purchase documents safe because you may need them when requesting warranty support.

Frequently Asked Questions

1. What is the Jinko 590W Monofacial Solar Panel price in Pakistan?

The current price of the Jinko 590W Monofacial Solar Panel in Pakistan is Rs. 22,774 per panel. Contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

2. What is the efficiency of the Jinko 590W solar panel?

The module has a rated efficiency of 22.84%. However, actual energy production depends on sunlight, temperature, orientation, shading and installation conditions.

3. Is the Jinko 590W Monofacial Solar Panel an N-type panel?

Yes. It uses N-type monocrystalline cells with TOPCon technology and JinkoSolar’s HOT 2.0 technology. Together, these technologies support efficient energy conversion and lower degradation.

4. What are the dimensions of the Jinko 590W solar panel?

The module measures 2278 × 1134 × 30 mm and weighs 27 kg. Therefore, check the available mounting area and structural requirements before installation.

5. What are the voltage and current ratings of this panel?

Its maximum power voltage is 43.71V, and its maximum power current is 13.50A. Additionally, the open-circuit voltage is 52.63V, while the short-circuit current is 14.13A. The selected inverter must support the panel’s electrical characteristics and the final string configuration.

6. What warranty comes with the Jinko 590W Monofacial Solar Panel?

It has a 12-year product warranty and a 30-year linear power warranty. However, buyers should confirm the applicable conditions and claim procedures before purchasing.

7. Is this panel suitable for residential and commercial solar systems?

Yes, it can suit residential and commercial installations when its dimensions, voltage, current and mounting requirements match the proposed system design. Therefore, installers should check the site and inverter specifications before finalising the system.

Buy Jinko 590W Monofacial Solar Panel from Hajvery Solar Energy

Choose the Jinko 590W Monofacial Solar Panel for a solar installation built around N-type TOPCon technology, 590W rated output and long-term power retention.

Hajvery Solar Energy helps buyers, installers and dealers enquire about solar products and plan purchases according to their project requirements.

To explore more options, visit Jinko Solar Panels in Pakistan.
