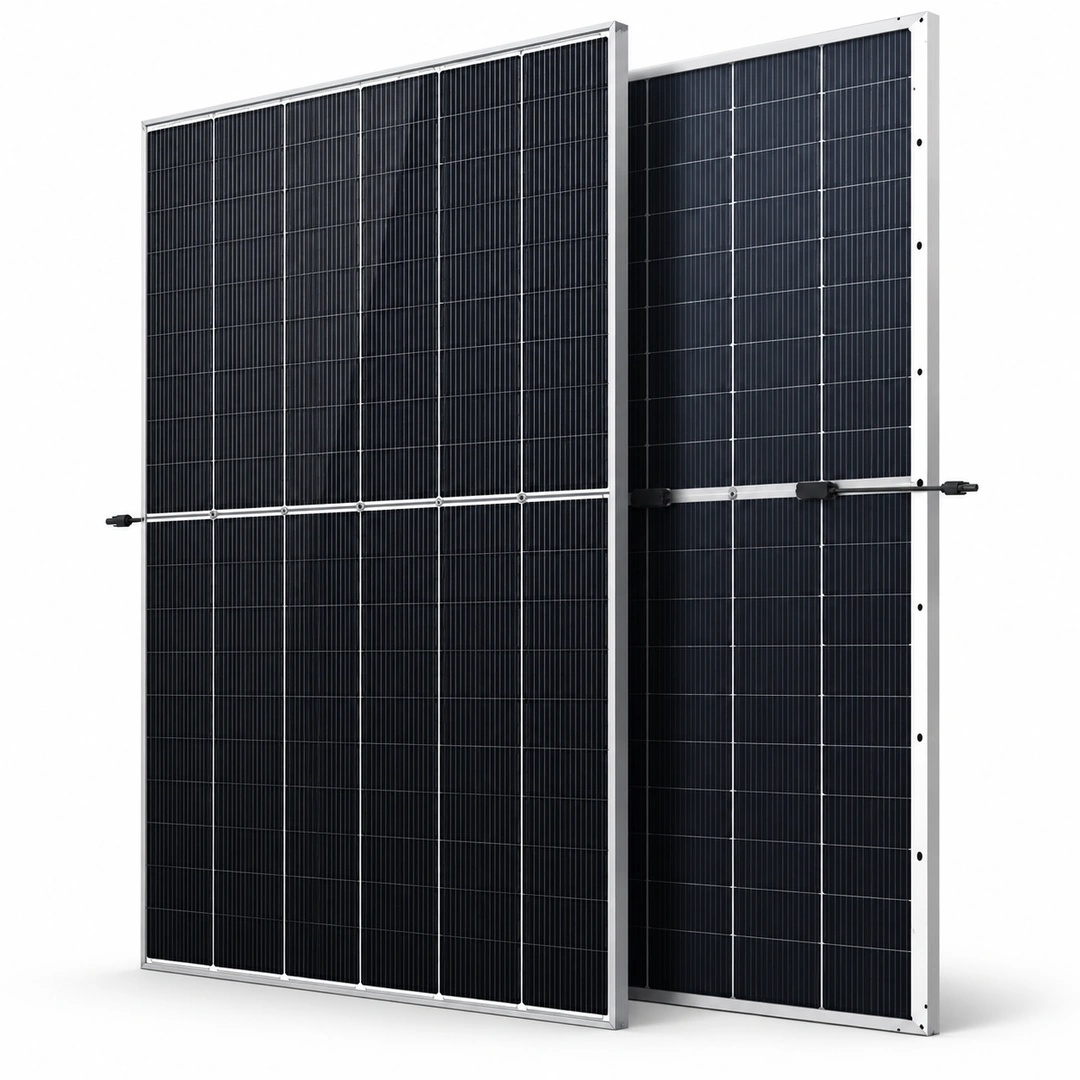

Trina 720W Bifacial Solar Panel

Trina 720W Bifacial Solar Panel Overview

The Trina 720W Bifacial Solar Panel is designed for solar projects that require high output from each installed module. Its N-Type i-TOPCon cell technology, dual-glass construction and bifacial design make it suitable for appropriately engineered commercial, industrial and ground-mounted solar systems. If you are interested in Trina’s 720W bifacial technology, ask Hajvery Solar Energy about the Trina 720W solar panel price in Pakistan.

With a rated output of 720W, this module can help reduce the number of panels required for a given DC capacity compared with lower-wattage modules, subject to system design and available installation space. In addition, its maximum module efficiency of 23.2% supports high power generation per unit of panel area.

The bifacial structure enables the rear side to capture reflected sunlight. However, the additional energy depends on mounting height, surface reflectivity, row spacing, shading and other site conditions. Therefore, it should be treated as a potential performance benefit rather than a fixed increase in output.

For installers and project developers, the panel’s electrical characteristics, dimensions, weight and current limits must be considered when planning the mounting structure and inverter string configuration. As a result, checking system compatibility before installation is important.

Key Features and Benefits

N-Type i-TOPCon Cell Technology

The panel uses N-Type i-TOPCon monocrystalline cells. This cell technology supports high module efficiency and is designed for long-term solar energy production. In addition, the 720W rating makes the module useful for projects seeking high power output from each panel.

For more technical information click the link given below:
Trina Solar Panel Official Website.

Bifacial Dual-Glass Design

The dual-glass construction includes glass on both the front and rear sides. As a result, the bifacial design allows the module to collect direct sunlight on the front and suitable reflected light on the rear.

The potential benefit is greater when the installation provides good rear-side exposure and a reflective surface. However, roofs, mounting arrangements or tightly spaced rows that block rear-side light may limit the additional generation.

High Module Efficiency

With 23.2% maximum module efficiency, the panel converts a substantial proportion of the sunlight reaching its active area into electricity under standard test conditions. Therefore, high efficiency can help make better use of available installation space.

However, actual energy production varies with sunlight, module temperature, shading, orientation, soiling and system losses.

Temperature Performance

The module has a power temperature coefficient of -0.29%/°C. In general, solar panel output decreases as cell temperature rises above the reference temperature used for testing. Therefore, this coefficient helps installers estimate the effect of temperature on power output.

For installations in Pakistan, proper ventilation beneath the modules, suitable mounting arrangements and regular cleaning can help maintain system performance.

Durable Dual-Glass Construction

The panel has 2.0 mm front glass with an anti-reflective coating and heat-strengthened construction, along with 2.0 mm heat-strengthened rear glass. In addition, its aluminium alloy frame supports the module structure.

The junction box has an IP68 rating. However, proper mounting, connectors, earthing and installation practices remain essential for reliable operation.

Best For

The Trina 720W Bifacial Solar Panel can be considered for:

• Commercial solar installations requiring high module output.
• Industrial solar projects with suitable roof or ground space.
• Ground-mounted solar plants where rear-side light can contribute to energy production.
• Large solar arrays designed around high-wattage modules.
• Solar installers and project developers who need to assess high-current module compatibility.
• Projects with reflective installation surfaces that can improve rear-side irradiance.

Ultimately, suitability depends on the electrical design, mounting structure, inverter limits and site conditions.

When Another Panel May Be Better

This panel may not be the right choice for every installation. Therefore, consider the following before purchasing:

• Limited mounting space: Its large dimensions may not suit smaller roofs or compact mounting layouts.
• Low-current inverter inputs: The panel’s operating current must remain within the inverter’s permitted input limits.
• Restricted rear-side exposure: A bifacial design may provide less additional energy when the rear surface receives little reflected light.
• Existing solar arrays: Voltage, current, connector and string requirements should be checked before mixing this module with other panels.
• Lightweight structures: The mounting system must safely support the panel’s weight and the applicable wind and structural loads.

Cell and Module Technology

The Trina 720W module uses N-Type i-TOPCon monocrystalline technology in a bifacial dual-glass configuration. It contains 132 cells and is designed to generate power from both sides.

Its bifaciality coefficient is 80% ± 5%, describing the rear-side power capability relative to the front-side reference under specified test conditions. However, this value does not mean that the panel always generates an additional 80% of power. Instead, the actual rear-side contribution depends on the installation environment.

Technical Specifications

Performance and Power Degradation

Long-term performance is an important consideration when evaluating a solar panel. The Trina 720W Bifacial Solar Panel carries a 30-year power guarantee with the following degradation figures:

• First-year power degradation: 1%
• Annual degradation after the first year: 0.4%
• Guaranteed power at year 30: 87.4% of initial rated power

These figures describe the stated power-guarantee profile, not a promise of a specific annual electricity yield. Actual energy production depends on sunlight, temperature, shading, dust, installation quality and other operating conditions.

The separate 12-year product warranty covers the product under its applicable warranty terms. Therefore, product warranty and long-term power guarantee should be treated as different forms of coverage.

Performance Considerations for Pakistan

Pakistan’s solar installations can experience high summer temperatures, dust accumulation and changing seasonal sunlight. Therefore, correct system design and installation practices help address these conditions.

Temperature management: The -0.29%/°C power temperature coefficient is useful when estimating output under hot operating conditions. For better ventilation, leave suitable space beneath the panels and follow the mounting requirements.

Dust and cleaning: Dust and dirt can reduce the sunlight reaching the cells. Therefore, establish a safe cleaning routine based on local conditions and the installation environment.

Bifacial installation: Leave suitable space behind the panel where possible. Otherwise, rear-side shading and low surface reflectivity can reduce the additional energy benefit.

String design: Use the panel’s voltage and current values when checking the inverter’s MPPT range, maximum input current, short-circuit current limit and maximum DC voltage. In addition, cold-weather voltage adjustments must be considered where relevant.

Structural planning: Each module weighs 38.3 kg. Therefore, the mounting structure must account for the combined module weight and applicable wind and structural loads.

Trina 720W Bifacial Solar Panel Price in Pakistan

The Trina 720W Bifacial Solar Panel price in Pakistan is relevant to commercial buyers, installers and project developers planning a high-capacity solar system.

The current price of the Trina 720W Bifacial Solar Panel in Pakistan is Rs. 28,080 per panel.

For bulk orders and commercial projects, contact Hajvery Solar Energy to confirm current availability, order quantities and applicable pricing. In addition, the total project cost depends on mounting structures, inverter selection, wiring, protection equipment, transportation and installation requirements.

Hajvery Solar Product Verification

Before purchasing the Trina 720W Bifacial Solar Panel, confirm the exact model code, product condition and applicable warranty terms. Also, ensure that the supplied module matches the specifications required for your project.

Hajvery Solar Energy can help buyers assess the panel’s electrical compatibility with their proposed solar system. For suitable inverter selection, account for the module’s operating current, short-circuit current, voltage limits and the number of panels connected in each string.

For bulk or project purchases, confirm the quantity, availability and warranty arrangements before finalising the order.

You can verify your Trina Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Trina Solar Panel Verification Link.

Warranty

The Trina 720W Bifacial Solar Panel has a 12-year product warranty and a 30-year power guarantee. However, the product warranty and power guarantee cover different aspects of the module and should not be treated as interchangeable.

The power guarantee follows the specified degradation profile, including 1% first-year degradation and 0.4% annual degradation thereafter, with 87.4% guaranteed power at year 30. Finally, applicable warranty terms and conditions govern the coverage. Confirm the relevant claim procedure and eligibility before purchase.

Frequently Asked Questions

1. What is the Trina 720W Bifacial Solar Panel price in Pakistan?

The current price is Rs. 28,080 per panel. Contact Hajvery Solar Energy to confirm current availability and bulk-order pricing.

2. What is the efficiency of the Trina 720W solar panel?

The panel has a maximum module efficiency of 23.2%.

3. Is the Trina 720W panel bifacial?

Yes. Its bifacial dual-glass design allows the rear side to collect reflected sunlight. However, additional energy generation depends on the mounting arrangement, surface reflectivity and rear-side exposure.

4. What are the Trina 720W Bifacial Solar Panel specifications?

The panel has a rated power of 720W, N-Type i-TOPCon monocrystalline cells, 23.2% maximum efficiency, 41.3V maximum power voltage and 17.44A maximum power current. In addition, its dimensions are 2384 × 1303 × 33 mm, and its weight is 38.3 kg.

5. What is the size of the Trina 720W solar panel?

The module measures 2384 × 1303 × 33 mm. Therefore, allow additional space for mounting hardware, access and installation clearances.

6. What warranty does the Trina 720W Bifacial Solar Panel have?

It has a 12-year product warranty and a 30-year power guarantee, subject to the applicable terms and conditions.

7. Is this panel suitable for commercial solar systems?

It can be suitable for commercial and industrial installations where the mounting structure, inverter input limits, string configuration and available space support its electrical and physical characteristics.

8. Can the Trina 720W panel generate more than 720W?

Its rated front-side output is 720W under standard test conditions. Under suitable bifacial test or installation conditions, rear-side contribution can increase combined output. However, actual output varies and should not be assumed to exceed the rating at all times.

Buy Trina 720W Bifacial Solar Panel from Hajvery Solar Energy

Looking for a Trina 720W Bifacial Solar Panel in Pakistan for a commercial or industrial solar project? Contact Hajvery Solar Energy for product availability, quantity enquiries and assistance with system compatibility.

To explore more options click the link below:
Trina Solar Panels In Pakistan.
