Aiko 635W Bifacial Solar Panel

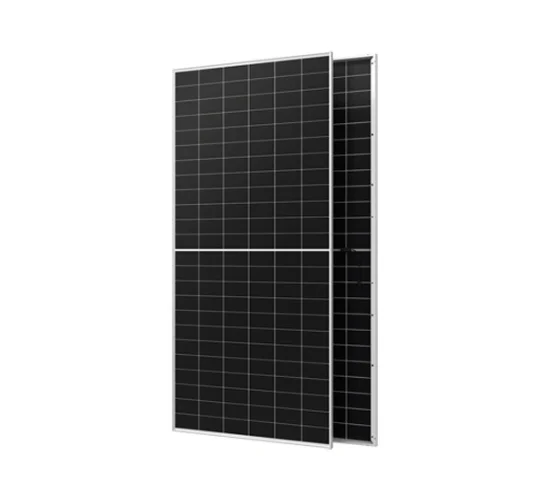

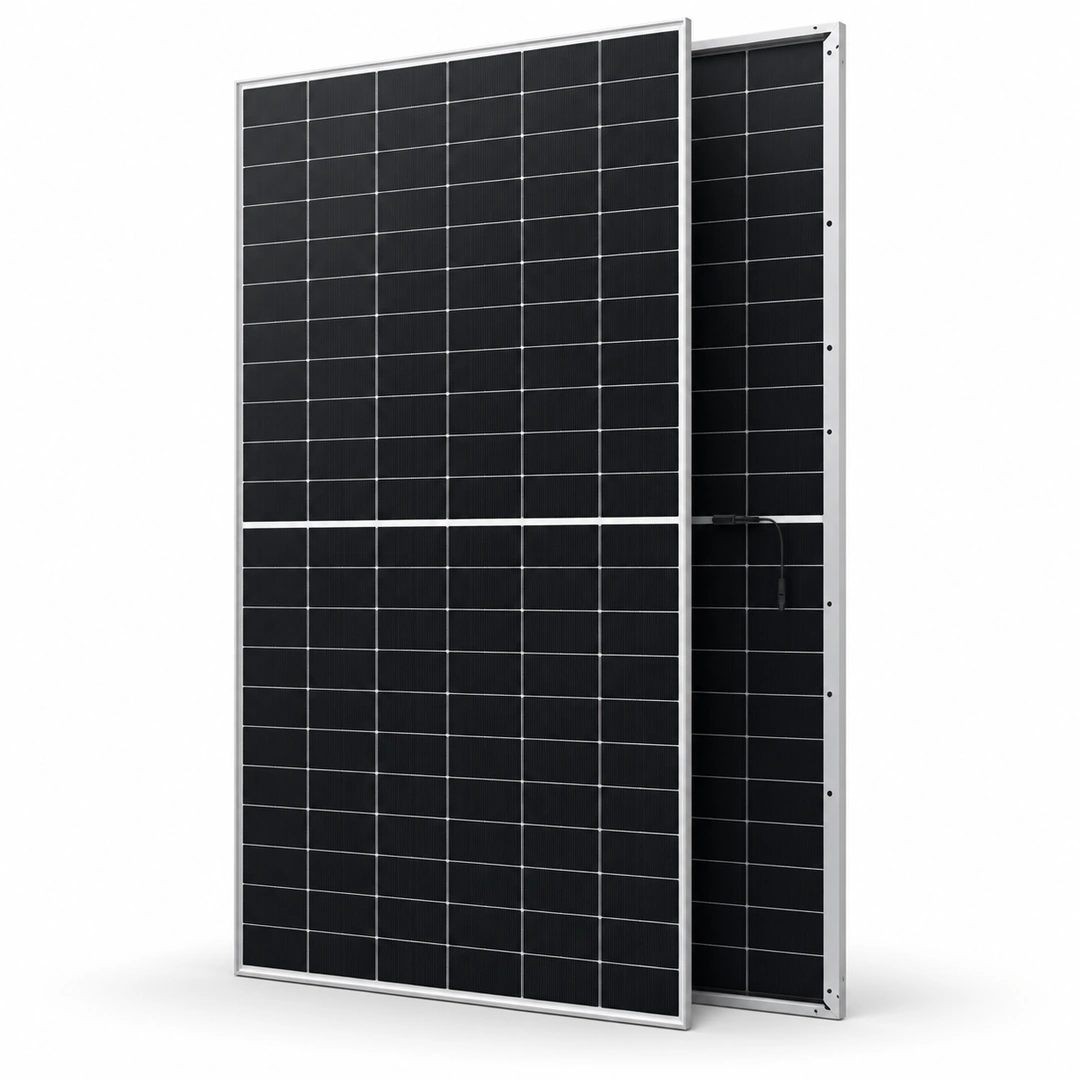

AIKO 635W Bifacial Solar Panel Overview

The AIKO 635W Bifacial Solar Panel is designed for solar installations that require high module output, efficient use of space and long-term performance. It uses N-Type ABC (All Back Contact) cell technology with bifacial dual-glass construction.

With a rated output of 635 watts and module efficiency of 23.5%, this solar panel can help installers achieve substantial solar capacity with fewer modules than a lower-wattage configuration, depending on the selected panel ratings and system design.

The bifacial solar panel design allows the rear side to capture reflected sunlight in addition to the light received on the front. Actual rear-side energy generation depends on mounting height, ground reflectivity, row spacing, shading and installation conditions.

For customers considering an Aiko 635w solar panel for a home, business or larger solar project, the module’s electrical specifications and physical dimensions should be checked against the intended system before installation.

Key Features and Benefits

N-Type ABC Cell Technology

The panel uses N-Type ABC cells, an advanced cell architecture designed to make effective use of the module surface. It delivers a rated power of 635W with an efficiency of 23.5%.

For installations with limited roof space, higher module output can help achieve the required solar capacity without using as many panels as a lower-wattage arrangement. The final panel count depends on the required system capacity and available installation area.
AIKO’s official information about its ABC technology is available here: Aiko 635W bifacial solar panel official website

Bifacial Energy Generation

The AIKO bifacial solar panel allows its rear side to contribute to electricity generation when reflected sunlight reaches it. The panel has a bifaciality factor of 75 ± 5%.

This factor does not mean that total system generation automatically increases by the same percentage. Actual rear-side contribution depends on the installation surface, mounting height, panel spacing, shading and available reflected light.

High Module Efficiency

With 23.5% module efficiency, the AIKO 635W panel converts a high proportion of incident sunlight into electricity under standard test conditions. High efficiency can be useful where roof area is limited and the project requires substantial installed capacity.

Low Power Degradation

The panel has a maximum first-year degradation of 1% and a maximum annual degradation of 0.35% from Year 2 to Year 30.

These figures help buyers evaluate the panel’s long-term performance characteristics. Actual electricity production still depends on sunlight, temperature, dust, shading, installation quality and other system losses.

Dual-Glass Construction

The module features 2.0 + 2.0 mm coated semi-tempered glass and an anodised aluminium frame. Its dual-glass design is suitable for solar installations where construction, mechanical support and long-term use are important considerations.

With a weight of approximately 32.3 kg, the panel requires appropriate handling and a mounting structure designed to support its dimensions and applicable environmental loads.

Best For

The AIKO 635W Bifacial Solar Panel may be suitable for:

• Residential solar installations with adequate roof space and suitable mounting arrangements.

• Commercial rooftops requiring high-output solar modules.

• Industrial solar projects with appropriately designed PV arrays.

• Ground-mounted systems where reflected sunlight can reach the rear side.

• Solar installers and dealers looking for N-Type ABC technology.

• Projects that require high module output and carefully planned string configurations.

The final number of modules should be based on the required system capacity and the inverter’s voltage and current limits, not wattage alone.

When Another Panel May Be Better

A different solar panel may be more suitable if the installation has restricted mounting dimensions, a lower weight limit or inverter input requirements that do not accommodate this module’s electrical characteristics.

Installations with limited reflected sunlight may also receive less benefit from bifacial operation. Before purchasing, check the module dimensions, voltage, current, connector arrangement and mounting requirements against the planned solar system.

Cell and Module Technology

The AIKO 635W solar panel combines N-Type ABC cell technology with a bifacial dual-glass design.

• N-Type ABC cells: The cell technology used in the module.

• Bifacial design: Allows the rear side to contribute to generation when suitable reflected light is available.

• Dual-glass construction: Uses glass on both sides of the module.

• 144 cells: Arranged in a 6 × 24 configuration.

These features make the module relevant to installations that prioritise high output, efficient use of space and the potential for rear-side energy generation.

Technical Specifications

Performance and Degradation

The AIKO 635W bifacial solar panel combines a 635W rated output with a maximum first-year degradation of 1% and maximum annual degradation of 0.35% from Year 2 through Year 30.

Its 30-year linear performance warranty provides a framework for evaluating long-term module output. Applicable warranty conditions should be checked before purchase.

Temperature also affects solar panel performance. The module’s -0.26%/°C power temperature coefficient indicates that output decreases as cell temperature rises above the standard reference temperature, all else being equal.

Annual energy production cannot be determined from wattage alone. Solar irradiation, panel orientation, shading, dust, temperature, inverter performance and system losses all influence the electricity generated.

Performance Considerations for Pakistan

Solar installations in Pakistan can experience high summer temperatures, dust accumulation and seasonal changes in sunlight. Correct system design and routine maintenance are important for maintaining performance.

• Temperature: Allow for reduced output as module temperature rises.

• Dust and soiling: Clean panels when necessary using suitable methods and safety precautions.

• Ventilation: Provide appropriate airflow beneath rooftop modules.

• Bifacial installation: Consider rear-side clearance, mounting height and surface reflectivity.

• Electrical design: Check Voc, Vmp, Isc and Imp when configuring solar strings.

• Mechanical installation: Ensure the mounting structure supports the module’s weight and applicable environmental loads.

The panel’s maximum system voltage is DC 1500V. This is a system limit, not a recommendation to operate every installation at that voltage. The installer must calculate string voltage at the lowest expected temperature and follow all inverter and system limits.

AIKO 635W Bifacial Solar Panel Price in Pakistan

The current price of the AIKO 635W Bifacial Solar Panel in Pakistan is Rs. 26,828.75 per panel.

The final cost of a solar installation depends on the number of panels, mounting structure, inverter, wiring, protection equipment and installation requirements. The panel price alone does not represent the cost of a complete solar system.

Customers, dealers and solar installers can contact Hajvery Solar Energy to confirm current availability and quantity-based pricing. Buyers planning a larger installation should also check delivery arrangements and the electrical suitability of the selected module.

Solar Panel Authenticity and Verification

When comparing Aiko solar panels in Pakistan, buyers should check the exact model, electrical specifications, physical condition and applicable warranty rather than relying on wattage or a general product label alone.

Before purchasing, inspect the product label and serial identification. Use the appropriate official AIKO verification channel where available to check authenticity and warranty eligibility.

The terms Tier 1 and A-Grade should only be used when their applicability and the actual product condition have been verified. Neither should be assumed from the brand name or power rating alone.

Hajvery Solar Product Verification

Hajvery Solar Energy can assist buyers with product enquiries and discussion of the intended solar system requirements.

Before finalising a purchase, confirm:

• The exact AIKO-G635-MCH72Dw model.

• The module’s physical condition and serial identification.

• The applicable product and performance warranty.

• Compatibility with the selected inverter and solar string configuration.

• The required panel quantity and mounting arrangement.

• Current price and availability.

These checks help buyers select a suitable module and reduce the risk of electrical or mechanical mismatches.

Warranty

The AIKO 635W Bifacial Solar Panel has a 15-year product warranty and a 30-year linear performance warranty.

The product warranty and performance warranty cover different aspects of the module and should not be treated as interchangeable. Buyers should confirm the applicable terms, eligibility requirements and claim procedure before purchasing.

The long-term performance warranty is relevant when evaluating a panel intended to operate over many years. Actual electricity production will depend on installation and operating conditions.

Frequently Asked Questions

What is the Aiko 635W bifacial solar panel price in Pakistan?

The current price of the AIKO 635W Bifacial Solar Panel in Pakistan is Rs. 26,828.75 per panel. Confirm current availability and quantity-based pricing with Hajvery Solar Energy before ordering.

What are the Aiko 635W bifacial solar panel specifications?

The panel has a 635W rated output, 23.5% efficiency, N-Type ABC cell technology, bifacial dual-glass construction, a maximum system voltage of DC 1500V and dimensions of 2382 × 1134 × 30 mm.

What is the efficiency of the AIKO 635W solar panel?

The module efficiency is 23.5%. Efficiency indicates the proportion of incident sunlight converted into electrical power under standard test conditions.

Is the AIKO 635W panel bifacial?

Yes. The panel has a bifaciality factor of 75 ± 5%. Actual additional energy production depends on the mounting arrangement, surface reflectivity and available reflected light.

What is the warranty of the AIKO 635W solar panel?

The panel has a 15-year product warranty and a 30-year linear performance warranty. Confirm the applicable coverage and claim requirements before purchasing.

Is the AIKO 635W solar panel suitable for residential use?

It can be considered for residential installations where the roof layout, mounting structure and inverter electrical limits accommodate its dimensions and output. A qualified installer should check string voltage, current and the required number of modules.

How can I verify an AIKO solar panel online?

Check the module’s model and serial identification, then use the official AIKO verification channel where available. Confirm the applicable warranty and purchase details with the seller.

Where can I buy the AIKO 635W bifacial solar panel in Pakistan?

Contact Hajvery Solar Energy at its Johar Town, Lahore address to enquire about the panel, availability and quantity requirements.

Buy AIKO 635W Bifacial Solar Panel from Hajvery Solar Energy

Contact Hajvery Solar Energy for product enquiries and assistance with selecting solar equipment for your installation. Whether you are planning a residential rooftop, commercial project or larger solar array, confirm the module specifications and system compatibility before ordering.
