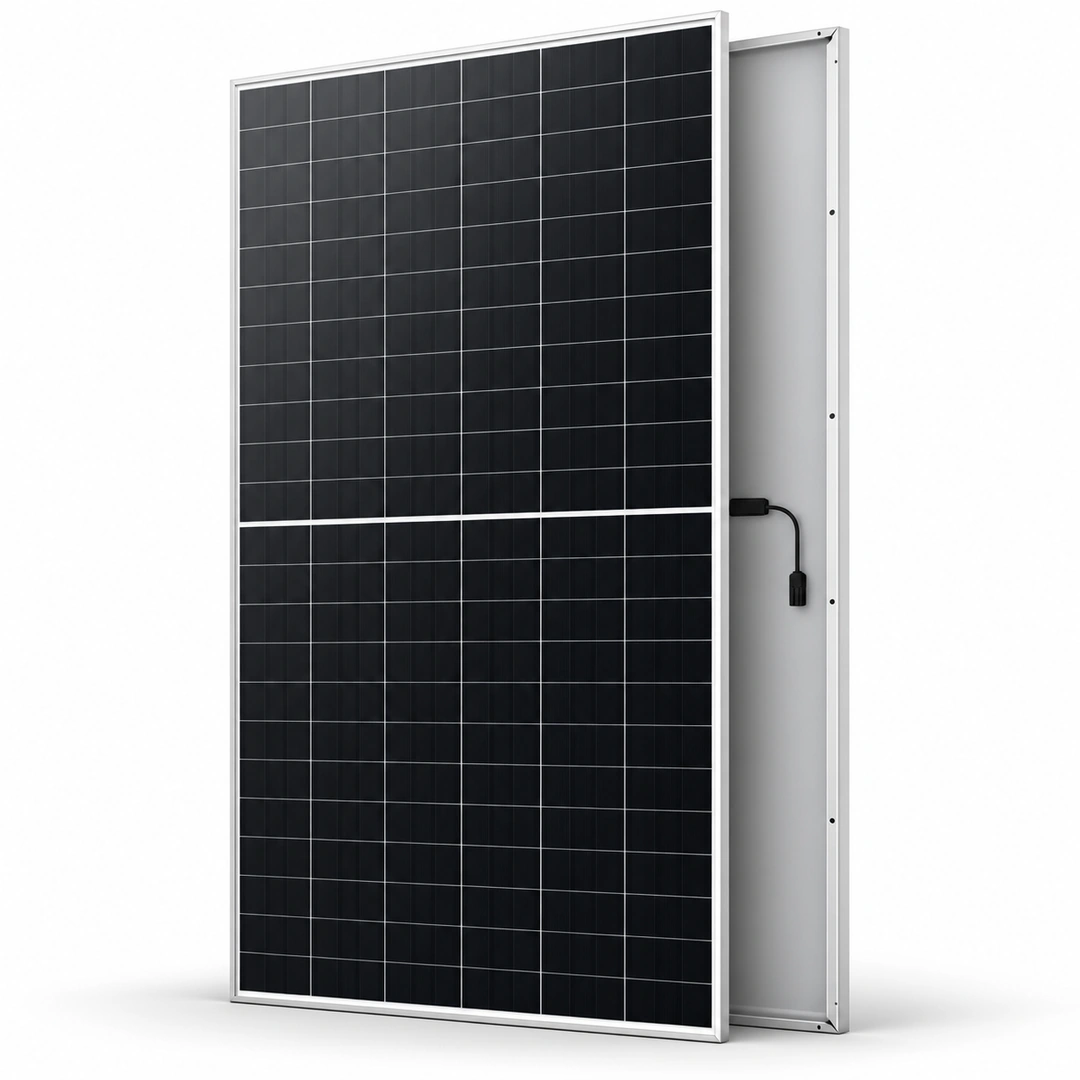

Aiko 650W Bifacial Solar Panel

AIKO 650W Bifacial Solar Panel Overview

The AIKO 650W Bifacial Solar Panel is part of the Stellar 1N+66 series and uses N-Type ABC cell technology in a bifacial module design. With 650W rated output and 24.1% efficiency, it is suitable for solar projects where strong output from the available installation area is important.

In addition, its bifacial construction allows the module to receive sunlight from both the front and rear sides. The 75±5% bifacial factor provides additional rear-side generation potential when the mounting structure, ground surface and surrounding conditions allow useful reflected light to reach the back of the panel.

Furthermore, the module contains 132 cells in a 6×22 configuration and uses dual-glass construction with an anodized aluminium frame. Its 1500V maximum system voltage, IP68 junction box and high mechanical load ratings make it suitable for properly designed residential, commercial and larger solar installations.

Key Features and Benefits

N-Type ABC Cell Technology

The N-Type ABC cell technology is a key feature of this panel. As a result, the module provides a high-efficiency cell architecture within a 650W module, helping installers achieve strong power output without using a lower-wattage module.

For buyers comparing an Aiko 650w Solar Panel, cell technology is an important factor alongside efficiency, dimensions, electrical characteristics and warranty.

For more information about AIKO ABC technology, visit the AIKO official website.

Bifacial Energy Generation

The panel has a 75±5% bifacial factor, meaning the rear side is designed to contribute to energy generation when suitable light reaches it. Therefore, this design can be useful for elevated installations and projects where the rear side has enough exposure to reflected or diffused sunlight.

Moreover, mounting height, row spacing, ground reflectivity and rear-side clearance should be considered during bifacial system design.

650W High Power Output

With a 650W rated output, this module can provide high power per panel. Consequently, it can help reduce the number of modules required for a given system capacity compared with lower-wattage panels, subject to the project’s electrical and physical design.

In addition, the panel has a 24.1% module efficiency, giving it a strong output level for installations where available roof or mounting space needs to be used efficiently.

Dual-Glass Construction

The module uses 2.0 + 2.0mm coated semi-tempered dual glass with an anodized aluminium frame. Therefore, the construction is suitable for solar installations requiring a durable module structure.

Furthermore, the panel has a 5400Pa front static load rating and 2400Pa rear static load rating, with a specified hail test of 25mm diameter hail at 23m/s.

IP68 Junction Box

The panel uses an IP68 junction box with three bypass diodes. In addition, it is supplied with an MC4-compatible/original MC4-EVO2A connector configuration.

Best For

The AIKO 650W Bifacial Solar Panel is a practical choice for:

• Residential solar systems with sufficient roof area and suitable structural support
• Commercial rooftops requiring high-output modules
• Large solar installations where higher wattage can help optimise the number of modules
• Bifacial solar projects where useful rear-side light is available
• Installations designed around 1500V DC system voltage
• Buyers looking for N-Type ABC technology with high module efficiency

For bifacial projects, the installation design should account for rear-side clearance and the surface below the panels. As a result, proper system planning is important for making effective use of the bifacial design.

When Another Panel May Be Better

This panel may not be the best fit where the project specifically requires:

• Smaller module dimensions
• A lower module weight
• A monofacial module instead of bifacial construction
• Different voltage or current characteristics
• A lower-wattage module for a particular string configuration

In addition, the module measures 2382 × 1134 × 30mm and weighs approximately 32.5kg ±3%. Therefore, mounting structure, transportation and handling requirements should be considered before installation.

Cell and Module Technology

The AIKO 650W Bifacial Solar Panel uses N-Type ABC cells with 132 cells arranged in 6×22 configuration. At the same time, the bifacial design allows the front and rear sides of the module to contribute to energy production.

The module has a 75±5% bifacial factor, while the dual-glass construction provides the physical structure required for the module design. Therefore, installation conditions remain important when assessing the potential benefit of bifacial generation.

Overall, the combination of 650W power output, 24.1% efficiency and N-Type ABC technology makes this panel suitable for projects where high module output is a priority.

Technical Specifications

Importantly, the 650W electrical characteristics, efficiency and power tolerance apply specifically to the AIKO-A650-GRH66Dw model. Additionally, the construction, temperature, protection and mechanical specifications define the module’s installation requirements.

Performance Considerations for Pakistan

Pakistan’s high summer temperatures make module temperature behaviour an important part of solar system planning. The AIKO 650W Bifacial Solar Panel has a Pmax temperature coefficient of -0.26%/°C, along with a Voc coefficient of -0.22%/°C and Isc coefficient of +0.05%/°C.

Therefore, proper mounting ventilation should be maintained so that heat can dissipate around the modules. In addition, dust and soiling can reduce energy production, making regular cleaning important, particularly in areas with higher dust levels.

For bifacial installations, the rear side should not be unnecessarily blocked. Moreover, mounting height, row spacing and the surface below the modules can influence how much useful light reaches the rear side.

Finally, string voltage should be checked against the inverter’s operating range and the panel’s DC 1500V maximum system voltage during system design.

AIKO 650W Bifacial Solar Panel Price in Pakistan

The current price of AIKO 650W Bifacial Solar Panel in Pakistan is Rs. 28,112.50 per panel.

However, the final project cost can vary depending on quantity, transportation, installation requirements and overall system design. Dealers, installers and bulk buyers can contact Hajvery Solar for current wholesale availability and quantity-based pricing.

When comparing aiko 650w bifacial solar panel price with other high-wattage modules, it is important to consider efficiency, bifacial performance, construction, electrical characteristics and warranty rather than comparing wattage alone.

Aiko 650w Bifacial Solar Panel Review

For anyone searching for an aiko 650w bifacial solar panel review, the most useful comparison points are its 650W output, 24.1% efficiency, N-Type ABC cells, 75±5% bifacial factor, dual-glass construction and electrical characteristics.

In addition, an aiko 650w solar panel review should consider the installation environment. A bifacial panel can provide greater value when its rear side has suitable exposure to reflected light. On the other hand, a standard rooftop with limited rear-side exposure may not fully utilise its bifacial capability.

Aiko 650w Solar Panel Specifications

The key aiko 650w solar panel specifications include 650W rated power, 24.1% efficiency, 40.68V Vmp, 15.98A Imp, 49.70V Voc and 16.64A Isc under STC conditions. Furthermore, the panel supports a maximum system voltage of DC 1500V.

In addition, the physical design includes 132 N-Type ABC cells, dual glass, an anodized aluminium frame, IP68 junction box and dimensions of 2382 × 1134 × 30mm.

Aiko 650w Solar Panel Datasheet and Product Information

Buyers searching for an aiko 650w solar panel datasheet should pay particular attention to the exact model number AIKO-A650-GRH66Dw before using electrical values for system design.

Specifically, the exact model’s STC values include 650W Pmax, 49.70V Voc, 40.68V Vmp, 16.64A Isc and 15.98A Imp.

Aiko Solar Panel Price in Pakistan

The aiko solar panel price in pakistan depends on the exact wattage, technology, model, quantity and market conditions. For this specific 650W panel:

Current Price: Rs. 28,112.50 per panel.

Therefore, buyers comparing aiko solar panels 650w price in pakistan should consider the complete system design alongside the panel price.

Aiko Solar Panel Verification Online

If you are looking for aiko solar panel verification online, make sure the exact model and product identification details are checked before purchase.

For this product, the model is AIKO-A650-GRH66Dw. Therefore, matching the exact model number with the product being purchased is an important step before installation.

Hajvery Solar Product Verification

Before ordering, confirm the exact AIKO-A650-GRH66Dw model, product identification details and applicable warranty.

In addition, Hajvery Solar can assist buyers with product and system-related checks where applicable.

Warranty

The AIKO 650W Bifacial Solar Panel comes with a 15-Year Product Warranty and a 30-Year Performance Warranty.

Furthermore, the warranty coverage should be considered together with the applicable warranty terms and conditions when purchasing the panel.

Frequently Asked Questions

Is the AIKO 650W Bifacial Solar Panel N-Type?

Yes. The panel uses N-Type ABC cell technology.

In addition, this cell technology forms part of the panel’s high-efficiency module design.

Is the AIKO 650W panel bifacial?

Yes. It is a bifacial solar panel with a 75±5% bifacial factor.

Therefore, suitable rear-side exposure and installation conditions should be considered when planning a bifacial system.

What is the efficiency of the AIKO 650W panel?

The AIKO-A650-GRH66Dw has a 24.1% module efficiency.

Moreover, the panel provides 650W rated power with 0 to +3% power tolerance.

What is the current price of AIKO 650W Bifacial Solar Panel in Pakistan?

The current price of AIKO 650W Bifacial Solar Panel in Pakistan is Rs. 28,112.50 per panel.

What are the dimensions of the panel?

The panel measures 2382 × 1134 × 30mm and weighs approximately 32.5kg ±3%.

Therefore, the mounting structure and handling requirements should be considered before installation.

What warranty does the AIKO 650W panel have?

It has a 15-Year Product Warranty and a 30-Year Performance Warranty.

As a result, buyers should also review the applicable warranty terms before purchase.

Buy AIKO 650W Bifacial Solar Panel from Hajvery Solar

Choose the AIKO 650W Bifacial Solar Panel when your solar project requires high module output, N-Type ABC technology and bifacial energy-generation capability.

In addition, Hajvery Solar provides solar panels for residential, commercial and installer requirements in Pakistan.

For current availability, quantity requirements and installation guidance, contact Hajvery Solar Energy.

For more options, explore Aiko Solar Panels in Pakistan.
