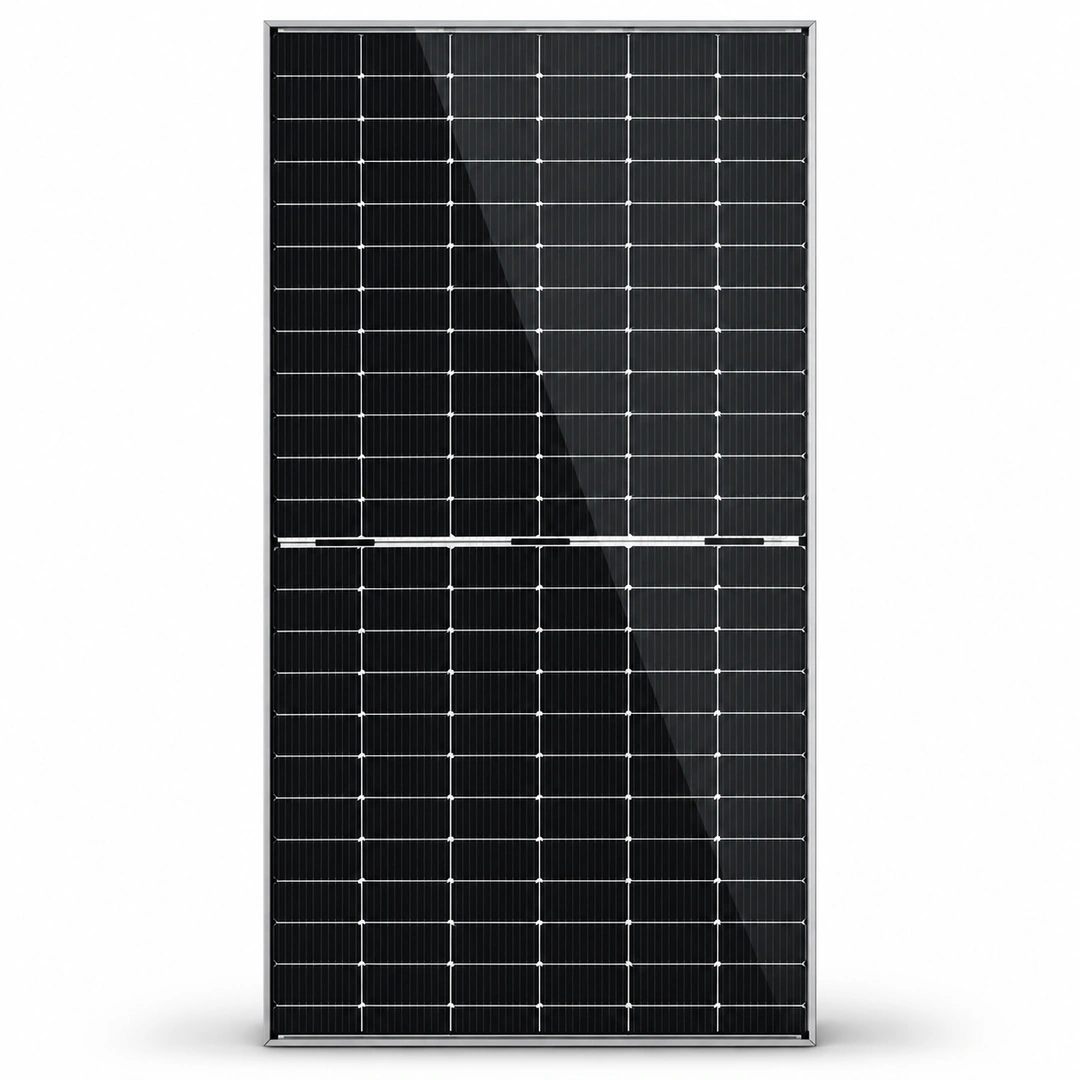

Canadian 700W Bifacial Solar Panel

Canadian 700W Bifacial Solar Panel Overview

The Canadian 700W Bifacial Solar Panel is designed for solar projects that need high power output and extra energy generation potential. It combines N-type TOPCon technology, bifacial construction and 22.5% module efficiency. As a result, it suits suitable rooftop and ground-mounted installations. If you are comparing the Canadian 700W bifacial solar panel price in Pakistan, consider its efficiency, design and warranty before buying.

This module delivers a rated front-side output of 700W under standard test conditions. Moreover, its bifacial design allows the rear side to capture reflected sunlight. Consequently, the panel may generate additional electricity when the installation provides enough reflected light. However, the actual gain depends on panel height, tilt angle, mounting structure and ground reflectivity.

For buyers searching for a Canadian 700 watt solar panel, electrical compatibility is just as important as power output. Therefore, check the module’s voltage, current, dimensions and weight before choosing an inverter.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-type TOPCon cells for efficient solar energy conversion. Its 22.5% module efficiency also helps make better use of the available installation area.

Furthermore, high wattage can help installers plan the required number of panels. The final quantity depends on the target system capacity, available space and inverter limits.

For more technical information, visit the Canadian Solar Official Website.

Bifacial Solar Energy Generation

A bifacial solar panel captures sunlight from both the front and rear sides. As a result, reflected sunlight reaching the back of the module can add to its front-side power generation.

To improve rear-side performance, installers should allow enough clearance beneath the panel. In addition, mounting height, tilt angle and ground reflectivity all affect energy gain. However, surfaces that reflect little sunlight may provide less additional power.

High Power Output

With a 700W rated output, this module helps solar projects reach their target capacity using high-wattage panels. Consequently, installers can plan the array around available space and the required system size.

Even so, the final design must meet the inverter’s electrical limits. Proper string configuration is also essential for safe operation.

Performance in Hot Weather

The module has a maximum power temperature coefficient of -0.29%/°C. In simple terms, this value describes how its maximum power changes as cell temperature rises above the standard reference temperature.

For better temperature control, provide suitable mounting clearance and airflow beneath the modules. These steps are especially useful during Pakistan’s hot summer months.

Durable Dual-Glass Construction

The panel features heat-strengthened glass on both sides and an anodized aluminium alloy frame. In addition, its IP68-rated junction box contains three bypass diodes.

This construction supports outdoor solar installations when installers handle and mount the module correctly. Therefore, follow the applicable installation requirements to support safe operation.

Best For

The Canadian 700W bifacial module may suit several types of solar projects:

• Commercial rooftop solar systems with enough mounting space and structural capacity.
• Industrial solar installations that need high-output modules.
• Ground-mounted solar arrays where the rear side can receive reflected sunlight.
• Residential solar projects with sufficient roof area and compatible inverter inputs.
• Solar installers and dealers planning systems around high-wattage bifacial modules.

Overall, the best application depends on the project’s electrical design, structural requirements and installation conditions.

When Another Panel Configuration May Be Better

This module may not suit every installation. For example:

• The available roof space cannot accommodate its large dimensions.
• The mounting structure cannot safely support its weight and wind loading.
• The inverter’s maximum input current or voltage limits are incompatible with the module.
• The installation offers little rear-side light access, which reduces the benefit of bifacial generation.
• The project requires a different panel size or electrical configuration.

For this reason, select a panel based on the complete system design rather than wattage alone.

Cell and Module Technology

The Canadian 700W module combines N-type TOPCon technology with bifacial, dual-glass construction. Its 132-cell arrangement uses a 2 × (11 × 6) configuration.

The front glass is 2.0 mm heat-strengthened glass with an anti-reflective coating. Meanwhile, the rear glass is also 2.0 mm thick and heat-strengthened. Together, these features allow the module to receive sunlight from both sides.

The rated output is measured from the front side under standard test conditions. However, rear-side contribution varies with installation conditions. Therefore, additional bifacial power should not be treated as guaranteed output.

Technical Specifications

Electrical Performance Under Standard Test Conditions

The electrical values above apply under standard test conditions (STC). These conditions use irradiance of 1000 W/m², an AM 1.5 spectrum and a cell temperature of 25°C.

The examples below show how different levels of bifacial gain could affect total power.

These figures illustrate possible additional power under the stated gain assumptions. However, they do not represent guaranteed output. Actual performance depends on mounting height, rear-side illumination and ground reflectivity.

Performance and Degradation

The panel has a 12-year product warranty on materials and workmanship and a separate 30-year linear power performance warranty.

The applicable power degradation limits are:

• First-year degradation: No more than 1%.
• Subsequent annual degradation: No more than 0.4%.

These warranties cover different aspects of the product. The product warranty concerns materials and workmanship, while the linear power performance warranty concerns power retention over time. In either case, coverage remains subject to the applicable warranty terms and conditions.

Performance Considerations for Pakistan

Solar panels in Pakistan face changing temperatures, dust levels and sunlight conditions. Therefore, suitable installation and regular maintenance can help support reliable energy production.

High summer temperatures: The panel’s -0.29%/°C temperature coefficient describes the effect of rising cell temperature on power output. For this reason, adequate airflow beneath the modules helps manage heat.

Dust and cleaning: Dust can block sunlight from reaching the cells. Consequently, regular inspection and suitable cleaning can help maintain panel performance.

Bifacial mounting: Rear-side generation depends on reflected sunlight and clear access to the back of the module. In addition, installers should consider mounting height, tilt and surface reflectivity during installation.

Electrical compatibility: The inverter and string configuration must support the panel’s voltage and current limits. Before installation, check the open-circuit voltage at low temperatures and the inverter’s maximum input current.

Canadian 700W Bifacial Solar Panel Price in Pakistan

The current price of the Canadian 700W Bifacial Solar Panel in Pakistan is Rs. 29,400 per panel. Buyers can contact Hajvery Solar Energy to confirm availability, order quantities and delivery arrangements.

For commercial and industrial projects, consider the required panel quantity before ordering. In addition, check the complete system design to ensure that the modules match the inverter and mounting structure.

Hajvery Solar Product Verification

Before purchasing a Canadian 700W solar panel, check the exact model identification, product condition and applicable warranty coverage. Also, confirm that the supplied module matches your intended system design.

Hajvery Solar Energy serves customers from 280K Block J-1, Johar Town, Lahore. The team can assist with product enquiries and panel-to-inverter compatibility checks.

You can also use the Canadian Solar Panel Verification Link to check the available product verification information.

Warranty

The Canadian 700W Bifacial Solar Panel carries a 12-year enhanced product warranty on materials and workmanship and a 30-year linear power performance warranty.

The linear performance terms specify no more than 1% degradation in the first year and no more than 0.4% annual degradation in subsequent years. However, all warranty claims remain subject to the applicable Canadian Solar Limited Warranty Statement and its conditions.

Contact Hajvery Solar Energy to confirm the applicable warranty coverage and claim procedure.

Before You Buy

Before purchasing this high-wattage bifacial module, check the following points:

• The installation structure can accommodate the panel’s dimensions and weight.
• The inverter supports the module’s operating voltage and input current.
• String voltage remains within inverter limits, including the effect of low temperatures on open-circuit voltage.
• The array configuration meets maximum series-fuse and system-voltage requirements.
• The mounting arrangement provides suitable ventilation and, where possible, rear-side light access.
• The panel quantity matches the intended system capacity.
• The applicable product and performance warranty terms are understood.

Finally, ask a qualified solar installer to verify the complete string design before installation.

Frequently Asked Questions

1. What is the Canadian 700W solar panel price in Pakistan?

The current price of the Canadian 700W Bifacial Solar Panel in Pakistan is Rs. 29,400 per panel. However, contact Hajvery Solar Energy to confirm availability and order details.

2. What is the efficiency of the Canadian 700W solar panel?

The panel has a rated efficiency of 22.5%. Actual energy production varies with sunlight, temperature, shading, orientation and cleaning.

3. Is the Canadian 700W panel bifacial?

Yes, the module has a bifacial, dual-glass design. As a result, it can generate additional electricity when reflected sunlight reaches its rear side. The amount of extra energy depends on the installation conditions.

4. What are the dimensions of the Canadian 700W bifacial solar panel?

The panel measures 2384 × 1303 × 33 mm and weighs 37.8 kg. Therefore, the mounting structure must safely support its weight and applicable wind loads.

5. What is the model number of this Canadian Solar panel?

The exact model is CS7N-700TB-AG, from the TOPBiHiKu7 series.

6. What warranty does the Canadian 700W Bifacial Solar Panel have?

It has a 12-year product warranty on materials and workmanship and a 30-year linear power performance warranty, subject to the applicable warranty terms and conditions.

7. Can the Canadian 700W panel work with any solar inverter?

No. Wattage alone does not confirm compatibility. Instead, check the inverter’s maximum DC voltage, MPPT voltage range, input current and short-circuit current limits against the panel and planned string configuration.

Buy the Canadian 700W Bifacial Solar Panel from Hajvery Solar Energy

If you want to know Canadian 700W Bifacial Solar Panel in Pakistan, Hajvery Solar Energy can assist with product enquiries and system compatibility checks. Before placing an order, confirm the exact model, applicable warranty and availability.

To explore more options click the link below:
Canadian Solar Panels In Pakistan.
