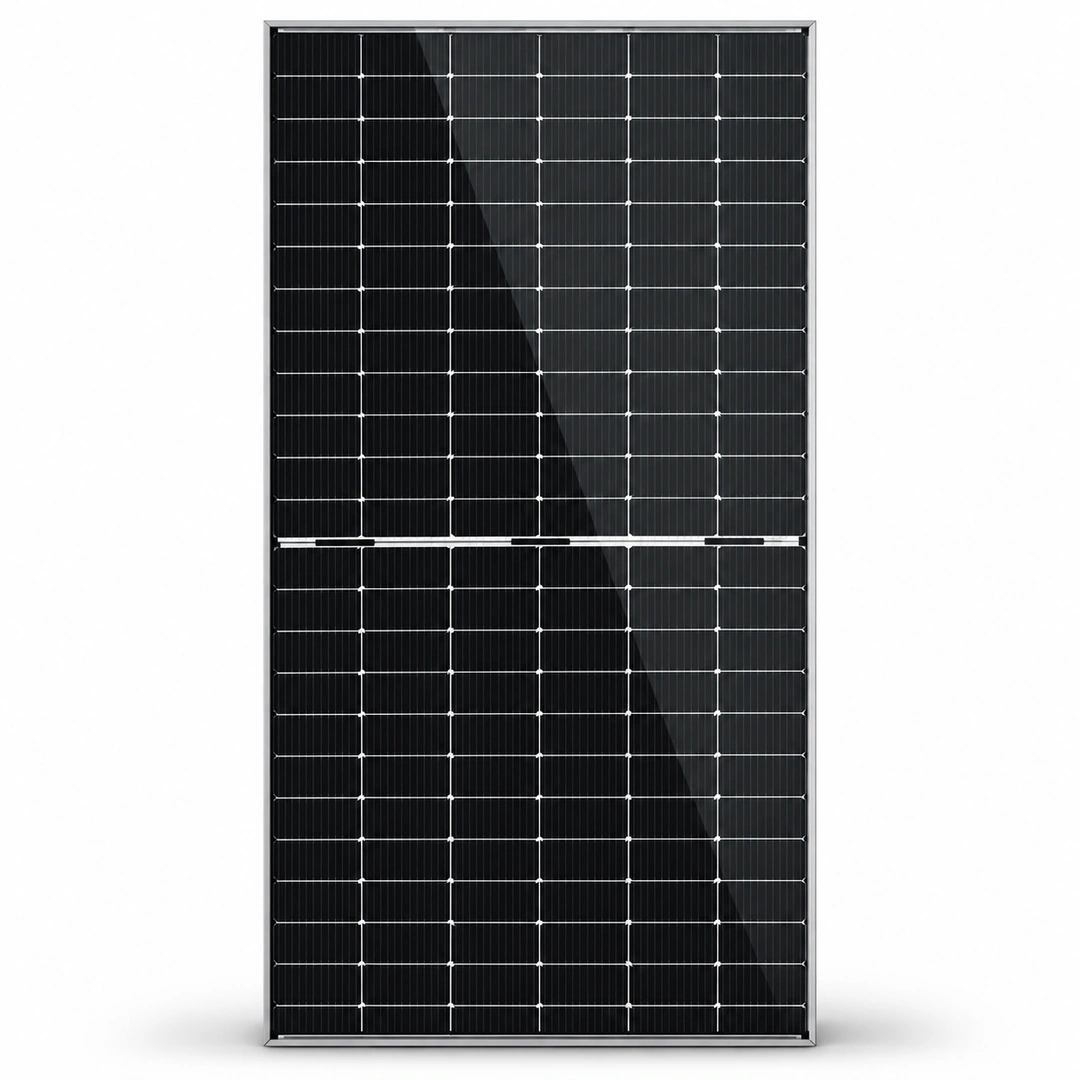

Canadian 705W Bifacial Solar Panel

Canadian 705W Bifacial Solar Panel Overview

The Canadian 705W Bifacial Solar Panel is designed for solar projects that require high power output from individual modules. It belongs to the TOPBiHiKu7 series and uses N-Type TOPCon cell technology with a bifacial glass-to-glass construction. Buyers can check the Canadian Solar 705W panel price in Pakistan with Hajvery Solar Energy and confirm current availability before ordering.

Its 705W rated output makes it suitable for commercial and industrial solar systems, as well as large installations where the available mounting area, inverter capacity and string configuration are important considerations.

Unlike a conventional front-side-only module, a bifacial solar panel can collect sunlight from the rear side as well. The additional energy depends on the installation height, mounting structure, surface reflectivity, shading and the amount of light reaching the back of the panel.

For buyers in Pakistan, the combination of high rated power and a low temperature coefficient is particularly relevant during hot weather. Proper mounting, ventilation and regular cleaning remain important for maintaining solar system performance.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type TOPCon cells to deliver high rated power and efficient solar energy conversion. Its 22.7% module efficiency helps make effective use of the available installation area.

This is useful for projects where roof space, mounting arrangements or the number of modules needs careful planning.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Energy Generation

A bifacial solar panel generates electricity from its front side and can collect additional sunlight from its rear side. Light reflected from a suitable roof or ground surface can contribute to extra generation.

The actual bifacial gain varies with site conditions. It should not be treated as a guaranteed increase in energy production.

High Power Output

With 705W rated power, the panel can help reduce the number of modules required for a given DC capacity compared with lower-output modules, subject to the system design and available installation space.

The final number of panels depends on the required system capacity, inverter limits, roof layout and electrical design.

Performance in Hot Weather

The module has a Pmax temperature coefficient of -0.29%/°C. Solar panels generally produce less power as cell temperature rises above the reference temperature.

A lower absolute temperature coefficient helps limit temperature-related power reduction. Suitable mounting clearance and ventilation can also help manage operating temperatures.

Double-Glass Construction

The panel has 2.0 mm heat-strengthened glass on both the front and rear sides, supported by an anodized aluminium alloy frame. This construction is designed for solar installations that require a glass-to-glass bifacial module.

Best For

The Canadian 705W Bifacial Solar Panel is suitable for:

• Commercial solar systems with substantial daytime electricity demand.
• Industrial installations requiring high-output modules.
• Large rooftop projects where dimensions and structural loading have been checked.
• Ground-mounted solar systems designed to benefit from rear-side light collection.
• Solar installers and project developers planning high-capacity PV arrays.
• Projects where module efficiency, temperature behaviour and long-term power performance are important.

When Another Panel May Be Better

This panel may not suit every installation. Consider the following before selecting it:

• Limited roof space: Check the panel’s physical dimensions and available mounting area.
• Restricted structural loading: Confirm that the roof and mounting structure can support the modules and installation hardware.
• Inverter current limitations: Check the module’s operating current and short-circuit current against the inverter’s input limits.
• Low rear-side light availability: The additional bifacial energy benefit may be limited where the rear side receives little reflected light.
• Smaller solar installations: The module’s dimensions and electrical characteristics must suit the intended system.

Cell and Module Technology

The panel combines N-Type TOPCon technology with a bifacial design. TOPCon is a solar cell architecture intended to improve the conversion of sunlight into electrical energy.

The bifacial construction allows the rear side to contribute to power generation when light reaches it. The effectiveness of this feature depends on installation design rather than rated wattage alone.

Its 132-cell arrangement and double-glass construction make the panel suitable for appropriately engineered commercial, industrial and ground-mounted systems.

Technical Specifications

Performance and Degradation

The panel has a 30-year linear power performance warranty. Its specified power degradation is no more than 1% in the first year, followed by no more than 0.4% annually in subsequent years.

These figures describe the warranted power-performance limits. Actual electricity generation will also depend on sunlight, shading, dust, operating temperature, orientation, installation quality and system losses.

The bifacial design can increase energy production when suitable rear-side illumination is available. A realistic project estimate should account for the installation surface and mounting arrangement rather than assuming a fixed bifacial gain.

Performance Considerations for Pakistan

Pakistan’s hot summers make temperature management and installation quality important for solar panels.

• Mounting and ventilation: Allow suitable airflow around the modules to help manage operating temperatures.
• Dust and cleaning: Dust accumulation can reduce sunlight reaching the cells. Establish a suitable cleaning routine for the site.
• Bifacial installation: Consider the ground or roof surface, mounting height, rear clearance and shading when estimating additional energy generation.
• Electrical design: Check operating voltage, current, maximum system voltage and inverter input limits before finalising the string configuration.
• Structural planning: Account for the module’s dimensions and weight when designing the mounting structure.

A qualified solar installer should confirm the complete PV array design before installation.

Canadian 705W Bifacial Solar Panel Price in Pakistan

The Canadian 705w solar panel price in pakistan is an important consideration for customers planning a commercial, industrial or large rooftop solar installation.

The current price of the Canadian 705W Bifacial Solar Panel in Pakistan is Rs. 29,610 per panel.

For a complete project, the total panel cost depends on the number of modules required. Mounting structures, installation, wiring, protection equipment and inverter costs are separate considerations.

Contact Hajvery Solar Energy to confirm current availability, project requirements and quantity-based pricing. Dealers, installers and commercial buyers can also enquire about bulk purchasing.

Hajvery Solar Product Verification

Before purchasing the Canadian 705W Bifacial Solar Panel, confirm the exact model number, module rating, product condition and applicable warranty.

Buyers should also ensure that the selected inverter can accommodate the panel’s voltage and current characteristics. The complete string design must respect inverter limits, including maximum DC voltage, MPPT operating range and input-current ratings.

For commercial and industrial projects, the installation structure should be designed for the module’s dimensions, weight and applicable site wind and snow loads.

Hajvery Solar Energy can assist customers with product selection and enquiries about purchasing the correct panel for their solar project.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian 705W Bifacial Solar Panel carries a 12-year enhanced product warranty covering materials and workmanship and a separate 30-year linear power performance warranty.

The linear power warranty limits first-year power degradation to no more than 1% and subsequent annual degradation to no more than 0.4%. Product and performance warranties cover different aspects of the module and should not be treated as interchangeable.

Warranty coverage is subject to the applicable Canadian Solar Limited Warranty Statement and its terms and conditions. Confirm the applicable warranty documentation, eligibility and claim requirements before purchase.

Before You Buy

Check these points before ordering:

• Confirm the exact 705W model.
• Verify the available roof or ground-mounting area.
• Check the inverter’s maximum DC voltage and MPPT current limits.
• Have a qualified installer calculate the PV string configuration.
• Assess whether the rear side will receive enough reflected light to benefit from bifacial generation.
• Confirm the mounting structure can support the panel’s size and weight.
• Review the applicable product and performance warranty terms.

Frequently Asked Questions

1. What is the Canadian 705W Bifacial Solar Panel price in Pakistan?

The current price of the Canadian 705W Bifacial Solar Panel in Pakistan is Rs. 29,610 per panel. Contact Hajvery Solar Energy to confirm availability and quantity-based pricing.

2. What is the efficiency of the Canadian 705W solar panel?

The module has a rated efficiency of 22.7%. Actual electricity production depends on sunlight, temperature, shading, orientation and installation conditions.

3. Is the Canadian 705W panel a bifacial solar panel?

Yes. It uses a bifacial double-glass design that can collect sunlight from both the front and rear sides. Additional generation depends on rear-side illumination and site conditions.

4. What are the Canadian 705W bifacial solar panel specifications?

The panel has a rated output of 705W, N-Type TOPCon cell technology, 22.7% efficiency, a maximum power voltage of 40.2V and a maximum power current of 17.55A. Its dimensions are 2384 × 1303 × 33 mm.

5. What is the size of the Canadian 705W Bifacial Solar Panel?

Its dimensions are 2384 × 1303 × 33 mm, and it weighs 37.8 kg. Confirm the available mounting space and structural suitability before installation.

6. What warranty does the Canadian 705W Bifacial Solar Panel have?

It has a 12-year product warranty covering materials and workmanship, along with a 30-year linear power performance warranty, subject to the applicable warranty terms.

7. Are bifacial solar panels worth it?

They can be worthwhile when the installation provides suitable rear-side light exposure. The actual benefit depends on mounting height, surface reflectivity, shading and project conditions. A site-specific generation estimate is preferable to assuming a fixed gain.

Buy Canadian 705W Bifacial Solar Panel from Hajvery Solar Energy

Choose Hajvery Solar Energy for enquiries about the Canadian 705W Bifacial Solar Panel and other solar installation requirements. Confirm the exact model, current availability, warranty terms and inverter compatibility before placing your order.

Visit Hajvery Solar Energy at 280K Block J-1, Johar Town, Lahore, or contact the team for product and project enquiries.
