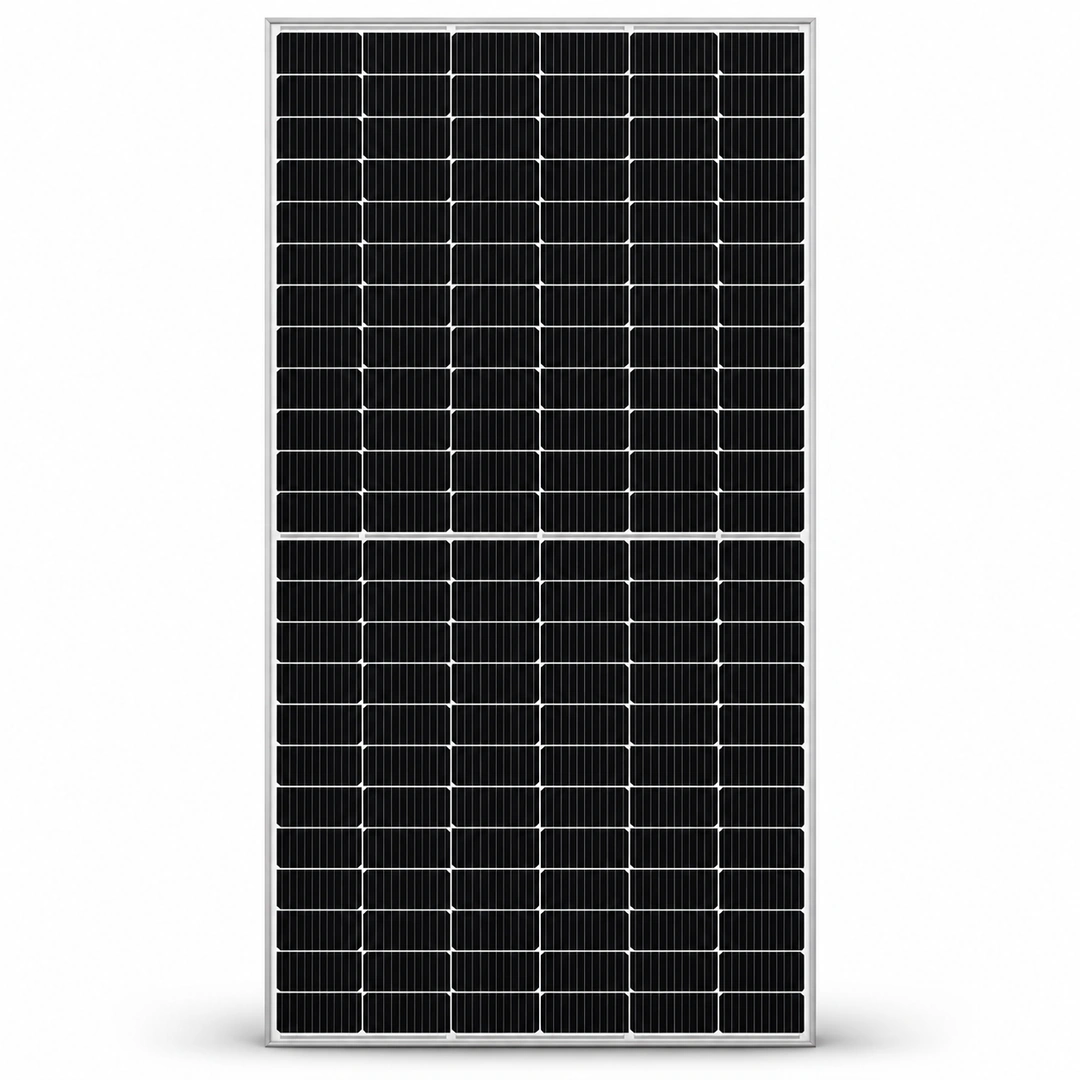

Canadian 630W Bifacial Solar Panel

Canadian 630W Bifacial Solar Panel Overview

The Canadian 630W Bifacial Solar Panel is designed for solar installations that require high module output and the potential to generate additional electricity from the rear side. Its N-Type TOPCon technology combines with bifacial construction to support efficient solar energy production under suitable installation conditions. Before purchasing, compare the canadian 630w solar panel price in pakistan with the panel’s efficiency, bifacial technology and warranty coverage.

The panel has a rated front-side power output of 630W and a module efficiency of 22.3%. In addition, its dual-glass construction uses heat-strengthened glass on both sides, while the aluminium alloy frame provides structural support.

The CS7L-630TB-AG model can be considered for residential rooftops, commercial buildings and ground-mounted solar projects. However, actual energy production depends on sunlight, temperature, shading, installation angle, rear-side light exposure and the overall system design.

For buyers researching the Canadian 630w Bifacial solar panel, the key considerations are its electrical characteristics, physical dimensions, bifacial installation requirements and applicable warranty coverage.

Key Features and Benefits

N-Type TOPCon Cell Technology

This panel uses N-Type TOPCon cells arranged in a 120-cell configuration. TOPCon technology supports efficient photovoltaic energy conversion. Furthermore, the rated module efficiency of 22.3% helps buyers assess how effectively the panel uses its available surface area to convert sunlight into electricity.

For more technical information, visit the official website:

Canadian Solar Panel Official Website

Bifacial Energy Generation

The panel captures sunlight from both its front and rear surfaces. Its 80% ± 5% power bifaciality indicates the rear-side power capability relative to the front-side reference under standard test conditions.

However, actual rear-side energy gain varies with mounting height, tilt angle, ground reflectivity, shading and the amount of light reaching the back of the module. Therefore, a suitable mounting structure and sufficient rear-side clearance are important when designing a bifacial solar installation.

High Power Output

With a 630W rated output, the panel can contribute substantial capacity per module. The number of panels required for a project depends on the intended system size, inverter limits, available installation space and the electrical design.

As a result, buyers should consider the complete system requirements before deciding how many panels to install.

Temperature Performance

The panel has a maximum power temperature coefficient of -0.29%/°C. Solar modules generally produce less power as their cell temperature rises above the standard test reference. Therefore, this coefficient helps installers estimate temperature-related output changes during system design.

Dual-Glass Construction

The front and rear surfaces use 2.0 mm heat-strengthened glass, supported by an anodized aluminium alloy frame. This construction is suitable for projects that require a glass-glass bifacial module, provided the panel is handled and installed correctly.

Best For

The Canadian 630W bifacial panel may suit the following applications:

• Residential solar systems with sufficient mounting space and a compatible electrical design.
• Commercial rooftops requiring high-output solar modules.
• Ground-mounted solar projects where the rear surface can receive reflected sunlight.
• Solar installers and dealers selecting N-Type TOPCon modules for suitable projects.
• Large solar installations where module efficiency, string configuration and long-term power performance are important.

However, the final choice should depend on the project’s space, electrical requirements and installation conditions.

When Another Panel May Be Better

A different panel configuration may be more suitable in the following situations:

• The installation area cannot accommodate the panel’s dimensions.
• The mounting structure blocks most of the rear surface, reducing the practical benefit of bifacial construction.
• The inverter’s voltage or current limits are incompatible with the planned string arrangement.
• The project requires a different module size or electrical configuration.

Therefore, the correct selection should be based on the complete system design rather than wattage alone.

Cell and Module Technology

The Canadian 630W solar panel combines N-Type TOPCon cells with a bifacial, dual-glass structure. Its front side converts direct sunlight into electricity, while the rear side can contribute additional generation when reflected or surrounding light reaches the cells.

The module contains 120 cells arranged in a 2 × (10 × 6) configuration. Moreover, its bifacial design can be particularly useful in installations with reflective ground surfaces and an appropriately designed mounting structure.

The panel’s power output and electrical values are measured under defined test conditions. However, real-world performance varies with weather, module temperature, soiling, shading, orientation and installation quality.

Technical Specifications

Performance and Degradation

The Canadian 630W bifacial solar panel has a 30-year linear power performance warranty. Its specified power degradation limits are:

• First-year degradation: No more than 1%.
• Subsequent annual degradation: No more than 0.4%.

These figures describe the panel’s stated degradation limits. However, they should not be interpreted as a guarantee of a particular electricity bill reduction or annual energy output.

Actual production depends on installation conditions, weather, cleaning, shading and system performance. Therefore, warranty coverage remains subject to the applicable warranty terms and conditions.

Performance Considerations for Pakistan

Pakistan’s solar installations can experience high summer temperatures, dust accumulation and changing sunlight conditions. For this reason, these factors should be considered when selecting and installing a solar module.

• Heat: Allow adequate ventilation beneath the modules to support heat dissipation.
• Dust: Establish a suitable cleaning schedule based on local conditions.
• Bifacial installation: Provide appropriate rear-side clearance and consider ground reflectivity.
• Electrical design: Check module voltage and current against inverter input limits.
• Mounting: Use a structurally suitable mounting system and follow installation requirements.

In addition, the module has stated mechanical load capabilities of up to 5400 Pa snow load and 2400 Pa wind load, subject to the applicable mounting and installation conditions.

Canadian 630w Solar Panel Price in Pakistan

The canadian 630w solar panel price in pakistan at Hajvery Solar Energy is provided below.

The current price of the Canadian 630W Bifacial Solar Panel in Pakistan is Rs. 26,775.00 per panel.

The final quantity required depends on the planned solar capacity, available installation area and inverter configuration. Therefore, dealers, installers and bulk buyers can contact Hajvery Solar Energy to discuss quantity-based pricing and availability.

Buyers searching for the canadian 630w bifacial solar panel price or canadian solar 630w price in pakistan should also confirm the latest price and availability before placing an order.

Canadian Solar Panel Authenticity and Verification

When purchasing a Canadian solar panel, confirm the exact model, product identification and applicable warranty details before installation.

Buyers searching for canadian solar panel original vs fake, canadian solar panel check online or canadian solar panel verification scanner should use appropriate official verification channels where available.

Useful checks include:

• Confirming the model code and product identification label.
• Checking serial information through an appropriate official verification service, where available.
• Confirming the applicable warranty terms and claim requirements.
• Ensuring the supplied panel matches the intended product and system specifications.
• Keeping purchase and warranty records for future reference.

Hajvery Solar Energy can guide buyers on the product identification and compatibility checks available for their purchase.

You can also verify your Canadian Solar Panel through Hajvery Solar Energy’s verification page using the link below:

Canadian Solar Panel Verification Link

Canadian 630W Bifacial Solar Panel Warranty

The Canadian 630W Bifacial Solar Panel carries a 12-year product warranty covering materials and workmanship and a 30-year linear power performance warranty.

The first-year power degradation limit is no more than 1%, followed by a maximum annual degradation of 0.4% in subsequent years. These are separate warranty provisions.

Therefore, buyers should review the applicable warranty terms, conditions, exclusions and claim procedure before purchase. The warranty duration alone does not establish a replacement entitlement in every situation.

Frequently Asked Questions

1. What is the Canadian 630w solar panel price in pakistan?

The current price of the Canadian 630W Bifacial Solar Panel in Pakistan is Rs. 26,775.00 per panel. Contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

2. What is the exact model of the Canadian 630W bifacial panel?

The exact model is CS7L-630TB-AG. Therefore, confirm the model code when ordering to ensure the selected panel matches your system design.

3. Is the Canadian 630W solar panel bifacial?

Yes. It captures sunlight from both the front and rear surfaces. However, the additional energy produced by the rear side depends on mounting conditions, ground reflectivity, shading and rear-side light exposure.

4. What is the efficiency of the Canadian 630W bifacial solar panel?

The module efficiency is 22.3%. However, actual energy production depends on operating temperature, sunlight, orientation, shading and installation conditions.

5. What are the dimensions and weight of this panel?

The panel measures 2172 × 1303 × 33 mm and weighs 34.5 kg. Therefore, check the available installation area and mounting structure before ordering.

6. What warranty comes with the Canadian 630W bifacial solar panel?

It carries a 12-year product warranty and a 30-year linear power performance warranty. However, applicable terms and claim conditions should be reviewed before purchase.

7. Where can I find the canadian bifacial 630w datasheet?

For the canadian solar 630w bifacial datasheet, canadian 630w datasheet or canadian solar 630w datasheet pdf, use the appropriate product documentation available through an official or verified channel. Also, confirm that the model code is CS7L-630TB-AG.

8. How can I check whether this panel is suitable for my inverter?

Compare the panel’s operating voltage, open-circuit voltage, operating current and short-circuit current with the inverter’s MPPT range and input current limits. In addition, the complete string design must account for low-temperature voltage rise and the inverter’s maximum DC voltage.

Buy Canadian 630W Bifacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy supplies solar products for residential, commercial and installation projects in Pakistan. Buyers can enquire about the Canadian 630W Bifacial Solar Panel, product identification, inverter compatibility and applicable warranty details.

For product enquiries, contact Hajvery Solar Energy or visit the store at 280K Block J-1, Johar Town, Lahore.
