Crown 51.2V 200Ah Lithium Battery
Crown CBLM 51.2V 200Ah Battery Specifications
Electrical Specifications
| Parameter | Specification |
|---|---|
| Battery Model | CBLM-51-200-WM |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Energy Capacity | 10.24 kWh |
| Charging Voltage | 56.0V – 57.0V |
| Discharging Cut-off Voltage | 44.8V |
| Standard Charging Current | 100A (Recommended) |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | 200A |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Installation Type | Wall Mounted |
| Dimensions (W × D × H) | 455 × 750 × 230 mm |
| Weight | Approx. 88.7 kg |
| Display | LCD Screen + LED Indicators |
Temperature Range
| Condition | Range |
|---|---|
| Charging Temperature | 0°C ~ 50°C |
| Discharging Temperature | -20°C ~ 55°C |
| Storage Temperature | -20°C ~ 55°C |
BMS & Protection Features
-
Cell over-voltage & under-voltage protection
-
Over-charge & over-discharge protection
-
Over-current protection
-
Short circuit protection
-
Temperature monitoring & protection
-
Cell balancing function
-
SOC & SOH monitoring
-
Emergency reset function
-
Pre-charge & pre-discharge safety logic
Communication Interfaces:
-
CAN
-
RS485
Performance & Service Life
| Parameter | Specification |
|---|---|
| Cycle Life | ≥5000 Cycles (@80% DOD) |
| Design Life | >15 Years |
| Maintenance | Maintenance-Free |
| Efficiency | High Energy Conversion Efficiency |

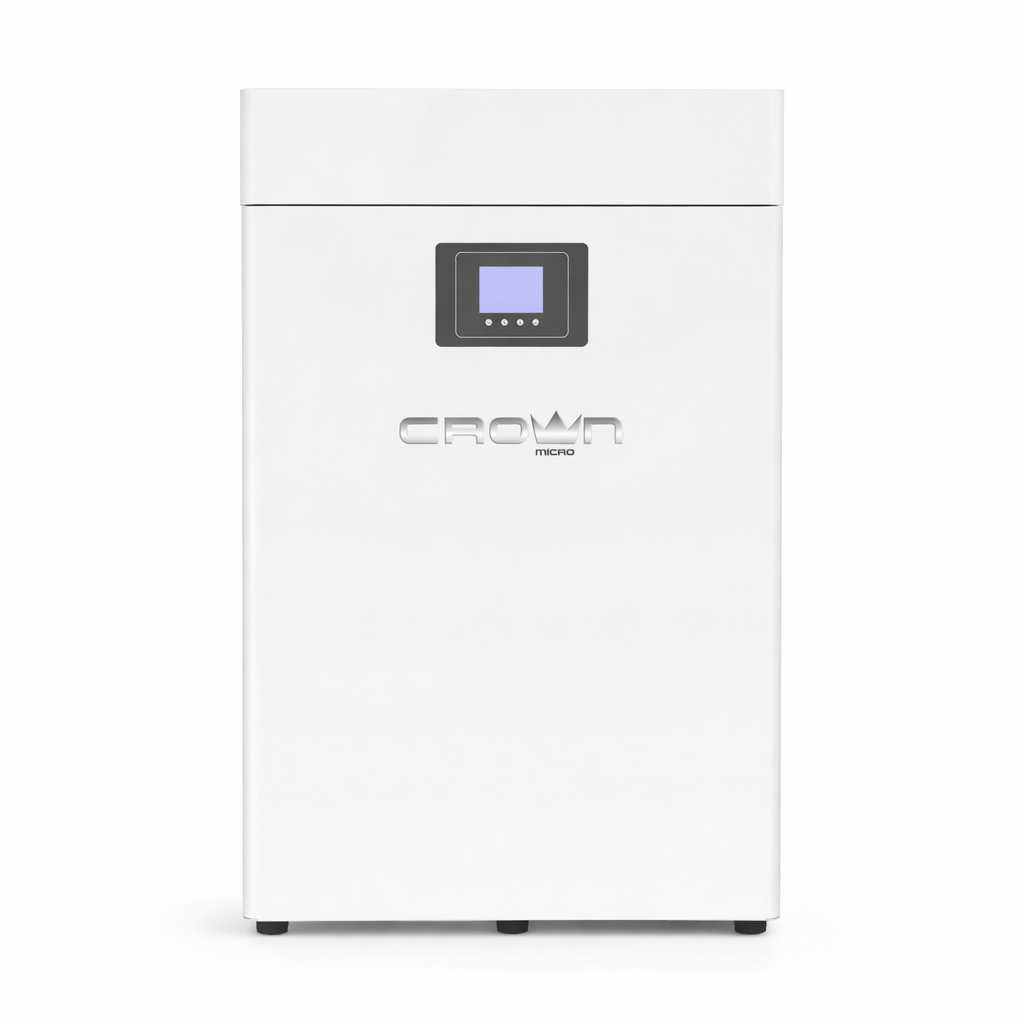

Crown CBLM 51.2V 200Ah Lithium Battery
High-Performance Energy Storage Solution
The Crown CBLM 51.2V 200Ah Lithium Iron Phosphate (LiFePO₄) Battery is a premium wall-mounted energy storage system designed for residential, commercial, and solar power backup applications. Built with advanced LFP cell technology and an intelligent Built-in Battery Management System (BMS), this battery delivers exceptional safety, long service life, and stable performance.
Engineered for modern solar energy systems, the Crown lithium battery ensures efficient energy storage, reliable power delivery, and seamless communication with hybrid and off-grid inverters via CAN and RS485 protocols.
With over 5000+ life cycles and a design life exceeding 15 years, it provides a maintenance-free and environmentally friendly power storage solution.
Key Features & Advantages
-
Advanced LiFePO₄ battery technology
-
Built-in intelligent BMS protection system
-
High energy density with compact wall-mount design
-
LCD display for real-time battery monitoring
-
Long cycle life and extended operational lifespan
-
Stable performance with maintenance-free operation
-
Wide operating temperature range
-
CAN & RS485 communication compatible with solar inverters
-
Safe laser-welded cell structure
-
Environmentally friendly and pollution-free
Applications
-
Solar Energy Storage Systems
-
Hybrid Solar Systems
-
Off-Grid Power Systems
-
Residential Energy Backup
-
Commercial Energy Storage
-
UPS & Backup Power Solutions
