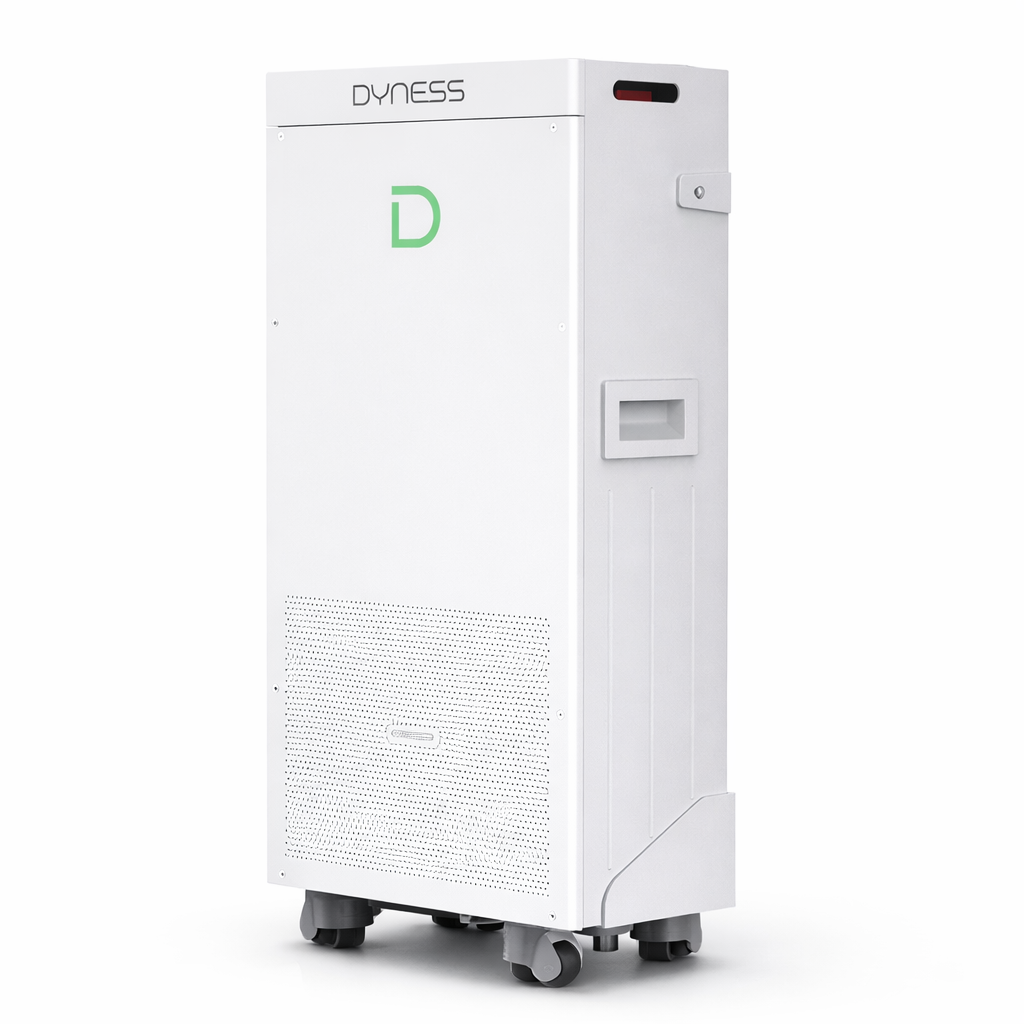

Dyness PowerBrick 14.33KWh Lithium Battery

Dyness PowerBrick 14.33KWh Lithium Battery Overview

The Dyness PowerBrick battery is a low-voltage energy storage solution built around LiFePO₄ battery chemistry. With 51.2V nominal voltage, 280Ah capacity and 14.336kWh nominal energy, it supports solar storage and backup applications where a larger single-battery capacity is useful. The Dyness PowerBrick 14.33KWh Lithium Battery price in Pakistan is an important consideration for buyers looking for reliable solar energy storage. If you are checking the Dyness PowerBrick battery price, compare its 14.336kWh capacity, 51.2V voltage, 280Ah rating and inverter compatibility before purchasing.

The PowerBrick delivers a 200A maximum discharge current and a 300A peak discharge current for up to 2 minutes at 25°C. This capability can support demanding loads when the connected inverter and overall system design permit it. In addition, its 95% depth of discharge (DoD) allows a substantial portion of the battery’s nominal energy to be used.

For larger energy-storage systems, users can connect up to 50 units in parallel, subject to the applicable system requirements. The battery also includes CAN/RS485 communication, built-in Wi-Fi, APP-based monitoring and OTA functionality.

Key Features and Buyer Benefits

LiFePO₄ Battery Chemistry

The Dyness PowerBrick uses LiFePO₄ chemistry, making it suitable for solar energy storage and repeated charge-discharge applications. Its 51.2V and 280Ah configuration provides 14.336kWh nominal energy capacity.

High Charge and Discharge Capability

The recommended charge/discharge current is 140A, while the maximum charge and discharge current reaches 200A. Additionally, a peak discharge current of 300A for 2 minutes at 25°C provides short-duration output capability when the complete system is designed to use it.

95% Depth of Discharge

The battery has a 95% depth of discharge, allowing users to access a substantial portion of its nominal energy before recharging becomes necessary. However, actual usable energy depends on system configuration and operating conditions.

Flexible Parallel Expansion

The Dyness PowerBrick battery supports up to 50 units in parallel. Therefore, users can increase total energy-storage capacity by adding battery units when their system requirements grow. The installation must follow the applicable parallel-connection requirements.

Smart Monitoring and Communication

The battery provides CAN and RS485 communication and includes a built-in Wi-Fi module with APP and OTA functionality. These features support system monitoring, remote management and software-update functionality.

Built-In Fire Protection

A built-in aerosol fire-extinguishing system provides an additional safety feature. The battery also includes multiple protection functions through its integrated battery management system.

For additional information click Dyness Official Website.

Best For

The Dyness PowerBrick 14.33KWh Lithium Battery is suitable for:

• Residential solar backup systems
• Homes requiring larger battery-storage capacity
• Hybrid solar systems
• Solar systems affected by load shedding
• Energy-storage systems requiring 51.2V low-voltage batteries
• Installations that may need parallel battery expansion
• Users looking for LiFePO₄ energy storage
• Solar installers designing scalable battery-storage systems

Before installation, check the inverter, load requirements and battery configuration together to ensure the system operates within its limits.

Not Ideal For

The PowerBrick may not suit an installation without further compatibility checks when:

• The inverter requires a high-voltage battery architecture
• The inverter does not support the required 51.2V battery voltage
• The inverter cannot communicate through the battery’s supported CAN/RS485 interface
• The required load exceeds the battery’s permitted continuous or peak current
• The installation environment falls outside the battery’s operating temperature limits

Therefore, check battery voltage, charge/discharge current, communication protocol and inverter compatibility together instead of relying on voltage alone.

Battery Capacity: kWh, Ah and Usable Energy Explained

The Dyness PowerBrick battery has a nominal voltage of 51.2V and a capacity of 280Ah, providing 14.336kWh nominal energy.

The basic relationship between voltage, amp-hours and nominal energy is:

Voltage × Ah ÷ 1000 = nominal kWh

For this battery:

51.2V × 280Ah ÷ 1000 = 14.336kWh

The battery also offers a 95% depth of discharge. However, actual usable energy in a complete solar system can vary with inverter efficiency, operating conditions, battery limits and system configuration.

Battery Chemistry and Cycle Life

The PowerBrick uses LiFePO₄ chemistry and has a rated cycle life of ≥8,000 cycles / 10 years under the applicable test conditions. This rating is relevant for solar applications involving regular battery charging and discharging.

However, cycle-life figures do not guarantee a specific service life under every installation condition. Operating temperature, charge/discharge patterns, depth of discharge and overall system conditions can affect battery life.

Battery Management System and Safety

The battery’s integrated management and protection system supports safe energy-storage operation.

Important protection and safety features include:

• Built-in aerosol fire-extinguishing system
• Battery protection and monitoring
• Temperature management
• High-current protection
• Communication with compatible energy-storage equipment
• CAN/RS485 communication
• Built-in Wi-Fi monitoring

The PowerBrick has an IP20 protection level. Therefore, installers should carefully assess the installation location and environmental conditions.

Charging and Discharging Performance

The battery supports the following charging and discharging capabilities:

Check the inverter’s battery-current limits as well. The battery’s maximum capability does not automatically mean that every connected inverter can use the full current.

Inverter Compatibility

The Dyness PowerBrick battery is a 51.2V low-voltage battery that uses CAN/RS485 communication.

The compatible inverter ecosystem includes brands such as Solis, Deye, LuxPower, Voltronic, Hoymiles, Growatt, GoodWe, SMA, Victron, Ingeteam and Delios, along with other supported systems. However, compatibility depends on the exact inverter model, communication protocol and installation configuration. Confirm these requirements before purchase.

For buyers looking for a Dyness lithium battery distributor in Pakistan, checking the inverter-battery communication requirements is an important step before final system selection.

Parallel Expansion

The PowerBrick supports a maximum of 50 parallel units.

This feature allows users to expand their energy-storage system by adding battery units when they need more stored energy. However, parallel installations must follow the applicable system configuration, communication and installation requirements.

The ability to connect up to 50 units makes the Dyness PowerBrick 14.33KWh battery suitable for systems where storage capacity may need to increase over time.

Technical Specifications

Estimated Backup Time

Backup time depends on usable battery energy, inverter efficiency and actual connected load. Therefore, nominal battery capacity alone cannot guarantee a particular runtime.

The following estimates use the nominal 14.336kWh energy as a theoretical reference before system losses.

Important: These figures are theoretical calculations based on nominal energy. They do not represent guaranteed real-world backup time. Actual runtime may be lower because of usable-energy limits, inverter efficiency, battery operating limits, temperature, battery condition and load variation.

Lithium Battery Use in Pakistan

For solar systems in Pakistan, battery selection needs to account for load-shedding requirements, daily cycling, operating temperature, ventilation and inverter compatibility.

The PowerBrick’s 0–55°C charging range and -20–55°C discharging range provide defined operating limits. Nevertheless, installers should design the installation environment appropriately and keep the battery within its permitted operating conditions.

For residential solar systems, the 14.336kWh capacity can provide substantial stored energy for essential loads when paired with a compatible hybrid inverter. Installers should size the battery and inverter according to actual load requirements rather than relying only on total battery kWh.

Dyness PowerBrick 14.33KWh Lithium Battery Price in Pakistan

The current price of Dyness PowerBrick 14.33KWh Lithium Battery in Pakistan is Rs. 560,000 per unit.

The Dyness PowerBrick 14.33KWh Lithium Battery price in Pakistan can change over time because of exchange rates, shipment costs, market conditions and purchasing quantity. Dealers and installers can contact Hajvery Solar for current availability and quantity-based enquiries.

When comparing the Dyness PowerBrick price in Pakistan, consider battery voltage, energy capacity, current capability, communication protocol and inverter compatibility alongside the purchase price.

Dyness PowerBrick 14 33KWh Battery

The Dyness PowerBrick 14 33KWh battery provides 14.336kWh nominal energy, 51.2V voltage and 280Ah capacity. Its 95% depth of discharge and 200A maximum charge/discharge current make it suitable for larger low-voltage solar-storage applications.

Additionally, the PowerBrick supports parallel expansion up to 50 units, allowing system capacity to scale when additional storage is required.

Dyness PowerBrick 14 33KWh Inverter Compatibility

The search phrase Dyness PowerBrick 14 33KWh inverter commonly refers to inverter compatibility with this battery rather than an inverter built into the battery itself.

The PowerBrick is a battery storage unit, not a hybrid inverter. It communicates through CAN/RS485 and should be paired with an inverter that supports the required battery voltage, current limits and communication configuration.

Hajvery Compatibility and Authenticity Check

When purchasing a Dyness lithium battery, confirm the exact PowerBrick model, battery capacity, voltage and applicable warranty before installation.

Hajvery Solar Energy can help buyers with product and compatibility checks for the intended solar-storage system. The inverter should support 51.2V low-voltage batteries, compatible communication and suitable charge/discharge settings.

Hajvery Solar Energy is a Dyness Official Distributor for this product category and can assist customers with product enquiries and compatibility guidance.

Warranty and After-Sales Support

The Dyness PowerBrick 14.33KWh Lithium Battery is supplied with a 7- to 10-year replacement warranty, based on the warranty information provided for this product.

Confirm the applicable warranty period and replacement terms for the specific purchase before ordering.

As a Dyness authorized dealer, Hajvery Solar Energy can assist buyers with product and warranty guidance.

For customers looking for Official Dyness Distributor support in Pakistan, Hajvery Solar Energy provides a direct route for product enquiries and compatibility assistance.

Buying from Hajvery Solar Energy, an authorized Dyness dealer, also gives customers a clear channel for product and warranty-related guidance.

Before You Buy

Before purchasing the Dyness PowerBrick 14.33KWh Lithium Battery, confirm the following:

• Battery architecture: 51.2V low voltage
• Required storage: 14.336kWh nominal energy
• Inverter compatibility: Exact inverter model and communication protocol
• Battery current: Required continuous and peak load
• BMS communication: CAN/RS485 requirements
• Installation location: IP20 environmental requirements
• Parallel expansion: Whether additional battery units will be required
• Warranty: Applicable 7- to 10-year replacement coverage
• System design: Correct matching of inverter, battery and solar PV

Frequently Asked Questions

What is the Dyness PowerBrick 14.33KWh Lithium Battery?

The Dyness PowerBrick 14.33KWh Lithium Battery is a low-voltage LiFePO₄ energy-storage battery with 51.2V nominal voltage, 280Ah capacity and 14.336kWh nominal energy.

What is the Dyness lithium battery 280Ah price in Pakistan?

The current price of the Dyness PowerBrick 14.33KWh Lithium Battery in Pakistan is Rs. 560,000 per unit.

Is the Dyness PowerBrick a 51.2V battery?

Yes. The PowerBrick has a 51.2V nominal voltage and 280Ah capacity.

How many Dyness PowerBrick batteries can be connected together?

The PowerBrick supports up to 50 units in parallel, allowing larger energy-storage systems when the complete system design supports parallel operation.

What is the Dyness PowerBrick 14 33kwh battery cycle life?

The battery has a rated cycle life of ≥8,000 cycles / 10 years under the applicable test conditions. Actual service life depends on operating and installation conditions.

Does the Dyness PowerBrick support solar inverters?

Yes. The PowerBrick is designed for compatible energy-storage inverter systems and supports CAN/RS485 communication. However, confirm exact inverter compatibility before installation.

What is the warranty of the Dyness PowerBrick?

The warranty information provided for this product specifies a 7- to 10-year replacement warranty. Confirm the applicable period and terms for the specific purchase.

Where can I buy a Dyness lithium battery in Pakistan?

Hajvery Solar Energy supplies Dyness lithium batteries in Pakistan and can help buyers confirm the required battery and inverter compatibility before purchase.

Buy Dyness PowerBrick 14.33KWh Lithium Battery from Hajvery Solar

The Dyness PowerBrick 14.33KWh Lithium Battery is designed for buyers who need a larger low-voltage LiFePO₄ storage solution for solar backup and energy-storage applications.

With 14.336kWh nominal energy, 51.2V/280Ah capacity, 95% DoD, high current capability, CAN/RS485 communication and up to 50-unit parallel expansion, it can be configured for a range of compatible solar-storage systems.

Hajvery Solar Energy provides Dyness lithium battery solutions for residential, commercial and installer requirements in Pakistan, with compatibility guidance available for suitable inverter systems.
