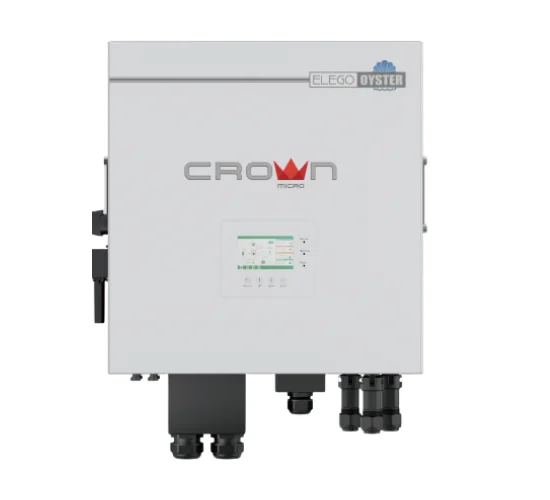

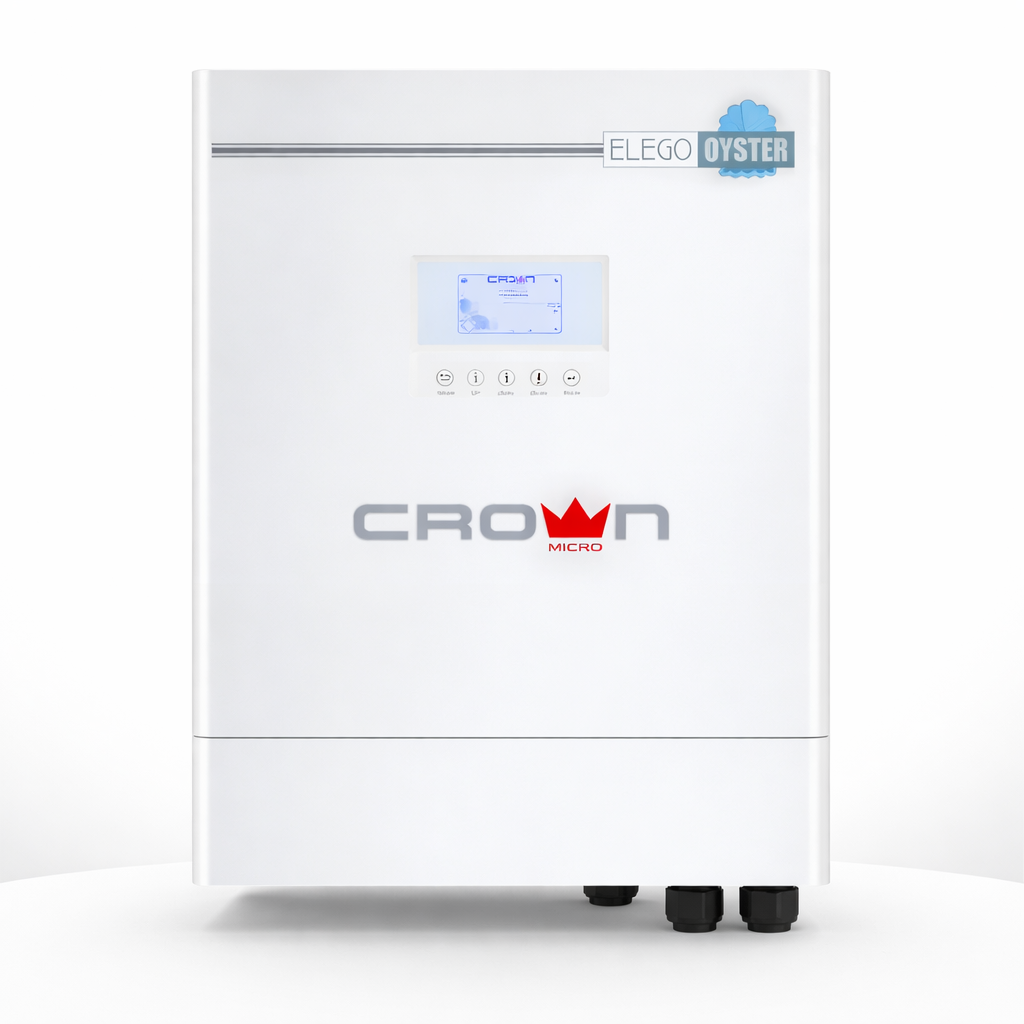

Elego Oyster 10KW PV-15000 IP66 Hybrid Solar Inverter

📊 Technical Specifications (Elego Oyster 10KW PV-15000)

🔹 General

Parameter	Value
Model Name	Elego-Oyster-10KW
Rated Power	10000VA / 10000W

☀️ PV Input (DC)

Parameter	Value
Max PV Array Power	15000W
Rated PV Voltage	360V
MPPT Inputs	2
PV Voltage Range	100 – 600V
MPPT Voltage Range	120 – 500V
Start-up Voltage	140V
Max PV Input Current (per MPPT)	25A
Max Short Circuit Current (per MPPT)	34A

🔋 Battery

Parameter	Value
Battery Type	Lithium / Lead-acid
Rated Battery Voltage	48V
Battery Voltage Range	40 – 60V
Max Charge / Discharge Current	208A
Max Charge / Discharge Power	10000W
PV Wake-up Function	Yes

🔌 Grid / AC Input

Parameter	Value
Rated AC Voltage	230V
Frequency	50Hz / 60Hz
Rated Output Current	44A
Rated Output Power	10000W
Max AC Input Power	15000W
Power Factor	0.99
THDi	<3%
Max Continuous AC Passthrough Current	90A

⚡ Output (UPS Mode)

Parameter	Value
Output Voltage	230V
Output Frequency	50 / 60Hz
Surge Power	2× Rated Power (0.5s)
Transfer Time	<20ms
Waveform	Pure Sine Wave
THDv	<3%

⚙️ Efficiency

Parameter	Value
MPPT Efficiency	99.9%
Max Efficiency	97.5%
Charge Efficiency	94.0%
Discharge Efficiency	94.0%

🛡️ Protection

Parameter	Value
Over Current / Voltage Protection	Yes
Anti-Islanding Protection	Yes
Short Circuit Protection	Yes
Leakage Current Protection	Yes
Ground Fault Monitoring	Yes
Surge Protection (AC/DC)	Type III

📐 Physical Specifications

Parameter	Value
Dimensions (W × H × D)	536 × 556 × 290 mm
Weight	42.64 kg
IP Rating	IP66 / NEMA 4X

🌡️ Environment & Communication

Parameter	Value
Operating Temperature	-25°C to 60°C
Storage Temperature	-25°C to 60°C
Humidity	0% – 100%
Communication Interface	RS485 / Wi-Fi / CAN
Display	Touch Color Screen

Description

🔋 Elego Oyster 10KW PV-15000 Hybrid Solar Inverter

📌 Product Description

The Elego Oyster 10KW PV-15000 is a high-performance single-phase hybrid solar inverter engineered for large residential and commercial solar systems. Equipped with dual MPPT technology and a powerful PV input capacity of up to 15,000W, it ensures maximum solar energy harvesting and optimal system efficiency.

Built with IP66 protection, this inverter is designed for both indoor and outdoor installations, offering superior resistance against dust and water. It supports advanced features like grid feed-in, AC coupling (peak shaving), and intelligent generator integration, making it a complete energy management solution.

With a high charging and discharging current up to 208A, built-in Battery Management System (BMS), and smart scheduling for charge and discharge cycles, the Elego Oyster 10KW delivers intelligent and efficient power control. Its parallel operation capability (up to 10 units) allows scalability for expanding energy requirements.

The inverter also features a touch color screen interface, advanced protection systems, and high efficiency up to 97.5%, making it an ideal choice for modern smart solar installations.

⭐ Key Features

Hybrid inverter with grid feed-in capability
Dual MPPT input for maximum solar efficiency
High PV input capacity up to 15,000W
IP66 protection (dust & water resistant)
Peak shaving & AC coupling functionality
Separate generator port with intelligent control
Built-in Battery Management System (BMS)
Smart scheduling for charge & discharge cycles
High charging/discharging current up to 208A
Touch color screen display
Parallel operation up to 10 units
