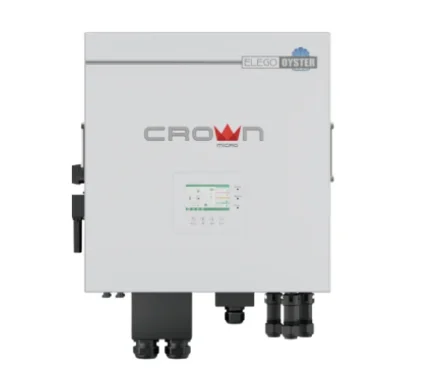

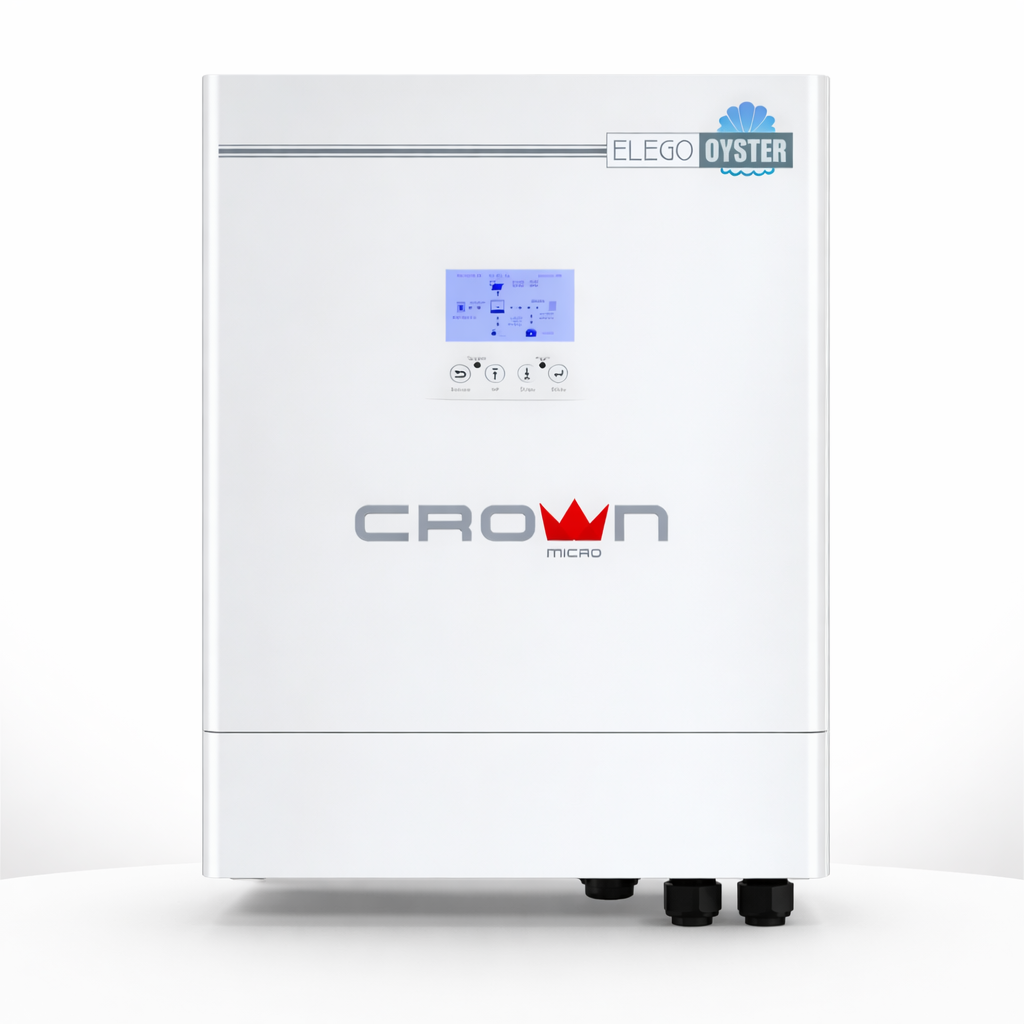

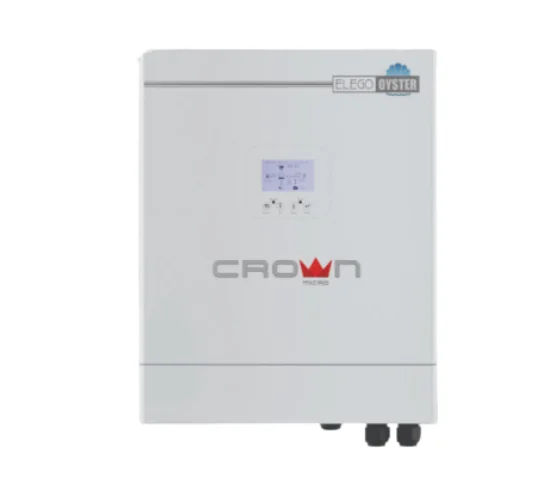

Elego Oyster 6.5KW PV-9600 IP66 Hybrid Solar Inverter
📊 Technical Specifications (Elego Oyster 6.5KW PV-9600)
🔹 General
| Parameter | Value |
|---|---|
| Model Name | Elego-Oyster-6.5KW |
| Rated Power | 6500VA / 6500W |
☀️ PV Input (DC)
| Parameter | Value |
|---|---|
| Max PV Array Power | 9600W |
| Rated PV Voltage | 360V |
| MPPT Inputs | 2 |
| PV Voltage Range | 100 – 530V |
| MPPT Voltage Range | 150 – 425V |
| Start-up Voltage | 140V |
| Max PV Input Current (per MPPT) | 18A |
| Max Short Circuit Current (per MPPT) | 32A |
🔋 Battery
| Parameter | Value |
|---|---|
| Battery Type | Lithium / Lead-acid |
| Rated Battery Voltage | 48V |
| Battery Voltage Range | 40 – 60V |
| Max Charge Current | 125A |
| Max Discharge Current | 145A |
| Max Charge / Discharge Power | 6500W |
| PV Wake-up Function | Yes |
🔌 Grid / AC Input
| Parameter | Value |
|---|---|
| Rated AC Voltage | 230V |
| Frequency | 50Hz / 60Hz |
| Rated Output Current | 28.2A |
| Rated Output Power | 6500W |
| Max AC Input Power | 12000W |
| Power Factor | 0.99 |
| THDi | <3% |
| Max Continuous AC Passthrough Current | 52.2A |
⚡ Output (UPS Mode)
| Parameter | Value |
|---|---|
| Output Voltage | 230V |
| Output Frequency | 50 / 60Hz |
| Surge Power | 2× Rated Power (0.5s) |
| Transfer Time | <20ms |
| Waveform | Pure Sine Wave |
| THDv | <5% |
⚙️ Efficiency
| Parameter | Value |
|---|---|
| MPPT Efficiency | 99.9% |
| Max Efficiency | 97.3% |
| Charge Efficiency | 94.5% |
| Discharge Efficiency | 94.5% |
🛡️ Protection
| Parameter | Value |
|---|---|
| Over Current / Voltage Protection | Yes |
| Anti-Islanding Protection | Yes |
| Short Circuit Protection | Yes |
| Leakage Current Protection | Yes |
| Ground Fault Monitoring | Yes |
| Surge Protection (AC/DC) | Type III |
📐 Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions (W × H × D) | 487 × 455 × 211.7 mm |
| Weight | 29 kg |
| IP Rating | IP66 |
🌡️ Environment & Communication
| Parameter | Value |
|---|---|
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -40°C to 65°C |
| Humidity | 0% – 95% |
| Communication Interface | RS485 / Wi-Fi / CAN |
| Display | LCD + RGB |
🔋 Elego Oyster 6.5KW PV-9600 Hybrid Solar Inverter
📌 Product Description
The Elego Oyster 6.5KW PV-9600 is a premium single-phase hybrid solar inverter designed for modern residential and commercial solar systems. Featuring dual MPPT technology and a PV input capacity of up to 9600W, it ensures optimal solar energy harvesting and efficient power conversion.
Engineered for durability and outdoor installation, this inverter comes with IP66 protection, making it resistant to dust and water. It supports grid feed-in, AC coupling (peak shaving), and generator integration, providing a complete and flexible energy solution.
With a powerful charging and discharging current up to 210A, built-in Battery Management System (BMS), and smart scheduling for charge/discharge cycles, the Elego Oyster delivers intelligent energy management. The system also supports parallel operation up to 6 units, ensuring scalability for growing energy demands.
Equipped with a touch screen interface, advanced protection features, and high efficiency, the Elego Oyster 6.5KW PV-9600 is an ideal choice for reliable and smart solar energy systems.
⭐ Key Features
- Hybrid inverter with grid feed-in capability
- Dual MPPT input for maximum solar efficiency
- PV input capacity up to 9600W
- IP66 protection (dust & water resistant)
- Peak shaving & AC coupling functionality
- Separate generator port with intelligent control
- Built-in Battery Management System (BMS)
- Smart scheduling for charge & discharge cycles
- High charging/discharging current up to 210A
- Touch screen interface for easy control
- Parallel operation up to 6 units
