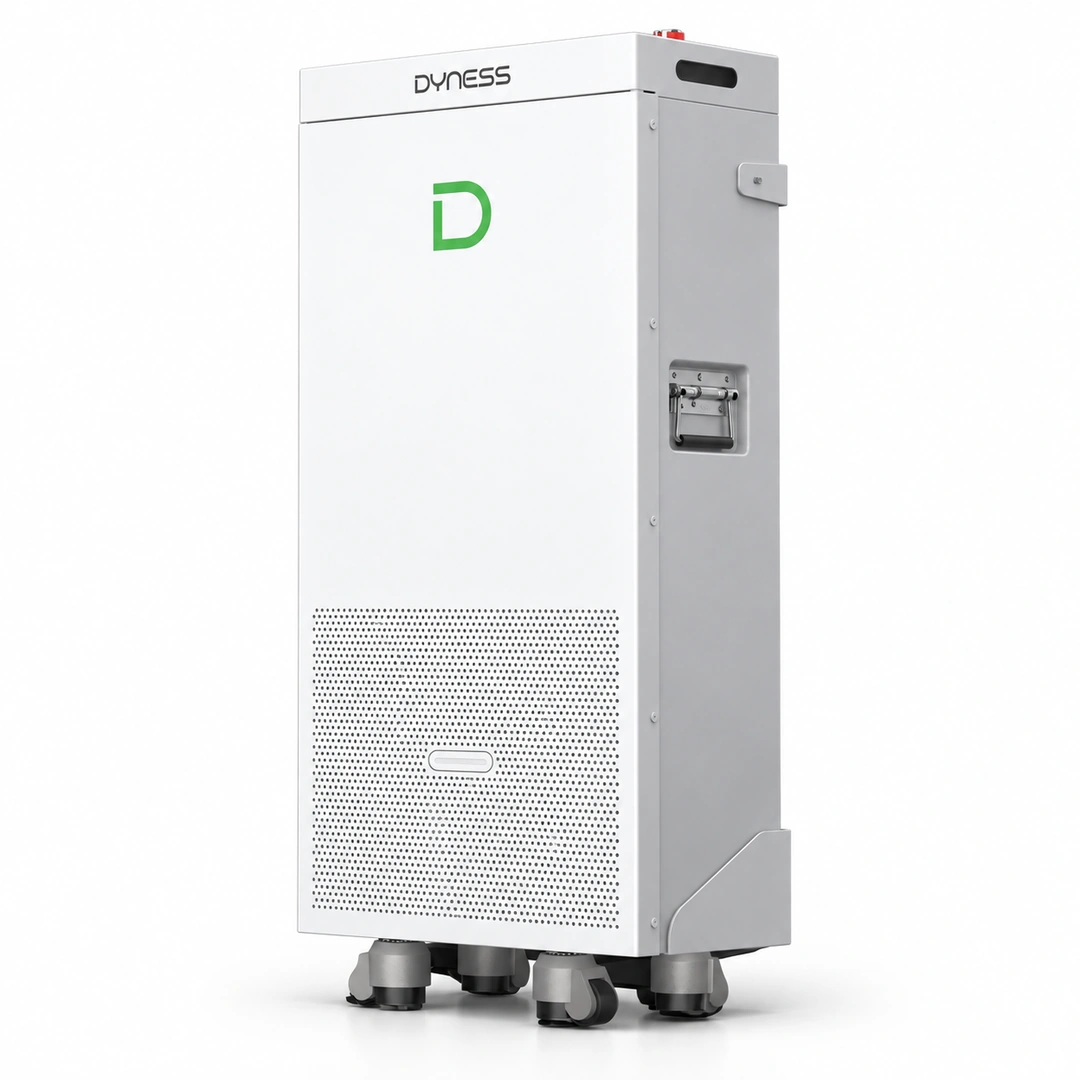

Dyness PowerBrick Plus16KW IP65 Lithium Battery

Dyness PowerBrick Plus 16KW Overview

The Dyness PowerBrick Plus 16KW is a home storage battery commonly searched as the Dyness 16KW Battery. This Dyness 16KW IP65 Battery stores 16.07kWh of nominal energy and provides 15.27kWh of usable energy. If you are checking the Dyness 16KW Battery Price In Pakistan, this page covers the current price and warranty. You can also review the Dyness IP65 battery price in Pakistan alongside its features.

For searches such as dyness 16kw ip65 or dyness powerbrick 16kw, the correct energy capacity is 16.07kWh. However, “16kw” is common search wording, not a continuous output rating. The Dyness PowerBrick Plus 16.07kWh battery has a maximum discharge power of 10.24kW.

Hajvery Solar Energy is a Dyness Official Distributor, helping buyers select the correct battery for their inverter, load and storage requirements.

Dyness PowerBrick Plus Battery Features and Benefits

Dyness PowerBrick Plus Battery Usable Storage

The Dyness PowerBrick Plus battery offers 15.27kWh usable energy. Therefore, it can run the same load for longer than a smaller usable storage capacity. However, actual backup time depends on the appliances, inverter losses and battery settings.

Dyness 16KW IP65 Battery Protection

The Dyness PowerBrick Plus IP65 battery supports indoor and outdoor installation. However, the location still matters. Choose suitable mounting, correct cable connections and a position away from excessive heat.

Dyness PowerBrick Plus Battery Installation

You can install this Dyness 16KW IP65 lithium battery on the floor or wall. However, it weighs 119kg. Use safe handling and a mounting arrangement that can support this weight.

High Charging and Discharging Capability

Maximum charging and discharging current reaches 200A. However, the recommended operating current is 140A. Use this recommended limit when setting up a compatible system.

Dyness PowerBrick Plus Battery Communication and Monitoring

CAN/RS485 communication supports a compatible inverter connection. In addition, the Wi-Fi/app interface offers monitoring. Before installation, confirm the communication setup for your exact inverter.

Expandable Storage

Up to 50 batteries can work in parallel. As a result, storage can grow when your energy needs increase. However, expansion needs a suitable electrical and communication setup.

Best For

The PowerBrick Plus is suited to:

• Household solar systems using a compatible low-voltage battery inverter.
• Homeowners who need substantial storage in one battery.
• Backup systems sized around the household’s actual essential loads.
• Buyers planning to expand their storage later.
• Installations requiring an IP65 battery enclosure.

When comparing dyness battery pakistan options, check more than capacity. For example, the Dyness 16KW Battery must match the inverter voltage and current limits. Also, confirm that the communication connection works with your system.

Not Ideal For

This battery needs a compatible low-voltage inverter. Therefore, it is not suitable for a high-voltage battery input. It is also unsuitable when the inverter cannot support its operating voltage or communication requirements.

The connected load must stay within the allowed discharge limit. For example, a large storage capacity does not mean every appliance can run at once. Check continuous loads and starting demand before choosing the system.

Also, keep the installation within the allowed temperature range. Avoid wall mounting unless the wall and mounting arrangement can safely support the battery.

Dyness 16KW Battery Capacity: kWh, Ah and Usable Energy

The Dyness 16.07kWh battery has a nominal voltage of 51.2V and a capacity of 314Ah. However, voltage, Ah and kWh describe different battery values.

The approximate energy calculation is:

51.2 × 314 ÷ 1,000 = 16.0768kWh

The product’s nominal energy rating is 16.07kWh, with 15.27kWh usable energy and a 95% depth of discharge.

The phrase dyness lithium battery 16kw ip65 uses common market search wording. However, stored energy uses kWh. The Dyness 16KW lithium battery stores 16.07kWh nominal energy, while maximum charge and discharge power is 10.24kW.

Likewise, dyness 51v is a rounded search term. However, the exact nominal voltage is 51.2V. Also, the operating voltage range is 44.8V–57.6V.

Dyness PowerBrick Plus Battery Chemistry and Cycle Life

This Dyness 16.07kWh battery uses LiFePO4 chemistry. It has a rated cycle life of at least 8,000 cycles under defined test conditions.

Those conditions are 0.2C charging and discharging, 25°C temperature, 95% depth of discharge and a 70% end-of-life capacity threshold.

However, cycle life is not a guaranteed number of calendar years. For example, temperature, charging settings and daily use affect how the battery ages.

Battery Management System and Safety

The battery includes a built-in aerosol fire extinguisher. However, correct installation and suitable electrical protection remain essential. Also, use inverter settings that suit the battery.

A useful dyness 16kw ip65 review should cover more than storage size and enclosure protection. For example, check the proposed protection setup, inverter connection and operating limits.

Dyness PowerBrick Plus 16KW Charging and Discharging

For the Dyness PowerBrick Plus 16KW, recommended charging and discharging current is 140A. In other words, this equals a recommended charge and discharge power of 7.168kW.

Maximum charging and discharging current is 200A, with maximum charge and discharge power of 10.24kW. In addition, peak discharge current reaches 300A for two minutes at 25°C.

However, peak current is only available briefly. Therefore, do not use it as the continuous design limit. The inverter, cables and electrical protection must also support the intended load.

Standard charging operation is rated for 0°C to 55°C. In contrast, discharging operation is rated for −20°C to 55°C. However, charging below 0°C needs the optional self-heating setup. Confirm that option before planning a cold-location installation.

Dyness PowerBrick Plus Battery Inverter Compatibility

Compatibility depends on the inverter battery voltage range, allowed current and CAN/RS485 communication protocol. Therefore, check each of these points before ordering.

A brand name alone does not prove that every inverter model will work. Instead, confirm the exact inverter model and battery setup.

As a Dyness authorized dealer, Hajvery Solar Energy can help buyers review the battery and inverter pairing before purchase.

For more product information, visit the official Dyness PowerBrick Plus product details page.

Dyness PowerBrick Plus Battery Parallel Expansion

The battery supports up to 50 units in parallel. Therefore, you can plan more storage as your energy needs grow.

An expanded installation needs suitable cables, protection and communication connections. Adding batteries increases stored energy. However, system output also depends on the inverter and electrical design.

Before expansion, plan enough installation space and suitable connections.

Dyness PowerBrick Plus 16KW Technical Specifications

Dyness PowerBrick Plus Battery Estimated Backup Time

Backup time depends on usable energy, inverter efficiency and average load. Therefore, size your Dyness 16.07kWh battery around the appliances you want to run.

For example, the estimates below use 15.27kWh usable energy and an assumed 90% inverter efficiency. They assume a fully charged battery and a constant load. Also, they exclude solar charging during backup.

These are calculated estimates, not guaranteed runtimes. For example, appliance cycling and inverter standby use can change the result. Battery reserve settings and temperature also affect backup time.

Lithium Battery Use in Pakistan

For household backup, start with a list of appliances and their required running hours. Then choose a storage capacity that meets this need.

When comparing solar battery prices in pakistan or lithium solar battery price in pakistan, consider usable energy, inverter compatibility, installation requirements and warranty alongside the purchase price.

For the best lithium battery for solar in pakistan with price, focus on the battery that fits your system. For example, compare the Dyness 16KW lithium battery price in Pakistan against usable energy and your required backup hours. Also, check the Dyness 16KW IP65 lithium battery price in Pakistan alongside its enclosure rating and installation needs.

Dyness 16KW IP65 Battery Price in Pakistan

The current price of Dyness PowerBrick Plus 16.07kWh Lithium Battery in Pakistan is Rs. 610,000 per unit.

For Dyness 16KW Battery Price In Pakistan and Dyness 16KW IP65 Battery Price in Pakistan enquiries, confirm current availability with Hajvery Solar Energy. Also, when checking dyness lithium battery price in pakistan or dyness battery price in pakistan, confirm the exact model. Ask separately about installation and bulk or dealer enquiries.

For dyness 16kw ip65 price in pakistan, check the PowerBrick Plus model and its 16.07kWh nominal energy. Likewise, dyness 16kw ip65 battery price and dyness 16kw ip65 battery price in pakistan refer here to the same battery. Before ordering, confirm the Dyness 16KW battery cost in Pakistan and any separate installation requirements.

Hajvery Compatibility and Authenticity Check

Before ordering, check the exact PowerBrick Plus model, product identification and warranty details. Also, confirm the inverter, communication connection and installation location.

Hajvery Solar Energy is an Official Dyness Distributor. Customers exploring dyness pakistan products can contact the team for exact-model identification, compatibility enquiries and current availability.

Dyness PowerBrick Plus 16KW Warranty

The Dyness PowerBrick Plus 16KW supplied by Hajvery Solar Energy comes with a 10-year replacement warranty.

Before ordering, confirm the warranty conditions and claim process. Also, keep your invoice and product identification details.

Before You Buy

Before choosing your battery, review compatible hybrid inverters and confirm the exact model pairing. Then check these points:

• Your inverter supports a low-voltage battery system.
• Its battery voltage range matches the PowerBrick Plus.
• CAN/RS485 communication is compatible with the exact inverter model.
• Storage capacity meets your intended backup requirement.
• Continuous and starting loads suit the system’s operating limits.
• The installation area can accommodate the battery’s size and weight.
• Any optional self-heating requirement is confirmed.
• Future parallel expansion has been considered.

FAQs

What is the Dyness 16KW IP65 Battery Price in Pakistan?

The current price of Dyness PowerBrick Plus 16KW Lithium Battery in Pakistan is Rs. 610,000 per unit.

For Dyness 16KW Battery Price In Pakistan, confirm the exact model and current availability. Likewise, when comparing 16 kw lithium battery price in pakistan, check energy capacity as well as price. This battery stores 16.07kWh nominal energy.

Is this a 16kW battery?

“16kW” is common search wording in dyness 16kw ip65 battery. However, the Dyness 16KW Battery stores 16.07kWh nominal energy. Its maximum discharge power is 10.24kW, so energy and output power must be checked separately.

How much usable energy does it provide?

It provides 15.27kWh usable energy with a rated 95% depth of discharge. However, inverter losses and reserve settings affect the energy delivered to appliances.

What does IP65 mean for this battery?

For what is ip65 enclosure, IP65 means a dust-tight enclosure with protection against water jets. However, the Dyness 16KW IP65 Battery is not suitable for submersion. Follow the installation requirements for the location.

Can it work with my existing inverter?

First, check the exact inverter model, battery voltage range, current limits and communication protocol. Therefore, do not assume compatibility based on brand alone.

Can I add more batteries later?

Yes. The battery supports up to 50 units in parallel. However, expansion needs a suitable electrical and communication design.

Where can I find the PowerBrick Plus specifications?

For dyness powerbrick plus datasheet, use the exact PowerBrick Plus technical file. Searches for dyness 16kw battery datasheet or dyness 16kw ip65 datasheet should lead to the same exact model, with nominal energy correctly identified as 16.07kWh.

What warranty is included?

The battery comes with a 10-year replacement warranty. For dyness lithium battery 16kw ip65 price in pakistan enquiries, confirm the exact product, applicable warranty conditions and current availability together.

Buy Dyness PowerBrick Plus 16KW from Hajvery Solar

For Dyness 16KW Battery Price In Pakistan or Dyness 16KW IP65 Battery Price in Pakistan, contact Hajvery Solar Energy. The Dyness PowerBrick Plus 16KW offers large usable storage, a low-voltage connection and room for future expansion. However, confirm that it suits your inverter and backup needs.

Hajvery Solar Energy is an authorized Dyness dealer. Contact the team to discuss inverter compatibility, required backup capacity and purchase details before placing your order.
