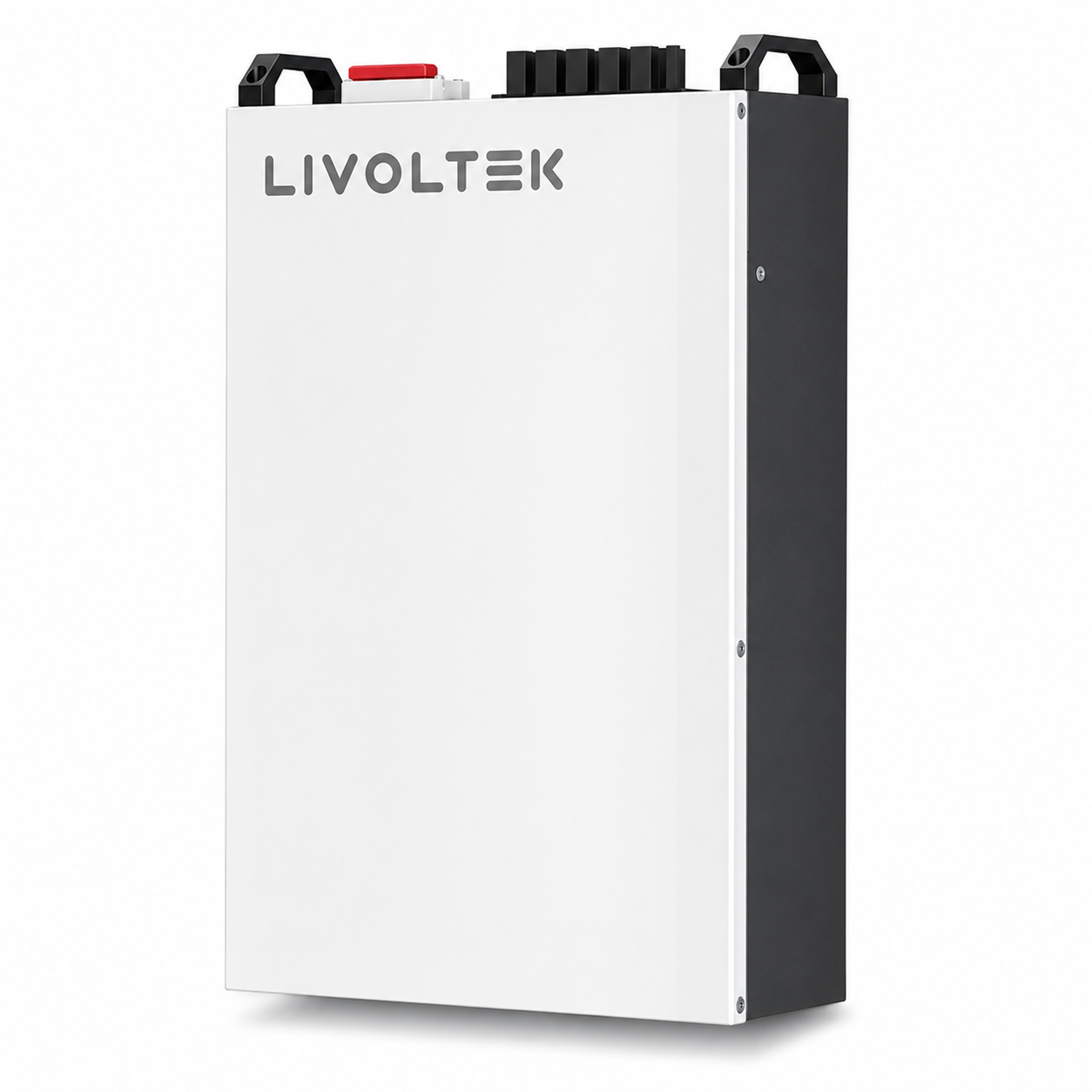

Livoltek 5.12kWh 51.2V 100Ah Lithium Battery

Livoltek 5.12kWh 51.2V 100Ah Lithium Battery Overview

The Livoltek 5.12kWh 51.2V 100Ah Lithium Battery is designed for residential energy storage, particularly where a compact wall-mounted battery is preferred. Its 5.12kWh nominal energy capacity provides a useful storage base for solar self-consumption and backup applications. Looking for the Livoltek 51.2V 100Ah Lithium Battery price in Pakistan? Contact Hajvery Solar Energy for the latest price and availability.

The battery uses LFP chemistry and incorporates an intelligent Battery Management System (BMS) with multiple protection functions. In addition, its wall-mounted design saves floor space, while the modular architecture lets you expand the storage system as energy needs grow.

With a 51.2V nominal voltage, an operating voltage range of 43.2V–57.6V, and 100Ah capacity, this low-voltage battery is designed for compatible energy-storage systems. It also supports RS485 and CAN communication for system-level battery communication.

For buyers searching for a Livoltek 51.2V 100Ah battery, the BLF-B51100 combines residential storage capacity, wall-mounted installation and modular expansion.

Key Features and Buyer Benefits

LFP Battery Chemistry

The battery uses LFP chemistry, a lithium chemistry typically used for stationary energy storage. The design emphasises a long service life and reliable daily energy storage.

Intelligent BMS

An intelligent battery management system monitors the battery and includes several protection features. Therefore, correct system configuration helps operate the battery in a controlled manner and protect the storage system during charging and discharging.

Wall-Mounted Residential Design

Because it is wall-mounted, the battery is suitable for indoor residential energy-storage systems with limited floor space. Its compact design also helps keep the installation neat.

90% Recommended Depth of Discharge

The battery has a 90% recommended depth of discharge (DoD), which enables a large part of its energy capacity to be used under normal conditions.

Modular Expansion

The system can be expanded to up to 5 modules / 25kWh. As a result, storage capacity can grow as the household’s energy needs increase.

Natural Cooling

The battery uses natural cooling, avoiding the need for a dedicated active cooling system. However, installers should still follow the required installation and environmental conditions.

Best For

The Livoltek 51.2V 100Ah Lithium Battery is suitable for:

• Residential solar energy storage
• Hybrid solar systems
• Home backup applications
• Households requiring wall-mounted battery storage
• Solar users replacing conventional lead-acid storage
• Installations where modular battery expansion may be required
• Users looking for a 100Ah lithium battery for compatible low-voltage systems

Installers can also consider residential storage systems, provided the battery’s voltage, current limits and communication compatibility match the inverter they use.

Not Ideal For

This battery should not be selected without compatibility checking when:

• The inverter requires a high-voltage battery system
• The inverter does not support the battery’s voltage range
• Required battery discharge power exceeds the battery’s limits
• The inverter does not support the required CAN or RS485 BMS communication
• The installation environment falls outside the battery’s specified operating conditions

Therefore, check that the battery and inverter are compatible before installation.

Battery Capacity: kWh, Ah and Usable Energy Explained

A battery’s Ah rating and kWh rating describe different aspects of its capacity.

The 100Ah figure represents the battery’s nominal electrical capacity, while 5.12kWh represents its nominal energy capacity.

For this battery:

51.2V × 100Ah ÷ 1000 = 5.12kWh

The listed usable energy is 5.12kWh, while the recommended DoD is 90%. However, actual energy available to connected loads can vary depending on inverter efficiency, operating conditions, battery settings and system losses.

For this reason, consider both the 100Ah capacity and the 5.12kWh energy rating when comparing lithium storage products.

Battery Chemistry and Cycle Life

The battery uses LFP chemistry and has a stated cycle life of 6000 cycles.

The cycle-life figure is based on test conditions of 0.5C charge, 0.5C discharge, 25°C, 90% depth of discharge and a 70% end-of-life rate. However, the actual service life will depend on operating temperature, charging and discharging patterns, installation conditions and system settings.

Battery Management System and Safety

The integrated intelligent BMS provides multiple battery protection functions. In addition, the robust mechanical design adds another layer of physical protection to the battery system.

Even with a built-in BMS, it is important to set the inverter correctly to ensure battery communication and provide appropriate electrical protection for a residential solar installation.

Charging and Discharging Performance

The battery supports a maximum 100A charge current and 100A discharge current.

Its maximum power values are:

• Charge: 4.1kW
• Discharge: 5.12kW

When choosing the connected inverter and designing the battery system, account for these limits. The inverter’s current requirements on the battery side must stay within the battery’s allowed limits.

Inverter Compatibility

The battery operates across a 43.2V–57.6V voltage range and communicates through RS485/CAN.

Before connecting it to a solar hybrid inverter, confirm:

• Battery voltage compatibility
• Inverter battery voltage range
• Maximum charge current
• Maximum discharge current
• Supported BMS communication
• CAN/RS485 communication requirements
• Required communication cable and configuration
• Compatible battery settings in the inverter

Hajvery Solar Energy can help buyers check whether their battery and inverter are compatible before purchase. However, the installer should verify the final system configuration.

Parallel Expansion

The modular design supports expansion to 5 modules, for a total capacity of 25kWh.

This lets residential users increase energy storage as their solar use or backup needs grow. However, expansion must use compatible modules and the correct system configuration.

Technical Specifications

Estimated Backup Time

The Livoltek 51.2V 100Ah lithium battery backup time depends on the connected load, inverter efficiency, battery settings and actual operating conditions.

Using the stated 5.12kWh usable energy as a simple energy/load calculation gives these theoretical estimates:

These energy-based figures are theoretical and do not guarantee actual runtime. In practice, inverter losses, battery operating limits, temperature, battery condition and varying loads can reduce or change backup time.

Therefore, compare the 51.2V 100Ah lithium battery backup time against the actual household load rather than relying on battery capacity alone.

Lithium Battery Use in Pakistan

Battery storage for residential solar systems in Pakistan can transfer stored solar energy to times when solar generation is not taking place. It can also provide backup power to selected loads.

The wall-mounted design is useful for indoor installations where floor space is limited. However, its IP21 protection means it should remain in an appropriate indoor environment rather than being treated as an outdoor weatherproof battery.

For long-term operation, provide proper ventilation, manage the temperature, install suitable electrical protection and set the inverter correctly.

Livoltek 5.12kWh 51.2V 100Ah Lithium Battery Price in Pakistan

The Livoltek 51.2V 100Ah IP21 lithium battery price depends on the current seller price and market conditions.

The current price of the Livoltek 5.12kWh 51.2V 100Ah Lithium Battery in Pakistan is Rs. 204,000.00 per unit.

Buyers searching for the Livoltek 51.2V 100Ah battery price in Pakistan should confirm the current listed price with Hajvery Solar Energy before ordering.

Hajvery Solar Energy is a Livoltek Official Distributor, helping customers source the battery with applicable warranty support.

Dealers and installers can also contact Hajvery Solar Energy for current availability and quantity-based requirements.

Livoltek 51.2V 100Ah Battery Replacement and Warranty

The battery comes with a 5-year standard official replacement warranty.

For searches such as livoltek 51 2 v 100ah ip21 lithium battery replacement and livoltek 51 2 v 100ah battery replacement, buyers should retain the product and warranty information. In addition, confirm the applicable claim requirements before purchase.

As a Livoltek authorized dealer, Hajvery Solar Energy can help customers with product and warranty guidance.

The warranty does not cover conditions beyond those included in the applicable official warranty terms.

Hajvery Compatibility and Authenticity Check

Before purchasing the Livoltek 51.2V 100Ah, confirm the exact model, battery voltage, inverter compatibility and required communication method.

Hajvery Solar Energy is an Official Livoltek Distributor and can help buyers check the battery’s suitability for their intended solar-storage system.

Buying through Hajvery Solar Energy, an authorized Livoltek dealer, provides a direct route to product, compatibility and warranty guidance.

For Livoltek 51.2V 100Ah battery specifications, key points to verify during system design include the 51.2V nominal voltage, 100Ah capacity, 100A charge/discharge current, and RS485/CAN communication.

Before You Buy

Check these points before ordering:

• Has your inverter been designed for a 51.2V low-voltage battery?
• Does the inverter support the battery’s voltage range?
• Does it work with CAN or RS485 BMS communication?
• What is the actual amount of power being backed up?
• Is the inverter’s battery current requirement within the 100A limit?
• Would a wall-mounted indoor installation fit within the available space?
• Will you need more battery modules in the future?
• Are the required communication cables and system settings ready?
• Will the planned installation remain within the prescribed temperature and humidity limits?
• Have you confirmed the current price, availability and warranty terms?

  For additional information click Livoltek Official Website.

FAQs

What is the capacity of the Livoltek 51.2V 100Ah battery?

The battery has a 100Ah nominal capacity and 5.12kWh nominal energy at 51.2V.

What is the price of the Livoltek 51.2V 100Ah battery in Pakistan?

The current price of the Livoltek 5.12kWh 51.2V 100Ah Lithium Battery in Pakistan is Rs. 204,000.00 per unit.

Is the Livoltek 51.2V 100Ah battery suitable for solar backup?

Yes, it is designed as a low-voltage residential energy-storage battery and can be used for compatible solar and backup systems. However, confirm the inverter’s voltage, current and BMS communication compatibility before installation.

What is the livoltek 51 2 v 100ah battery price in pakistan?

The current price of the Livoltek 5.12kWh 51.2V 100Ah Lithium Battery in Pakistan is Rs. 204,000.00 per unit.

What is the Livoltek 51V lithium battery price in Pakistan?

The exact listed product has a 51.2V nominal voltage, rather than a nominal 51V rating. Confirm the current listed price with Hajvery Solar Energy before ordering.

What is the cycle life of the Livoltek 51.2V 100Ah battery?

The battery has a stated 6000-cycle life under specified test conditions: 0.5C charge/discharge, 25°C, 90% DoD and 70% EOL. Actual results depend on operating conditions.

Is the Livoltek 51.2V 100Ah battery wall-mounted?

Yes. The battery is designed for wall-mounted installation and indoor use with IP21 protection.

What communication does the battery use?

The battery supports RS485 and CAN communication for compatible energy-storage systems.

Buy Livoltek 5.12kWh 51.2V 100Ah Lithium Battery from Hajvery Solar

The Livoltek 5.12kWh 51.2V 100Ah Lithium Battery is a compact residential storage option for compatible low-voltage solar systems. Its LFP chemistry, intelligent BMS, 5.12kWh capacity, 100Ah rating, wall-mounted design and modular expansion make it suitable for home energy-storage applications.

For the livoltek 51.2 v 100ah ip21 lithium battery price and current availability, contact Hajvery Solar Energy before ordering.
