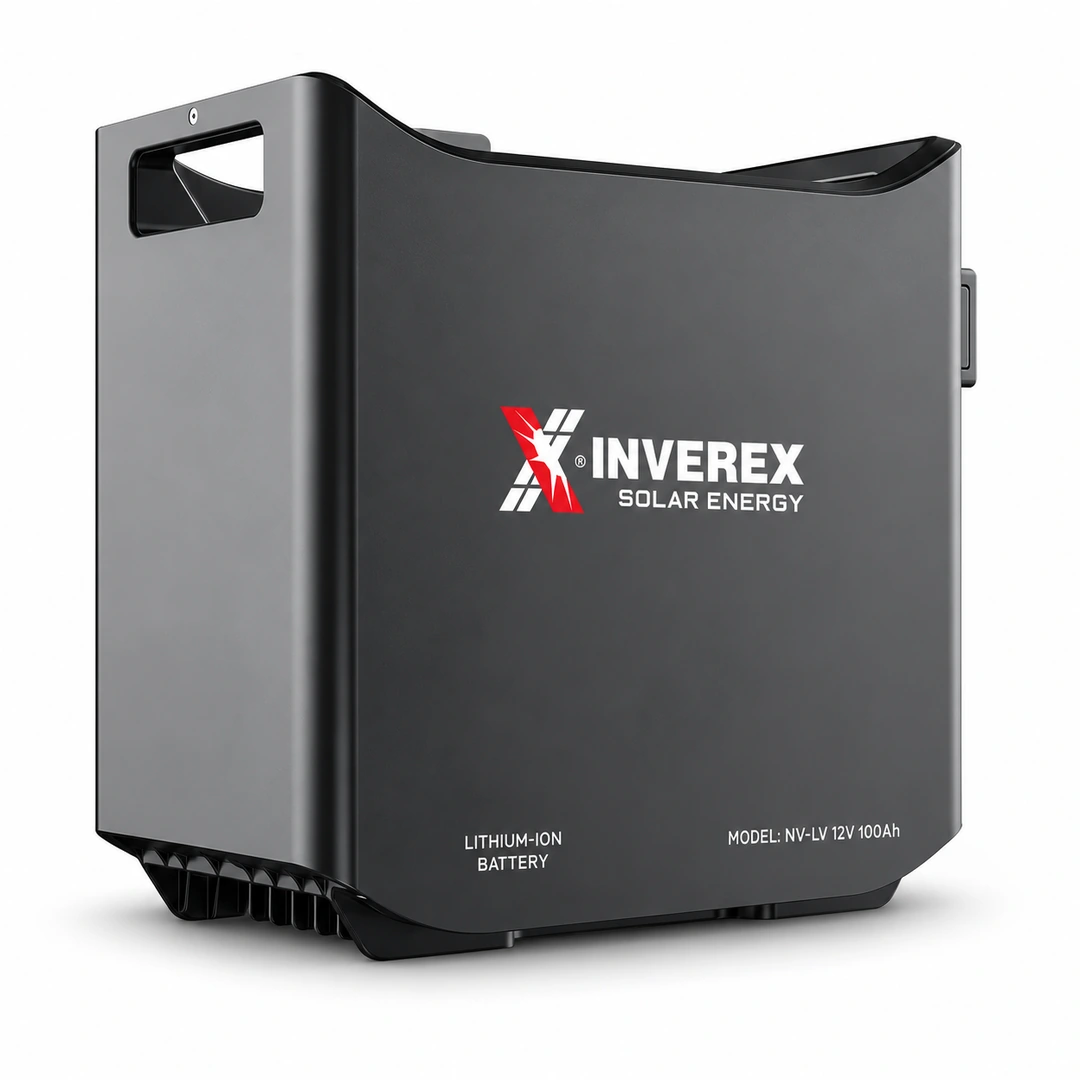

Inverex 12V 100Ah Lithium Battery

Inverex 12V 100Ah Lithium Battery Overview

For buyers comparing inverex 12v 100ah price in Pakistan, the Inverex INV-LV 12V-100AH is a low-voltage lithium iron phosphate battery designed to store electrical energy for backup applications. With 1.28kWh nominal energy and 100Ah capacity, it can support suitable residential power systems during electricity interruptions.

The inverex 12v 100ah lithium ion battery uses four prismatic cells in a 1P4S configuration. Its intelligent BMS helps manage battery operation, while an integrated circuit breaker provides an additional protective feature.

For buyers considering an inverex lv 12v 100ah lithium ion battery, the important factors are its operating voltage, charge and discharge limits, expected backup requirements, and inverter compatibility.

The compact enclosure is suitable for floor-mounted or stack-mounted installation in an appropriate indoor environment.

Key Features and Buyer Benefits

1. LiFePO₄ Battery Technology

LiFePO₄, also known as lithium iron phosphate or LFP, is a lithium-ion battery chemistry valued for its thermal stability and long cycle-life potential.

The Inverex INV-LV battery combines this chemistry with an intelligent BMS to provide managed energy storage for compatible backup systems.

2. 1.28kWh Nominal Energy Storage

The battery has a nominal voltage of 12.8V and a capacity of 100Ah, providing 1.28kWh nominal energy.

An 80% recommended depth of discharge allows approximately 1.024kWh of battery-side energy to be used in a simple nominal-capacity calculation. Actual energy delivered to connected appliances also depends on inverter losses and operating conditions.

3. Intelligent BMS and Circuit Breaker

The inverex lithium battery 100ah includes an intelligent Battery Management System and a built-in circuit breaker.

Its LED indicators provide battery status information, including state of charge, working status, and protection status. A buzzer supplies an additional audible indication.

These features help users monitor the battery’s operating condition.

4. High Charge and Discharge Capability

The battery supports a maximum continuous charge current of 100A and a maximum continuous discharge current of 100A.

It also has a peak current rating of 200A for 10 seconds for both charging and discharging.

The inverter, wiring, protection devices, and charging settings must remain within the applicable electrical limits.

5. Series and Parallel Expansion

The battery supports up to four units in series and up to ten units in parallel, subject to correct system configuration.

Series connections can provide a nominal 51.2V arrangement using four compatible units. Parallel connections increase available capacity at the same nominal system voltage.

Installation should follow the applicable wiring, protection, and battery communication requirements.

6. Compact Enclosure and Status Monitoring

The battery measures approximately 310 × 160 × 298mm and weighs around 11kg.

Its ABS+PC enclosure, LED indicators, buzzer, and RS485 interface support practical operation and maintenance. The RS485 interface supports firmware updates.

Best For

The Inverex INV-LV 12V 100Ah Lithium Battery is suitable for:

• Residential battery backup systems with compatible inverters.
• Selected solar energy storage arrangements.
• Small essential-load backup applications during load shedding.
• Users seeking LiFePO₄ storage instead of conventional lead-acid batteries.
• Installations where floor-mounted or stack-mounted placement is appropriate.
• Energy storage arrangements designed for supported series or parallel expansion.

Battery sizing should reflect the actual connected loads and required backup duration.

Not Ideal For

This battery may not be the right choice for:

• Inverters with incompatible battery voltage or charging requirements.
• Outdoor locations exposed to rain, water, or excessive dust, because its enclosure is rated IP20.
• Systems requiring continuous battery current beyond its 100A rating.
• Applications operating outside the permitted charging or discharging temperature ranges.
• Buyers requiring long backup duration from a single small-capacity battery.

A compatible inverter and correctly designed electrical installation are essential.

Battery Capacity: kWh, Ah and Usable Energy Explained

The battery’s ampere-hour capacity and kilowatt-hour energy capacity describe different characteristics. When evaluating inverex 12v 100ah price in Pakistan, consider the usable energy as well as the stated ampere-hour capacity.

Nominal energy calculation:

12.8V × 100Ah ÷ 1,000 = 1.28kWh

The recommended depth of discharge is 80%.

Calculated energy at recommended DoD:

1.28kWh × 80% = approximately 1.024kWh

This is an approximate battery-side energy figure, not guaranteed AC energy output.

When an inverter powers household appliances, conversion losses and the inverter’s own consumption reduce the usable energy delivered to those loads.

Battery Chemistry and Cycle Life

The Inverex INV-LV battery uses LiFePO₄ chemistry with prismatic cells.

Its rated cycle life is at least 6,000 cycles under the following laboratory test conditions:

• Ambient temperature: 25°C ± 2°C
• Charging rate: 0.2C
• Discharging rate: 0.2C
• Depth of discharge: 80%
• End-of-life capacity criterion: 70%

These conditions are important when evaluating cycle-life performance.

Actual battery life will depend on charging patterns, operating temperature, discharge depth, and system configuration. A cycle-life rating does not represent a guaranteed number of years of operation.

Inverex 12V 100Ah Battery Management System and Safety

The battery incorporates an intelligent BMS to manage its operation.

A built-in circuit breaker provides additional circuit protection, while the LED indicators and buzzer help identify operational and protection states.

The battery has an IP20 enclosure rating. It should be installed in a suitable dry indoor location, with adequate ventilation and protection against water exposure.

Its LiFePO₄ chemistry contributes to the battery’s thermal stability, but correct installation, wiring, charging settings, and electrical protection remain necessary.

Charging and Discharging Performance

Charging and discharging characteristics are important when matching a lithium battery with an inverter or charger.

The Inverex INV-LV battery operates over a voltage range of 11.2V to 14.6V.

Its maximum continuous charge current is 100A, and its maximum continuous discharge current is also 100A.

Peak current capability reaches 200A for 10 seconds.

The battery can charge at temperatures between 0°C and 55°C and discharge between -20°C and 55°C.

The maximum current ratings are electrical limits, not automatically recommended everyday charging settings. Actual allowable current may also be affected by temperature and battery state of charge.

Inverter Compatibility

The inverex lithium ion battery inv lv 12v 100ah is designed for compatible low-voltage battery systems.

When comparing inverex 12v 100ah price in Pakistan, check the inverter requirements before making a purchase. Before connecting the battery, confirm:

• The inverter supports the required battery voltage range.
• The inverter’s charging settings suit LiFePO₄ chemistry.
• Charging and discharging currents remain within safe limits.
• Battery communication requirements are compatible.
• The proposed wiring and circuit protection are suitable.

The RS485 interface supports firmware updates. Its presence alone does not establish full BMS communication compatibility with every inverter. Explore solar inverters at Hajvery Solar when planning a compatible system.

Hajvery Solar Energy, an Official Inverex Distributor, can assist buyers in reviewing the relevant system requirements before purchase.

Parallel Expansion and Installation

For systems needing additional energy storage, supported parallel connections allow battery capacity to be increased.

The battery permits up to ten parallel-connected units.

It also supports series configurations of up to four units, corresponding to a 51.2V nominal battery arrangement.

Final expansion design should consider manufacturer installation requirements, matching battery conditions, suitable cables, protective devices, and supported system communication.

Inverex 12V 100Ah Lithium Battery Specifications

The following technical specifications apply to the Inverex INV-LV 12V-100AH model:

Estimated Backup Time

The backup duration depends on battery energy, inverter efficiency, and the actual electrical load.

For the following illustrative calculation, assume:

• Nominal energy: 1.28kWh
• Recommended DoD: 80%
• Assumed inverter efficiency: 90%
• Calculated AC energy: approximately 0.922kWh

These are calculated estimates, not guaranteed runtimes.

Real backup time can be affected by inverter standby consumption, temperature, battery aging, discharge current, inverter efficiency, and load fluctuations. Higher loads also require careful checking of the battery’s discharge-current limit.

Inverex 12V 100Ah Lithium Battery Use in Pakistan

Lithium battery storage is useful for managing electricity interruptions and storing energy for suitable backup applications.

Buyers comparing inverex lithium ion battery 12v 100ah price in pakistan should also consider energy capacity, warranty coverage, inverter matching and installation requirements. The INV-LV battery can be considered for residential systems needing compact energy storage.

For Pakistani installations, especially in areas experiencing high summer temperatures, the charging temperature range deserves attention.

A protected and properly ventilated installation area helps keep the battery within its operating limits.

Users replacing lead-acid batteries should also confirm that their existing inverter or charger can be configured correctly for LiFePO₄ operation.

Inverex 12V 100Ah Price in Pakistan

Buyers searching for inverex 12v 100ah price in Pakistan can purchase this model through Hajvery Solar Energy.

The current price of the Inverex 1.28kWh 12V 100Ah INV-LV Lithium Battery in Pakistan is Rs. 70,000 per battery.

The inverex 12v 100ah lithium battery price may vary with market conditions, product availability, exchange rates, and dealer quotations.

Customers comparing inverex lithium battery price in pakistan should check the exact battery model, genuine product status, and applicable warranty.

For the inverex lithium battery 12v price in pakistan, this quotation applies specifically to the INV-LV 12V-100AH battery and does not include an inverter or a complete backup system.

Hajvery Solar Energy is an Inverex Official Distributor serving residential buyers, solar installers, and dealers. Contact the Lahore store for current availability and quantity-based enquiries.

Hajvery Compatibility and Authenticity Check

Before purchasing the battery, confirm the model label, serial information, applicable warranty, and inverter compatibility.

The battery’s nominal voltage, charge-current limit, discharge-current limit, and communication arrangements are important parts of a reliable installation.

For genuine product identification and system matching, Hajvery Solar Energy can assist buyers with the relevant details.

Warranty

The Inverex INV-LV 12V 100Ah Lithium Battery carries a total 5-year warranty, divided into:

• 2 Years Product Warranty
• 3 Years Service Warranty

Warranty coverage is subject to the applicable warranty letter and its conditions.

As an Inverex authorized dealer, Hajvery Solar Energy can guide buyers on warranty information and the documentation needed to verify their coverage.

Customers should confirm the applicable claim procedure and warranty conditions before ordering. For additional brand information, visit the Inverex lithium battery product page.

Before You Buy

Check the following points before choosing this battery:

• Exact Model: INV-LV 12V-100AH
• Voltage Compatibility: The inverter must support the battery’s voltage requirements.
• Energy Requirement: Ensure 1.28kWh nominal capacity meets the intended backup requirement.
• Charging Settings: Confirm suitable lithium charging settings and current limits.
• Load Requirement: Check continuous and startup power requirements against battery and inverter ratings.
• Installation Environment: Use an appropriate dry location for the IP20 enclosure.
• Expansion Requirement: Verify the complete system design before series or parallel connection.
• Warranty: Confirm the product and service warranty conditions.

Frequently Asked Questions

1. What is the inverex 12v 100ah lithium battery price in pakistan?

The current price of the Inverex 12V 100Ah INV-LV Lithium Battery in Pakistan is Rs. 70,000 per battery. Contact Hajvery Solar Energy for current availability and dealer enquiries.

2. Can the inverex lithium battery 12v 100ah price in pakistan today change?

Yes. Prices can change with market conditions, availability, and supplier costs. Buyers should confirm the current quotation before placing an order.

3. What is the capacity of the Inverex lithium battery?

This battery has a nominal capacity of 100Ah at 12.8V, providing 1.28kWh nominal energy.

4. Is the inverex 12v 100ah lithium battery a LiFePO₄ battery?

Yes. The battery uses LiFePO₄ chemistry, also known as lithium iron phosphate, with an intelligent BMS.

5. How long does the Inverex INV-LV 12V 100Ah battery last?

The battery is rated for at least 6,000 cycles under defined laboratory conditions at 80% DoD and 70% end-of-life capacity. Actual service life depends on usage and operating conditions.

6. Does the inverex lithium battery 100ah price in pakistan include an inverter?

No. The battery quotation is for one battery. A compatible inverter, protective equipment, installation materials, and other system components may require separate purchases.

7. Can I connect multiple Inverex INV-LV batteries?

Yes. This model supports up to four units in series and up to ten units in parallel, subject to proper system configuration and installation requirements.

8. What warranty does the battery have?

It has a total 5-year warranty consisting of 2 years of product warranty and 3 years of service warranty, subject to the applicable warranty conditions.
