INVT GD200A 0.75KW

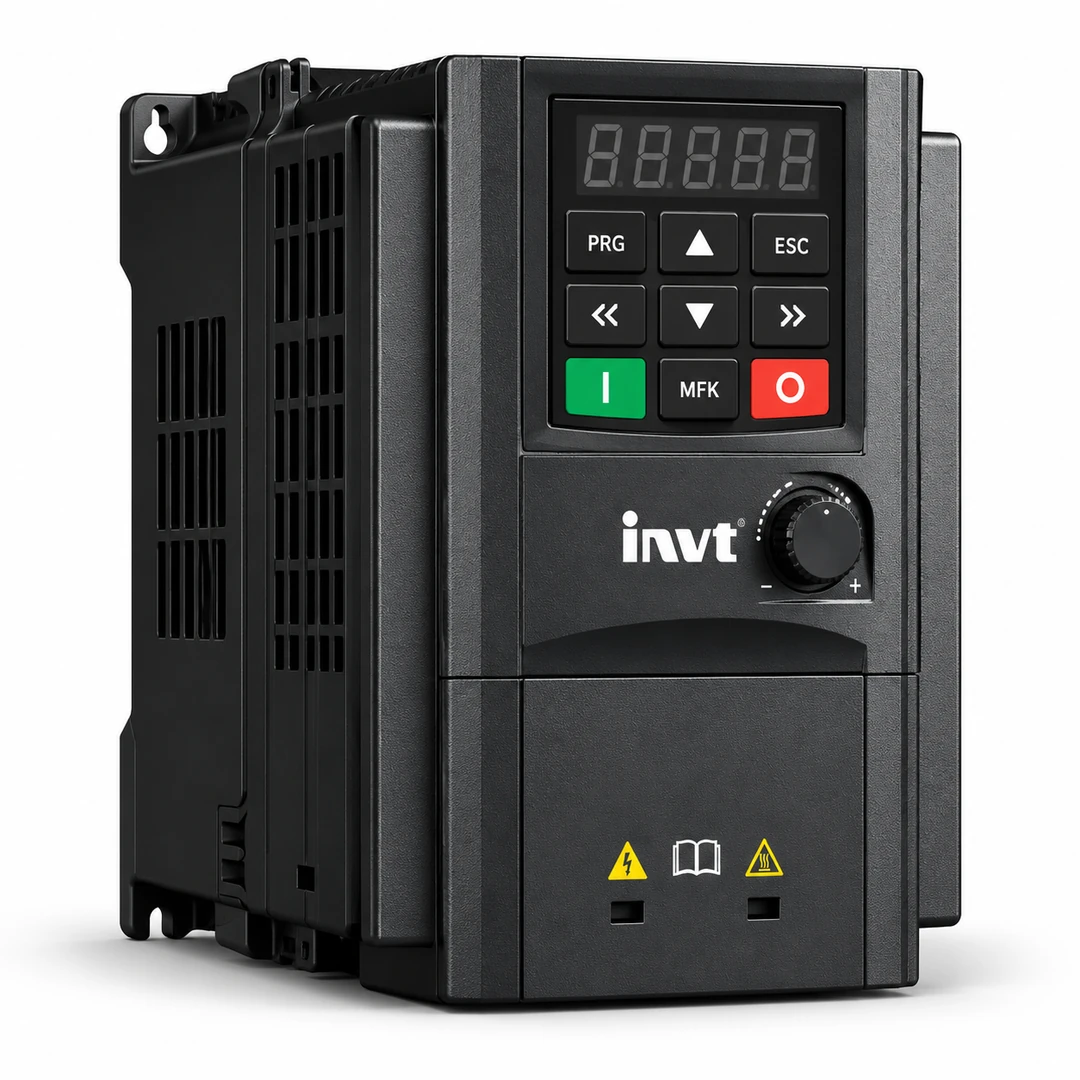

INVT GD200A 0.75KW General Purpose Vector Drive Overview

The INVT GD200A 0.75KW General Purpose Vector Drive is designed to regulate the speed, frequency and operating behaviour of a compatible three-phase asynchronous motor. Its exact model code is GD200A-0R7G-4. The unit has a 0.75kW rated output, draws 3.4A rated input current and supplies 2.5A rated output current.

The drive combines V/F control with sensorless vector control for standard frequency-based operation or more responsive motor control. Its digital, analog, pulse, PLC, PID and communication options suit small pumps, fans, HVAC equipment and selected industrial machines.

Buyers searching invt gd200A or invt gd200a should match the complete model code before ordering because the series contains different power and supply variants. The invt vfd gd200a covered on this page is the 0.75kW, three-phase 380V-class model. It is a general-purpose AC vector drive, not a dedicated direct-PV solar pump inverter.

Key Features and Benefits

V/F and Sensorless Vector Control

V/F control supports standard variable-speed duties, while sensorless vector control improves motor response without an encoder. The installer can select the method suited to the load.

Rotating and Static Motor Auto-Tuning

Rotating auto-tuning is available when the motor can be separated safely from its load. Static auto-tuning suits cases where load separation is difficult. A competent technician should perform either procedure.

Flexible Frequency Commands

Keypad, digital, analog, pulse, multi-step speed, simple PLC, PID and Modbus-based frequency setting allow local control, external sensors or automation.

Controlled Starting and Speed Tracking

Adjustable acceleration and deceleration reduce abrupt mechanical shock. Speed tracking supports smoother restarting of a rotating motor when correctly configured.

Best For

This 0.75kW VFD is suitable for compatible small three-phase asynchronous motors used in:

• Water pumps and circulation pumps
• Ventilation and exhaust fans
• Small HVAC motor-control duties
• Selected air-compressor auxiliaries
• Small plastic-processing machines
• Light industrial and process equipment
• Applications requiring adjustable motor speed or PID control

Final suitability depends on the motor nameplate, supply, load profile and required overload performance—not on kW alone.

Not Ideal For

Do not select this drive for a motor above 0.75kW, requiring more than 2.5A rated output current, using an incompatible motor technology, or lacking the correct three-phase supply. Its IP20 enclosure requires suitable panel protection against dust, moisture and accidental contact. Direct-PV pumping needs a dedicated solar drive with verified PV and MPPT limits.

How the General Purpose VFD Controls a Motor

The VFD converts the incoming three-phase AC supply into an adjustable voltage-and-frequency output. Changing output frequency regulates motor speed, while controlled acceleration and deceleration reduce sudden torque changes. Although the available output range is 0–400Hz, the safe limit depends on the motor, cooling, bearings and driven machine.

Motor, Pump and Application Compatibility

The connected motor should be a compatible three-phase asynchronous motor. Verify its power, voltage, current and frequency against the drive’s 0.75kW output and 2.5A rated output current. Pump projects also require the pump curve, head, flow, pipework and PID needs; fans and machinery require starting-torque, inertia and braking checks.

Industrial and Water Applications in Pakistan

In Pakistan, this model can control a correctly sized fan, water pump, HVAC motor or selected small industrial machine. Agricultural water handling requires a compatible AC-powered pump motor, verified pump curve and suitable environmental protection. It is not a verified MPPT input for direct solar-panel strings.

Protection and Control Features

Protection covers overcurrent, overvoltage, undervoltage, overheating, phase loss and overload conditions. Automatic voltage adjustment supports operation through supply transients, and speed tracking assists with rotating-motor restarts. A built-in braking unit is included; any external braking resistor must be selected for the required torque, duty cycle and load inertia.

Technical Specifications

Manual, Wiring Diagram and Parameter Setting

Use the complete model code and motor nameplate data before starting installation. The invt gd200a manual and invt gd200a manual pdf provide the series installation, commissioning and parameter references, but every setting must be matched to GD200A-0R7G-4 and the connected motor. The invt gd200a user manual and invt gd200a user manual pdf download are useful for terminal identification, control-mode selection, motor auto-tuning and fault-code checks.

The invt gd200a wiring diagram must be followed for the R/S/T input terminals, U/V/W motor output, protective earth, control inputs and any braking-resistor connection. For invt gd200a parameter setting, enter the correct motor nameplate values and review acceleration, deceleration, frequency limits and control-command sources before the first run.

People searching invt vfd parameter setting pdf free download or invt vfd manual pdf free download should verify that the file covers the GD200A series and the correct supply class. The phrases manual inverter invt gd200a, invt vfd gd200a manual pdf, invt inverter gd200a manual and invt drive gd200a manual all describe resources that must be matched to the installed model. Use the invt gd200a catalog for series selection, dimensional guidance and compatible accessory references.

Installation and Commissioning Notes

Install the IP20 VFD in a ventilated panel away from moisture, conductive dust and excessive heat. Before energizing, verify the three-phase supply, earthing, motor insulation, terminal tightness and control wiring. Enter the motor data, set safe frequency limits, test rotation at low speed and monitor current under load.

INVT GD200A 0.75KW Price in Pakistan

For buyers checking invt gd200a price in pakistan, the current price of the INVT GD200A 0.75KW General Purpose Vector Drive is Rs. 29,960 per VFD. Contact Hajvery Solar for the latest availability and quantity-based dealer pricing.

The invt gd200a price can vary with exchange rates, import costs and order quantity. Confirm the exact model, voltage class and included accessories before comparing quotations.

Hajvery Product Verification

Before ordering, verify the INVT branding, model GD200A-0R7G-4, 0.75kW rating, three-phase 380V class and serial information. Confirm any required keypad, braking resistor, reactor, EMC filter or enclosure. Hajvery Solar can assist with exact-model and basic compatibility checks.

Warranty and After-Sales Support

This product comes with a 11-year replacement warranty. Keep the purchase invoice and product serial details, and confirm the applicable claim requirements with Hajvery Solar before ordering. The warranty should not be treated as permission to install the drive outside its electrical, motor or environmental limits.

Before You Buy

Confirm all of the following before final selection:

• Motor rated power, voltage, current and frequency
• Three-phase input-supply availability
• Motor type and nameplate data
• Load type and starting-torque requirement
• Required minimum and maximum operating frequency
• Acceleration, deceleration and braking duty
• Control method, sensor signals and communication needs
• Panel ventilation, earthing and IP protection
• Any required keypad, resistor, reactor or EMC accessory

Frequently Asked Questions

What is the current price of the INVT GD200A 0.75KW VFD in Pakistan?

The current price is Rs. 29,960 per VFD. Contact Hajvery Solar to confirm availability and quantity-based pricing before ordering.

What is the exact model of this 0.75KW drive?

The exact model is GD200A-0R7G-4, rated at 0.75kW for the three-phase 380V supply class.

What motor can this INVT VFD operate?

It is intended for a compatible three-phase asynchronous motor within the 0.75kW and 2.5A output limits. Voltage, frequency and load also require checking.

Can this VFD be connected directly to solar panels?

No direct-PV MPPT capability is established for this model. It is a general-purpose AC vector drive. A direct solar pump system requires a dedicated solar VFD with verified DC input and MPPT limits.

What control modes are available?

It supports V/F and sensorless vector control, plus digital, analog, pulse, PLC, PID and communication-based frequency commands.

Does it include motor and drive protection?

Yes. Protection includes overcurrent, overvoltage, undervoltage, overheating, phase loss and overload conditions.

Where can installers find the correct manual and wiring information?

Use the GD200A series file that matches model GD200A-0R7G-4 and the three-phase 380V supply class. Confirm terminal wiring, motor data and parameters before commissioning.

What warranty is included?

The INVT GD200A 0.75KW General Purpose Vector Drive comes with a 1-year replacement warranty. Confirm the claim requirements with Hajvery Solar and retain the invoice and serial details.

Buy INVT GD200A 0.75KW General Purpose Vector Drive from Hajvery Solar

Order the INVT GD200A-0R7G-4 from Hajvery Solar for retail, dealer or project requirements. Share the motor nameplate and application details before purchase so the correct VFD, control method and accessories can be checked. Contact Hajvery Solar for current availability, Lahore pickup options and nationwide delivery arrangements.
