INVT GD200A 1.5KW

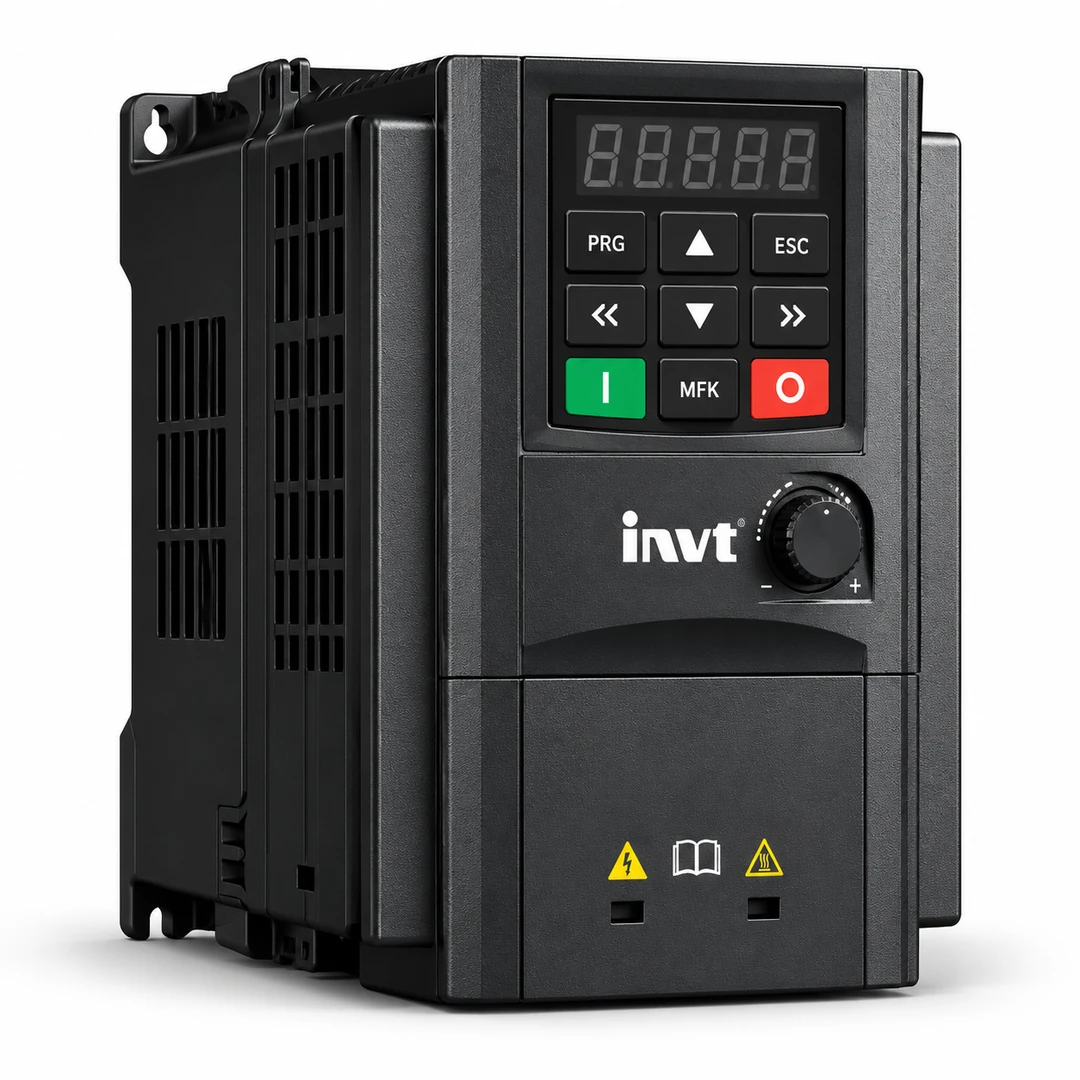

INVT 1.5kW GD200A VFD Inverter Overview

The INVT GD200A 1.5kW General Purpose Vector Control VFD Inverter regulates speed and torque for compatible three-phase asynchronous motors. Buyers checking INVT GD200A 1.5kW price in Pakistan should also confirm the three-phase 380V AC input and 3.7A rated output current. These ratings help installers select the drive for motor applications that need controlled acceleration, deceleration, and operating speed.

In practice, the gd200a 1.5kw drive uses digital signal processing, V/F control, and sensorless vector control to manage motor performance under changing operating conditions.

Buyers searching for invt inverter gd200a should pay particular attention to the complete model number. This product is GD200A-1R5G-4, with a rated input current of 5.0A and a rated output current of 3.7A.

When identifying invt model gd200a for an industrial installation, checking the exact voltage variant and connected motor specifications is essential.

Key Features and Benefits

1. V/F and Sensorless Vector Control

The GD200A supports V/F and sensorless vector control modes for asynchronous motors.

V/F control provides straightforward adjustable-speed operation for compatible loads. Sensorless vector control offers improved motor speed and torque regulation in applications where operating conditions change.

As a result, installers can configure the VFD to match the motor and machinery requirements.

2. Motor Auto-Tuning

The inverter supports both static and rotating motor auto-tuning.

Static auto-tuning is useful when the motor cannot easily be disconnected from its mechanical load. Rotating auto-tuning can help achieve more accurate control when the installation permits the necessary procedure.

Therefore, installers should enter the correct motor parameters for effective operation.

3. Adjustable Output Frequency

The drive offers an output frequency range of 0–400Hz.

This allows controlled adjustment of motor operating speed, subject to the connected motor’s rated frequency, mechanical limits, cooling requirements, and application conditions.

In addition, smooth acceleration and deceleration settings can help reduce unnecessary mechanical stress during starting and stopping.

4. PID Control and RS485 Communication

The INVT GD200A includes PID control functionality and supports Modbus RS485 communication.

PID control is useful for compatible constant-pressure water supply and other feedback-based control systems. RS485 communication allows the VFD to exchange operating and control information with compatible external controllers.

Together, these features make the inverter suitable for motor-control applications requiring more than basic manual speed adjustment.

5. Built-In Protection Functions

The drive includes protection against several common electrical and operating faults, including:

• Overcurrent
• Overvoltage
• Undervoltage
• Motor overload
• Overheating
• Phase loss

With correct installation and configuration, these functions help protect the drive and connected equipment.

6. Compact Installation and Practical Controls

The GD200A-1R5G-4 supports wall mounting and has a membrane-style keypad for local operation and parameter adjustment.

Because of its compact design, installers can integrate the drive into suitable electrical control cabinets.

Additionally, the drive includes a built-in braking unit. Some applications require an external braking resistor to meet their braking requirements.

Best For

The INVT GD200A 1.5kW VFD is suitable for applications including:

• Compatible three-phase water pumps
• Industrial ventilation fans
• HVAC motor speed control
• Water circulation systems
• Small industrial machinery
• Compatible air compressor applications
• Constant-pressure water supply control

However, final suitability depends on the connected motor’s nameplate ratings, starting requirements, load characteristics, and operating conditions.

Not Ideal For

The GD200A-1R5G-4 is not the appropriate choice for installations requiring a different motor voltage, a single-phase motor, or a continuous output current exceeding its rated 3.7A.

Importantly, this is a general-purpose AC motor drive, not a dedicated solar pump inverter with verified direct-PV input or MPPT functionality.

For this reason, installers must protect its IP20 enclosure from rain, water exposure, and unsuitable environmental conditions.

Motor and Pump Compatibility

The INVT GD200A-1R5G-4 is rated for a 1.5kW asynchronous motor application with three-phase 380V operation.

Installers must check the VFD’s 3.7A rated output current against the connected motor’s full-load current, voltage, frequency, and duty requirements.

Therefore, a motor’s power rating alone does not guarantee compatibility.

For pumps, installers should additionally consider starting torque, pump type, operating speed range, and application requirements.

Although the VFD regulates motor speed, water flow and pressure performance depend on the complete motor and pump system.

Agriculture Applications in Pakistan

The INVT GD200A 1.5kW can be used for compatible agricultural water pumping and water supply applications operating from a suitable three-phase AC electrical supply.

As a result, operators can adjust pump speed according to application requirements through the drive’s frequency output.

For pressure-controlled systems, the built-in PID functionality can be used with suitable feedback devices and correct parameter settings.

In addition, agricultural installations need appropriate electrical protection, earthing, motor compatibility checks, and environmental protection.

Industrial Motor Applications

The GD200A is suitable for industrial motor speed-control applications where the connected equipment matches its electrical and mechanical operating limits.

For example, adjustable frequency control can help regulate fan speed according to airflow demand in ventilation systems.

Likewise, the inverter can help control water circulation pumps without relying solely on fixed-speed running.

However, industrial applications involving frequent stopping, high starting loads, or substantial mechanical inertia require particular attention to motor sizing and braking configuration.

Protection and Control Features

The INVT GD200A integrates motor-control functions and electrical protection features into one drive.

For example, its automatic voltage adjustment function helps regulate output during supply voltage changes. In addition, speed-tracking functionality supports smoother restarting of a rotating motor.

Furthermore, the INVT GD200A 1.5kW provides multi-step speed settings, simple PLC operation, analog input control, digital input control, and PID regulation.

Moreover, the inverter includes a built-in C3 EMC input filter. Where C2 EMC performance is required, installers can add an appropriate external filter.

Technical Specifications

INVT GD200A 1.5kW Installation Considerations

First, the INVT GD200A 1.5kW requires a suitable three-phase AC supply and correct motor connections.

Before commissioning, the installer should check supply voltage, motor nameplate current, cable sizing, protective devices, earthing, ventilation, and the selected control mode.

Therefore, its IP20 rating makes cabinet design and environmental protection important, particularly in workshops where dust, moisture, or high temperatures may be present.

Finally, installers should configure the drive to match the motor’s operating requirements rather than rely on default parameters for every installation.

INVT GD200A 1.5kW Price in Pakistan

For buyers checking invt gd200a 1.5kw price in Pakistan, the current price of the INVT GD200A-1R5G-4 1.5kW VFD Inverter in Pakistan is Rs. 31,030 per VFD.

Customers comparing gd200a 1.5kw price in Pakistan should verify that the quotation covers the exact GD200A-1R5G-4 three-phase 380V model.

Meanwhile, the invt gd200a price in Pakistan can vary with exchange rates, supplier pricing, and order quantity.

For an updated invt gd200a vfd price list, contact Hajvery Solar Energy. Retail customers, industrial buyers, and dealers can also request current availability and quantity-based quotations.

Hajvery Solar Product Verification

Hajvery Solar Energy helps customers identify the correct INVT drive model before ordering.

Check the following details when purchasing:

• INVT branding and product identification
• Exact model GD200A-1R5G-4
• Rated capacity of 1.5kW
• Three-phase 380V input rating
• Rated output current of 3.7A
• Product serial information
• Applicable official warranty coverage

As a result, checking these details helps prevent selection of an unsuitable voltage or motor-control variant.

To check product identification, serial information and authenticity, visit Hajvery Solar Energy VFD Verification for access to official brand verification resources.

Warranty and After-Sales Support

The INVT GD200A-1R5G-4 comes with a 1 Year INVT Official Replacement Warranty.

Customers should confirm the applicable warranty conditions, replacement claim procedure, and required purchase records with Hajvery Solar Energy before ordering.

In addition, correct installation, motor sizing, and operation are important for long-term drive performance.

Before You Buy

Check the motor’s rated voltage, power, full-load current, phase, and operating frequency before selecting the INVT GD200A 1.5kW VFD.

Next, consider the machinery’s starting load, braking requirements, control system, enclosure ventilation, and available electrical supply.

For programming and wiring guidance, obtain the invt inverter gd200a manual that corresponds to the selected drive and its operating requirements.

Installers who want to download INVT GD200a 1.5kw VFD inverter datasheet can review the official INVT Goodrive200A technical catalog and check the GD200A-1R5G-4 ratings before installation.

Before you download INVT GD200a 1.5kw datasheet, confirm that the model’s three-phase 380V ratings are being used for equipment selection.

Frequently Asked Questions

1. What is the INVT GD200A 1.5kW VFD price in Pakistan?

The current price of the INVT GD200A 1.5kW VFD Inverter in Pakistan is Rs. 31,030 per VFD. Contact Hajvery Solar Energy to confirm availability before ordering.

2. Can the INVT GD200A 1.5kW operate a three-phase motor?

Yes. The GD200A-1R5G-4 is designed for compatible three-phase asynchronous motors, with a 1.5kW power rating and 3.7A rated output current. The motor’s electrical and load requirements must match the VFD.

3. Can this INVT VFD run directly from solar panels?

The GD200A-1R5G-4 is a three-phase AC-input motor drive. Direct solar PV input and MPPT functionality should not be assumed for this model. Use an appropriate power supply and compatible system design.

4. Does the INVT GD200A support motor protection?

Yes. It supports protection functions including overcurrent, overvoltage, undervoltage, overload, overheating, and phase-loss protection.

5. Where can I find the invt gd200a manual pdf?

The invt gd200a manual pdf can be requested from Hajvery Solar Energy or obtained through the appropriate INVT technical support resources. Use the correct operating manual for installation, parameter setting, and wiring.

6. Where can I download GD200a 1.5kw datasheet?

To download GD200a 1.5kw datasheet, obtain the Goodrive200A technical PDF containing the GD200A-1R5G-4 specifications. It includes rated electrical information and installation dimensions.

7. How can I download GD200a 1.5kw VFD datasheet?

Customers looking to download GD200a 1.5kw VFD datasheet can request the matching technical PDF from Hajvery Solar Energy. The product model and voltage rating should be checked before installation.

8. What warranty comes with the INVT GD200A 1.5kW VFD?

The INVT GD200A-1R5G-4 comes with a 1 Year INVT Official Replacement Warranty. Confirm the applicable claim requirements and warranty conditions before purchase.

Buy INVT GD200A 1.5kW VFD Inverter from Hajvery Solar

Choose Hajvery Solar Energy for INVT GD200A-1R5G-4 product enquiries, motor compatibility guidance, and current pricing information. You can also explore the INVT GD200A Series VFD range.

Whether you need a VFD for a compatible water pump, ventilation fan, or industrial motor application, selecting the correct model and motor settings is essential.

Contact Hajvery Solar Energy in Lahore for product availability, retail orders, and dealer quotations.
