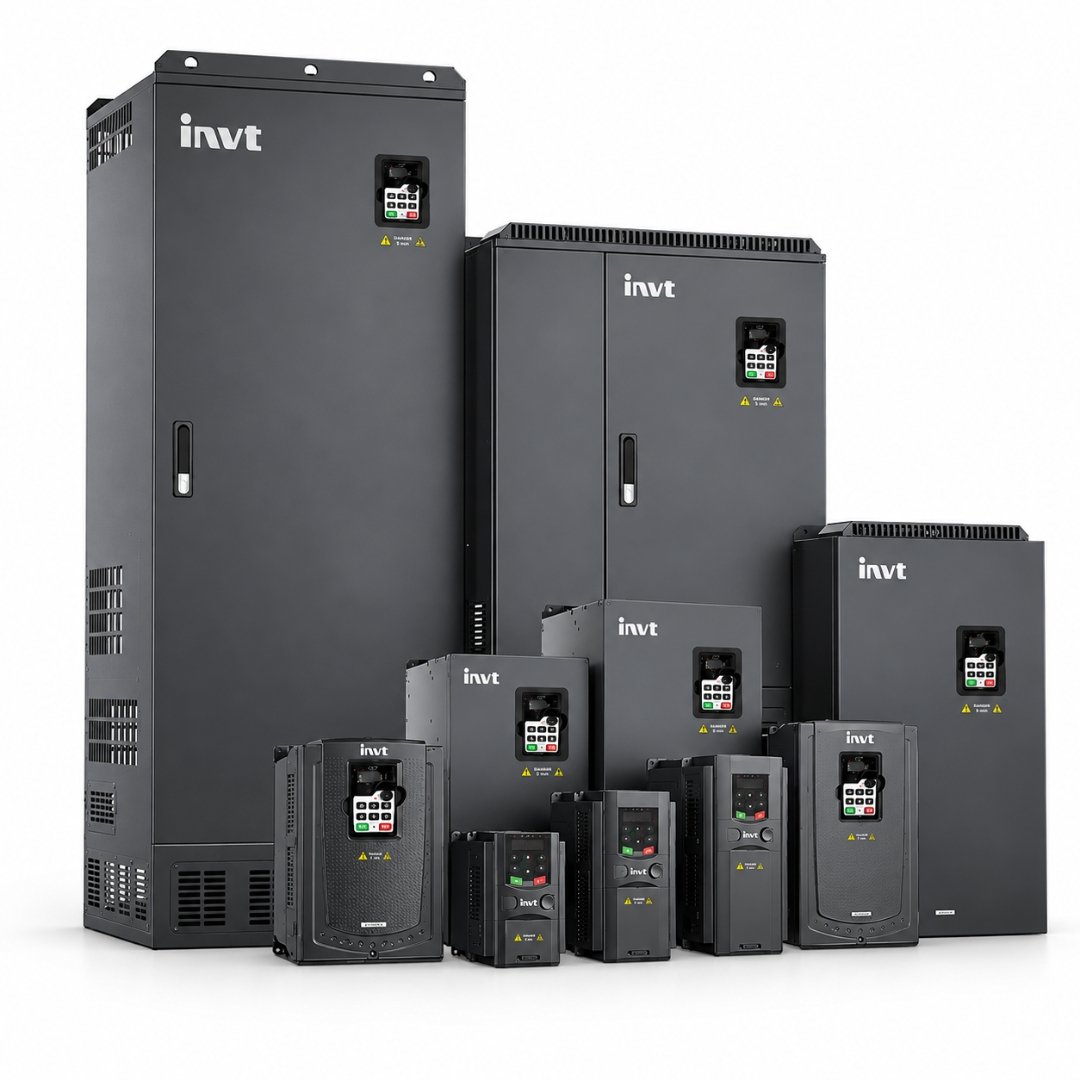

INVT GD200A 132KW
₨ 695,500
The INVT GD200A 132KW General Purpose Vector Drive provides controlled speed, frequency and torque management for compatible three-phase asynchronous motors. Model GD200A-132G/160P-4 operates in the 380VAC class and delivers 260A rated output current. It supports V/F control, sensorless vector control, multiple frequency-setting methods, motor auto-tuning and extensive fault protection. Its IP20 enclosure, air cooling, external keypad and flexible control interfaces make it suitable for properly engineered industrial motor, pump, fan, HVAC and machinery applications.
Highlights
- 132KW G-type rated output power
- 3-phase 380VAC input class
- 265A rated input current
- 260A rated output current
- V/F and sensorless vector control
- 0–400Hz output frequency
- Rotating and static motor auto-tuning
- More than 30 fault-protection functions
- Modbus and PROFIBUS communication settings
- IP20 protection with air cooling
- 1 Year Replacement Warranty by INVT Official
INVT GD200A 132KW General Purpose Vector Drive Overview
The INVT GD200A 132KW General Purpose Vector Drive provides accurate speed, frequency and torque control for compatible three-phase asynchronous motors. It belongs to the Goodrive200A high-performance general-purpose vector drive range and uses DSP-based control with V/F and sensorless vector control technologies. If you are checking the INVT GD200A 132KW Price in Pakistan, this model offers a 132KW G-type rating, a 260A rated output current and an output frequency range of 0–400Hz for compatible industrial motor applications.
The exact model is GD200A-132G/160P-4, with a 132KW G-type rating. It draws a rated input current of 265A and delivers a rated output current of 260A. In addition, its 0–400Hz output frequency range lets users adjust motor speed according to the operating needs of compatible industrial equipment.
Buyers may also search for this product as INVT GD200A, INVT VFD GD200A, INVT VFD or INVT VFD inverter. These search terms refer to the Goodrive200A general-purpose AC vector drive. However, this product does not serve as a dedicated solar MPPT drive, so users should not assume that they can connect a solar PV array directly to it.
Key Features and Benefits of INVT GD200A 132KW VFD
The GD200A supports both rotating and static motor auto-tuning. Rotating auto-tuning helps achieve higher control accuracy when users can separate the motor from its load. Meanwhile, static auto-tuning offers a useful option during commissioning when the installer cannot disconnect the motor from the driven equipment.
Its open-loop vector control supports stable motor operation under changing load conditions. Moreover, automatic voltage adjustment helps maintain stable voltage when the incoming supply changes temporarily.
For G-type operation, the drive supports these overload levels:
- 150% of rated current for one minute
- 180% of rated current for ten seconds
- 200% of rated current for one second
The drive accepts frequency commands through several methods. These include digital settings, analogue settings, pulse-frequency settings, multi-step speed operation, simple PLC control, PID control, Modbus communication and PROFIBUS communication settings. As a result, users can select a suitable command method for their control system.
A standard external LED keypad supports parameter uploading and downloading. Users can also choose an optional LCD keypad. However, they should confirm the correct accessory for their exact installation.
Best Applications for INVT GD200A 132KW General Purpose Vector Drive
The INVT GD200A 132KW VFD suits properly sized three-phase asynchronous motors in several industrial applications. For example, users can consider it for:
- Industrial air compressors
- Ventilation and process fans
- Water-supply and circulation pumps
- HVAC equipment
- Compatible plastic machinery
- Selected petroleum-industry equipment
- Compatible mining and material-handling systems
- Industrial process motors
- Other standard transmission loads
However, users must check the motor nameplate, load characteristics, starting torque, overload demand and operating environment before choosing the drive. These details help determine whether the model suits the intended application.
When INVT GD200A 132KW VFD Is Not Ideal
Users should check the complete motor and application data before installing this drive. A matching kW rating alone does not guarantee compatibility between the motor and the drive.
For this reason, the drive may not suit:
- Direct PV-array connection that requires a dedicated solar MPPT input
- Single-phase motors
- Motors that exceed the supported voltage, power or current limits
- Outdoor installation without a suitable protective enclosure
- Locations that require an IP rating higher than IP20
- Applications that need a built-in braking unit at this power level
- Installations without correct cable, protection and ventilation design
AC Input and Motor Control Performance
The drive operates in the three-phase 380VAC class and accepts an input voltage tolerance of ±15%. It supports both 50Hz and 60Hz input supplies, with an allowed frequency range of 47–63Hz.
The drive controls output voltage from zero up to the available input voltage. Furthermore, its 0–400Hz output-frequency range gives users flexibility when adjusting motor speed. Nevertheless, users must keep the selected operating frequency within the motor and machinery limits.
The GD200A uses V/F and sensorless vector control for asynchronous motors. Its stated asynchronous-motor speed ratio is 1:100. Therefore, the commissioning technician must match the final parameter settings with the motor nameplate and mechanical load.
Motor and Pump Compatibility
The drive offers a 132KW G-type rating and a 260A rated output current. A compatible motor must match the drive’s output voltage, phase, rated current, frequency range and overload capability.
For pump applications, motor power alone cannot determine compatibility or water performance. Instead, installers must check the pump type, required flow, total dynamic head, bore depth, pipe losses, cable length and motor current.
Industrial machinery also needs careful assessment. The commissioning engineer should check acceleration time, deceleration time, braking demand, starting torque, duty cycle and load inertia. If an application involves rapid stopping or high inertia, the system may need a correctly sized external braking unit and braking resistor.
Agriculture and Water-Supply Applications in Pakistan
The GD200A can control compatible three-phase AC pump motors in water-supply, circulation and selected irrigation systems. Moreover, its PID control and feedback inputs can support applications that require controlled pressure or flow.
However, users should not treat this model as a direct solar pump inverter. If a project requires daytime operation from solar panels, the project designer should select a dedicated solar VFD with verified DC-input and MPPT specifications.
The VFD rating alone cannot determine water output. Therefore, the system designer must review the pump curve, water head, bore conditions, pipework and motor data before planning the system.
Industrial Motor Applications
The drive supports compatible industrial fans, pumps, air compressors, HVAC equipment and selected process machinery. Its variable-frequency control lets users adjust motor speed according to actual process demand.
Depending on the installation, industrial systems may also need input reactors, output reactors, braking accessories, external filters or control integration. For example, cable length, power quality, braking duty, electromagnetic environment and connected equipment can affect accessory selection.
Protection and Control Features of INVT GD200A 132KW
The GD200A provides more than 30 fault-protection functions. These functions help protect the drive and connected motor during operation. Its supported protections include:
- Overcurrent protection
- Overvoltage protection
- Undervoltage protection
- Overheating protection
- Input or output phase-loss protection
- Motor and drive overload protection
The drive also offers speed-tracking control. When users configure this function correctly, it can restart a rotating motor smoothly.
Its control interface includes analogue inputs, analogue outputs, digital inputs, pulse input and output channels, open-collector output and programmable relay outputs. These interfaces allow users to integrate compatible sensors, controllers and automation systems.
INVT GD200A 132KW Technical Specifications
| Specification | Details |
|---|---|
| Brand | INVT |
| Series | Goodrive200A |
| Product Type | General Purpose Vector Drive |
| Exact Model | GD200A-132G/160P-4 |
| G-Type Rated Output Power | 132KW |
| Input Supply Class | 3-phase 380VAC ±15% |
| Input Frequency | 50Hz or 60Hz |
| Allowed Input Frequency Range | 47–63Hz |
| Rated Input Current | 265A |
| Rated Output Current | 260A |
| Output Voltage | 0 to input voltage |
| Output Frequency | 0–400Hz |
| Control Modes | V/F and SVC |
| Compatible Motor Type | Three-phase asynchronous motor |
| Asynchronous Motor Speed Ratio | 1:100 |
| Analogue Inputs | AI1 and AI2: 0–10V/0–20mA; AI3: -10V to +10V |
| Analogue Outputs | Two channels, 0–10V/0–20mA |
| Digital Inputs | Eight common inputs and one high-speed input |
| Relay Outputs | Two programmable relay outputs |
| Communication Settings | Modbus and PROFIBUS |
| Ingress Protection | IP20 |
| Cooling | Air cooling |
| Operating Temperature | -10°C to 50°C, with derating above 40°C |
| Mounting Options | Wall or flange mounting |
| EMC Filter | Built-in C3 filter; optional external C2 filter |
| Braking Unit | Optional external braking unit |
| Gross Weight | 110kg |
| Dimensions | 971 × 631 × 565mm |
| Warranty | 1 Year Replacement Warranty by INVT Official |
INVT GD200A Manual, Wiring and Parameter Settings
Use the correct INVT GD200A manual before installation or commissioning. Match the INVT GD200A wiring diagram with the exact voltage class, terminal arrangement and model code. A qualified technician should complete the INVT GD200A parameter setting after checking the motor nameplate and load requirements.
Users looking for an authentic INVT GD200A user manual or INVT GD200A manual PDF should obtain the correct resource through a reliable INVT channel. Similarly, anyone searching for an INVT GD200A user manual PDF download or INVT VFD GD200A manual PDF should check the series, voltage class and document revision before applying any instructions.
Searches such as INVT VFD parameter setting PDF free download, INVT GD200 manual PDF download and INVT VFD manual PDF free download may return documents for different drive families. Therefore, users must not apply settings or wiring information from another series to this product.
Users may also search for manual inverter INVT GD200A, INVT inverter GD200A manual or INVT drive GD200A manual. In each case, they should choose the correct Goodrive200A resource. The INVT GD200A catalog may help identify compatible accessories. However, project-specific engineering must guide the final selection of cables, reactors, filters, protection and braking components.
INVT GD200A 132KW Price in Pakistan
The current price of the INVT GD200A 132KW General Purpose Vector Drive in Pakistan is Rs. 695,500 per VFD. Contact Hajvery Solar Energy to confirm availability, applicable delivery charges and quantity-based dealer rates.
When comparing the INVT GD200A 132KW Price in Pakistan, INVT GD200A price or INVT VFD price in Pakistan, buyers should check that each quotation covers the same 132KW model, voltage class, warranty and included accessories. A general INVT VFD price list may contain different ratings. Therefore, buyers should confirm the exact model before making a purchase decision.
Hajvery Product Verification
Before ordering, confirm the model as GD200A-132G/160P-4. Also, check the product label, serial information, packaging and official warranty route. The connected motor’s voltage, current and load characteristics need attention as well.
Hajvery Solar Energy can assist buyers, installers and dealers with exact-model identification, product verification, warranty guidance and practical compatibility checks before purchase.
Warranty and After-Sales Support
The INVT GD200A 132KW General Purpose Vector Drive comes with a 1 Year Replacement Warranty by INVT Official.
Replacement coverage remains subject to the applicable official warranty terms. Keep the purchase invoice and product serial information available when making a warranty claim. In addition, follow the correct installation, wiring and commissioning requirements to avoid faults caused by an unsuitable application or incorrect setup.
Hajvery Solar Energy can assist with product identification and the applicable after-sales route.
Before You Buy INVT GD200A 132KW VFD
Before placing an order, check the following details. This checklist helps buyers and installers review the motor and application requirements:
- Motor rated power
- Motor rated voltage and phase
- Motor nameplate current
- Motor rated frequency and permitted speed
- Starting-torque and overload requirements
- Application and load type
- Acceleration and deceleration requirements
- Braking-unit and resistor requirements
- Input and output reactor requirements
- Cable size and cable length
- Installation temperature and ventilation
- Required enclosure protection
- Control and communication requirements
Frequently Asked Questions
What is the exact model of the INVT GD200A 132KW drive?
The exact model is GD200A-132G/160P-4. Its target G-type output rating is 132KW.
What is the rated output current of the INVT GD200A 132KW VFD?
The drive has a rated output current of 260A and a rated input current of 265A.
Which motor type can the INVT GD200A control?
It supports compatible three-phase asynchronous motors. Before selection, check the motor voltage, rated current, frequency, overload requirement and application.
Does the INVT GD200A support direct solar-panel input?
Direct solar PV input and MPPT operation are not specified for this product. Therefore, users should not treat it as a dedicated solar pump inverter.
What control modes are available in the INVT GD200A 132KW VFD?
The drive supports V/F control and sensorless vector control. It also provides rotating and static motor auto-tuning.
Does the INVT GD200A 132KW model have a built-in braking unit?
The 132KW model uses an optional external braking unit. Users must select braking components according to the load inertia, braking torque and stopping frequency.
What is the current price of the INVT GD200A 132KW General Purpose Vector Drive in Pakistan?
The current price of the INVT GD200A 132KW General Purpose Vector Drive in Pakistan is Rs. 695,500 per VFD. Contact Hajvery Solar Energy to confirm current availability and dealer-quantity pricing.
What warranty does the INVT GD200A 132KW VFD include?
It comes with a 1 Year Replacement Warranty by INVT Official, subject to the applicable official warranty terms.
Buy INVT GD200A 132KW General Purpose Vector Drive from Hajvery Solar
Order the INVT GD200A 132KW General Purpose Vector Drive from Hajvery Solar Energy for industrial motor-control projects in Pakistan. Contact the Hajvery Solar team with the motor nameplate and application details. The team can assist with exact-model verification, compatibility guidance, dealer pricing and availability confirmation.
Hajvery Solar Energy provides nationwide delivery across Pakistan for all major solar energy products. We ensure safe, reliable, and timely delivery to residential, commercial, and industrial locations.
