INVT GD200A 110KW

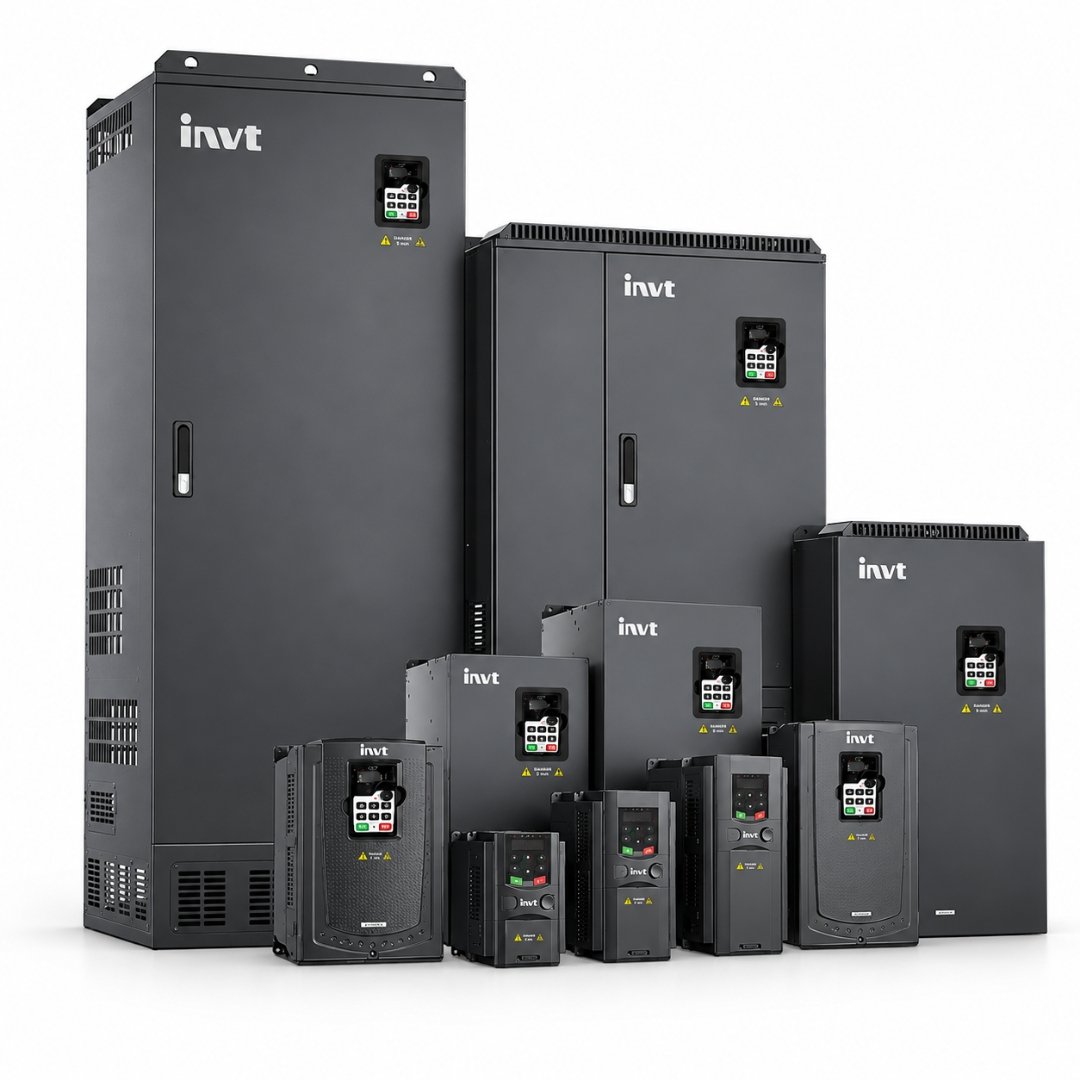

INVT GD200A 110KW General Purpose Vector Drive Overview

The INVT GD200A 110KW General Purpose Vector Drive is designed for controlled operation of compatible three-phase asynchronous motors in demanding industrial applications. It regulates motor speed, frequency, and torque according to the operating requirements of the connected machine.

The drive uses a DSP-based control platform with V/F and sensorless vector control technologies. Accurate rotating and static motor auto-tuning helps the drive identify relevant motor parameters and improve control performance. Static auto-tuning is useful where disconnecting the motor from its mechanical load is difficult, while rotating auto-tuning can support applications requiring higher control accuracy.

This invt gd200A drive is suitable for applications such as air compressors, industrial water pumps, ventilation fans, plastic machinery, heating and water-supply systems, mining equipment, and selected oil-industry processes. Motor selection and parameter configuration must be completed by a qualified VFD technician.

Key Features and Benefits

110KW Industrial Motor Control

The 110KW G-type rating supports high-power industrial motor applications when the motor voltage, rated current, frequency, load characteristics, and overload requirements are correctly matched. The drive has a rated output current of 215A and an input current of 225A for its 110KW G rating.

V/F and Sensorless Vector Control

The drive supports V/F control and sensorless vector control. V/F control is useful for many standard variable-torque and general-purpose loads. Sensorless vector control provides improved speed and torque management without requiring a motor encoder in compatible applications.

Rotating and Static Motor Auto-Tuning

Both rotating and static motor auto-tuning modes are available. These functions help configure motor parameters more accurately and can simplify commissioning when the correct motor data is entered.

Adjustable Output Frequency

The 0–400Hz output frequency range gives engineers flexibility when configuring compatible machinery. The final frequency limit must remain within the safe operating range of the motor and driven equipment.

Strong Overload Capability

For the G-type rating, the drive supports:

• 150% of rated current for 1 minute
• 180% of rated current for 10 seconds
• 200% of rated current for 1 second

The application must still be assessed for starting torque, acceleration time, load inertia, and repeated overload conditions.

Automatic Voltage Adjustment

Automatic voltage adjustment helps maintain stable operation during compatible grid-voltage changes. The drive also adjusts output frequency to reduce overcurrent risk during acceleration and DC-bus overvoltage risk during deceleration.

Flexible Frequency Setting

Frequency commands can be configured through digital settings, analog settings, pulse-frequency settings, multi-step speed control, simple PLC operation, PID control, MODBUS communication, and PROFIBUS communication.

Built-in C3 EMC Filter

A C3 input filter is built in for industrial EMC requirements. An external C2 filter can be selected where the installation requires the applicable C2 EMC performance level.

External Keypad Support

This power class supports an external LED keypad with parameter upload and download functions. The keypad connection can extend up to 200 metres under suitable installation conditions. An optional English LCD keypad is also available.

Best Applications

The INVT GD200A 110KW VFD is suitable for properly engineered applications including:

• Industrial water pumps
• Centrifugal pumps
• Ventilation and extraction fans
• Air compressors
• HVAC equipment
• Constant-pressure water-supply systems
• Plastic-processing machinery
• Mining applications
• Oil-industry machinery
• Selected standard transmission loads
• Process equipment using compatible asynchronous motors

Application suitability depends on the motor nameplate, load torque, starting requirements, duty cycle, operating environment, and required stopping method.

Not Ideal For

This VFD should not be selected for:

• Single-phase motors
• Motors with incompatible voltage or current ratings
• Loads exceeding its rated output or overload capability
• Outdoor or wet locations without a suitable protective enclosure
• Dusty or corrosive locations without proper cabinet protection
• Equipment requiring a different motor-control method
• Applications selected only by matching the motor’s kW rating
• Unverified braking systems or high-inertia loads without engineering calculations

Motor and Load Compatibility

The INVT GD200A 110KW is intended for compatible three-phase asynchronous motors. Matching only the 110KW rating is not enough. The motor’s rated voltage, full-load current, base frequency, speed, insulation, duty cycle, starting torque, and load characteristics must also be checked.

The rated output current is 215A. A motor drawing more current than the drive can safely deliver may cause overload trips or unreliable operation. Pump and fan applications also require confirmation of acceleration time, deceleration time, minimum operating speed, and mechanical limitations.

High-inertia machinery may require an external braking unit and correctly sized braking resistor. This 110KW model does not use the smaller built-in braking-unit arrangement. Braking components must be selected according to the required braking torque, operating cycle, and site conditions.

Industrial Applications in Pakistan

The drive can help industrial users regulate motor speed instead of operating a motor continuously at full speed where the process allows variable operation. This can improve process control in water circulation, pressure control, ventilation, pumping, and selected machinery applications.

In Pakistan, the incoming supply quality, ambient temperature, dust level, cable length, earthing, and control-panel ventilation require careful attention. The drive operates from -10°C to 50°C, but derating is required above 40°C. Its IP20 protection rating means installation inside a suitable electrical enclosure is important where dust, moisture, or accidental contact may occur.

Protection and Control Features

The GD200A platform includes more than 30 fault-protection functions. Applicable protections include:

• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Overheating protection
• Phase-loss protection
• Overload protection
• Speed tracking for smooth motor restart
• Voltage and current control during acceleration and deceleration

The drive also includes multiple digital, analog, pulse, and relay interfaces for integration with industrial control systems. PID control can be used for suitable pressure, flow, and process-control applications.

Technical Specifications

Installation and Engineering Notes

Install the VFD inside a correctly designed control cabinet with suitable airflow and clearance. The air-cooling path must remain unobstructed. Proper earthing is essential for electrical safety, reliable control operation, and EMC performance.

Use correctly rated input protection, cables, contactors, reactors, filters, and braking components. Long motor cables may require additional output-side protection or filtering. Control wiring should be separated from high-power motor and supply cables to reduce electrical interference.

The drive’s parameters must match the motor nameplate before operation. Acceleration, deceleration, current limits, motor auto-tuning, minimum frequency, maximum frequency, and protection settings should be configured according to the actual machinery.

INVT GD200A 110KW Price in Pakistan

The current price of the INVT GD200A 110KW General Purpose Vector Drive in Pakistan is Rs. 492,200 per VFD. Contact Hajvery Solar Energy to confirm availability and quantity-based dealer pricing.

Customers researching invt gd200a price in pakistan, invt gd200a price, or invt vfd price in pakistan should compare the exact model, current rating, warranty coverage, and included accessories. VFD prices can change because of exchange rates, import costs, and stock availability.

Manuals, Wiring and Parameter Resources

Buyers searching for invt gd200a manual, invt gd200a manual pdf, invt gd200a user manual, invt gd200a user manual pdf download, invt vfd gd200a manual pdf, invt inverter gd200a manual, or invt drive gd200a manual should verify that the file covers the Goodrive200A series and the exact 110KW model.

For invt gd200a wiring diagram, invt gd200a parameter setting, invt gd200a catalog, manual inverter invt gd200a, invt vfd parameter setting pdf free download, and invt vfd manual pdf free download searches, use an official and complete document version. Wiring and parameter configuration should be handled by a qualified technician.

The phrase invt gd200 manual pdf download may lead to documentation for a different drive series. Confirm that the selected file is for GD200A before using its terminal layout, parameters, or wiring instructions.

Hajvery Product Verification

Before purchasing an invt vfd gd200a, confirm the exact model code, 110KW G rating, rated current, input supply, serial information, and required accessories. Hajvery Solar Energy can help customers and dealers check product identity, application requirements, and warranty information before an order is finalized.

Do not select an invt vfd inverter only by comparing power ratings. Share the motor nameplate, application type, load behaviour, control requirements, and installation conditions for a more responsible compatibility check.

Warranty and After-Sales Support

1 Year Replacement Warranty by INVT Official.

The warranty is a replacement warranty and should not be interpreted as an onsite repair or maintenance package. Keep the purchase invoice and product identification details secure. Confirm the applicable claim procedure and required documents with Hajvery Solar Energy before installation.

Before You Buy

Confirm the following information before ordering:

• Motor rated power
• Motor rated voltage
• Motor full-load current
• Motor phase and frequency
• Motor type
• Driven equipment or application
• Starting and running torque
• Acceleration and deceleration requirements
• Braking requirements
• Incoming supply conditions
• Installation temperature and ventilation
• Required communication protocol
• Control-panel protection level
• Cable length and earthing arrangement
• Required input/output reactors or EMC filters

Frequently Asked Questions

What is the current price of the INVT GD200A 110KW VFD in Pakistan?

The current price is Rs. 492,200 per VFD. Confirm availability and dealer rates with Hajvery Solar Energy before ordering.

Which motor type is compatible with this drive?

It is designed for compatible three-phase asynchronous motors. Motor voltage, current, frequency, load type, and overload requirements must be checked in addition to the 110KW rating.

What is its rated output current?

The 110KW G-type rating has a rated output current of 215A and an input current of 225A.

What control modes are available?

The drive supports V/F control and sensorless vector control. It also includes rotating and static motor auto-tuning.

What is the output frequency range?

Its adjustable output-frequency range is 0–400Hz. The configured range must remain safe for the connected motor and machinery.

Does it have a built-in braking unit?

This power rating uses an optional external braking unit. The braking unit and resistor must be engineered for the load inertia and required braking cycle.

Can it be installed outdoors?

The drive has an IP20 rating. Outdoor, dusty, wet, or corrosive locations require a suitable protective control cabinet and correctly designed ventilation.

What warranty is included?

The product comes with a 1-year replacement warranty provided by INVT Official.

Buy INVT GD200A 110KW VFD from Hajvery Solar Energy

Buy the INVT GD200A 110KW General Purpose Vector Drive from Hajvery Solar Energy for industrial motor-control applications in Pakistan. Retail buyers, contractors, industries, and dealers can contact the Hajvery Solar team for current availability, bulk pricing, model verification, and application compatibility guidance.
