INVT GD200A 2.2KW

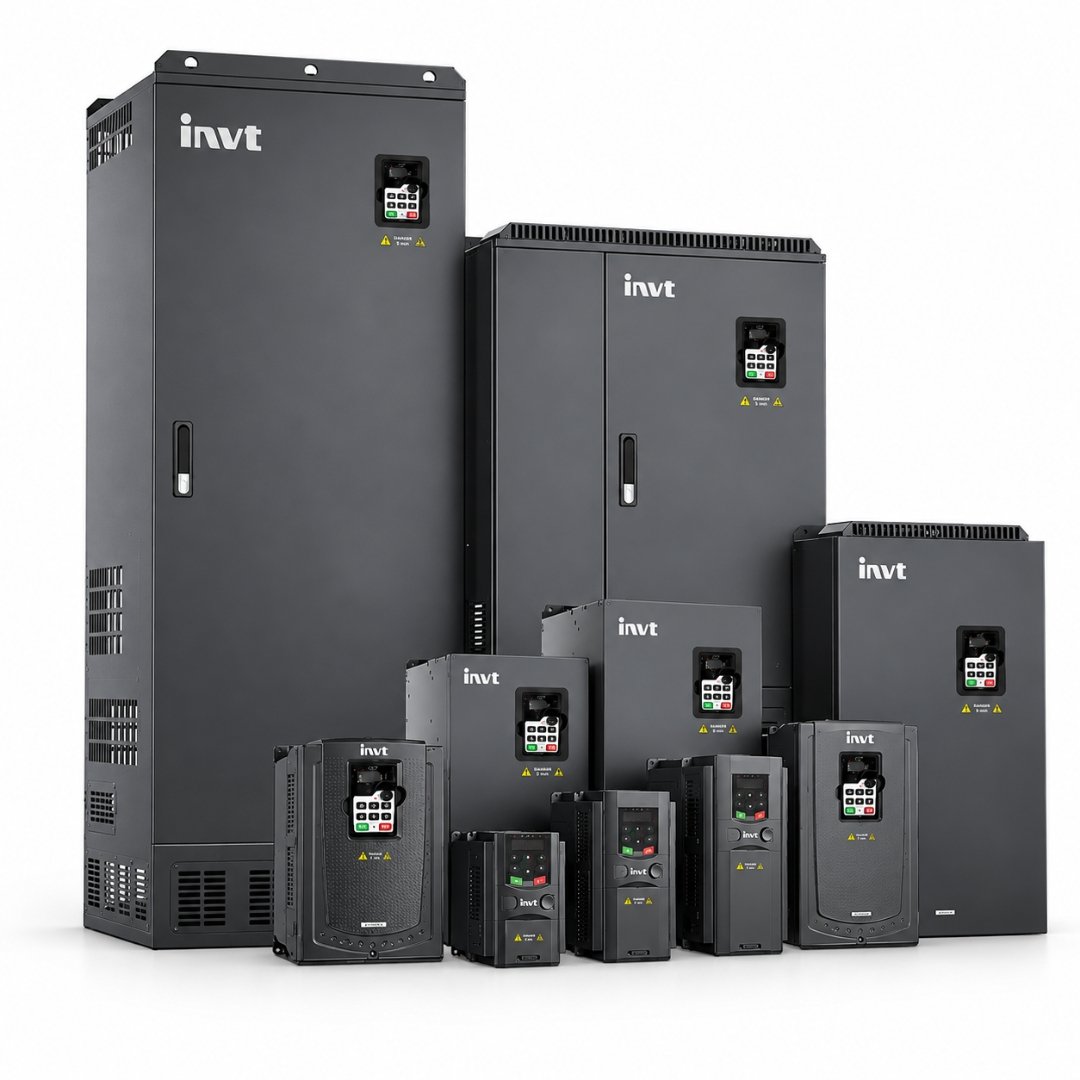

INVT 2.2kW GD200A General Purpose Vector Drive Overview

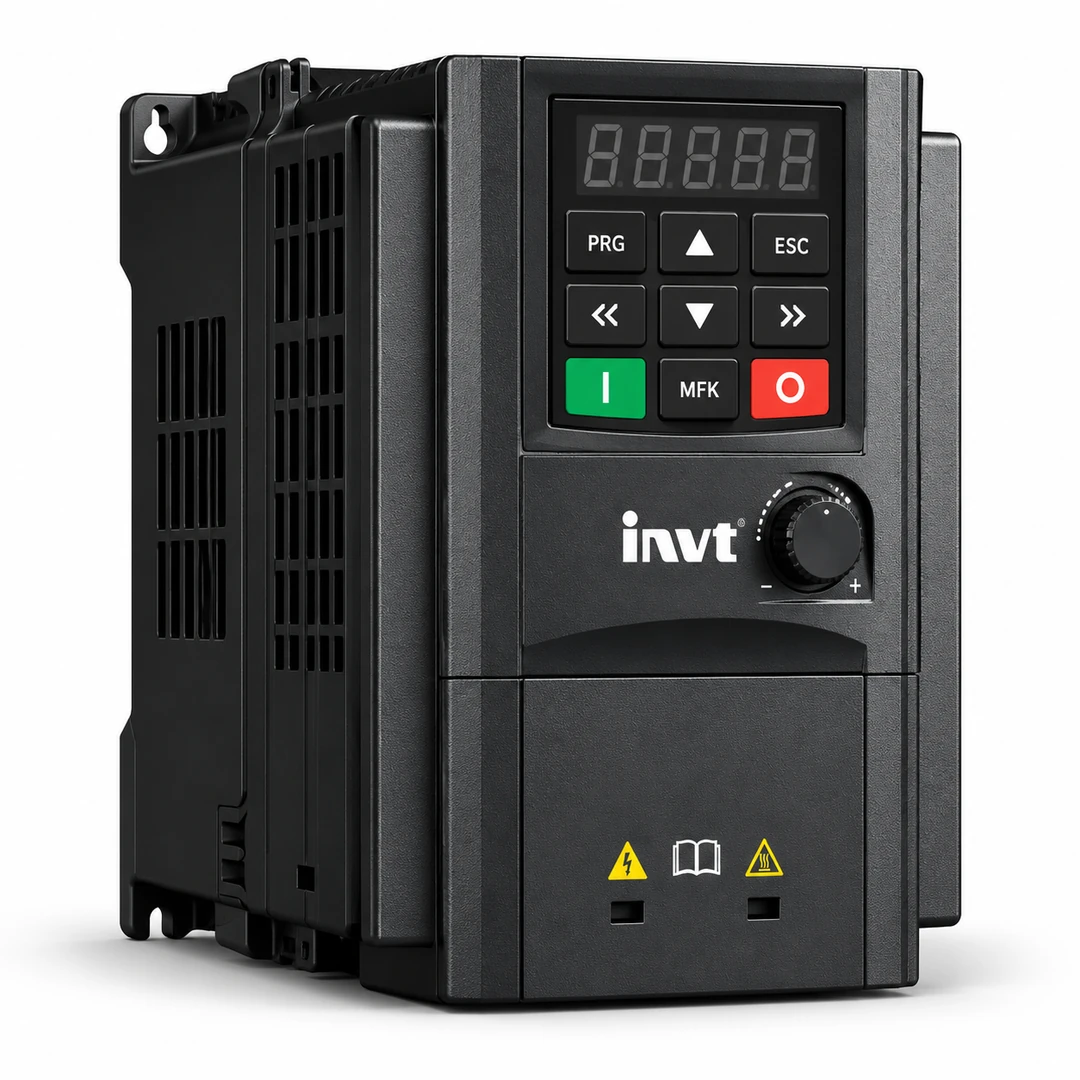

The INVT GD200A-2R2G-4 is a 2.2kW variable frequency drive for three-phase industrial motor control. Buyers checking invt gd200a 2.2kw price in Pakistan should confirm this 380V model before ordering. It belongs to the Goodrive200A series and supports sensorless vector control alongside conventional V/F operation.

Instead of operating at one fixed speed, this VFD lets installers adjust motor frequency to meet application requirements. This is particularly useful for pumps, ventilation fans, air-handling equipment and selected industrial machinery where adjustable motor speed is beneficial.

In addition, the drive operates from a three-phase 380V AC supply and provides a rated output current of 5A. It combines motor auto-tuning, PID control, programmable input/output functions and several electrical protection features.

Therefore, buyers searching for invt inverter gd200a should check the exact model GD200A-2R2G-4, since its input voltage and rated current determine installation suitability.

INVT GD200A 2.2kW Features and Benefits

Sensorless Vector Control and V/F Operation

The INVT GD200A supports sensorless vector control (SVC) and V/F control for three-phase asynchronous motors.

Sensorless vector control improves motor speed and torque regulation without requiring an external speed encoder in supported applications. V/F control provides a simpler operating method for conventional motor loads.

Therefore, choose the control mode according to the connected motor and machinery requirements.

Automatic Motor Tuning

The GD200A includes rotating and static motor auto-tuning functions.

Together, these functions help the VFD establish suitable motor control parameters. Static tuning is particularly useful when the driven equipment cannot easily be disconnected from the motor.

However, installers must still enter the correct motor nameplate settings during commissioning.

Adjustable Output Frequency

The drive provides an output frequency range of 0–400Hz, allowing flexible speed regulation within the connected motor’s safe operating limits.

For instance, this can help match fan speed, pump operation or machine movement to changing process requirements.

Nevertheless, installers must respect the motor’s permissible speed, cooling requirements and mechanical limits.

Built-in Braking Unit

The INVT GD200A-2R2G-4 has a built-in braking unit.

An appropriately selected external braking resistor can be used where additional braking performance is required. Installers must choose the resistor according to the operating conditions and braking requirements.

Integrated C3 EMC Filter

The GD200A includes a built-in C3 EMC input filter for industrial electromagnetic compatibility applications.

An additional external C2 filter can be selected when the installation requires that EMC performance category.

PID and Programmable Control

In addition, the drive supports PID control, programmable terminals and Modbus RS485 communication.

PID control can be used in appropriately configured constant-pressure water systems, while communication and programmable terminals provide integration options for industrial control equipment.

Best For

The INVT 2.2kW GD200A VFD is suitable for applications including:

• Three-phase industrial induction motors within its electrical ratings
• Water pumps and constant-pressure pumping systems
• Ventilation fans and air-handling systems
• HVAC motor control
• Selected manufacturing and processing equipment
• Small industrial motor-driven systems requiring adjustable speed

Therefore, select the drive only after checking motor current, supply voltage, load characteristics and operating conditions.

Not Ideal For

The GD200A-2R2G-4 is not the appropriate choice for every motor installation.

For example, do not select this drive for a single-phase motor without verified compatibility or for equipment whose rated current exceeds the drive’s allowable output.

It is also not a dedicated solar pump inverter with integrated solar MPPT control. Do not assume that this VFD supports a direct PV array connection.

Its IP20 enclosure requires a suitable installation environment. Exposed outdoor, wet or dusty locations may require additional enclosure protection.

INVT GD200A 2.2kW Motor and Pump Compatibility

The INVT GD200A-2R2G-4 has a rated output power of 2.2kW and a rated output current of 5A.

It is designed for controlling compatible three-phase asynchronous motors.

In particular, motor suitability depends on several factors:

• Rated motor power
• Motor nameplate voltage
• Full-load motor current
• Rated motor frequency
• Starting and operating torque requirements
• Connected load characteristics
• Duty cycle and operating environment

A motor’s power rating alone is not sufficient to confirm compatibility.

Similarly, in pumping applications the drive can adjust motor speed, but actual pump performance also depends on the pump curve, system pressure and operating requirements.

Agriculture Applications in Pakistan

The INVT GD200A can be considered for suitable electrically powered agricultural water-pumping applications.

In compatible three-phase pumping systems, adjustable speed control can help regulate water delivery or maintain a target operating pressure when suitable feedback equipment and control settings are installed.

Typical applications may include farm water distribution, livestock water systems and selected irrigation-related pumping equipment.

However, this general-purpose VFD requires a compatible electrical supply. It should not be treated as a direct solar-panel-powered pump inverter.

Therefore, review pump motor current, system head, pressure and operating conditions before installation.

Industrial Motor Applications

The INVT 2.2kW GD200A supports motor speed control in several industrial environments.

Ventilation and HVAC

Adjustable frequency control allows compatible ventilation fans and HVAC motors to operate at different speeds according to system requirements.

Water Supply and Pressure Control

With PID control and appropriate feedback equipment, the VFD can support constant-pressure pump applications.

Industrial Machinery

Installers can also use the drive with compatible motor-driven machinery that needs controlled acceleration, deceleration and speed adjustment.

Even so, application-specific motor sizing and parameter configuration remain essential.

Protection and Control Features

The INVT GD200A incorporates multiple motor-drive protection functions to help manage electrical faults and abnormal operating conditions.

Its protection functions include:

• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Overload protection
• Overheating protection
• Phase-loss protection

The drive also supports automatic voltage adjustment, motor speed tracking and programmable acceleration and deceleration.

However, these functions do not replace correct circuit protection, earthing, motor selection or installation practices.

INVT GD200A 2.2kW Technical Specifications

INVT GD200A Installation Considerations in Pakistan

Industrial VFD installations in Pakistan should account for electrical supply quality, motor compatibility and ambient operating temperature.

The GD200A-2R2G-4 requires a suitable three-phase AC supply. Installers should verify the input supply before energizing the drive.

Adequate ventilation is important, particularly in electrical control cabinets exposed to high ambient temperatures. The drive requires derating when the operating temperature exceeds 40°C.

Furthermore, proper earthing, circuit protection, cable selection and parameter configuration help maintain safe operation.

Installers should also protect the IP20 enclosure from moisture, excessive dust and unsuitable environmental exposure.

INVT GD200A 2.2kW Price in Pakistan

The current price of the INVT GD200A-2R2G-4 2.2kW General Purpose Vector Drive in Pakistan is Rs. 33,170 per VFD.

Customers searching for invt gd200a 2.2kw price in Pakistan should confirm the exact model code and three-phase input voltage before comparing quotations.

The invt gd200a price in Pakistan can vary according to product rating, supplier pricing and market conditions.

Similarly, buyers comparing invt 2.2kw price in Pakistan should confirm that the quoted unit is the GD200A-2R2G-4 variant rather than assuming every 2.2kW drive has identical electrical requirements.

For enquiries regarding invt vfd price in Pakistan, Hajvery Solar Energy can provide product-specific pricing and availability information.

Installers and industrial buyers can contact Hajvery Solar for quantity-based quotations.

Hajvery Solar Product Verification

Before purchasing an INVT GD200A drive, verify that the physical product label identifies model GD200A-2R2G-4.

For a manufacturer product-series check, use the official INVT Product Check. Then confirm the individual drive’s authenticity and warranty eligibility using its serial information and the appropriate support channel.

A quotation referring only to invt model gd200a identifies the product family but does not establish the exact electrical variant.

Buyers comparing an invt vfd price list should check the product’s capacity, rated voltage and output current before making a selection.

Search results for invt gd200a 2 2 kw price in Pakistan olx may involve third-party marketplace enquiries. Product condition, authenticity and applicable warranty should be checked independently before purchasing from any seller.

At Hajvery Solar Energy, buyers can enquire about the correct INVT model, product identification and applicable warranty information.

Warranty and After-Sales Support

The INVT GD200A-2R2G-4 2.2kW VFD comes with a 1 Year Official INVT Replacement Warranty.

Warranty-related enquiries should identify the exact model and product serial information.

Customers should confirm the applicable warranty claim requirements and conditions with Hajvery Solar before purchasing.

Proper motor selection, installation and parameter configuration remain important for reliable drive operation.

Before You Buy

First, confirm that the electrical supply is suitable for a three-phase 380V AC drive before ordering the INVT GD200A-2R2G-4.

Review the connected motor’s nameplate current, voltage and frequency, together with the application’s operating requirements.

Also check whether additional equipment, such as a braking resistor, external EMC filter or pressure sensor, is necessary for the intended application.

For commissioning, consult the correct invt gd200a manual pdf and verify that the instructions apply to the GD200A series and the installed model.

If you plan to download gd200a 2.2kw datasheet material for project records, confirm that the selected technical information covers the GD200A-2R2G-4.

Frequently Asked Questions

1. What is the INVT GD200A 2.2kW price in Pakistan?

The current price of the INVT GD200A-2R2G-4 2.2kW VFD Inverter in Pakistan is Rs. 33,170 per VFD.

Contact Hajvery Solar to confirm current availability before ordering.

2. Is the INVT GD200A 2.2kW a three-phase VFD?

Yes. The GD200A-2R2G-4 operates with a three-phase 380V AC input supply and provides a rated output current of 5A.

3. Can this INVT VFD control a 2.2kW motor?

Yes, it is rated for 2.2kW motor-drive applications. However, motor voltage, rated current, operating load and starting requirements must also be compatible with the drive.

4. Does the INVT GD200A support vector control?

Yes. The GD200A supports sensorless vector control and V/F control for compatible asynchronous motors.

5. Can this VFD operate a water pump?

Yes. It can control a compatible three-phase pump motor. PID control is also available for suitably configured water-pressure applications.

6. Can the INVT GD200A 2.2kW operate directly from solar panels?

The GD200A-2R2G-4 is a general-purpose AC motor drive, not a dedicated solar MPPT pump inverter. Direct solar PV operation should not be assumed.

7. Where can I download invt gd200a 2.2kw datasheet?

The INVT Goodrive200A series technical brochure includes the GD200A-2R2G-4 model’s electrical ratings and installation information.

Customers looking to download gd200a datasheet material can request the relevant technical brochure from Hajvery Solar or use the product’s document attachment when available.

8. Where can I find the INVT GD200A programming manual?

The invt inverter gd200a manual pdf is the relevant document to consult for detailed setup and programming instructions.

Finally, before following wiring or parameter-setting instructions, verify that the invt inverter gd200a manual covers the installed drive and its configuration.

9. What warranty comes with the INVT GD200A 2.2kW?

The GD200A-2R2G-4 includes a 1 Year Official INVT Replacement Warranty. Buyers should confirm the applicable claim requirements before purchasing.

Buy INVT 2.2kW GD200A VFD from Hajvery Solar

Looking for an INVT GD200A-2R2G-4 variable frequency drive for your industrial motor or pumping application?

Explore the INVT GD200A Series VFD category for more motor-control options. Contact Hajvery Solar Energy to confirm product availability, technical selection requirements and dealer quotations.
