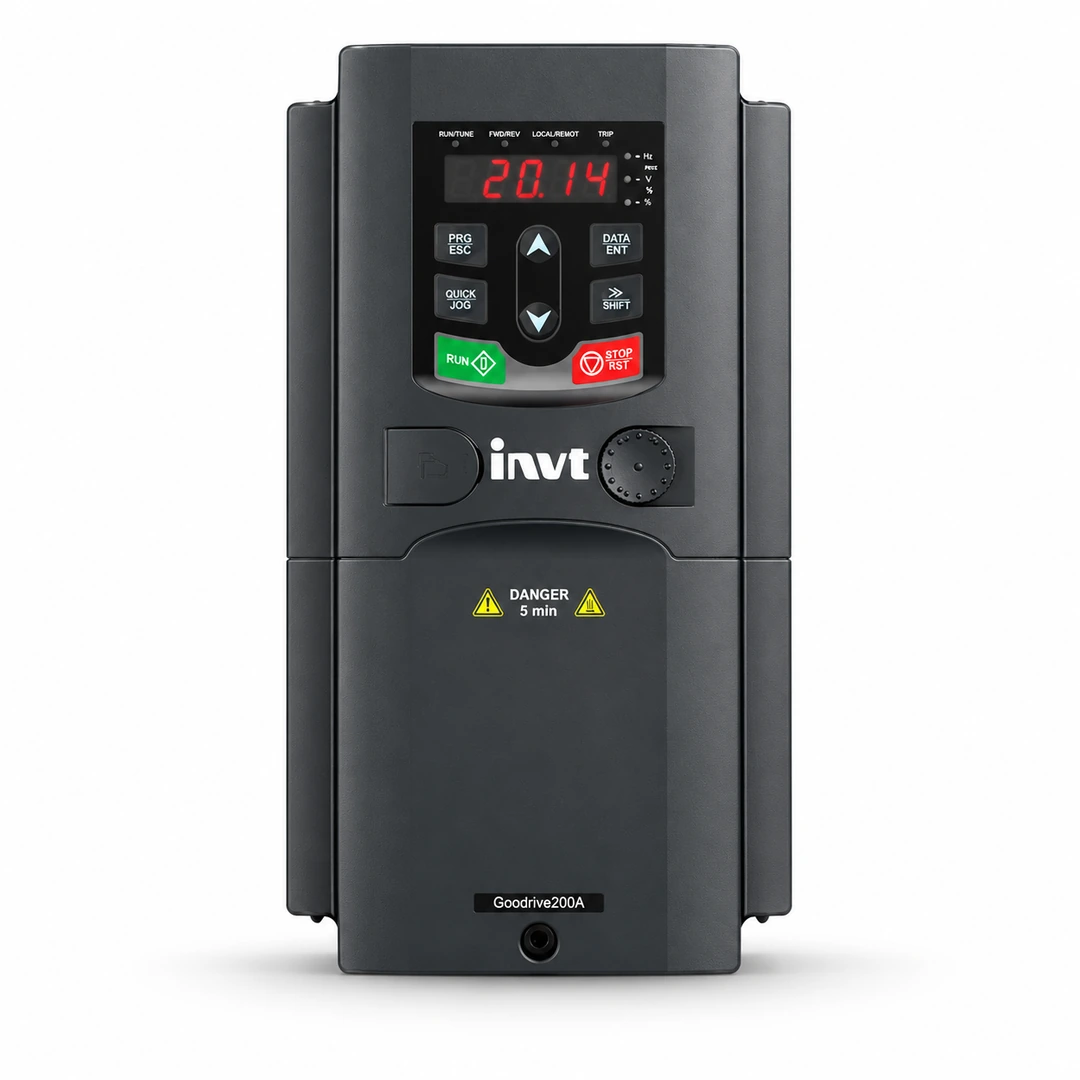

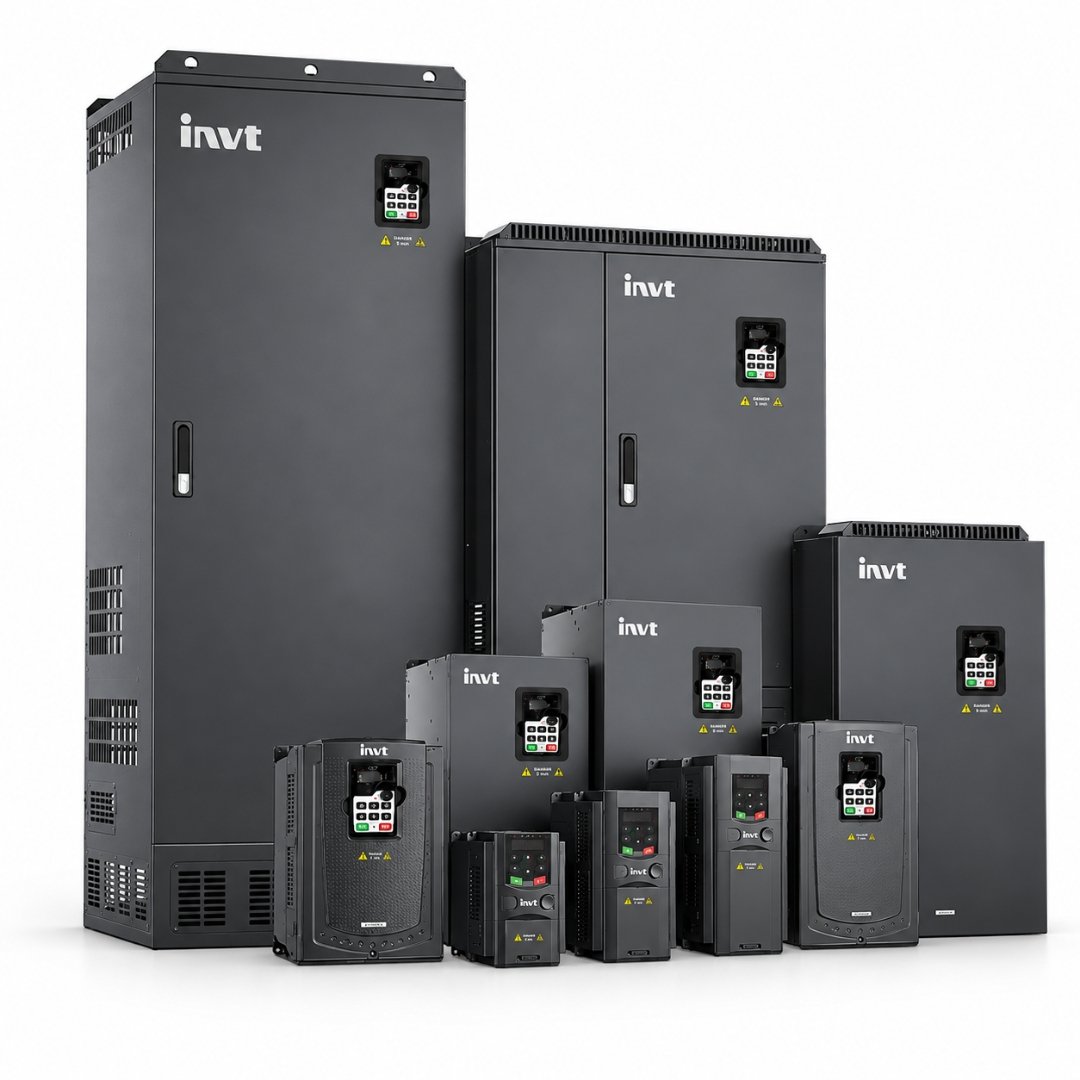

INVT GD200A 4KW General Purpose Vector Drive Overview

The INVT GD200A 4KW is a high-performance general-purpose VFD for controlling the speed, torque, acceleration and stopping behaviour of compatible three-phase asynchronous motors. It uses DSP-based control with V/F and sensorless vector control technologies to support stable motor operation under different load conditions.

Buyers searching for invt gd200A or invt gd200a often require a dependable drive for pumps, fans, compressors, HVAC systems, plastic machinery and other standard industrial transmission loads. This model provides a practical combination of motor-control performance, programmable inputs and outputs, protection functions and communication support.

A VFD does more than switch a motor on and off. It adjusts the motor frequency and output voltage according to the required operating speed. This can improve process control, reduce mechanical stress during starting and help the motor respond more smoothly to changing application requirements.

The GD200A is a general-purpose vector drive. It should not be treated as a dedicated solar pump inverter with built-in solar MPPT. Any DC supply or solar-related application requires project-specific electrical design and confirmation of the permitted input arrangement before installation.

Key Features and Benefits

V/F and Sensorless Vector Control

The drive supports conventional V/F control and sensorless vector control. V/F mode is useful for many standard variable-speed applications, while sensorless vector control provides improved speed and torque performance where more responsive motor operation is required.

Accurate Motor Auto-Tuning

Rotating and static motor auto-tuning options help the drive identify important motor characteristics. Static tuning is useful when the motor cannot be disconnected from the load, while rotating tuning can be selected where the application permits the motor to rotate safely during commissioning.

Stable Voltage and Current Control

The GD200A manages voltage and current during acceleration and deceleration to reduce unnecessary overcurrent and DC-bus overvoltage trips. Correct acceleration, deceleration and motor parameters remain essential for dependable operation.

Flexible Frequency Setting

The operating frequency can be controlled through digital settings, analogue inputs, pulse frequency, multi-step speed settings, simple PLC functions, PID control or Modbus communication. This flexibility supports both local keypad operation and integration with an external automation system.

Multiple Braking Functions

Dynamic braking, DC braking, flux braking and short-circuit braking functions are available for suitable applications. This 4KW model includes a built-in braking unit, while an external braking resistor must be selected according to the load, stopping time and braking duty.

Extensive Protection

The drive provides more than 30 fault-protection functions, including protection against overcurrent, overvoltage, undervoltage, overheating, phase loss and overload. Proper earthing, enclosure design, cable selection and parameter configuration are still required.

Communication and Control Integration

Modbus communication, programmable digital inputs, analogue inputs, analogue outputs, relay outputs and high-speed pulse functions allow the VFD to work with compatible sensors, controllers and automation equipment.

Best For

The INVT GD200A 4KW can be considered for properly matched applications such as:

• Centrifugal pumps
• Water-circulation systems
• Ventilation and exhaust fans
• HVAC equipment
• Air compressors
• Plastic machinery
• Constant-pressure water-supply systems
• Selected conveyors
• Oil-industry equipment
• General industrial process motors
• Standard variable-speed transmission loads

Final selection must consider the motor nameplate, load type, starting torque, overload demand and operating environment.

Not Ideal For

This VFD is not suitable where:

• The motor exceeds the drive’s rated power or output current.
• The motor voltage or phase arrangement is incompatible.
• A single-phase motor is being used without verified compatibility.
• The installation requires a higher enclosure protection rating than IP20.
• The equipment will be exposed directly to water, dust or harsh contaminants without a suitable control cabinet.
• A dedicated solar pump inverter with integrated MPPT is required.
• The application requires regenerative operation or a braking arrangement that has not been properly engineered.
• The load needs specialised control characteristics beyond a general-purpose vector drive.

Motor Compatibility and Correct Sizing

The INVT GD200A 4KW is intended for compatible three-phase asynchronous motors. Its rated output power is 4KW in G-duty operation, with a rated output current of 9.5A.

Motor compatibility must not be decided from the 4KW rating alone. Check the motor’s rated voltage, current, frequency, phase, speed, connection method, load type and required starting torque. The motor nameplate current should remain within the VFD’s applicable output limits.

The drive offers G-type overload capability of 150% rated current for one minute, 180% for ten seconds and 200% for one second. These ratings do not permit permanent oversizing of the connected motor or operation beyond the drive’s continuous current limit.

Industrial and Water-Supply Applications

The GD200A can regulate compatible pumps and fans by adjusting motor speed according to process demand. Its PID function and analogue feedback capability support properly engineered constant-pressure water-supply systems.

For industrial machinery, controlled acceleration and deceleration can reduce abrupt mechanical shocks compared with direct-on-line starting. Sensorless vector control can also provide better load response in applications that require more precise speed and torque behaviour.

Pump performance, water flow and pressure cannot be calculated from the VFD rating alone. A complete water-pumping design requires the pump curve, motor data, total dynamic head, required flow rate, pipe size, cable length and site conditions.

Protection and Control Features

The drive supports the following protection and control functions:

• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Overheating protection
• Phase-loss protection
• Motor overload protection
• Automatic voltage adjustment
• Speed tracking for a rotating motor
• PID control
• Multi-step speed operation
• Simple PLC operation
• Analogue and digital control inputs
• Programmable relay outputs
• Modbus communication
• Dynamic, DC, flux and short-circuit braking functions

Protection settings must be configured according to the connected motor and application. A VFD cannot compensate for incorrect wiring, poor earthing, an unsuitable motor or an undersized electrical installation.

Technical Specifications

Product Type: General Purpose Vector Drive
Brand: INVT
Series: GD200A
Selected Model: GD200A-004G-4
Rated Output Power: 4KW G-duty
Input Supply: Three-phase AC
Voltage Class: 380V
Technical Input Rating: AC 3PH 400V ±15%
Input Frequency: 50Hz or 60Hz
Permitted Input Frequency Range: 47–63Hz
Rated Input Current: 13.5A
Rated Output Current: 9.5A
Output Voltage: 0 to input voltage
Output Frequency Range: 0–400Hz
Control Modes: V/F and sensorless vector control
Compatible Motor Type: Three-phase asynchronous motor
Speed Ratio: 1:100
G-Duty Overload: 150% for 1 minute
Short-Duration Overload: 180% for 10 seconds
Instantaneous Overload: 200% for 1 second
Analogue Inputs: Two 0–10V/0–20mA channels and one -10V to +10V channel
Analogue Outputs: Two 0–10V/0–20mA channels
Relay Outputs: Two programmable relay outputs
Communication: Modbus supported
Mounting: Wall or flange mounting
Ingress Protection: IP20
Cooling Method: Air cooling
Operating Temperature: -10°C to 50°C, with derating above 40°C
Braking Unit: Built in
Braking Resistor: External
EMC Filter: Built-in C3 filter
Gross Weight: 4.1kg
Package Dimensions: 360 × 250 × 265mm

Installation, Wiring and Parameter Settings

Installation should be completed by a qualified electrical technician. Keep the power and control wiring separated, provide reliable earthing and select protective devices and cables according to the supply, motor current and applicable electrical requirements.

The invt gd200a wiring diagram should be followed carefully for the main circuit and control terminals. Never connect incoming AC power to the VFD output terminals. Before working on the drive, isolate the power and allow the DC bus to discharge fully.

Correct invt gd200a parameter setting begins with verified motor nameplate data. Enter the motor’s rated power, voltage, current, frequency and speed before performing an appropriate auto-tuning procedure. Acceleration, deceleration, minimum frequency, maximum frequency and protection settings should match the actual load.

Manual, Catalogue and Technical Resources

The invt gd200a manual should be matched with the exact series and voltage class before commissioning. An invt gd200a manual pdf can help technicians review terminal functions, parameter groups, fault codes and commissioning procedures.

When searching for invt gd200a user manual or invt gd200a user manual pdf download, confirm that the document covers the GD200A series and is obtained from a reliable source. A mismatched manual can lead to incorrect terminal connections or parameter values.

Searches such as invt vfd parameter setting pdf free download and invt vfd manual pdf free download should lead to a verified document version. The technician should not copy parameters from an unrelated drive because motor and application requirements vary.

The phrase invt gd200 manual pdf download may return information for a different series. GD200 and GD200A references should not be treated as interchangeable without checking the document title and applicable model range.

The invt gd200a catalog is useful for product selection and general technical data, while an operating manual provides the detailed parameter and commissioning instructions. Searches for manual inverter invt gd200a, invt vfd gd200a manual pdf, invt inverter gd200a manual and invt drive gd200a manual should therefore be checked for exact-series relevance.

INVT GD200A 4KW Price in Pakistan

The current price of the INVT GD200A 4KW General Purpose Vector Drive in Pakistan is Rs. 47,080 per VFD.

Customers comparing invt gd200a price in pakistan may find differences based on exchange rates, shipment costs, supplier channel and purchase quantity. The invt gd200a price should be confirmed before placing an order because market conditions can change. Dealers and project buyers may contact Hajvery Solar for current quantity-based rates.

Hajvery Product Verification

Before purchasing an invt vfd gd200a, verify the model code, rated power, voltage class, product label and physical condition. The ordered VFD must match the connected motor and application requirements.

Hajvery Solar can assist buyers in confirming the selected model and basic motor compatibility before dispatch. Final commissioning settings remain the responsibility of the qualified installer or automation engineer handling the actual equipment.

Warranty and After-Sales Support

The INVT GD200A 4KW General Purpose Vector Drive includes a 1 Year Replacement Warranty through INVT Official. Warranty eligibility remains subject to the applicable terms, correct installation and the official claim procedure.

Keep the purchase record, model information and serial details safely stored. Damage caused by incorrect wiring, incompatible supply, moisture exposure, misuse or unauthorised repair may not fall within applicable warranty coverage. Contact Hajvery Solar for guidance regarding the available claim route.

Before You Buy

Confirm the following details before ordering:

• Motor rated power
• Motor nameplate current
• Motor voltage and phase
• Rated motor frequency and speed
• Pump, fan or machinery type
• Required starting torque
• Acceleration and deceleration requirements
• Braking frequency and load inertia
• Control method
• Communication requirements
• Installation environment
• Ventilation and enclosure requirements
• Cable length
• External braking-resistor requirement

Frequently Asked Questions

What type of motor can the INVT GD200A 4KW operate?

It is designed for compatible three-phase asynchronous motors. The motor’s voltage, rated current, frequency and application must match the VFD.

What is the rated output current?

The rated output current for the selected 4KW G-duty model is 9.5A.

Does it support sensorless vector control?

Yes. It supports V/F and sensorless vector control, along with rotating and static motor auto-tuning.

Can it operate pumps and fans?

Yes, it can control compatible three-phase pump and fan motors. Correct sizing requires motor nameplate information and actual application data.

Is it a dedicated solar pump inverter?

No dedicated solar MPPT specification is provided for this general-purpose vector drive. A direct solar PV installation should not be assumed without a separately verified system design.

Where can I check its wiring?

Use the correct invt gd200a wiring diagram and installation manual for the GD200A series. Wiring should be completed by a qualified technician.

What is its price in Pakistan?

The current price is Rs. 47,080 per VFD.

What warranty is included?

It includes a 1 Year Replacement Warranty through INVT Official, subject to the applicable warranty terms and claim procedure.

Buy INVT GD200A 4KW VFD from Hajvery Solar

Buy the INVT GD200A 4KW General Purpose Vector Drive from Hajvery Solar Energy for industrial motor-control, pumping, ventilation and automation applications. Share the motor nameplate and application details before ordering so the correct voltage, current and duty rating can be checked.

Contact Hajvery Solar for current availability, dealer pricing, delivery information and basic product-selection assistance.
