INVT GD200A 200KW

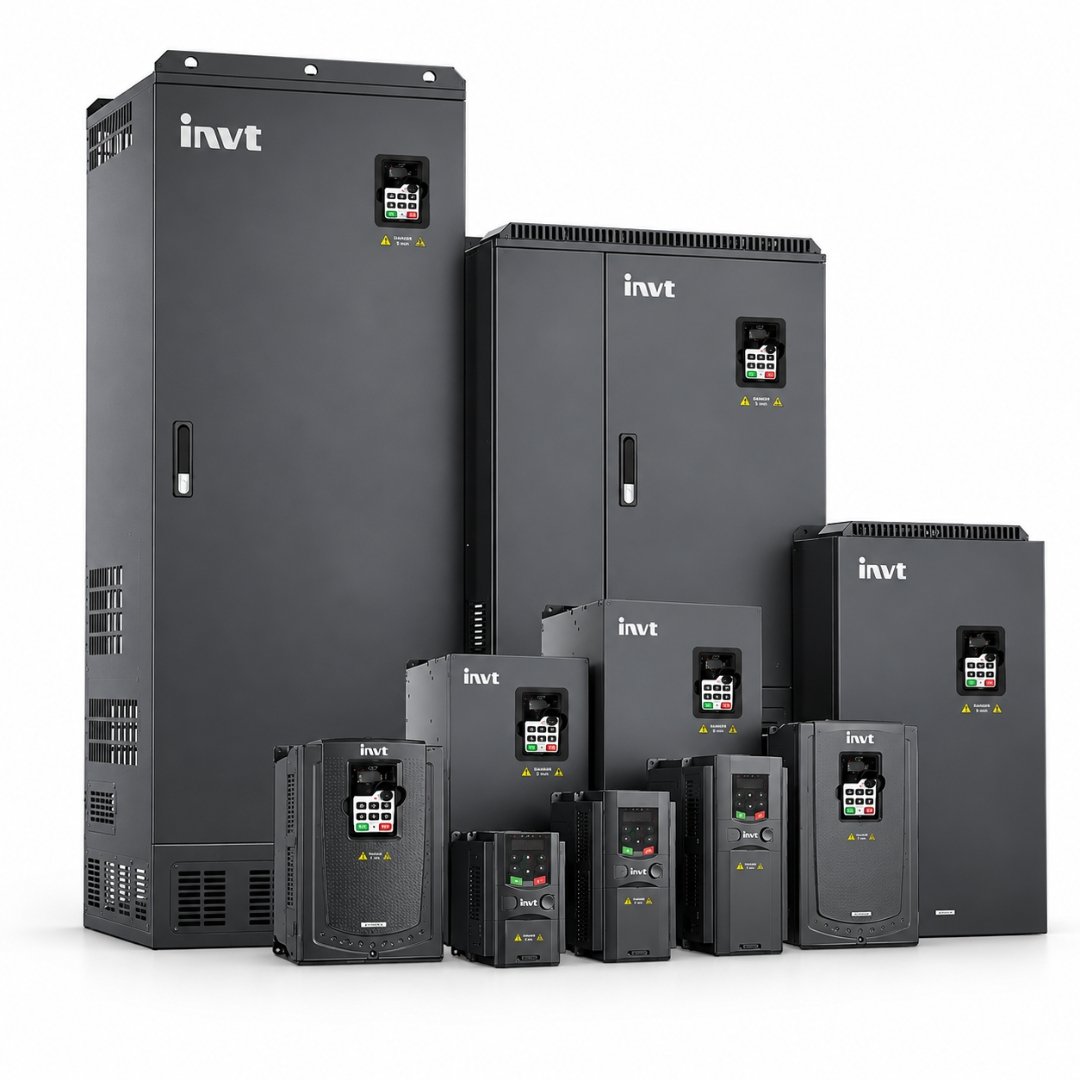

INVT GD200A 200KW General Purpose Vector Drive Overview

The INVT GD200A 200KW General Purpose Vector Drive is designed for controlled operation of high-power three-phase asynchronous motors. It uses DSP-based control with V/F and sensorless vector control technologies to regulate motor speed, frequency and torque according to the application.

The drive is intended for industrial equipment where direct-on-line starting may create excessive mechanical stress, high starting current or limited process control. Gradual acceleration and deceleration can help reduce shock on compatible motors, couplings, belts, pumps and driven machinery when the system is correctly configured.

Customers searching for invt gd200A or invt vfd gd200a should note that this is a general-purpose AC motor drive. It is not a dedicated solar pump inverter and does not include a verified solar MPPT input. Its selection and installation must be based on the motor nameplate, power-supply conditions and actual load requirements.

Key Features and Benefits

The GD200A platform combines flexible motor control with practical industrial functions.

• V/F control supports conventional frequency-based motor operation.
• Sensorless vector control improves speed and torque management without requiring a motor encoder.
• Rotating and static motor auto-tuning help match the control parameters with the connected asynchronous motor.
• Automatic voltage adjustment helps maintain stable output during suitable grid-voltage variations.
• Speed tracking allows the drive to restart a rotating motor more smoothly.
• Simple PLC, PID and multi-step speed functions support different automation requirements.
• Digital, analogue, pulse-frequency and communication-based frequency commands provide flexible control options.
• A separate air duct helps isolate sensitive electronic components from contaminants and improves heat-management design.
• The standard external LED keypad supports parameter upload and download.
• An external keypad connection length of up to 200 metres is supported.
• The built-in C3 EMC filter reduces the need for a separate standard C3 input filter.
• An optional external C2 filter can be selected where the installation requires IEC 61800-3 C2 performance.

Best For

The INVT GD200A 200KW is suitable for correctly sized high-power motor systems such as:

• Industrial fans and ventilation equipment
• Water-supply and circulation pumps
• Air-compressor systems
• Mining and material-handling equipment
• Plastic-processing machinery
• HVAC motor applications
• Petroleum and oil-industry machinery
• Selected coal-industry equipment
• Process motors requiring adjustable speed
• Pressure-control systems using PID feedback
• Grid-powered agricultural pumping systems with compatible motors

Every application requires engineering verification. Motor power alone is not enough to confirm suitability.

Not Ideal For

This drive should not be selected for:

• Direct connection to a solar PV array
• Systems requiring built-in solar MPPT control
• Single-phase motors
• Motors with incompatible voltage, current or frequency ratings
• Loads that exceed the drive’s continuous or overload capability
• Outdoor installation without a suitable protective enclosure
• Locations where an IP20 product would be exposed to water, dust or direct weather
• Applications requiring an encoder-dependent closed-loop control method
• Installations where the required braking system has not been correctly designed
• Projects where motor cables, reactors, filters and protection devices have not been sized properly

Motor Compatibility and Drive Selection

The INVT GD200A 200KW is designed for compatible three-phase asynchronous motors. Its 200KW G-type rating must be checked against the motor’s rated voltage, rated current, frequency, starting requirements, load behaviour and duty cycle.

The drive has a rated output current of 380A. A motor must not be approved only because its nameplate shows 200KW. The motor current must remain within the applicable drive limits, and the application must suit the available overload performance.

For G-type operation, the drive supports:

• 150% of rated current for 1 minute
• 180% of rated current for 10 seconds
• 200% of rated current for 1 second

These short-duration ratings do not increase the continuous 200KW capacity. Load inertia, starting torque, acceleration time, braking requirements and operating temperature must be considered during selection.

Industrial Applications in Pakistan

The GD200A 200KW can serve large motor-driven systems in factories, processing plants, commercial buildings and water-management installations across Pakistan. Adjustable-speed operation is useful where equipment does not need to run continuously at full speed.

In pumping and ventilation systems, frequency control can match motor operation with actual demand. In compressors, plastics machinery and selected process equipment, controlled acceleration and deceleration can reduce abrupt mechanical loading.

Grid quality, ambient temperature, enclosure ventilation and cable conditions vary between sites. The drive should be installed inside a properly designed electrical panel with adequate clearance and cooling. Appropriate input protection, earthing, reactors, output filters and motor-cable practices must be selected by a qualified professional.

Protection and Control Features

The drive includes more than 30 fault-protection functions. Supported protections include:

• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Overheating protection
• Phase-loss protection
• Motor and drive overload protection

Voltage and current control functions help reduce avoidable overcurrent during acceleration and DC-bus overvoltage during deceleration. Protection settings must still be coordinated with the connected motor and the wider electrical system.

The drive also supports PID control, simple PLC operation, multi-step speed control, MODBUS communication and PROFIBUS-based frequency-setting options.

Technical Specifications

Installation and Commissioning Considerations

The drive requires a suitable three-phase power supply, correctly rated circuit protection and reliable protective earthing. The panel must provide adequate ventilation for air cooling, especially when the unit operates near its rated current.

An external braking unit is required when the application needs dynamic braking. The braking unit and resistor must be selected according to load inertia, braking torque, stopping time and braking frequency.

Long motor cables or installations with difficult grid conditions may require input reactors, output reactors or filters. Cable size, insulation, routing and electromagnetic compatibility must be evaluated for the actual installation.

Parameter commissioning should begin with the motor’s rated voltage, current, frequency, speed and power. Acceleration, deceleration, minimum frequency, maximum frequency and protection limits must match the driven equipment.

Manual, Wiring and Parameter Resources

Use the correct invt gd200a manual for installation, commissioning and fault diagnosis. The invt gd200a wiring diagram should be reviewed before connecting the incoming supply, motor, control terminals, relays or communication wiring.

An authentic invt gd200a manual pdf should match the GD200A series and the installed voltage class. Anyone searching for invt gd200a user manual pdf download or invt gd200a user manual should verify the document version before changing parameters.

Searches for invt vfd parameter setting pdf free download, invt gd200 manual pdf download and invt vfd manual pdf free download may return files for another series or an older revision. Confirm the model before following any wiring or commissioning instructions.

The phrases manual inverter invt gd200a, invt vfd gd200a manual pdf, invt inverter gd200a manual and invt drive gd200a manual are commonly used for the same type of technical resource. Use the invt gd200a catalog for product-range identification, but complete every invt gd200a parameter setting according to the installed motor and application.

INVT GD200A 200KW Price in Pakistan

The current price of the INVT GD200A 200KW General Purpose Vector Drive in Pakistan is Rs. 909,500 per VFD. Final availability and dealer rates can be confirmed with Hajvery Solar.

Buyers checking invt gd200a price should compare the exact power rating, model code, voltage class and warranty terms. The phrase invt gd200a price in pakistan can cover several ratings, so the exact 200KW model must be confirmed before ordering.

Hajvery Product Verification

Hajvery Solar checks the product identity, model code, power rating and physical nameplate before supply. Buyers should verify that the unit carries the correct GD200A series identification and the model GD200A-200G/220P-4.

The package, product label, serial information and warranty documents should remain consistent. Electrical ratings must be checked before installation because incorrect voltage, current or motor selection can damage the drive or connected equipment.

Warranty and After-Sales Support

The INVT GD200A 200KW General Purpose Vector Drive comes with a 1 Year Replacement Warranty by INVT Official.

Keep the purchase record, serial information and warranty documents safe. Confirm the applicable claim requirements and installation conditions with Hajvery Solar before commissioning the unit.

Before You Buy

Please confirm the following details before ordering:

• Motor rated power
• Motor rated voltage
• Motor rated current
• Motor frequency and speed
• Three-phase supply voltage
• Load type and starting-torque requirement
• Continuous operating current
• Acceleration and deceleration requirements
• Braking frequency and stopping time
• Motor-cable length
• Required communication method
• Installation temperature
• Panel cooling and ventilation
• Required IP protection
• Need for input or output reactors
• Need for an external braking unit and resistor

Frequently Asked Questions

What is the exact model of the INVT GD200A 200KW drive?

The exact G-type model is GD200A-200G/220P-4.

What motor type does this drive support?

It is designed for compatible three-phase asynchronous motors. Motor voltage, current, frequency, duty and load characteristics must be checked before connection.

What is its rated output current?

The rated output current is 380A, while the rated input current is 385A under the applicable type-selection conditions.

What control modes are available?

The drive supports V/F control and sensorless vector control.

What is the output-frequency range?

Its adjustable output-frequency range is 0–400Hz. The permitted operating range for the connected motor and machinery must still be observed.

Can it operate directly from solar panels?

No direct solar PV or MPPT input is verified for this model. It is a general-purpose three-phase AC vector drive.

Does it contain a built-in braking unit?

This high-power model uses an optional external braking unit. The braking unit and resistor must be engineered for the actual load.

What is the INVT GD200A 200KW price in Pakistan?

The current price is Rs. 909,500 per VFD. Contact Hajvery Solar for availability and applicable dealer pricing.

What warranty is included?

It includes a 1 Year Replacement Warranty by INVT Official. Confirm claim requirements and installation conditions before purchase.

Buy INVT GD200A 200KW from Hajvery Solar

Order the INVT GD200A 200KW General Purpose Vector Drive from Hajvery Solar Energy for industrial motor-control applications. Our team can help verify the exact model, motor nameplate, input supply, application type and essential installation requirements before supply.
