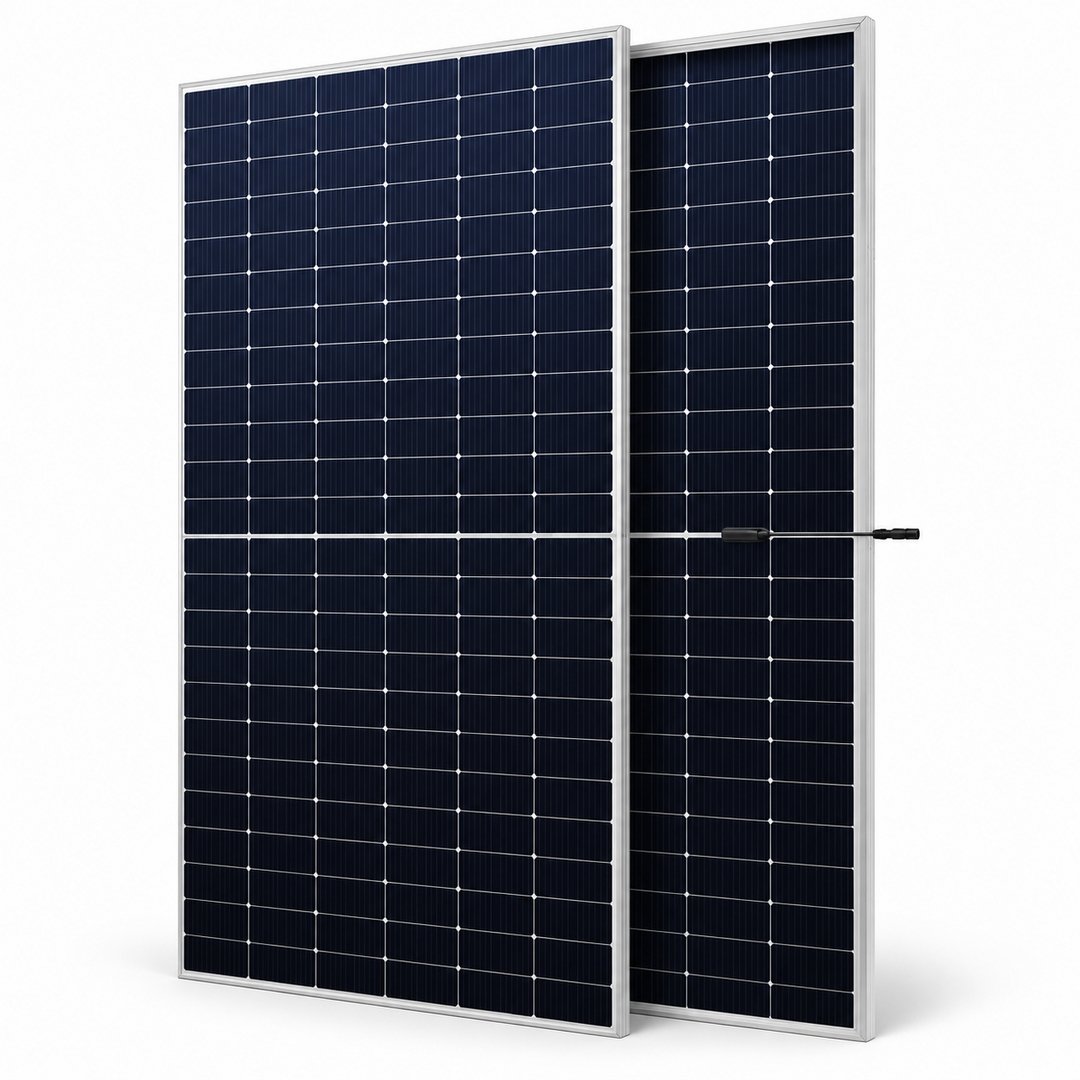

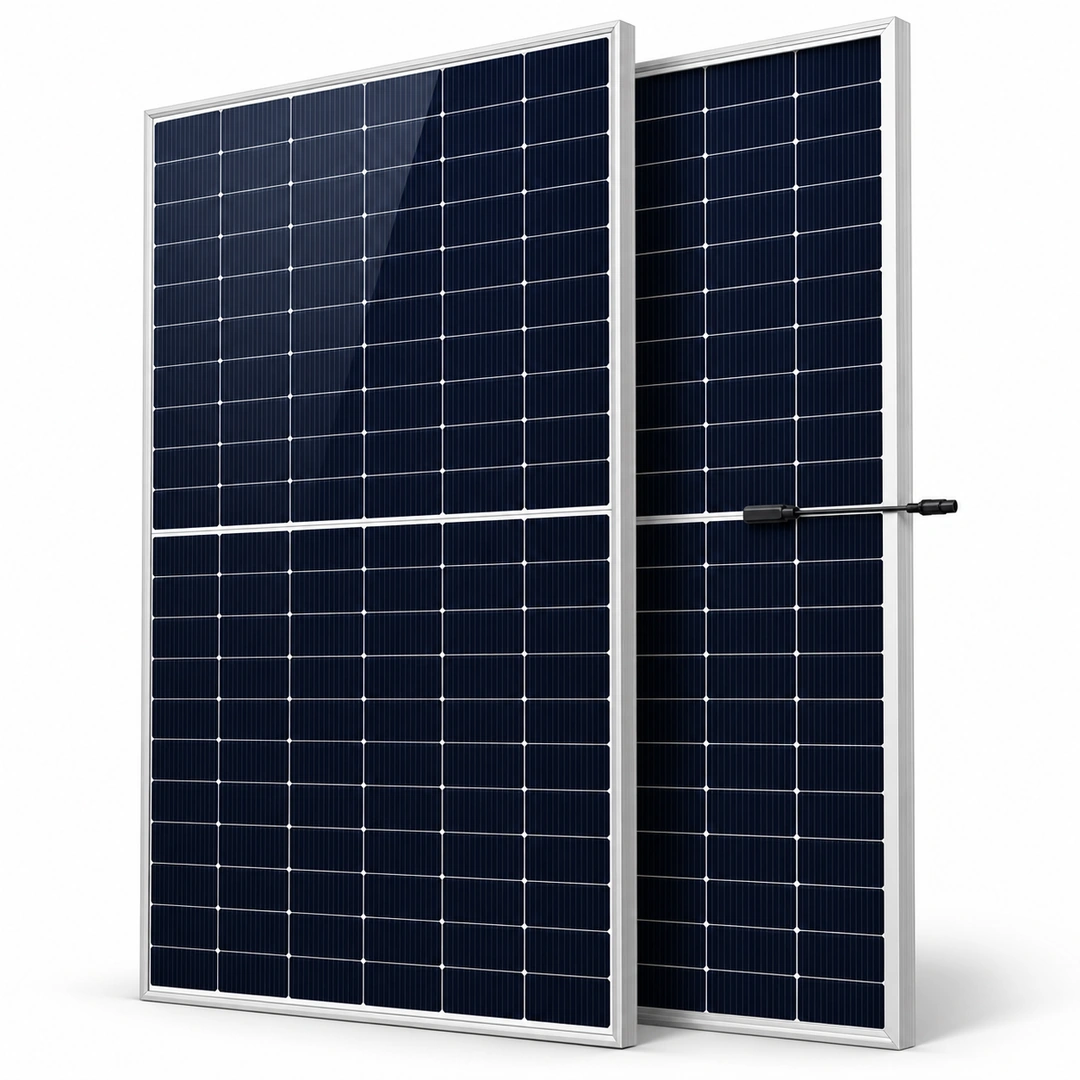

ReneSola 585W Bifacial Solar Panel

ReneSola 585W Bifacial Solar Panel Overview

The ReneSola 585W Bifacial Solar Panel combines N-Type monocrystalline cells with a dual-glass module design. It produces electricity from sunlight reaching the front surface, while its rear surface can capture reflected sunlight when the installation allows sufficient light to reach the back of the panel.

The exact model, RS6-585NBG-E3, has a rated output of 585W and a module efficiency of 22.65%. These characteristics make it worth considering for projects that need substantial power from each installed module. The actual number of panels required depends on the planned solar capacity, daily energy consumption, available installation area and inverter limits.

For Pakistani homes, commercial buildings and larger solar installations, correct panel placement and string design remain important. Roof orientation, shading, dust accumulation and ventilation can affect real-world energy generation. A properly planned installation helps buyers make better use of the module’s rated capacity.

Key Features and Benefits

N-Type Monocrystalline Cell Technology

This module uses N-Type monocrystalline cells arranged in a 144-cell half-cut configuration. The rated power of 585W and efficiency of 22.65% help installers assess how many modules may fit within a project’s available area and required DC capacity.

Actual energy production still depends on sunlight, temperature, shading, orientation and system losses.

For more technical information click the link given below:
ReneSola Solar Panel Official Website.

Bifacial Energy Generation

A bifacial module can generate electricity from both sides. The front surface receives direct sunlight, while the rear surface can use reflected and scattered light.

The amount of additional generation depends on the mounting height, ground reflectivity, row spacing, rear-side clearance and shading. A panel installed close to an opaque roof may receive less useful rear-side light than one mounted above a suitable reflective surface.

Dual-Glass Construction

The module uses 2 mm + 2 mm high-transmission, low-iron, semi-tempered glass. This construction protects the cells while allowing sunlight to reach the active surfaces. The aluminium-alloy frame supports the module structure during suitable installation.

High Module Efficiency

With 22.65% module efficiency, the panel converts a substantial proportion of the sunlight reaching its active surface into electrical power under standard test conditions. Efficiency is useful when comparing modules for a limited installation area, but the final selection should also consider dimensions, current, voltage and inverter compatibility.

Mechanical Load Capability

The module has a positive mechanical load rating of up to 5400 Pa and a negative load rating of up to 2400 Pa. Correct mounting, clamps, rail spacing and installation methods are essential. These ratings should not be interpreted as a guarantee of performance under every local wind or weather condition.

Best For

The ReneSola 585W Bifacial Solar Panel may be suitable for:

• Residential solar systems with a compatible inverter and adequate roof space.
• Commercial rooftops requiring high-output solar modules.
• Ground-mounted installations where rear-side light can be used effectively.
• Solar projects comparing N-Type bifacial modules by efficiency, dimensions and electrical characteristics.
• Installers designing strings around the module’s voltage and current ratings.

When Another Panel May Be Better

This module may not be the right choice when the installation requires smaller panel dimensions, lower input current, a different voltage range or a specific module configuration. Bifacial technology may also provide limited additional benefit where the rear surface receives very little light.

Before ordering, compare the panel’s electrical values with the selected inverter’s maximum DC voltage, MPPT voltage range, input-current limits and short-circuit-current limits.

Cell and Module Technology

The ReneSola 585W Bifacial Solar Panel uses N-Type monocrystalline cells in a half-cut arrangement. Its bifacial construction allows both front and rear surfaces to contribute to electricity generation under suitable conditions.

The module measures 2278 × 1134 × 30 mm and weighs 30 kg. Installers should account for these dimensions and weight when planning roof access, handling, mounting rails and structural support.

Technical Specifications

Bifacial Performance and Power Output

The panel’s front-side rated power is 585W under standard test conditions. Rear-side generation can increase total module output when the installation provides suitable reflected light.

For this model, the stated rear-side power-gain examples are:

These figures are conditional bifacial performance values, not the panel’s standard front-side rated power and not guaranteed everyday output. Actual rear-side gain varies with mounting conditions, surface reflectivity, sunlight and shading.

The module’s linear power output warranty provides a separate long-term performance reference. The stated output levels are 89.4% at year 25 and 87.4% at year 30. The power performance warranty applies to the front side only.

Performance Considerations for Pakistan

Solar panels in Pakistan can experience high summer temperatures, dust and changing sunlight conditions. The ReneSola module’s Pmax temperature coefficient is -0.29%/°C, which helps installers estimate how power output may change as cell temperature rises above the standard reference temperature.

For better system performance:

• Allow suitable airflow beneath the panels to help manage operating temperature.
• Clean accumulated dust when necessary using appropriate methods.
• Avoid shading from nearby structures, trees and other panels.
• For bifacial installations, plan sufficient rear-side clearance and consider the reflectivity of the mounting surface.
• Check temperature-adjusted open-circuit voltage before finalising series-string length.
• Ensure the mounting system and roof structure are appropriate for the installation.

These measures help support reliable operation, but actual energy production will vary with site conditions and system design.

ReneSola 585W Bifacial Solar Panel Price in Pakistan

The final system cost depends on the number of panels, inverter selection, mounting structure, wiring, protection equipment and installation requirements. Dealers, installers and bulk buyers can contact Hajvery Solar Energy to discuss quantity requirements and current availability.

Hajvery Solar Product Verification

Before purchasing the ReneSola 585W Bifacial Solar Panel, confirm the exact model code RS6-585NBG-E3, module condition and applicable warranty. The model code helps distinguish the required 585W module from other products in the same range.

Installers should also verify the panel’s electrical compatibility with the intended inverter. In particular, check Voc, Vmp, Isc and Imp against the inverter’s operating limits, including the effects of low temperatures on string voltage.

For bifacial systems, the mounting arrangement should allow sufficient light to reach the rear surface if additional rear-side generation is an important part of the project design.

You can verify your ReneSola Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

ReneSola Solar Panel Verification Link.

Warranty

The ReneSola 585W Bifacial Solar Panel has a 15-year material and workmanship warranty and a 30-year linear power output warranty. The power performance warranty applies to the front side only.

Buyers should confirm the applicable warranty terms, claim requirements and coverage details with the seller before purchase. Product warranty and long-term power output warranty are separate forms of coverage.

Before You Buy

Check the following points before selecting this panel:

• Confirm that the required module is the 585W RS6-585NBG-E3.
• Check inverter voltage and current limits.
• Calculate the number of panels required for the intended system capacity.
• Verify the maximum series-string voltage under expected temperature conditions.
• Confirm mounting dimensions, roof suitability and structural support.
• Assess whether the installation can benefit from rear-side light.
• Confirm product condition, price and warranty coverage before ordering.

Frequently Asked Questions

1. What is the ReneSola 585W solar panel price in Pakistan?

The current price of ReneSola 585W Bifacial Solar Panel in Pakistan is Rs. 20,328.75 per panel. Contact Hajvery Solar Energy for availability and quantity-based enquiries.

2. What are the specifications of the ReneSola 585W Bifacial Solar Panel?

The panel has a rated output of 585W, N-Type monocrystalline cells, 22.65% module efficiency and a bifacial dual-glass design. Its maximum power voltage is 44.02V, while its maximum power current is 13.29A.

3. Is the ReneSola 585W panel bifacial?

Yes. Its bifacial design allows the front and rear surfaces to generate electricity when sufficient sunlight reaches both sides. Additional rear-side generation depends on the installation environment.

4. Is the ReneSola 585W Bifacial Solar Panel N-Type?

Yes. The RS6-585NBG-E3 uses N-Type monocrystalline cells in a 144 half-cut-cell configuration.

5. What are the dimensions and weight of this panel?

The module measures 2278 × 1134 × 30 mm and weighs 30 kg. Allow suitable handling space and ensure the mounting structure can support the installation.

6. What warranty does the ReneSola 585W solar panel have?

It has a 15-year material and workmanship warranty and a 30-year linear power output warranty. The power performance warranty applies to the front side only. Confirm applicable coverage and claim requirements before purchase.

7. Is this panel suitable for residential and commercial solar systems?

It can be considered for residential and commercial installations if the available space, mounting arrangement and inverter electrical limits are suitable. Final compatibility should be checked by the installer.

Buy ReneSola 585W Bifacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy serves customers looking for ReneSola solar panels in Pakistan, including residential buyers, commercial customers, installers and dealers. Before placing an order, confirm the exact model, current availability, electrical compatibility and applicable warranty.

Visit Hajvery Solar Energy at 280K Block J-1, Johar Town, Lahore, or contact the team for product enquiries and solar installation planning.
