INVT GD200A 30KW

₨ 165,850

Available Pricing
In Stock
Per Product₨ 165,850

The INVT GD200A 30KW General Purpose Vector Drive provides reliable speed, frequency, and torque control for compatible three-phase asynchronous motors. It supports V/F and sensorless vector control, offers a rated output current of 60A, and delivers an output frequency range of 0–400Hz. Built-in motor auto-tuning, PID control, multiple speed settings, programmable terminals, Modbus communication, and extensive fault protection make it suitable for pumps, fans, air compressors, HVAC equipment, and selected industrial machinery.

Quick Highlights:

  • 30KW general-duty output rating
  • Model GD200A-030G/037P-4
  • Three-phase 380V-class supply
  • 60A rated output current
  • V/F and sensorless vector control
  • 0–400Hz output frequency
  • Built-in braking unit
  • Built-in C3 EMC filter
  • Modbus RS-485 communication
  • IP20 enclosure
  • 1-year replacement warranty by INVT Official
Description

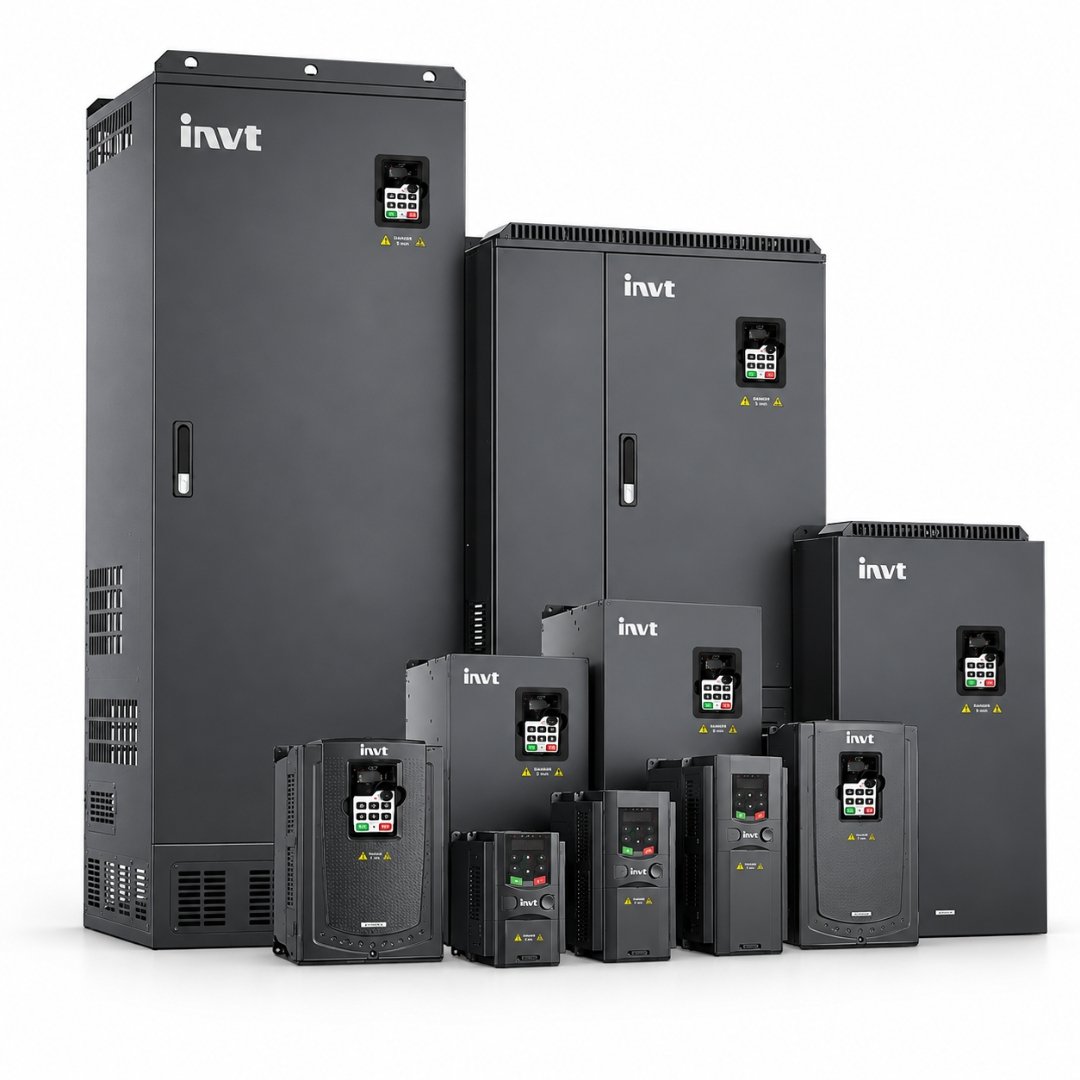

INVT GD200A 30KW General Purpose Vector Drive Overview

If you are checking the INVT GD200A 30KW Price in Pakistan, this general-purpose vector drive offers motor speed and torque control for compatible three-phase asynchronous motors. It adjusts output frequency and voltage to match the operating needs of the connected equipment.

The GD200A series uses a DSP control system with V/F and sensorless vector control. It also supports controlled acceleration, deceleration and several motor protection functions. As a result, it suits applications that need adjustable motor speed and controlled operation.

This 30KW model is designed for general-duty industrial loads. Its suitable applications include fans, pumps, air compressors, HVAC equipment, water circulation systems, plastic machinery and other compatible motor-driven equipment.

Key Features and Benefits

V/F and Sensorless Vector Control

The drive supports conventional V/F control and sensorless vector control. V/F mode provides simple frequency-based motor control. On the other hand, sensorless vector control improves torque and speed response without a motor-mounted encoder. Therefore, users can select the control mode that suits their application.

Accurate Motor Auto-Tuning

The drive offers rotating and static motor auto-tuning. These options help identify motor characteristics for better control. In addition, static auto-tuning is useful when removing the mechanical load from the motor is difficult.

Wide Output Frequency Range

The adjustable output frequency ranges from 0–400Hz. This range allows users to match motor speed with the needs of connected equipment. However, the selected frequency must stay within the safe operating range of the motor and driven load.

Strong General-Duty Overload Capability

For general-duty operation, the drive supports:

  • 150% of rated current for one minute
  • 180% of rated current for ten seconds
  • 200% of rated current for one second

These overload levels help the drive manage temporary starting or operating loads. However, they do not replace correct motor and application sizing.

Multiple Frequency Control Options

Users can control the operating frequency through digital settings, analogue signals, pulse frequency input, multi-step speed settings, simple PLC functions and PID control. Moreover, the drive supports Modbus communication and supported PROFIBUS configurations.

Automatic Voltage Adjustment

Automatic voltage adjustment helps maintain stable motor voltage when the incoming grid voltage changes within the supported operating range. This feature supports controlled motor operation.

Built-In Braking Unit

The 30KW general-duty model includes a built-in braking unit. However, dynamic braking requires an external braking resistor. Select the resistor according to the braking demand, duty cycle and installation requirements.

Built-In C3 EMC Filter

The drive includes a built-in C3 input filter for industrial EMC requirements. An external C2 filter is also available as an option when the installation requires that performance level.

Flexible Installation

The 30KW drive supports wall and flange mounting. In addition, its separate air-duct design helps keep electronic components away from some contaminants and supports heat control inside a properly designed control cabinet.

Best Applications for INVT GD200A 30KW VFD

The INVT GD200A 30KW VFD suits properly matched applications such as:

  • Industrial water pumps
  • Centrifugal pumps
  • Ventilation and exhaust fans
  • HVAC motors
  • Air compressors
  • Water circulation systems
  • Constant-pressure water supply systems
  • Plastic processing machinery
  • Oil-industry equipment
  • Mining and coal-industry machinery
  • Selected conveyors and process motors
  • Other standard variable-speed transmission loads

However, application suitability depends on the motor nameplate, load type, starting torque, operating cycle, environment and required control method. Therefore, check these details before selecting the drive.

Applications That Are Not Suitable

This drive should not be selected for:

  • Motors with incompatible voltage, phase, current or frequency ratings
  • Single-phase motors
  • Loads that exceed the drive’s output-current or overload limits
  • Outdoor or dusty installations without a suitable protective enclosure
  • Direct solar PV operation without an approved external system design
  • Applications that require a dedicated solar MPPT pump inverter
  • High-regeneration loads without correctly selected braking equipment
  • Safety-critical machinery without the required external protection and control system

Motor and Load Compatibility

The drive has a 30KW general-duty output rating, approximately equal to 40HP. However, horsepower conversion alone cannot confirm whether a motor is suitable.

Before installation, compare these details with the motor nameplate:

  • Rated motor power
  • Rated voltage
  • Number of phases
  • Full-load current
  • Rated frequency
  • Motor type
  • Required starting torque
  • Operating duty
  • Acceleration and deceleration requirements
  • Load inertia

The connected motor must be a compatible three-phase asynchronous motor. The drive has a rated output current of 60A. Therefore, the motor current and operating load must stay within the drive’s applicable limits.

Agriculture and Water-Pumping Applications in Pakistan

The GD200A 30KW can control compatible three-phase motors used in irrigation pumps, tube-well systems, water-transfer pumps and constant-pressure water supply installations.

It can also provide adjustable pump speed and PID-based pressure control when connected to compatible feedback sensors and external control equipment. For this reason, pump selection should consider total dynamic head, water-flow needs, bore depth, pipe size, motor current and operating duty.

This model is a general-purpose AC motor drive. It does not have a solar MPPT input. Therefore, a solar pumping system that needs direct PV operation should use a suitable solar pump inverter or an engineered power-conversion arrangement.

Industrial Motor Applications

The drive supports speed control for fans, pumps, air compressors, HVAC systems, plastic machinery, water circulation equipment and selected industrial process motors.

Sensorless vector control improves torque response when loads change. Meanwhile, multiple frequency-reference methods allow the drive to work with manual controls, analogue sensors, PLC systems and supported communication networks.

However, high-inertia machinery, frequent braking, rapid acceleration, heavy starting torque or continuously changing loads may need application-specific engineering.

Protection and Control Features

The GD200A series provides more than 30 fault-protection functions. These include:

  • Overcurrent protection
  • Overvoltage protection
  • Undervoltage protection
  • Motor and drive overload protection
  • Overheating protection
  • Input or output phase-loss protection
  • Speed tracking for a rotating motor
  • Automatic voltage adjustment
  • Controlled acceleration and deceleration
  • PID process control
  • Multi-step speed operation
  • Simple PLC operation
  • Modbus communication
  • Dynamic, DC, flux and short-circuit braking modes

Set the protection parameters according to the motor, load and installation conditions. This helps the drive operate within the required limits.

INVT GD200A 30KW Technical Specifications

Specification Details
Brand INVT
Series Goodrive200A
Product Type General Purpose Vector Drive
Exact Model GD200A-030G/037P-4
General-Duty Rated Power 30KW
Approximate Horsepower 40HP
Input Supply Three-phase AC 400V ±15%, 380V class
Input Current 70A
Input Frequency 50Hz or 60Hz
Permitted Input Frequency 47–63Hz
Rated Output Current 60A
Output Voltage 0 to input voltage
Output Frequency 0–400Hz
Control Modes V/F and sensorless vector control
Compatible Motor Type Three-phase asynchronous motor
Speed Ratio 1:100
Analogue Inputs AI1 and AI2: 0–10V/0–20mA; AI3: -10V to +10V
Analogue Outputs Two channels, 0–10V/0–20mA
Digital Inputs Eight common inputs and one high-speed input
Relay Outputs Two programmable relay outputs
Communication Modbus supported; PROFIBUS configuration supported
Cooling Method Air cooling
Ingress Protection IP20
Operating Temperature -10°C to 50°C, with derating above 40°C
Mounting Options Wall or flange mounting
Braking Unit Built in
Braking Resistor External
EMC Filter Built-in C3 filter; optional external C2 filter
Gross Weight 11kg
Listed Dimensions 550 × 375 × 375mm

Installation and Engineering Notes

Install the drive inside a properly ventilated control panel. Also, leave enough space around it for cooling.

The enclosure has an IP20 rating. Therefore, use additional protection in dusty, damp, corrosive or outdoor environments.

Use correctly sized input cables, output cables, protective devices, earthing conductors and control wiring. In addition, keep motor cables separate from signal cables to reduce electrical interference.

Long motor cables, high-frequency operation, heavy starting loads, frequent braking or sensitive equipment may require extra reactors, filters, braking resistors or other accessories. A qualified VFD technician should complete the installation and parameter setup.

INVT GD200A Manual, Wiring Diagram and Parameter Resources

Customers searching for INVT GD200A or INVT VFD GD200A information should match the instructions with the Goodrive200A series and the correct voltage class.

The INVT GD200A manual, INVT GD200A user manual and INVT GD200A manual PDF provide important guidance about terminals, commissioning, motor auto-tuning, fault codes and operating parameters. Similarly, searches such as INVT GD200A user manual PDF download and INVT GD200 manual PDF download relate to operating instructions for this drive family.

Check the INVT GD200A wiring diagram before connecting the power supply, motor, braking resistor, relays, analogue signals or communication terminals. Always isolate the input power before working on the wiring.

For INVT GD200A parameter setting, confirm the motor nameplate values before auto-tuning or running the equipment. Also, avoid using instructions prepared for a different INVT series.

The INVT GD200A catalog can help with product selection. Other related searches include manual inverter INVT GD200A, INVT VFD GD200A manual PDF, INVT inverter GD200A manual and INVT drive GD200A manual.

INVT GD200A 30KW Price in Pakistan

The current price of the INVT GD200A 30KW General Purpose Vector Drive in Pakistan is Rs. 165,850 per VFD.

Customers comparing the INVT GD200A 30KW Price in Pakistan should confirm the required model, voltage class, quantity and availability before ordering. Prices can change because of exchange rates, import costs and market conditions.

Hajvery Product Verification

Before purchasing, check the INVT branding, complete model number, 30KW general-duty rating, voltage class, serial label, packaging and supplied accessories. Also, match the product model and motor requirements with the intended application.

Hajvery Solar Energy can assist buyers, installers and dealers with model checks and basic compatibility guidance before order confirmation.

Warranty and After-Sales Support

This product comes with a 1-year replacement warranty by INVT Official. Before purchasing, contact Hajvery Solar Energy to confirm the applicable warranty claim requirements. Keep the purchase invoice, serial information and product packaging for reference.

Before You Buy

Check these details before placing an order:

  • Motor rated power and full-load current
  • Motor voltage, phase and frequency
  • Pump or machinery application
  • Required starting torque
  • Continuous or variable-load duty
  • Acceleration and deceleration time
  • Braking requirements
  • Control method and communication needs
  • Installation-panel ventilation
  • Dust, moisture and ambient temperature
  • Required reactors, filters or braking resistor

Frequently Asked Questions

What is the rated power of this INVT GD200A drive?

It has a 30KW general-duty rating for compatible three-phase asynchronous motors.

Can it operate a 40HP motor?

30KW is approximately equal to 40HP. However, check the motor’s rated voltage, current, frequency, operating duty and starting-torque needs before selecting the drive.

What is the rated output current?

The rated output current for the 30KW general-duty rating is 60A.

Does it support sensorless vector control?

Yes. It supports V/F and sensorless vector control for compatible asynchronous motors.

Can this VFD operate directly from solar panels?

It is a general-purpose AC vector drive without solar MPPT operation. Do not connect a PV array directly unless a qualified engineer has designed and approved the complete system.

Does it include a braking unit?

Yes. A braking unit is built into this model. However, dynamic braking requires a compatible external braking resistor.

What is the current price of this INVT GD200A 30KW VFD in Pakistan?

The current price of the INVT GD200A 30KW General Purpose Vector Drive is Rs. 165,850 per VFD.

What warranty is available?

It comes with a 1-year replacement warranty by INVT Official.
