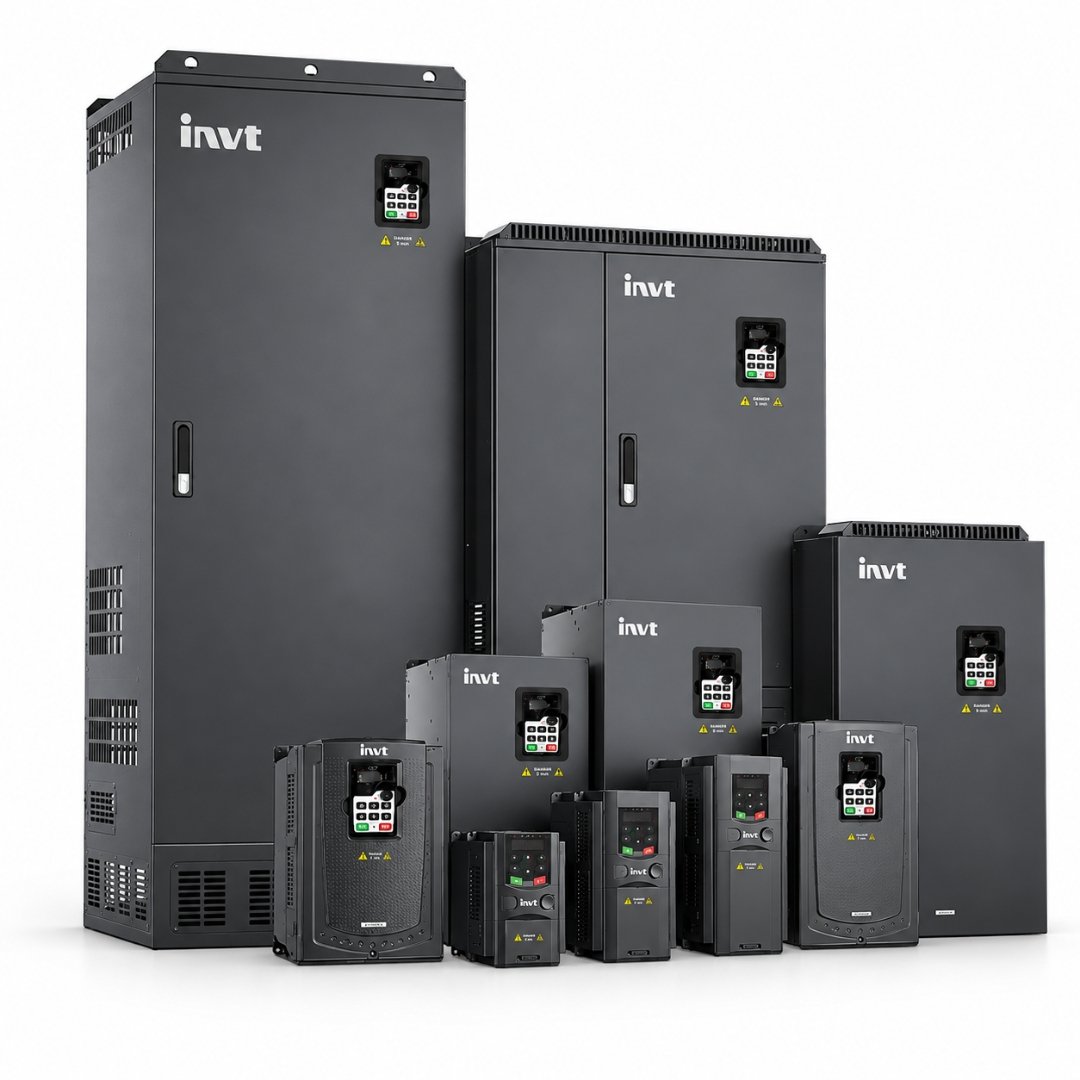

INVT GD200A 45KW General Purpose Vector Drive Overview

The INVT GD200A 45KW General Purpose Vector Drive provides adjustable speed, frequency and torque control for compatible three-phase asynchronous motors. It belongs to the Goodrive200A general-purpose vector control range and uses DSP-based control with V/F and SVC operating modes.

This 45KW G-type drive is suitable for applications where smooth acceleration, controlled deceleration, motor speed adjustment and dependable protection are required. Buyers searching for invt gd200A or invt vfd gd200a can use the exact model number to distinguish this unit from other power ratings in the series.

The drive supports several frequency-setting methods, including keypad control, analogue input, pulse-frequency input, multi-step speed, simple PLC, PID and communication-based commands. These options allow it to work with basic standalone machines as well as properly engineered automated control systems.

Key Features and Benefits

V/F and SVC Motor Control

V/F control supports straightforward speed regulation for standard industrial loads. SVC provides improved speed and torque behaviour where the application requires more accurate control without installing a motor-speed encoder.

Motor Auto-Tuning

Rotating and static motor auto-tuning options help configure the drive according to the connected motor. Static auto-tuning is useful when separating the motor from its mechanical load is difficult.

Automatic Voltage Adjustment

Automatic voltage adjustment helps maintain stable motor-side voltage when changes occur in the incoming power supply.

Speed Tracking

The speed-tracking function supports smooth restarting of a motor that is already rotating. Correct configuration remains necessary before this function is used.

Flexible Frequency Commands

The output frequency can be controlled through digital settings, analogue signals, high-speed pulse input, multi-step speed, simple PLC, PID, Modbus or PROFIBUS communication settings.

Industrial Communication

Modbus RS-485 communication supports integration with compatible control equipment. PROFIBUS communication settings are also available for suitable system designs.

Built-In C3 EMC Filter

The built-in C3 EMC filter is intended for industrial environments. An external filter can be selected where C2-level EMC performance is required.

Separate Air-Duct Design

The separate air-duct arrangement helps reduce the entry of contaminants into electronic components while supporting heat removal inside properly designed control cabinets.

External Keypad Support

A swappable external LED keypad is standard for this power range. It supports parameter uploading and downloading, includes a digital potentiometer and can be extended for remote operation where the installation design requires it.

Best For

The INVT GD200A 45KW drive is suitable for properly matched applications such as:

• Air compressors
• Industrial water pumps
• Ventilation and process fans
• HVAC systems
• Heating and water-supply systems
• Plastic machinery
• Petroleum industry equipment
• Mining applications
• Selected conveyor and transmission loads
• General-purpose industrial machinery

The motor nameplate and operating requirements must be checked before selecting the VFD.

Not Ideal For

This drive should not be selected where:

• The motor power exceeds the drive’s supported rating.
• Motor voltage, phase or rated current does not match the VFD.
• The equipment uses an incompatible motor type.
• The installation requires a higher enclosure rating without a suitable control cabinet.
• Frequent braking or a high-inertia load requires braking components that have not been engineered into the system.
• The application requires position control or other specialised control characteristics beyond this general-purpose drive.

Motor and Equipment Compatibility

The drive is designed for compatible three-phase asynchronous motors. The 45KW rating alone is not enough to confirm suitability. Motor rated voltage, rated current, frequency, load type, acceleration time, deceleration time and overload demand must also be reviewed.

This G-type unit has a rated input current of 94A and a rated output current of 92A. The connected motor’s nameplate current must remain within the drive’s supported limits after considering environmental derating and operating conditions.

For pump and fan installations, the complete system should also account for pressure, flow, head, pipework, valve behaviour and required speed range. For air compressors and machinery, starting torque, load variation and stopping requirements need separate consideration.

Industrial Applications in Pakistan

The INVT GD200A 45KW VFD can be used in Pakistani factories, commercial buildings, workshops and process facilities where compatible three-phase motors require controlled operation.

Typical applications include water circulation, ventilation, HVAC, industrial pumping, plastic processing and air-compressor systems. Adjusting motor speed according to actual operating demand may reduce unnecessary mechanical stress and energy use, but the result depends on the load profile and system design.

The IP20 enclosure requires installation inside a suitable electrical panel where protection from dust, moisture, heat and accidental contact is provided.

Protection and Control Features

The drive provides more than 30 fault-protection functions. Supported protections include:

• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Overheating protection
• Input or output phase-loss protection
• Motor and drive overload protection

Voltage and current control functions can adjust the output frequency during acceleration or deceleration to reduce avoidable overcurrent and DC-bus overvoltage trips.

Dynamic, DC, flux and short-circuit braking modes are available for different operating conditions. This 45KW model requires an appropriately selected external braking unit and braking resistor where dynamic braking is needed.

Technical Specifications

Installation, Wiring and Parameter Setup

Installation must be completed by a qualified electrical technician. The incoming supply, earthing, protective devices, cable size, motor terminals and control wiring must match the exact drive and motor combination.

Anyone looking for the invt gd200a manual, invt gd200a manual pdf, invt gd200a user manual or invt gd200a user manual pdf download should match the document with the exact model before changing parameters.

The invt gd200a wiring diagram must be followed carefully for the main circuit and control terminals. The invt gd200a parameter setting should be completed after entering the connected motor’s correct nameplate information.

Broad searches such as invt vfd parameter setting pdf free download and invt vfd manual pdf free download should be narrowed to the GD200A series and exact power rating. This reduces the risk of applying incorrect terminal or parameter information.

Some technicians use manual inverter invt gd200a when searching for setup instructions. Other common searches include invt vfd gd200a manual pdf, invt inverter gd200a manual and invt drive gd200a manual. In every case, the document version and exact drive model should be checked before installation or commissioning.

An invt gd200a catalog can help with general product selection, but final wiring, braking and parameter decisions must be based on the exact installed unit and application.

INVT GD200A 45KW VFD Price in Pakistan

The current price of the INVT GD200A 45KW General Purpose Vector Drive in Pakistan is Rs. 246,100 per VFD. Contact Hajvery Solar for the latest availability and quantity-based dealer pricing.

The invt gd200a price in pakistan may change with currency movement, import costs and supplier pricing. When comparing an invt gd200a price, confirm that the quotation covers the same power rating and exact model.

Hajvery Product Verification

Before purchasing, verify the following details:

• INVT brand marking
• Goodrive200A series
• Exact model number
• 45KW G-type rating
• Three-phase input class
• Rated input and output currents
• Product nameplate and serial information
• Warranty terms
• Required braking accessories
• Installation environment and enclosure requirements

Matching only the physical appearance is not sufficient because several ratings in the series use a similar enclosure design.

Warranty and After-Sales Support

The INVT GD200A 45KW General Purpose Vector Drive comes with a 1 Year Replacement Warranty by INVT Official. Keep the purchase record, product serial information and original identification labels protected for warranty processing.

Before You Buy

Confirm these points before placing an order:

• Motor rated power
• Motor rated voltage
• Motor phase
• Motor full-load current
• Motor frequency
• Load and machinery type
• Starting-torque requirement
• Acceleration and deceleration time
• Braking requirement
• Control-signal type
• Communication requirement
• Panel ventilation
• Ambient temperature
• Cable length and cable size
• Earthing and protection arrangement

A qualified technician should verify the complete system when the application involves heavy starting loads, frequent braking or continuous high-temperature operation.

Frequently Asked Questions

What motor type is compatible with this VFD?

It is designed for compatible three-phase asynchronous motors. Final selection must consider motor voltage, rated current, frequency and load characteristics.

What is the rated output current?

The 45KW G-type configuration has a rated output current of 92A.

What control modes are available?

The drive supports V/F and SVC motor-control modes.

Can it control pumps and fans?

Yes. It can control properly matched industrial pumps, fans and HVAC motors. Motor and application requirements must be checked before commissioning.

Does it have a built-in braking unit?

This power rating uses an optional external braking unit. A correctly selected external braking resistor is also required where dynamic braking is needed.

What is the current Pakistan price?

The current price of the INVT GD200A 45KW General Purpose Vector Drive in Pakistan is Rs. 246,100 per VFD. Confirm availability with Hajvery Solar before ordering.

What protection rating does it have?

The drive has an IP20 rating and should be installed in a suitable electrical enclosure.

What warranty is available?

It includes a 1 Year Replacement Warranty by INVT Official.

Buy INVT GD200A 45KW General Purpose Vector Drive from Hajvery Solar

Order the INVT GD200A 45KW General Purpose Vector Drive from Hajvery Solar Energy for industrial motor-control applications in Pakistan. Share the motor nameplate, machinery type and control requirements before purchasing so the correct VFD and necessary accessories can be selected.
