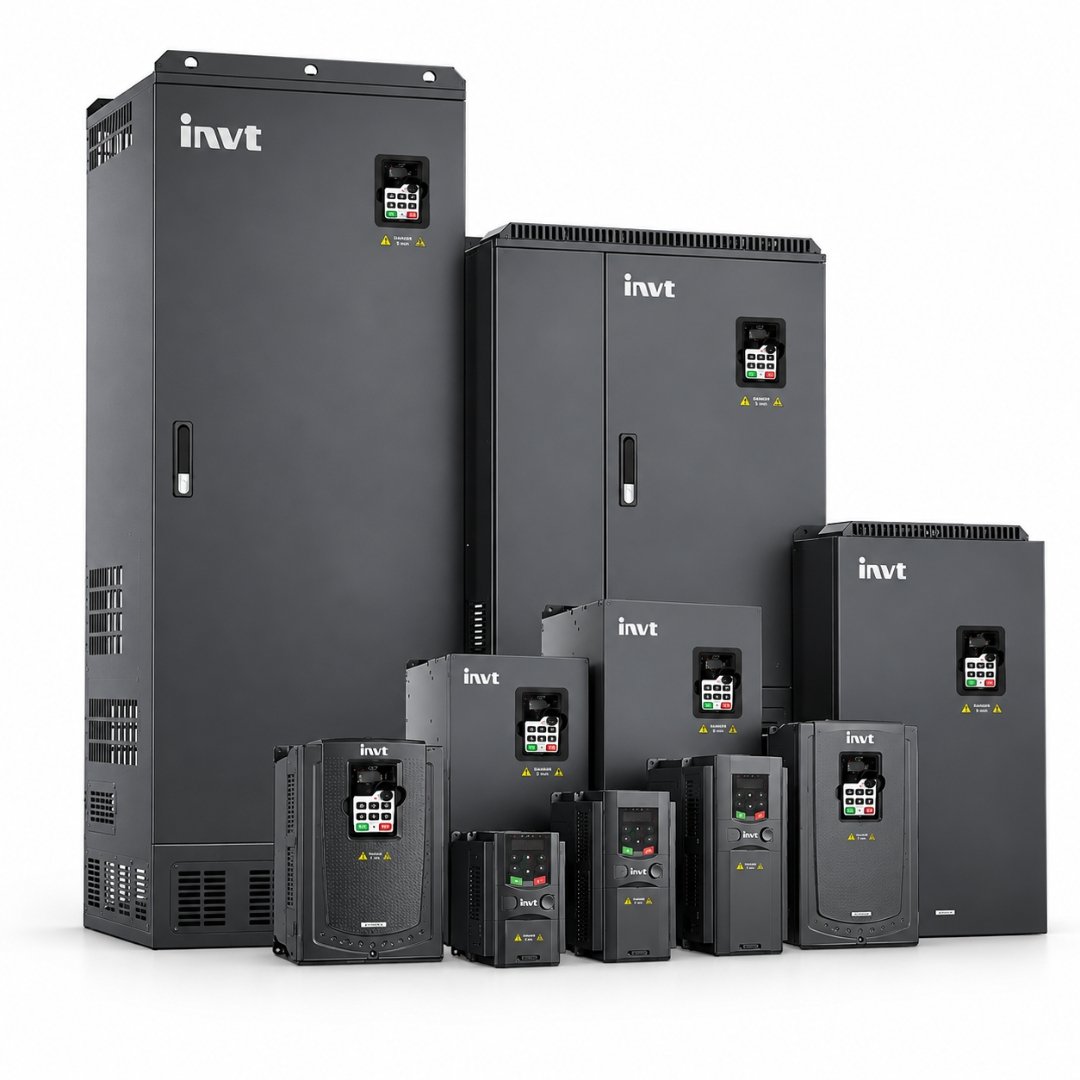

INVT GD200A 37KW

₨ 219,350

Available Pricing
In Stock
Per Product₨ 219,350

The INVT GD200A 37KW General Purpose Vector Drive provides accurate speed, frequency and torque control for compatible three-phase asynchronous motors. Its 380V-class input, 75A rated output current, V/F and sensorless vector control make it suitable for pumps, fans, air compressors, HVAC systems and selected industrial machinery. The drive supports automatic motor tuning, PID control, multiple frequency-setting methods and extensive fault protection. An IP20 enclosure and air-cooling system make proper indoor cabinet installation essential.

Quick Highlights:

  • 37KW G-type rated output
  • Approximately 50 HP motor rating
  • Model: GD200A-037G/045P-4
  • Three-phase 380V-class input
  • 80A rated input current
  • 75A rated output current
  • V/F and sensorless vector control
  • Output frequency up to 400Hz
  • IP20 ingress protection
  • External braking unit support
  • Built-in C3 EMC filter
  • Wall or flange mounting
  • 1 Year Replacement Warranty by INVT Official
Description

INVT GD200A 37KW General Purpose Vector Drive Overview

If you are checking the INVT GD200A 37KW VFD Price in Pakistan, this general-purpose vector drive offers speed, frequency and torque control for compatible three-phase asynchronous motors. It belongs to the Goodrive200A general-purpose vector drive range. It also combines DSP-based processing with V/F and sensorless vector control.

The 37KW G-type rating suits constant-torque industrial applications when the connected motor voltage, phase, rated current and load remain within the drive’s operating limits. Its approximate motor equivalent is 50 HP. However, always check the motor’s electrical details before choosing a drive. Do not rely on horsepower or kilowatt rating alone.

This INVT VFD GD200A manages gradual acceleration, controlled deceleration and variable-speed operation. As a result, it can help maintain stable motor performance under changing load conditions. Suitable applications include properly designed pump, fan, air-compressor, HVAC and industrial transmission systems.

Key Features and Benefits

V/F and Sensorless Vector Control

The drive supports V/F and sensorless vector control. V/F control works well for standard variable-speed applications. Meanwhile, sensorless vector control provides better speed and torque management in compatible installations without a motor encoder.

Automatic Motor Tuning

The drive offers rotating and static motor auto-tuning. These options help match its control settings with the connected motor. Static tuning works well when the installer cannot disconnect the motor from its mechanical load. On the other hand, rotating tuning suits applications where the motor can move during setup.

Controlled Acceleration and Deceleration

Voltage and current control help the drive handle demanding acceleration and deceleration conditions. Correct ramp settings can reduce unnecessary mechanical shock. They can also help limit avoidable overcurrent and DC-bus overvoltage faults.

Multiple Frequency-Setting Methods

Users can control the operating frequency through several methods, including:

  • Digital settings
  • Analogue references
  • Pulse-frequency input
  • Multi-step speed settings
  • Simple PLC functions
  • PID control
  • Compatible communication settings

Therefore, the drive can support different control arrangements when the installer designs and configures the system correctly.

PID Process Control

Built-in PID functionality supports applications that need feedback-based control. For example, a correctly configured pressure sensor, reference signal and control circuit can help maintain constant water pressure. It can also support other compatible process-control applications.

Smooth Speed Tracking

Speed tracking helps the drive detect a motor that is already rotating. It can then restart that motor smoothly. This feature helps in selected fan and process applications where the motor does not stop immediately after the previous command.

Flexible Installation

The 37KW G-type unit supports wall and flange mounting. For reliable heat control, provide suitable clearances and ventilation. Also plan the cabinet design and cable routing carefully.

Industrial EMC Filtering

The drive includes a built-in C3 EMC filter for applicable industrial environments. However, some installations may need a different EMC level. In that case, an external C2 filter can be selected where required.

Best For

The INVT GD200A 37KW drive suits professionally designed applications such as:

  • Industrial water pumps
  • Constant-pressure water supply systems
  • Ventilation and extraction fans
  • HVAC equipment
  • Air compressors
  • Plastic-processing machinery
  • Oil and petroleum-related equipment
  • Mining and coal-industry machinery
  • Water circulation systems
  • Selected conveyors and process motors
  • Standard industrial transmission loads

Before choosing the drive, check the motor nameplate, starting torque, operating current and duty cycle. Also consider braking needs and the machine’s control method.

Not Ideal For

Do not select this VFD for:

  • A single-phase motor
  • A motor with an incompatible rated voltage
  • A motor whose current exceeds the drive’s permitted output
  • Direct outdoor installation without a suitable protective enclosure
  • Wet, dusty or corrosive locations without proper cabinet protection
  • Applications that require encoder-based closed-loop control
  • Direct solar-panel input or built-in solar MPPT operation
  • Loads that need braking equipment without correct component selection
  • Safety-critical machinery without the required external safety system

The GD200A is a general-purpose AC vector drive, not a dedicated solar pump inverter. Therefore, do not assume it supports direct PV input or built-in solar MPPT operation.

Motor Compatibility

The drive works with compatible three-phase asynchronous motors. Its 37KW G-type rating equals approximately 50 HP.

However, do not connect a 37KW motor based on power rating alone. Check these details before installation:

  • Motor rated power
  • Motor rated voltage
  • Motor rated current
  • Motor phase
  • Motor frequency
  • Motor speed
  • Starting torque
  • Load characteristics
  • Overload demand
  • Acceleration and deceleration time
  • Braking requirements

The 37KW G-type configuration provides a rated output current of 75A. Therefore, make sure the motor’s nameplate current and operating demand stay within this limit.

Industrial Applications in Pakistan

The INVT GD200A 37KW VFD helps factories, commercial facilities and agricultural operations in Pakistan control compatible motor-driven equipment according to actual demand.

For example, pump and fan systems can use variable-frequency control to avoid unnecessary full-speed operation when the process needs less output. However, actual electricity consumption depends on the load profile, operating hours, system design and control settings. Do not assume a fixed saving percentage.

For constant-pressure water systems, PID control can adjust motor speed according to a correctly installed pressure-feedback signal. In addition, industrial users can connect compatible analogue, digital, relay and communication signals to a wider control system.

Protection and Control Features

The GD200A platform provides more than 30 fault-protection functions. Its major protection features include:

  • Overcurrent protection
  • Overvoltage protection
  • Undervoltage protection
  • Overheating protection
  • Phase-loss protection
  • Motor and drive overload protection

The G-type overload capability includes:

  • 150% of rated current for one minute
  • 180% of rated current for ten seconds
  • 200% of rated current for one second

These ratings apply only for short periods. They do not allow continuous operation above the drive’s rated current. For safe operation, size the motor correctly and set the parameters according to the load.

Technical Specifications

Specification Value
Brand INVT
Series Goodrive200A
Product Type General Purpose Vector Drive
Model GD200A-037G/045P-4
G-Type Rated Output Power 37KW
Approximate Motor Equivalent 50 HP
Input Phase Three-phase
Voltage Class 380V
Rated Input Current 80A
Rated Output Current 75A
Input Frequency 50Hz or 60Hz
Permitted Input-Frequency Range 47–63Hz
Output Voltage 0 to input voltage
Output Frequency 0–400Hz
Control Modes V/F and SVC
Compatible Motor Type Asynchronous motor
Speed Ratio 1:100
Analogue Inputs Two 0–10V/0–20mA inputs and one -10V to +10V input
Analogue Outputs Two 0–10V/0–20mA outputs
Common Digital Inputs 8 channels
High-Speed Input One channel, up to 50kHz
High-Speed Pulse Output One channel, up to 50kHz
Relay Outputs Two programmable relay outputs
Cooling Air cooling
Ingress Protection IP20
Operating Temperature -10°C to 50°C, with derating above 40°C
Mounting Options Wall and flange mounting
Braking Unit Optional external braking unit
Braking Resistor External
EMC Filter Built-in C3 filter; optional external C2 filter
Gross Weight 32kg

Control Terminals and Communication

The drive provides analogue, digital, pulse and relay interfaces for compatible control systems. It includes eight common digital inputs and one high-speed input. It also provides two analogue outputs, one high-speed pulse output, one open-collector output and two programmable relay outputs.

Users can set frequency commands through digital, analogue, pulse, multi-step, PLC and PID methods. The drive also supports MODBUS and PROFIBUS control methods. Before installation, check the required communication hardware, wiring, protocol settings and control logic.

Braking and Deceleration Requirements

The 37KW G-type configuration needs an optional external braking unit when the application requires dynamic braking. The braking resistor is also external.

Choose the braking equipment according to motor size, load inertia, stopping time and braking frequency. Incorrect resistor resistance, power rating or duty-cycle selection can damage the drive or braking components.

The drive also offers DC braking, flux braking and short-circuit braking functions. Use these functions only when their operating characteristics suit the machine. In particular, high-inertia loads and applications with frequent stops need careful engineering.

Installation and Environmental Requirements

The IP20 enclosure suits installation inside a suitable electrical panel or protected indoor area. It does not protect the drive against outdoor conditions, rain, water jets or dust.

Provide adequate ventilation and maintain the required installation clearances. The operating temperature range is -10°C to 50°C. However, the drive needs derating when the temperature rises above 40°C.

Where practical, keep motor and control wiring separate. Also use proper earthing, correctly rated protection devices and suitable cable sizes. Depending on the installation, you may also need manufacturer-compatible input or output reactors.

Manual, Wiring Diagram and Parameter Setting

Use the product-specific INVT GD200A manual when setting motor data, control terminals, acceleration time, deceleration time, PID functions and fault handling. Make sure the manual matches the Goodrive200A series and the installed voltage class.

A qualified electrical professional should follow the INVT GD200A wiring diagram. Before applying power, check the main-circuit wiring, control terminals, earthing, braking components and communication connections.

When searching for an INVT GD200A manual PDF, user manual, wiring diagram or parameter-setting guide, check that the material matches the Goodrive200A series and correct voltage class. Some search results may relate to a different INVT series. Therefore, do not use unrelated instructions as a replacement.

Use the correct INVT GD200A parameter-setting procedure for the connected motor and application. Never copy settings from another installation without checking the motor nameplate and load conditions. You can also use the INVT GD200A catalogue to identify the relevant product family and accessories.

INVT GD200A 37KW Price in Pakistan

The current price of the INVT GD200A 37KW General Purpose Vector Drive in Pakistan is Rs. 219,350 per VFD.

Contact Hajvery Solar Energy to confirm current availability, delivery charges and quantity-based dealer rates.

When comparing the INVT GD200A 37KW price in Pakistan, check the complete model code, voltage class, warranty and included accessories. A general INVT GD200A price or INVT VFD price in Pakistan search may show different capacities and configurations. For this reason, verify the exact model before comparing offers.

VFD prices in Pakistan can change because of exchange rates, import costs, shipment expenses and market availability. Always check that the quotation covers the 37KW G-type unit. Do not rely on the advertised power rating alone.

Hajvery Product Verification

Before purchasing, check the following details:

  • INVT branding and product label
  • Complete model code
  • 37KW G-type rating
  • Three-phase voltage class
  • Serial number
  • Packaging condition
  • Warranty coverage
  • Included keypad and standard accessories
  • Compatibility with the intended motor
  • Seller invoice and claim route

Hajvery Solar Energy can help you check the model, motor requirements and application details before dispatch.

Warranty and After-Sales Support

The INVT GD200A 37KW General Purpose Vector Drive comes with a 1 Year Replacement Warranty by INVT Official.

Warranty claims remain subject to the applicable terms, product inspection and required proof of purchase. Physical damage, incorrect wiring, unsuitable voltage, moisture exposure, improper installation or operation outside permitted limits may affect coverage. Before purchase, contact Hajvery Solar Energy to confirm the current claim requirements.

Before You Buy

Share the following details for a compatibility check:

  • Motor rated power in kW or HP
  • Motor rated voltage
  • Motor rated current
  • Motor phase and frequency
  • Motor speed
  • Pump, fan or machine type
  • Starting and running load
  • Required minimum and maximum speed
  • Acceleration and stopping requirements
  • Braking frequency and load inertia
  • Control-signal requirements
  • Installation environment
  • Available electrical supply
  • Required communication method

A qualified installer should set the motor parameters and protection settings before regular operation.

Frequently Asked Questions

What is the INVT GD200A 37KW used for?

It controls the speed, frequency and torque of compatible three-phase asynchronous motors. Common applications include pumps, fans, HVAC equipment, air compressors and selected industrial machinery.

How many HP motor can this 37KW VFD operate?

The 37KW rating equals approximately 50 HP. However, you should also check motor voltage, rated current, load type and overload demand before choosing the drive.

What is the rated output current?

The 37KW G-type configuration has a rated output current of 75A.

Can it operate directly from solar panels?

No direct solar-PV or MPPT capability should be assumed. This model is a general-purpose three-phase AC vector drive, not a dedicated solar pump inverter.

Does it support a three-phase motor?

Yes. It is designed for compatible three-phase asynchronous motors.

Does the VFD include an internal braking unit?

The 37KW G-type configuration uses an optional external braking unit. The braking resistor is also external and must be selected correctly.

What is the INVT GD200A 37KW Price in Pakistan?

The current price of the INVT GD200A 37KW General Purpose Vector Drive in Pakistan is Rs. 219,350 per VFD.

Contact Hajvery Solar Energy to confirm availability, delivery cost and dealer quantity requirements.

What warranty is available?

The product includes a 1 Year Replacement Warranty by INVT Official. Contact Hajvery Solar Energy to confirm the applicable claim requirements before ordering.

Buy INVT GD200A 37KW VFD from Hajvery Solar

Order the INVT GD200A 37KW General Purpose Vector Drive from Hajvery Solar Energy for industrial, commercial or agricultural motor-control applications. Before ordering, share the motor nameplate and application details. This will help check the voltage, current, braking and control requirements for your installation.
