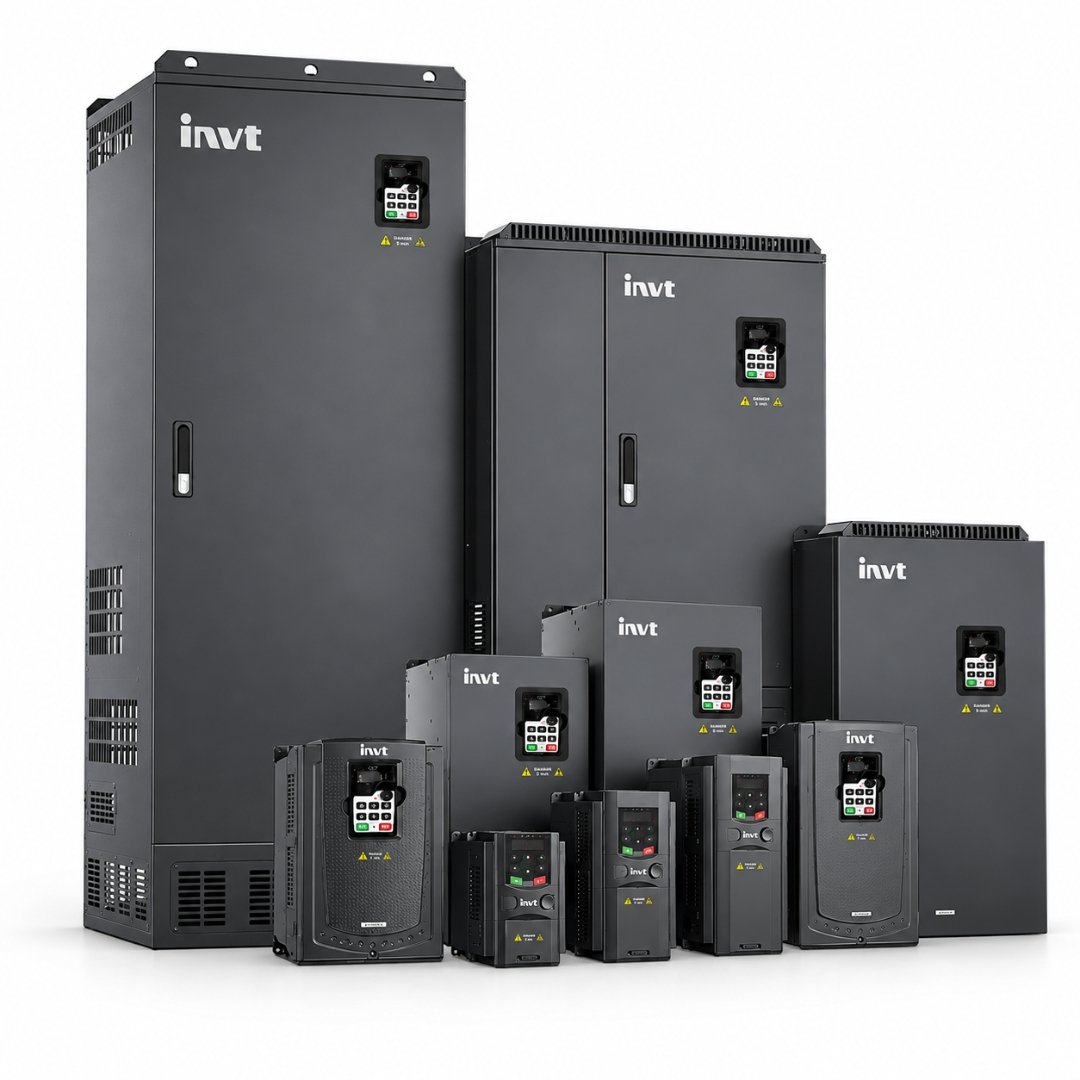

INVT GD200A 90KW

₨ 444,050

Available Pricing
In Stock
Per Product₨ 444,050

The INVT GD200A 90KW General Purpose Vector Drive provides controlled speed, frequency and torque management for compatible three-phase asynchronous motors. It operates in the 380/400V AC class and delivers 90kW rated output power with V/F and sensorless vector control. The drive supports motor auto-tuning, automatic voltage adjustment, speed tracking, programmable control terminals and multiple communication-based frequency settings. It is suitable for industrial pumps, fans, air compressors, HVAC equipment, plastic machinery and selected process applications.

Quick Highlights

  • 90kW G-type rated output power
  • Model GD200A-090G/110P-4
  • Three-phase 380/400V AC class
  • 190A rated input current
  • 180A rated output current
  • V/F and sensorless vector control
  • Output frequency range from 0 to 400Hz
  • Designed for asynchronous motors
  • Strong short-duration overload capability
  • Motor rotating and static auto-tuning
  • Automatic voltage adjustment
  • More than 30 fault-protection functions
  • MODBUS and PROFIBUS communication settings
  • IP20 enclosure with air cooling
  • Built-in C3 EMC filter
  • Wall or flange installation
  • 1 Year Replacement Warranty by INVT Official
Description

INVT GD200A 90KW General Purpose Vector Drive Overview

The INVT GD200A 90KW General Purpose Vector Drive is designed for accurate speed, frequency and torque control of compatible three-phase asynchronous motors. It belongs to the Goodrive200A high-performance general-purpose vector drive range and combines DSP-based control with V/F and sensorless vector control technologies. Buyers comparing the INVT GD200A 90KW Price in Pakistan can explore its motor-control features, electrical ratings and industrial applications below.

This drive suits demanding industrial systems that need controlled acceleration, stable running and adjustable motor speed. Its 90kW G-type rating supports industrial motor applications after the installer checks the motor nameplate current, rated voltage, load characteristics and overload requirements.

The product is a general-purpose AC motor drive. It does not include a direct solar PV input or solar MPPT function. Therefore, do not treat it as a direct-PV solar pump inverter without a separately engineered power arrangement.

Key Features and Benefits of INVT GD200A 90KW

Accurate Motor Control

The V/F and sensorless vector control modes allow the drive to manage motor speed across different operating conditions. Its asynchronous motor speed ratio is 1:100. As a result, it supports controlled low-speed operation when the connected motor and application remain within their permitted limits.

Rotating and Static Motor Auto-Tuning

The GD200A series supports both rotating and static motor auto-tuning. Rotating auto-tuning works when the motor can be separated from its mechanical load. On the other hand, static auto-tuning helps when separating the connected load is difficult. Enter the correct motor data before performing either procedure.

Strong G-Type Overload Performance

The 90kW G-type drive supports the following short-duration overload levels:

  • 150% of rated current for one minute
  • 180% of rated current for ten seconds
  • 200% of rated current for one second

These short-duration ratings help the drive handle demanding starts and transient load conditions. However, they do not permit continuous operation above the rated output current.

Flexible Frequency Setting

Users can control the operating frequency through digital settings, analogue signals, pulse-frequency input, multi-step speed settings, simple PLC control, PID control and supported communication settings. This flexibility helps integrate the drive into manual, automatic and process-controlled systems.

Automatic Voltage Adjustment

Automatic voltage adjustment helps maintain stable output when the incoming grid voltage changes within the permitted operating range. In addition, the drive adjusts its output behaviour to reduce unnecessary overcurrent during acceleration and DC-bus overvoltage during deceleration.

Speed Tracking

Speed tracking allows the drive to identify a motor that is already rotating and restart it smoothly. This feature is useful when a restart command arrives before the motor has fully stopped.

Best Applications for INVT GD200A 90KW VFD

The INVT GD200A 90KW VFD suits properly engineered industrial systems such as:

  • Industrial water and circulation pumps
  • Ventilation and process fans
  • Air-compressor systems
  • HVAC equipment
  • Plastic-processing machinery
  • Petroleum-industry equipment
  • Selected mining and coal-industry machinery
  • Constant-pressure water-supply systems
  • Standard industrial transmission loads

Actual suitability depends on the motor, driven equipment, duty cycle, starting torque and installation environment. Therefore, check these requirements before selecting the drive.

When INVT GD200A 90KW VFD Is Not Ideal

Do not select this drive for:

  • A motor with an incompatible rated voltage or phase.
  • A motor whose rated current exceeds the drive’s usable output rating.
  • Direct operation from solar panels.
  • Installations that require a solar MPPT controller.
  • Outdoor installation without a suitable protective enclosure.
  • Applications exposed to excessive dust, moisture or contaminants without proper control-panel protection.
  • Loads that require control characteristics outside the GD200A operating range.
  • Installations where braking requirements have not been calculated.

Motor and Electrical Compatibility of INVT GD200A 90KW

The GD200A 90KW is intended for compatible three-phase asynchronous motors. However, motor selection must not depend on the 90kW rating alone. The installer must check the motor’s rated voltage, rated current, base frequency, speed, connection method, load type and required starting torque.

The drive belongs to the three-phase 380VAC ±15% selection series, while its general electrical rating is the three-phase 400V class with a ±15% input tolerance. Moreover, the permitted input-frequency range is 47 to 63Hz, covering nominal 50Hz and 60Hz supplies.

The output voltage can be controlled from zero up to the available input voltage. Its output frequency is adjustable from 0 to 400Hz. However, motor operation above its rated frequency requires separate confirmation from the motor manufacturer and equipment designer.

Protection and Operational Control

The drive provides more than 30 fault-protection functions. Supported protection categories include:

  • Overcurrent protection
  • Overvoltage protection
  • Undervoltage protection
  • Overheating protection
  • Input or output phase-loss protection
  • Motor and drive overload protection

Set protection levels according to the connected motor and application. Also, use correctly sized switchgear, earthing, cabling, fuses, breakers and enclosure ventilation. Drive protection does not replace these essential electrical safety measures.

INVT GD200A 90KW Technical Specifications

Model and Output Specifications

Specification Details
Product Series INVT Goodrive200A
Model GD200A-090G/110P-4
Target Duty 90kW G-type
Rated Output Power 90kW
Rated Input Current 190A
Rated Output Current 180A
Motor Type Three-phase asynchronous motor
Control Modes V/F and sensorless vector control
Asynchronous Motor Speed Ratio 1:100

Input and Output Specifications

Specification Details
Input Supply Class Three-phase 380/400V AC
Input-Voltage Tolerance ±15%
Nominal Input Frequency 50Hz or 60Hz
Permitted Input-Frequency Range 47–63Hz
Output Voltage 0 to input voltage
Output-Frequency Range 0–400Hz

Control Interface Specifications

Specification Details
Analogue Inputs Two channels supporting 0–10V or 0–20mA
Bipolar Analogue Input One channel supporting -10V to +10V
Analogue Outputs Two channels supporting 0–10V or 0–20mA
Common Digital Inputs Eight channels with up to 1kHz frequency
High-Speed Input One channel with up to 50kHz frequency
High-Speed Pulse Output One channel with up to 50kHz frequency
Open-Collector Digital Output One
Programmable Relay Outputs Two
Relay Contact Capacity 3A at 250VAC or 1A at 30VDC
Terminal Analogue-Input Resolution 10mV or better
Terminal Switch-Input Resolution 2ms or better

Installation and Construction Specifications

Specification Details
Gross Weight 67kg
Product Dimensions 760 × 445 × 580mm
Installation Options Wall or flange mounting
Ingress Protection IP20
Cooling Method Air cooling
Operating-Temperature Range -10°C to 50°C
Temperature Derating Output derating required above 40°C
Braking Unit Optional external unit
Braking Resistor External
EMC Filter Built-in C3 filter
Higher EMC Option Compatible external C2 filter

INVT GD200A 90KW Keypad and Communication

A detachable external LED keypad comes standard for this power class. It supports parameter uploading and downloading and includes a digital potentiometer. In a correctly designed installation, users can extend the keypad up to 200 metres. An external English-language LCD keypad is also available as an option.

Supported frequency-setting methods include MODBUS and PROFIBUS communication. In addition, MODBUS RS-485 communication can support compatible automatic control systems, including pressure-feedback applications.

INVT GD200A Manual, Wiring Diagram and Parameter Settings

Customers may search for invt gd200A, invt gd200a or invt vfd gd200a when identifying this product series. Always check the exact model code and voltage class before downloading files or entering parameters.

For installation and commissioning, use a matching invt gd200a manual, invt gd200a manual pdf, invt gd200a user manual or invt gd200a user manual pdf download. The invt gd200a catalog can help identify the series. However, final settings must match the connected motor and application.

Searches such as invt vfd parameter setting pdf free download, invt gd200 manual pdf download and invt vfd manual pdf free download may return different revisions. Therefore, verify the model coverage and document revision before using any parameter reference.

For circuit planning, check an invt gd200a wiring diagram against the exact drive terminals. Other search phrases include manual inverter invt gd200a, invt vfd gd200a manual pdf, invt inverter gd200a manual and invt drive gd200a manual. Use the correct technical information for the exact model.

Every invt gd200a parameter setting must reflect the motor nameplate, acceleration time, deceleration time, control mode and load requirements. A qualified industrial electrical technician should complete all wiring and commissioning work.

INVT GD200A 90KW Price in Pakistan

The current price of the INVT GD200A 90KW General Purpose Vector Drive in Pakistan is Rs. 444,050 per VFD.

The invt gd200a price can change with exchange rates, shipment costs and market conditions. Therefore, buyers comparing the INVT GD200A 90KW Price in Pakistan, invt gd200a price in pakistan, invt vfd price in pakistan or general vfd price in pakistan should confirm the exact model, power rating and included accessories.

An invt vfd price list may contain several ratings. For this reason, verify model GD200A-090G/110P-4 before ordering. The INVT GD200A 90KW Price in Pakistan should always be checked against the exact model and required accessories.

Warranty and After-Sales Support

1 Year Replacement Warranty by INVT Official.

Hajvery Solar Energy can assist customers with product selection and after-sales coordination. However, warranty coverage remains subject to the official terms that apply to the supplied unit.

Before You Buy INVT GD200A 90KW VFD

Confirm the following details before placing an order:

  • Motor rated power and current
  • Motor voltage, phase and frequency
  • Motor type and connection method
  • Required starting and running torque
  • Fan, pump, compressor or machinery load profile
  • Acceleration and deceleration requirements
  • Need for an external braking unit and resistor
  • Required control signals and communication method
  • Panel ventilation and available installation space
  • Ambient temperature and site conditions
  • Cable size, switchgear, earthing and protection arrangement

These checks help confirm whether the INVT GD200A 90KW VFD matches the motor and intended application.

Frequently Asked Questions About INVT GD200A 90KW

What motor type is compatible with the INVT GD200A 90KW?

It is designed for compatible three-phase asynchronous motors. Before selection, check the motor’s rated voltage, current, frequency and load requirements.

What is the rated output current of the INVT GD200A 90KW VFD?

The 90kW G-type rating has a rated output current of 180A under the defined 380V rating conditions.

What is the rated input current?

The rated input current is 190A under the defined test conditions for this drive range.

Can the INVT GD200A 90KW operate directly from solar panels?

No. This is a general-purpose AC vector drive. It does not provide a direct solar PV input or MPPT function.

Does it support external braking equipment?

Yes. This rating uses an optional external braking unit and an external braking resistor. Their sizing depends on the load inertia, braking frequency and stopping-time requirement.

Does the drive support communication control?

Yes. Frequency settings can use MODBUS and PROFIBUS communication. However, confirm the required communication hardware, wiring and control configuration for the intended system.

What is the current price of INVT GD200A 90KW in Pakistan?

The current price of the INVT GD200A 90KW General Purpose Vector Drive in Pakistan is Rs. 444,050 per VFD.

What warranty is included?

The product includes a 1 Year Replacement Warranty by INVT Official.

Buy INVT GD200A 90KW VFD from Hajvery Solar Energy

Purchase the INVT GD200A 90KW General Purpose Vector Drive from Hajvery Solar Energy for suitable industrial motor-control applications. Before ordering, share the motor nameplate, incoming supply details and load requirements. This information helps check the correct VFD rating and required accessories.

Contact Hajvery Solar Energy for current availability, delivery information and technical selection assistance.
