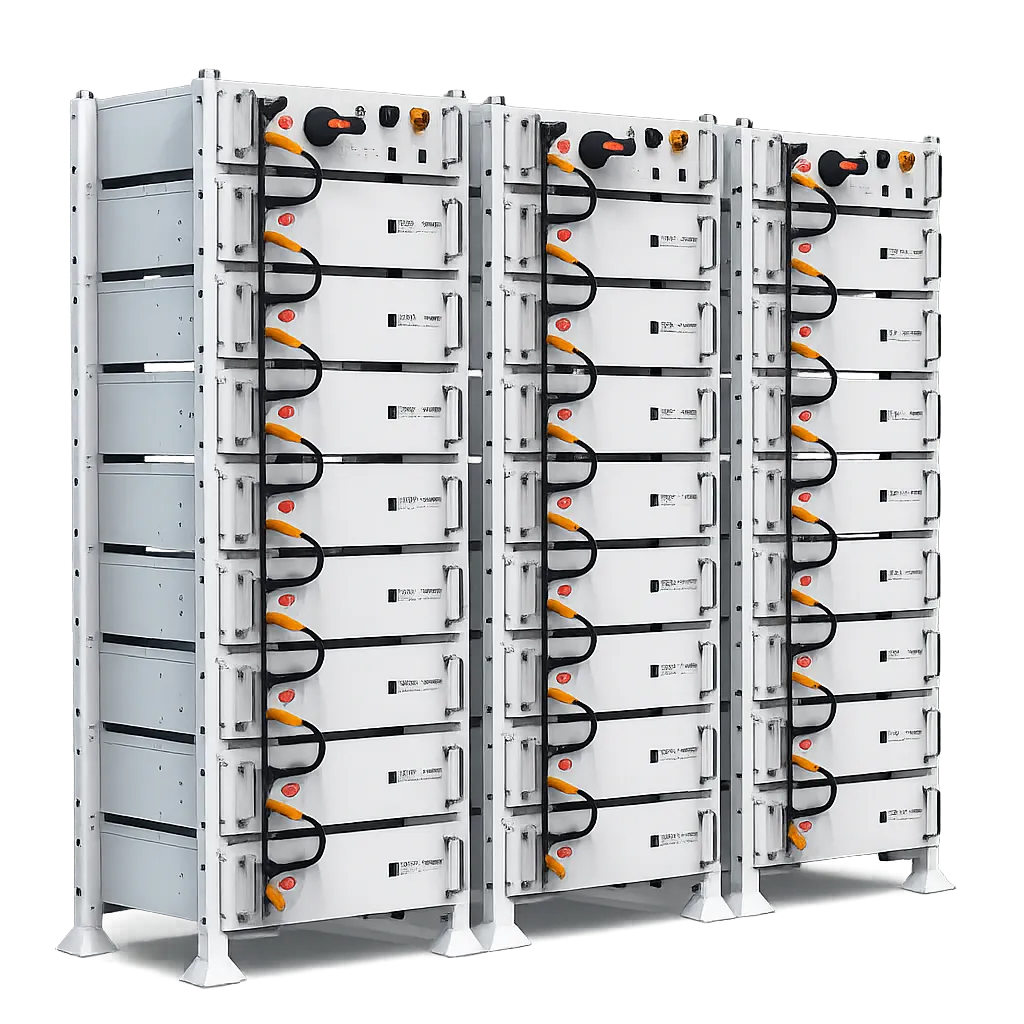

Itel 30.72kWh 307.2V C&I ESS Lithium Battery

itel 30.72kWh 307.2V 100Ah C&I ESS Lithium Battery Overview

The itel 30.72kWh C&I ESS Lithium Battery is designed for commercial and industrial energy storage where a larger battery bank, modular architecture and high-voltage operation are required. The system provides 30.72kWh nominal energy at a 307.2V nominal voltage, with a voltage operating range of 259.2–345.6V.

The battery uses Grade-A LiFePO₄ cells, providing a lithium iron phosphate chemistry suitable for energy storage applications. Its modular rack design makes installation more practical and allows the storage system to be expanded according to project requirements.

With 30.72kW maximum continuous power, this system can support substantial energy-storage requirements when correctly matched with the connected inverter, loads and overall system design.

For buyers looking for an Itel Commercial & Industrial ESS 30.7KWH lithium Battery, this model provides a dedicated C&I storage configuration rather than a small residential battery format.

Key Features and Buyer Benefits

Grade-A LiFePO₄ Battery Chemistry

The battery uses Grade-A LiFePO₄ cells, a lithium iron phosphate chemistry widely used for stationary energy-storage systems. The chemistry is suited to applications where stable energy storage and controlled battery operation are important.

30.72kWh Energy Storage Capacity

With 30.72kWh nominal energy, the battery provides a substantial storage capacity for commercial and industrial applications. The actual usable energy available to loads depends on the system operating limits, inverter efficiency, battery settings and connected load.

High-Voltage 307.2V Architecture

The nominal voltage of the system is 307.2 V, the operating voltage ranging from 259.2 to 345.6 V. Since the system employs a high-voltage design it must be paired with an inverter and an energy-storage system that is suitable for the battery’s voltage range.

Modular Rack Installation

The battery has a modular rack system which allows for easy installation; furthermore, its modular design enables the system to be expanded without it being necessary to replace the whole storage architecture.

Flexible System Expansion

The C&I ESS platform can support between 6 and 14 modules connected in series, with the option of having parallel expansion. This gives flexibility when designing larger commercial and industrial storage systems.

High Continuous Power Capability

The maximum continuous power rating of the target configuration is 30.72kW and the output of the actual system should at all times stay within the limits of the battery, the inverter and the installation.

Best For

The itel C&I ESS Lithium Battery is suitable for:

• Commercial solar energy storage systems
• Industrial energy storage applications
• Large battery-backup systems
• Solar systems requiring high-voltage battery storage
• Projects requiring modular energy-storage expansion
• Installations where rack-mounted battery architecture is preferred
• Commercial users looking for a scalable lithium battery system

It might be suitable for use in solar-plus-storage projects in which the inverter and system design are based on the battery’s 307.2V nominal voltage and specified operating range.

Not Ideal For

This battery should not be selected without proper system matching where:

• The inverter does not support the required high-voltage battery range
• The system requires a low-voltage residential battery architecture
• The connected load exceeds the battery and inverter power limits
• The installation requires a battery communication system that has not been verified for this model
• The project requires specific inverter compatibility that has not been confirmed
• The available installation area cannot accommodate a modular rack system

Before you buy it, make sure that you check the inverter’s battery voltage range, current limits, communication requirements and the battery configuration that it supports.

Battery Capacity: kWh, Voltage and Ah Explained

The battery provides 30.72kWh nominal energy at 307.2V nominal voltage.

The capacity of a battery in terms of energy and its amp-hour rating refer to two different features of a storage system; the nominal Ah value for this setup can be obtained from the verified energy and the voltage.

Voltage × Ah ÷ 1000 = nominal kWh

Using 307.2V and 100Ah gives 30.72kWh nominal energy.

The energy value as stated by the manufacturer is still the main specification of the product, though the real energy that can be used may differ depending on the operating conditions, system limitations and the battery management settings.

Battery Chemistry and Energy Storage Performance

The LiFePO₄ chemistry makes this battery suitable for stationary energy-storage applications. The system is designed around a modular architecture, allowing the storage capacity to be configured for commercial and industrial requirements.

The battery must be operated within the voltage, current, and temperature limits which are specified for it, and it is important to carry out correct inverter matching and to have a professionally designed system if safe and reliable operation is to be achieved.

In this model no cycle-life or depth-of-discharge figure is given without support.

Charging and Discharging Performance

The battery has a maximum current of 100A, while the recommended current is 50A.

The operating temperature range is:

• Charging: 0°C to 55°C
• Discharging: -20°C to 55°C

The real charging and discharging performance will vary depending on the inverter connected, the battery configuration, the operating temperature, and the system controls.

Inverter Compatibility

The 30.72kWh 307.2V 100Ah C&I ESS lithium battery needs an inverter and energy-storage system which is capable of operating within its high-voltage battery range.

Compatibility should be checked using:

• Battery voltage range
• Inverter battery input range
• Charge current limits
• Discharge current limits
• Battery communication requirements
• BMS communication compatibility
• System configuration and expansion requirements

Hajvery Solar will assist buyers in verifying the battery and inverter specifications that are required before they make a purchase.

Parallel Expansion

The architecture of the C&I ESS allows for parallel expansion and thus offers the flexibility needed by projects that have to add storage capacity.

The system can also have between 6 and 14 modules connected in series, enabling the battery structure to be scaled in accordance with the required configuration.

Any installation that is expanded should be designed with the approved battery configuration, inverter compatibility, and electrical protection as well as communication requirements in mind.

Technical Specifications

Lithium Battery Use in Pakistan

Battery storage can be used by commercial and industrial users in Pakistan to manage their energy consumption over different periods of operation, provided that the entire solar and storage system is properly designed.

The itel C&I ESS Lithium Battery can be considered for commercial solar-storage projects requiring a high-voltage battery architecture and modular expansion.

The high temperatures in Pakistan also mean that it is important to ensure correct installation. The battery must stay within its stated operating temperature range, and for this suitable installation, ventilation and electrical protection are needed.

When determining the size of the system, account must be taken of the actual connected load, the required backup duration, the inverter capacity, the battery current limits, and the expected daily pattern of operation.

itel Commercial & Industrial ESS lithium Battery Price in Pakistan

The current price of itel Commercial & Industrial ESS lithium Battery is available on booking. Prices may vary with import duties and dollar-rate fluctuations.

If you would like to know the revised and final per-unit price, please get in touch with Hajvery Solar Energy.

The price of the itel commercial and industrial lithium batteries in Pakistan therefore depends on import-related costs, changes in the currency and the booking quotation in effect.

For buyers checking the itel commercial & industrial ess lithium battery price, the final quotation should be confirmed directly with Hajvery Solar before placing an order.

The itel energy lithium battery price in pakistan may also change as import costs and exchange-rate conditions change.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy is the official distributor for this product category and can provide buyers with help regarding product identification and purchasing advice.

As an itel authorized dealer, Hajvery Solar Energy can help customers check the battery requirements against their planned solar-storage system.

Before you place your order, make sure you have confirmed the exact model IB-H30-X-G1, the required battery voltage, inverter compatibility, and the applicable warranty.

For customers searching for an Itel Commercial & Industrial ESS lithium Battery, matching the exact model and configuration is important because C&I battery systems are designed around specific voltage and system requirements.

Hajvery Solar Energy is an Official itel Distributor for the product and can assist with current booking and product-related enquiries.

Warranty and After-Sales Support

The itel 30.72kWh 307.2V 100Ah C&I ESS Lithium Battery comes with a 5-year replacement warranty.

When buying the product, customers should check the warranty coverage as well as the relevant claim requirements and conditions. Hajvery Solar can advise customers as to which warranty procedure to follow and about product verification.

As an authorized itel dealer, Hajvery Solar Energy provides a direct channel for product and warranty-related guidance.

Before You Buy

Before purchasing this C&I ESS battery, confirm:

• Exact model: IB-H30-X-G1
• Battery voltage: 307.2V nominal
• Needed energy capacity is 30.72kWh nominal.
• Inverter battery voltage compatibility
• Charge and discharge current requirements
• BMS and communication compatibility
• Required storage expansion
• Installation space for the modular rack system
• Operating temperature conditions
• Warranty requirements

It is important to correctly match the battery with the inverter if the energy-storage system is to be reliable.

Frequently Asked Questions

What is the capacity of the itel 30.72kWh C&I ESS Lithium Battery?

The nominal energy capacity of the battery is 30.72kWh and its nominal system voltage is 307.2V.

What is the model number?

The specific model is IB-H30-X-G1.

Is this a high-voltage lithium battery?

Yes, the battery has a nominal voltage of 307.2 volts and the system voltage ranges from 259.2 to 345.6 volts.

What battery chemistry does it use?

The battery is made up of Grade-A LiFePO₄ cells.

Can the battery system be expanded?

Correct, the C&I ESS architecture can support between 6 and 14 modules in terms of both series and parallel expansion.

What is the current itel commercial & industrial ess 30 7 kwh lithium battery price?

The price at the time of booking can vary due to changes in import duties and the dollar rate and is available on booking. For the most up-to-date and final per-unit quote, please contact Hajvery Solar Energy.

What is the warranty?

The battery comes with a 5-year replacement warranty.

Can this battery be used with every hybrid inverter?

Compatibility must be checked using the inverter’s battery voltage range, current limits, communication requirements and the type of battery it supports before buying it.

Buy itel 30.72kWh C&I ESS Lithium Battery from Hajvery Solar

The itel 30.72kWh 307.2V 100Ah C&I ESS Lithium Battery is designed for commercial and industrial energy-storage applications requiring a high-voltage, modular lithium battery system.

For booking, updated pricing, product availability, compatibility checking and warranty guidance, contact Hajvery Solar Energy.
