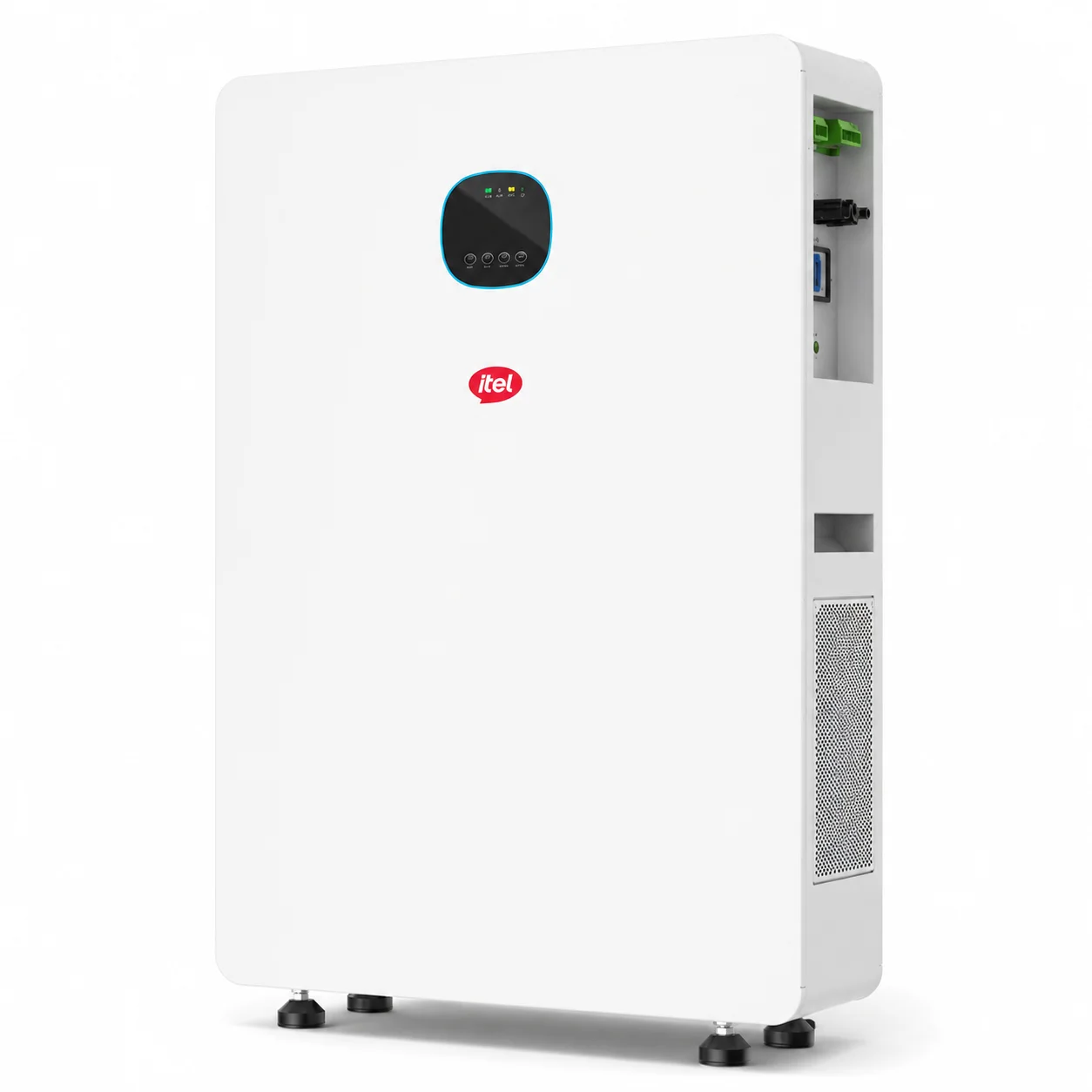

Itel Combo 3.6KW Hybrid Inverter 8KWH Built-in Battery

Itel Combo 3.6KW Hybrid Inverter 8KWH Built-in Battery Overview

The itel 3.6KW 8KWh All-in-One Hybrid Inverter is an integrated household energy storage system built around a 3600W inverter and 8.038kWh LiFePO4 battery. With the inverter and battery combined in one system, it provides a practical approach to solar generation, energy storage and backup power without requiring a separate external battery installation for the built-in storage capacity.

The system uses a 25.6V, 314Ah LiFePO4 battery and provides up to 6000 cycles. On the solar side, it accepts more than 5kW of PV input and supports PV voltage up to 500V, with an MPPT operating range of 40–430V. The inverter delivers 3600W nominal AC output at 230V and supports UPS-class switching in less than 10ms.

For buyers searching for an Itel 3.6KW combo, this configuration is particularly relevant where integrated battery storage and backup capability are more important than installing separate inverter and battery units.

Why This Hybrid Inverter Stands Out

3600W Inverter with Built-in 8.038kWh Storage

The combination of a 3600W inverter and 8.038kWh LiFePO4 battery gives this system a compact all-in-one design. The integrated configuration can simplify system planning for household applications where solar generation and backup storage are required together.

More Than 5kW PV Input

The maximum PV input power of the system is over 5kW, so the solar portion can be made larger than the inverter’s 3600W AC output rating provided that the electrical limits are observed. The maximum PV input voltage is 500V.

UPS-Class Switching Below 10ms

The fact thOne of the most useful features when it comes to using the system with backup applications is the fact that the switching time is less than 10 milliseconds, since this allowp loads that are coo switch overthe  quickltyen the sychange over stem changes itsalterof operation.

LiFePO4 Battery with 6000-Cycle Rating

The built-in battery uses LiFePO4 chemistry, with a rated capacity of 314Ah and energy of 8.038kWh. A 6000-cycle rating is provided for the battery system.

Best For

The itel 3.6kw inverter is a practical option for buyers looking for an integrated household solar and battery system rather than a conventional inverter-only setup.

It can be considered for:

• Homes requiring battery backup during grid interruptions
• Household solar systems with meaningful daytime PV generation
• Users looking for an all-in-one energy storage system
• Installations where a built-in battery simplifies the overall system arrangement
• Buyers who need fast backup switching for selected household loads
• Solar users dealing with unstable or weak grid conditions

The system can adapt to grid conditions that are both unstable and weak, the total voltage harmonic distortion in inverter mode staying below 3%.

Not Ideal For

This system may not be the right choice where:

• A three-phase AC output system is specifically required
• A larger continuous inverter capacity than 3600W is needed
• The planned PV array exceeds the stated voltage and input limits
• The system should have a battery design which is different from the built-in 25.6V LiFePO4 arrangement.
• The project requires features that are not confirmed for this model, such as parallel expansion, generator integration or specific communication interfaces

It is still necessary to carry out a proper load assessment because the inverter’s nominal output of 3600W and its capacity to deliver a short-duration surge should not be considered the same operating limits.

Solar PV Input and MPPT Performance

The section dealing with solar input can handle a maximum PV input power of more than 5kW and a maximum PV input voltage of 500V; the MPPT operating range is 40 to 430V, including a 60V startup voltage and one MPPT tracker.

For buyers looking for an itel 3.6kw inverter datasheet, the important PV design values include:

• Maximum PV Input Power: >5000W
• Maximum PV Input Voltage: 500V
• Startup Voltage: 60V
• MPPT Voltage Range: 40–430V
• Number of MPPTs: 1
• MPPT Tracking Efficiency: 99%

The itel 3.6kw price in pakistan should be considered together with the complete system configuration, because this product combines the inverter and built-in battery rather than functioning as an inverter-only unit.

When designing a PV array, the solar modules selected must remain within the inverter’s voltage and MPPT limits under real operating conditions and under real temperature conditions.

Battery Compatibility and Energy Storage

The integrated battery uses LiFePO4 chemistry with a 25.6VDC rated voltage, 314Ah rated capacity and 8.038kWh battery energy. The system provides a 6000-cycle rating.

The intrinsic battery is an essential feature of the product’s all-in-one design because instead of treating the inverter and the storage system as completely separate components, the unit incorporates the energy storage function together with the 3600W inverter.

The battery section also incorporates intelligent BMS functionality, while the overall system is described with Intelligent EMS, Dual Output PCS and Intelligent BMS.

Here it is not stated exactly what the battery communication interfaces are, nor is the possibility of expanding the battery with an external battery and its compatibility with battery brands bought separately established, so those requirements should be checked with Hajvery Solar Energy before the system is installed or modified.

Backup Power and Load-Shedding Performance

For Pakistani households, backup performance is one of the main reasons to consider an integrated hybrid system. The itel 3.6KW 8KWh All-in-One Hybrid Inverter provides UPS-class switching below 10ms and is promoted with backup time of up to 2 hours. Actual backup duration depends on the connected load and operating conditions.

The inverter provides:

• Nominal AC Output: 3600W
• Maximum Apparent Output: 3600VA
• Surge Power: 5400VA for 3 seconds
• Maximum AC Output Current: 23A for 3 seconds
• Switching Time: <10ms
• Output Voltage: 230VAC
• Output Frequency: 50Hz
• THD: <3%

The overload function provides different short-duration limits, including 105%–150% overload for up to 3 seconds and 150%–200% overload for up to 0.2 second before shutdown.

Appliances that are going to be used during load-shedding should therefore be selected according to their continuous power requirements, their starting characteristics and the inverter’s output limits.

Grid Compatibility

The system accepts an AC input voltage range of 160–280VAC, with maximum grid input voltage listed at 380Vrms. Maximum AC input power in bypass mode plus battery charging is 4000W, with maximum AC input current of 20A.

The system is designed for use with unstable and weak grids and guarantees that the total voltage harmonic distortion stays below 3% when it is operating in inverter mode.

It is also recommended that the system should have feed-to-grid support and any arrangement for grid interconnection or export must be designed in accordance with the applicable installation requirements and the local utility rules.

Technical Specifications

Solar PV Input

Battery

AC/Grid Input

AC Output

General and Protection

The specification for operating temperature calls for a reduction in power when the temperature is above 40°C, and likewise power has to be reduced when the altitude is above 2000m.

Recommended Solar System Size

The nominal AC output of the inverter is 3600W, although its maximum PV input is over 5000W; these two figures refer to different sections of the system and must therefore not be regarded as equivalent sizing values.

The solar array should be designed within the inverter’s electrical limits, particularly:

• 500V maximum PV voltage
• 40–430V MPPT range
• 60V startup voltage
• Module Voc and Vmp
• Temperature-adjusted string voltage
• Available PV power
• Actual installation conditions

Final string configuration should be checked before installation rather than selecting panels by wattage alone.

Hybrid Inverter Use in Pakistan

For Pakistani solar users, an integrated inverter and battery can be useful where load shedding, grid instability and the need for backup power are regular concerns.

The built-in 8.038kWh LiFePO4 battery provides a substantial storage capacity for shifting solar energy into periods when grid power is unavailable. During the day, solar energy can support connected loads while also contributing to battery charging within the system’s operating limits.

The inverter is also capable of dealing with unstable and weak grid conditions.

It is still important to ensure good installation standards; the system must have suitable electrical protection, sufficient ventilation, and the PV strings should be correctly configured. Since the operating specifications state that power output is reduced above 40°C, due consideration should be given to the installation conditions and the ambient temperature during Pakistan’s hotter months.

itel 3.6KW Hybrid Inverter Price in Pakistan

The itel 3.6kw inverter price in pakistan should be evaluated as the price of an integrated system containing both the 3600W inverter and built-in 8.038kWh LiFePO4 battery.

The current price of the Itel 3.6KW 8KWh All-in-One Hybrid Inverter in Pakistan is Rs. 330,000.00.

For buyers comparing the itel 3.6 kw combo price in pakistan, itel 3.6 kw combo price, or itel 3.6 kw combo battery price, the built-in battery capacity and complete system configuration are important factors alongside the inverter rating.

Hajvery Solar Energy is an itel Official Distributor, providing customers with product guidance and availability assistance.

Hajvery Verified Product Information

• Brand: itel
• Product: 3.6KW All-in-One Hybrid Energy Storage System
• Exact Model: IESS-3K680N
• Rated Inverter Output: 3600W
• Built-in Battery: 8.038kWh LiFePO4
• Battery Voltage: 25.6VDC
• Battery Capacity: 314Ah
• Category: Hybrid Inverter
• Price Unit: Per unit

For product authenticity, exact-model identification, battery configuration and installation requirements, customers can contact Hajvery Solar Energy before purchase.

As an itel authorized dealer, Hajvery Solar Energy can assist buyers with product-related guidance and compatibility checks.

Warranty and After-Sales Support

Warranty duration, coverage type, claim procedure and other applicable warranty information should be confirmed directly with Hajvery Solar Energy before purchase. Customers should also confirm the applicable after-sales support and claim requirements for the specific unit.

Hajvery Solar Energy is an Official itel Distributor and can guide customers regarding product information, availability and warranty-related queries.

Buying from Hajvery Solar Energy, an authorized itel dealer, provides a direct point of contact for product and warranty guidance.

Before You Buy

Before purchasing this integrated hybrid system, confirm:

• Your home’s required continuous backup load
• Appliance startup and surge requirements
• Required solar PV capacity
• PV string voltage under both normal and high-temperature conditions
• Compatibility with the inverter’s 500V maximum PV voltage
• Required battery backup duration
• Installation location and ventilation
• Expected operating temperature
• Electrical protection requirements
• Warranty details and after-sales support
• Current availability and final product configuration with Hajvery Solar Energy

The built-in battery makes this product different from an inverter-only purchase, so the overall storage capacity and load requirement should be assessed together.

Frequently Asked Questions

What is the Itel 3.6KW 8KWh All-in-One Hybrid Inverter?

It is an integrated household energy storage system combining a 3600W hybrid inverter with an 8.038kWh LiFePO4 battery. Its exact model is IESS-3K680N.

What battery does this Itel hybrid inverter have?

It has a built-in LiFePO4 battery rated at 25.6VDC, 314Ah and 8.038kWh. The battery is rated for 6000 cycles.

What is the maximum PV input of this inverter?

The system supports more than 5000W maximum PV input power and has a 500V maximum PV input voltage. It uses one MPPT with a 40–430V operating range.

What is the switching time of the Itel 3.6KW hybrid inverter?

The UPS-class switching time is less than 10ms, supporting fast transition for backup operation.

What is the Itel 3.6KW all-in-one inverter price?

The itel 3.6kw all in one inverter price is subject to the current product listing. The current price is Rs. 330,000.00 per unit.

Does it provide backup during load shedding?

Yes, the system is designed as an integrated energy storage and backup solution, with a built-in 8.038kWh battery and <10ms switching time. Actual backup duration depends on the connected load and operating conditions.

What is the warranty of this Itel hybrid inverter?

Warranty duration, warranty type and claim requirements should be confirmed with Hajvery Solar Energy before purchase, as the applicable warranty information needs to be verified for the specific unit.

What is the price of the Itel combo with 8kWh Li battery?

For buyers searching itel combo 3.6kw hybrid 8kwh li battery price, the current price is Rs. 330,000.00 per unit. The package combines a 3600W inverter with an 8.038kWh built-in LiFePO4 battery.

Buy Itel 3.6KW 8KWh All-in-One Hybrid Inverter from Hajvery Solar

Hajvery Solar Energy provides the itel 3.6KW 8KWh All-in-One Hybrid Inverter for customers looking for an integrated solar, battery and backup system. Before ordering, confirm your PV array, backup load, installation conditions, warranty information and system requirements.

For current availability, warranty information, product verification and compatibility guidance, contact Hajvery Solar Energy.
