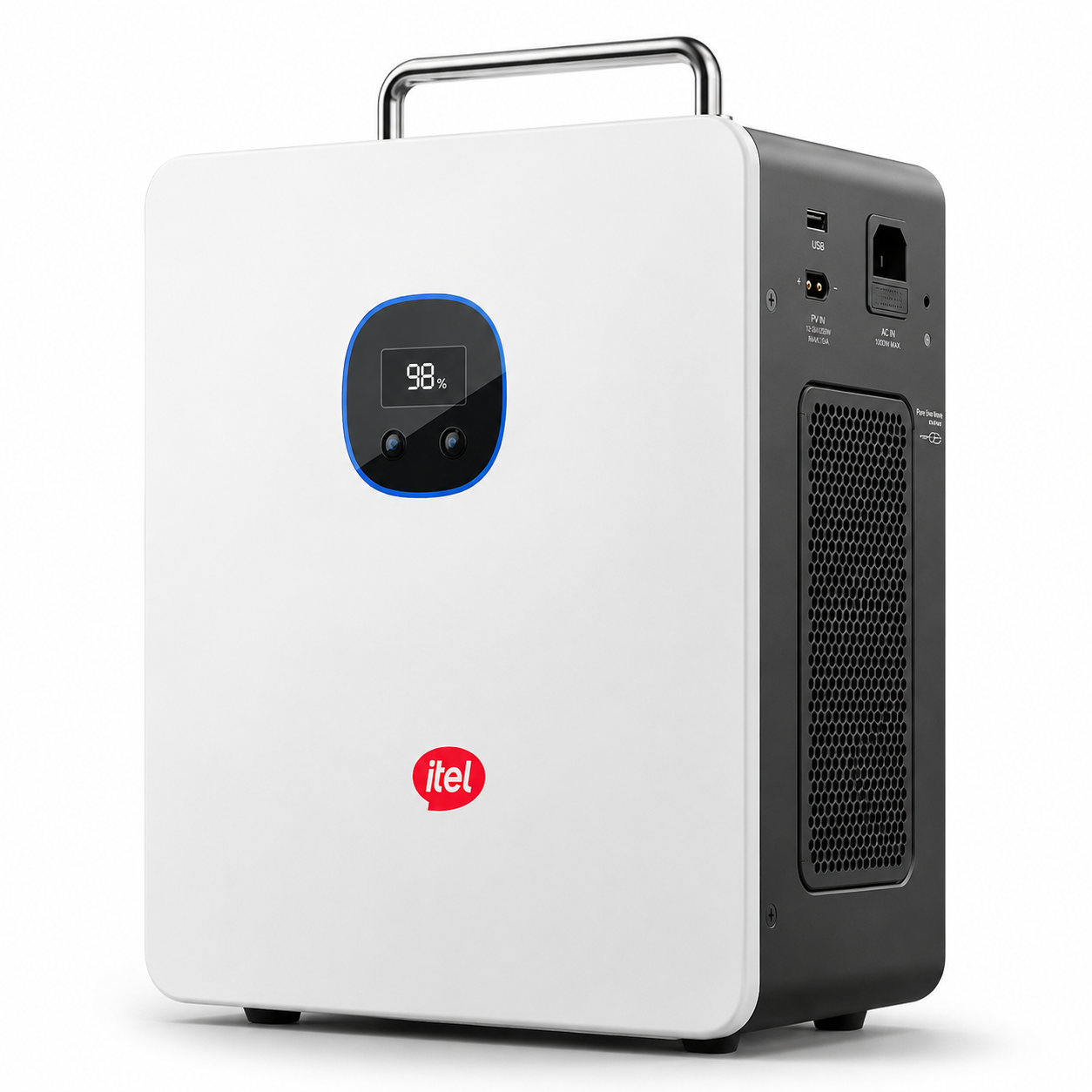

itel IESS-05K10N Power Tank Overview

The itel IESS-05K10N Power Tank combines a LiFePO4 battery, hybrid inverter and solar MPPT controller in a single portable energy storage system. It has a 1000Wh lithium battery, 500W hybrid inverter and 400W PV MPPT controller, making it suitable for small-scale household backup and portable solar power applications.

The system uses pure sine wave AC output and provides a UPS-class switch time of ≤20ms, helping connected appliances transition quickly when the power source changes.

For buyers searching for an Itel Power Tank 500 Portable Power Station, this model combines energy storage and power conversion without requiring separate battery and inverter units.

Key Features and Buyer Benefits

LiFePO4 Battery

The Power Tank is fitted with a LiFePO4 battery having a rated capacity of 314Ah and a battery energy of 1000Wh; its stated cycle life is 6000 cycles, which provides the battery with excellent cycling capabilities for regular backup applications.

Integrated 500W Hybrid Inverter

The built-in 500W hybrid inverter provides 500W nominal AC output and up to 600VA apparent power. The output voltage is 230VAC, with total voltage harmonic distortion below 3%.

400W Solar MPPT

The 400W PV MPPT controller has an input voltage from 11V to 60V and starts up at 11V; it includes one MPPT tracker.

Fast Charging

The system is capable of dual charging from both PV and the grid at up to 500W, and the battery takes about two hours to become fully charged under the specified charging conditions.

Pure Sine Wave Output

The inverter which produces a pure sine wave supplies AC power at a voltage of 230V and a frequency of 50Hz, so that the system can be used with household electrical loads that are compatible.

Best For

The itel Power Tank 500 is suitable for buyers who need a compact backup system for:

• Essential household appliances
• Small electronic equipment
• Portable power requirements
• Solar charging applications
• Short-duration backup during power interruptions
• Small household energy storage setups

Its integrated design also makes the itel all in one power tank concept practical for users who want battery storage, solar charging and inverter output in one unit.

Not Ideal For

This Power Tank should not be selected as a replacement for a high-capacity household or commercial energy-storage system when the required continuous load is above its 500W nominal AC output.

It is just as important to keep the total load within the specified output and overload limits rather than basing the sizing of the appliances only on the battery’s 1000Wh energy rating.

Solar Charging and MPPT Performance

The built-in 400W MPPT controller supports PV input from 11V to 60V with one MPPT tracker. Maximum PV input power is 400W, while MPP tracking efficiency reaches 99.0%.

For an itel power tank 500w specifications search, the important PV figures are the 400W maximum PV input, 60V maximum PV input voltage, 11–60V MPPT range, 11V startup voltage and 1 MPPT.

The solar array that has been chosen must stay within these electrical limits.

Battery Capacity and Energy Storage

The nominal energy of the battery is 1000Wh, its rated capacity is 314Ah and the rated battery voltage is 3.2VDC. The chemistry of the battery is LiFePO4.

The Ah rating and the Wh rating of a battery indicate different features; the Ah rating refers to the capacity for electrical charge while the Wh rating refers to the amount of stored energy. With this model, the figure of 1000Wh for the battery energy as stated by the manufacturer should be taken as the main energy value.

The specified 6000-cycle life gives the battery a substantial cycling capability for repeated backup use.

Backup Power and Load-Shedding Performance

The AC output of the 500W inverter operates at 230VAC and has a maximum apparent output power of 600VA. The switch time specified is no more than 20ms, which gives it UPS-class transfer performance.

For buyers checking an itel power tank 500w review, the practical point is to match the connected appliances with the Power Tank’s 500W nominal output and stated overload behaviour rather than relying only on the battery’s 1000Wh capacity.

The system also includes overload and short-circuit protection.

Grid Charging and AC Input

The Power Tank supports AC input within 90–280VAC, with an absolute maximum grid input voltage of 380Vrms. Maximum AC input power in bypass mode plus battery charging is 1000W, with maximum AC input current of 6A.

The unit can therefore use power from the grid to charge at the same time as charging using solar power.

Technical Specifications

Itel Power Tank 500 Price in Pakistan

The current price of itel IESS-05K10N Power Tank in Pakistan is ₨70,000.00 per unit.

Buyers searching for itel power tank price in pakistan, itel power tank 500 price in pakistan or itel power tank 500 price can use the exact model IESS-05K10N when confirming availability and product specifications.

Hajvery Solar Energy is an itel Official Distributor, providing genuine product supply and applicable warranty support.

Hajvery Compatibility and Authenticity Check

Before purchasing an itel lithium battery or portable energy-storage product, confirm the exact model, battery specifications and intended application.

Hajvery Solar Energy, as an itel authorized dealer, can help buyers identify the correct product and check its suitability for the intended backup requirement.

For customers comparing an itel power tank 500 specifications listing with other online listings, the exact model IESS-05K10N should be used for identification.

Hajvery Solar Energy is also an Official itel Distributor for genuine itel products.

Warranty and After-Sales Support

The itel IESS-05K10N Power Tank comes with a 1-year warranty.

Warranty coverage should be handled through the applicable seller and warranty route. Keep the product model and purchase information available when requesting warranty assistance.

As an authorized itel dealer, Hajvery Solar Energy can assist customers with product and warranty guidance.

Before You Buy

Before purchasing the itel Power Tank 500, check:

• Required continuous appliance load
• Maximum appliance startup/surge requirement
• Required backup duration
• Solar panel voltage compatibility
• Solar array power within the 400W PV limit
• AC charging requirements
• Intended indoor/portable application
• Exact IESS-05K10N model

FAQs

What is the itel Power Tank 500?

The itel IESS-05K10N Power Tank is a portable household energy-storage system combining a 1000Wh LiFePO4 battery, 500W hybrid inverter and 400W PV MPPT controller.

What is the itel power tank 500w?

The itel power tank 500w refers to the 500W inverter output of this Power Tank. Its nominal AC output is 500W, with maximum apparent power of 600VA.

What is the battery capacity?

The Power Tank has a 1000Wh LiFePO4 battery with a rated capacity of 314Ah.

What is the itel power tank 500w price in Pakistan?

The current price is ₨70,000.00 per unit.

What is the itel power tank 500w specifications?

Key specifications include a 500W inverter, 1000Wh LiFePO4 battery, 400W PV input, 11–60V MPPT range, 1 MPPT, 230VAC output and ≤20ms switch time.

How many cycles does the battery provide?

The battery has a specified 6000-cycle life.

Is the Power Tank suitable for solar charging?

Yes. It has a built-in 400W PV MPPT controller and supports PV and grid dual charging up to 500W.

What is the itel Power Tank 500 warranty?

The product comes with a 1-Year Warranty.

Buy itel IESS-05K10N Power Tank from Hajvery Solar

Choose Hajvery Solar Energy for the itel IESS-05K10N Power Tank with product identification, compatibility guidance and applicable warranty support.

For buyers searching for itel power tank 500 watts, itel 500 watt power tank price in pakistan, itel power tank 500w price, itel power tank 500w specifications or itel.power tank.500 price in pakistan, use the exact IESS-05K10N model when confirming the product.
