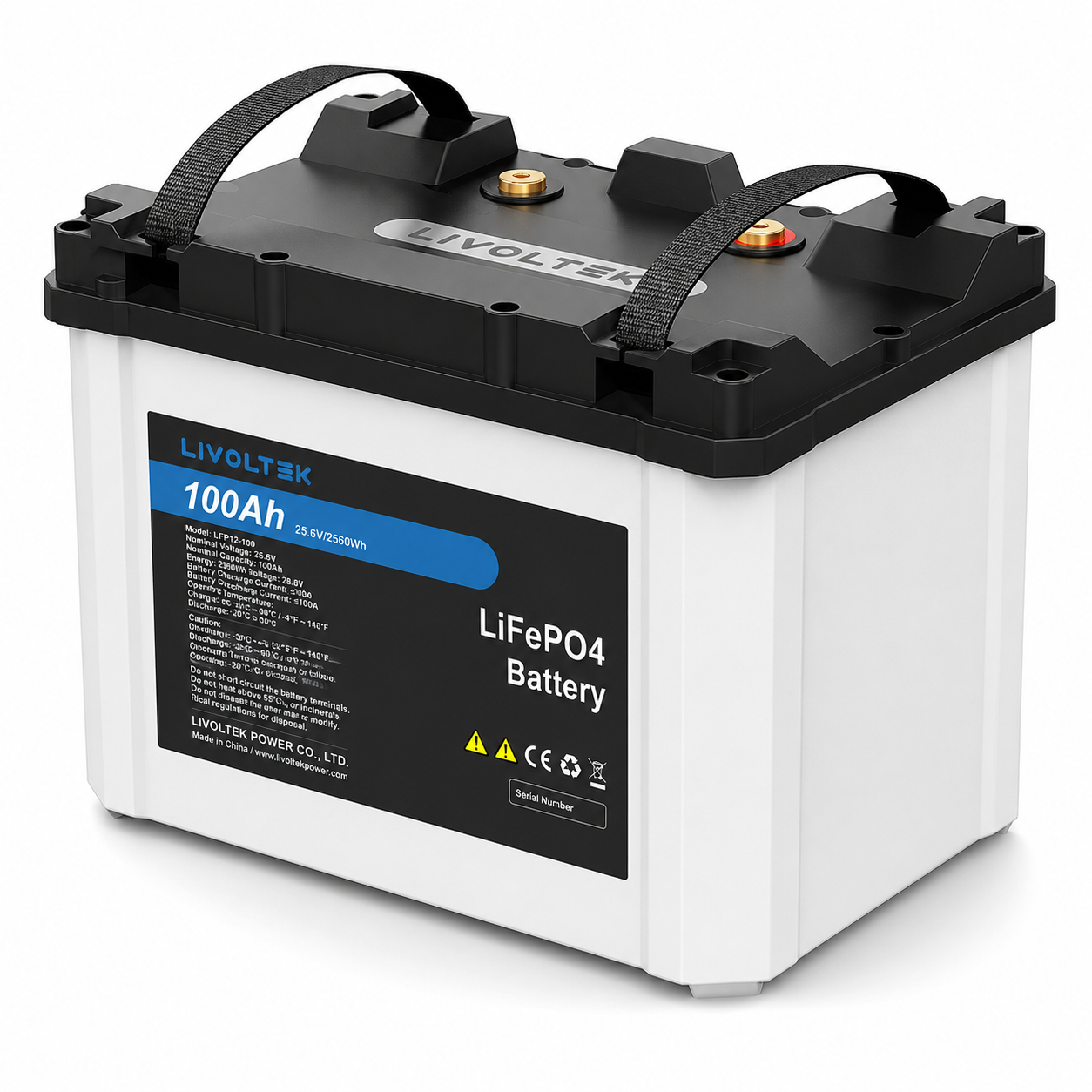

Livoltek 24V 100Ah Lithium Battery Overview

The Livoltek 24V 100Ah Lithium Battery is part of the BLF low-voltage residential battery range and is designed for energy storage applications in residential solar systems. The BLF-24100 provides 100Ah capacity, 2.6kWh total energy, and a 25.6V nominal voltage.

The battery uses LFP cell technology, giving it a lithium-based storage architecture suited to repeated charging and discharging. In addition, it supports 100% depth of discharge, allowing the available battery capacity to be used according to the system’s operating conditions.

For buyers searching for a livoltek 24v 100ah lithium battery, this model combines a 24V-class battery configuration with a 100Ah capacity in a compact residential storage format. The battery also provides IP65 protection, natural cooling and an operating altitude of less than 4000m.

Key Features and Buyer Benefits

LFP Lithium Battery Chemistry

The battery employs LFP chemistry and thus offers a form of energy storage based on lithium for use in domestic settings; it may therefore be regarded as a suitable option when a lithium battery system is preferred to conventional lead-acid storage.

2.6kWh Energy Storage

The total energy of 2.6kWh means that the battery has a practical capacity for use with residential solar systems and for backup purposes. But the actual amount of time that can be obtained as backup will vary according to the load that is connected, the efficiency of the inverter, the conditions under which the battery is operating, and the system’s configuration.

100Ah Capacity

With a 100Ah capacity, the battery fits the common 24V-class residential battery category. Consequently, buyers looking for a livoltek 24v 100ah battery price can compare this model based on its capacity, energy rating, current capability and expansion options rather than voltage naming alone.

100% Depth of Discharge

The battery allows a depth of discharge of 100%. This is a significant specification when assessing energy storage since the depth of discharge shows how much of the battery’s rated capacity can be used under the specified operating conditions.

Up to 6000 Cycles

The battery can endure as many as 6000 charge-discharge cycles when the specified test conditions are met. The cycle-life test uses a charge and discharge rate of 0.5C/0.5C at 25°C, with a depth of discharge of 90% and an end-of-life of 70%, hence the actual service life may differ depending on the operating conditions.

IP65 Protection

The IP65 protection rating provides protection against dust ingress and water jets from the applicable directions. Therefore, buyers specifically searching for a livoltek 24v 100ah ip65 battery can identify this model by its rated enclosure protection.

Best For

The Livoltek 24V 100Ah Lithium Battery is suitable for:

• Residential solar energy storage
• Hybrid inverter battery systems that support the required battery configuration
• Backup power applications
• Replacing appropriately sized lead-acid battery storage
• Systems requiring a low-voltage lithium battery
• Expandable battery installations
• Users looking for a 24V-class 100Ah lithium storage solution

Also, the battery provides for 4-series and 4-parallel expansion, the series configuration offering a total expansion capacity of up to 40kWh.

Not Ideal For

This battery should not be selected simply because an inverter is marketed as a 24V system. The inverter must support the battery’s actual 25.6V nominal voltage, operating range and lithium battery operating mode.

The same applies to installations that involve a high-voltage battery system, as these require a different kind of battery arrangement. Before carrying out the installation, it is necessary to check the inverter’s required battery voltage, its charging limits and its communication requirements.

Battery Capacity: kWh, Ah and Voltage Explained

A common search term is livoltek 24v 100ah lithium battery specifications, but Ah and kWh describe different aspects of battery capacity.

The 100Ah figure represents the battery’s rated ampere-hour capacity, while 2.6kWh represents its total energy rating. The nominal voltage is 25.6V.

Therefore, when comparing a livoltek 24v 100ah lithium ion battery, buyers should consider all three values together instead of using the 24V label alone.

The manufacturer-rated 2.6kWh total energy remains the primary energy specification for this model.

Charging and Discharging Performance

The BLF-24100 has a 50A rated charge current and 50A rated discharge current. Its maximum charge and discharge current is 100A / 100A. These limits are important when matching the battery with a hybrid or off-grid inverter.

An inverter should be checked to see what its battery charging and discharging requirements are before it is bought, and it is advisable to avoid using one with battery settings that go beyond the supported limits.

Battery Expansion

The BLF series supports 4-series and 4-parallel expansion. Four batteries can be connected in series to form a 51.2V system, while the stated maximum expansion supports a total capacity of up to 40kWh.

Consequently, the battery may be suitable for systems in which future storage expansion is included in the installation plan. The system’s full configuration, though, should adhere to the battery and inverter connection requirements.

Technical Specifications

The technical values above correspond to the BLF-24100 model.

Livoltek 24V 100Ah Lithium Battery Price in Pakistan

The current price of the Livoltek 24V 100Ah Lithium Battery in Pakistan is Rs. 110,000.00 per unit.

Moreover, buyers searching for livoltek 24v 100ah price in pakistan can compare the current price with the battery’s 2.6kWh energy capacity, 100Ah rating, IP65 protection and 6000-cycle capability.

For buyers checking livoltek 24v 100ah battery price, the final purchase decision should also consider inverter compatibility, installation requirements and the applicable warranty.

The broader livoltek lithium battery price in pakistan can vary between battery capacities and configurations, so the exact model should always be confirmed before ordering.

Livoltek 24V 100Ah Price and Buyer Search Information

If you are checking a livoltek 24v 100ah review, focus on the specifications that directly affect your application, including energy capacity, current limits, cycle life, DoD and protection rating.

Similarly, buyers searching for livoltek 24v 100ah manual or livoltek 24v 100ah lithium battery manual should use the correct documentation for the BLF-24100 model and follow the applicable installation and connection requirements.

For detailed livoltek 24v 100ah lithium battery specifications, the important values include 25.6V nominal voltage, 100Ah capacity, 2.6kWh total energy, 100% DoD, IP65 protection and up to 6000 cycles.

Livoltek 24V 100Ah Battery Compatibility

The BLF series is designed for use with off-grid and hybrid inverters that support lithium battery working mode. Therefore, compatibility should be checked before installation rather than assumed from the 24V product category.

In particular, make sure that the inverter’s battery voltage range, charge current, discharge current and the required lithium battery operating mode are confirmed.

The battery’s operating voltage range is 20.0–28.8V, while its nominal voltage is 25.6V.

Livoltek 24V 100Ah Battery Use in Pakistan

A low-voltage battery can be used to store energy for the purpose of providing backup power and enabling solar self-consumption in residential solar systems. The length of time that backup power is available during periods of load-shedding will depend on the actual power demand of the household and the inverter setup.

It is important to carefully consider the installation conditions. The battery has natural cooling, can operate in a humidity range of 5% to 95%, and its operating altitude does not exceed 4000m.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy enables buyers to verify the exact model of the BLF-24100, battery compatibility and the relevant warranty information before they make a purchase.

As an authorized Livoltek dealer, Hajvery Solar Energy can also help customers select the appropriate battery configuration for their solar storage requirements.

Hajvery Solar Energy is an Livoltek Official Distributor providing product and purchasing guidance for Livoltek energy storage solutions.

For buyers seeking an Official Livoltek Distributor, Hajvery Solar Energy can assist with product availability and compatibility enquiries.

Buying through Hajvery Solar Energy, an authorized Livoltek dealer, also gives customers a direct route for product and warranty guidance.

Warranty and After-Sales Support

This product comes with a 3/5-year replacement warranty, depending on the applicable distributor warranty arrangement.

Before placing the order, it is necessary to confirm the warranty coverage relating to the particular purchase, including the length of time it applies, the conditions for replacement and the requirements for making a claim.

Hajvery Solar Energy is able to provide customers with advice concerning warranties and support for their products.

Before You Buy

Before purchasing the Livoltek 24V 100Ah Lithium Battery, check:

• Battery voltage: 25.6V nominal
• Battery capacity: 100Ah
• Energy requirement: 2.6kWh
• Inverter compatibility: Lithium battery working mode required
• Charge current: 50A rated / 100A maximum
• Discharge current: 50A rated / 100A maximum
• Expansion requirement: Series/parallel configuration should be planned correctly
• Installation environment: Confirm suitable operating conditions
• Warranty: Confirm the applicable 3/5-year replacement warranty

Frequently Asked Questions

Is the Livoltek 24V 100Ah battery actually 25.6V?

Yes. The 24V designation is the common product-class naming, while the exact nominal voltage is 25.6V and the operating voltage range is 20.0–28.8V.

What is the Livoltek 24V 100Ah battery capacity?

The BLF-24100 has a 100Ah capacity and 2.6kWh total energy.

Is the Livoltek 24V 100Ah battery lithium?

Yes. It uses LFP cell technology, making it a lithium-based battery suitable for compatible residential energy storage systems.

Does the Livoltek 24V 100Ah have IP65 protection?

Yes. The battery has an IP65 protection rating.

How many cycles does the Livoltek 24V 100Ah battery support?

It supports up to 6000 charge-discharge cycles under the specified test conditions.

What is the current Livoltek 24V 100Ah battery price in Pakistan?

The current price is Rs. 110,000.00 per unit.

Can the Livoltek 24V 100Ah battery be expanded?

Yes. The BLF series supports 4-series and 4-parallel expansion, with a stated total capacity of up to 40kWh.

What warranty is available?

The applicable warranty is 3/5-year replacement warranty, depending on the distributor arrangement. Confirm the applicable warranty terms before purchase.

Buy Livoltek 24V 100Ah Lithium Battery from Hajvery Solar

The Livoltek 24V 100Ah Lithium Battery is a practical low-voltage residential storage option with 2.6kWh energy, LFP chemistry, 100Ah capacity, 100% DoD, IP65 protection and up to 6000 cycles.

For the livoltek 24v 100ah lithium battery price in pakistan, contact Hajvery Solar Energy for the current price, availability and compatibility guidance.

Hajvery Solar Energy provides Livoltek product support for residential solar buyers, installers and dealers in Pakistan.
