system.

The complete parallel setup should be engineered according to actual load, phase requirements, communication, protection and system configuration.

Monitoring and Communication

Monitoring capability helps users and installers track solar generation, grid interaction, battery behaviour and inverter status.

The inverter supports:

• RS485
• Optional WiFi
• Optional 4G
• Optional LAN
• LCD display
• APP monitoring

These options give users several ways to access system information depending on the communication accessories installed.

Technical Specifications

Model and Output

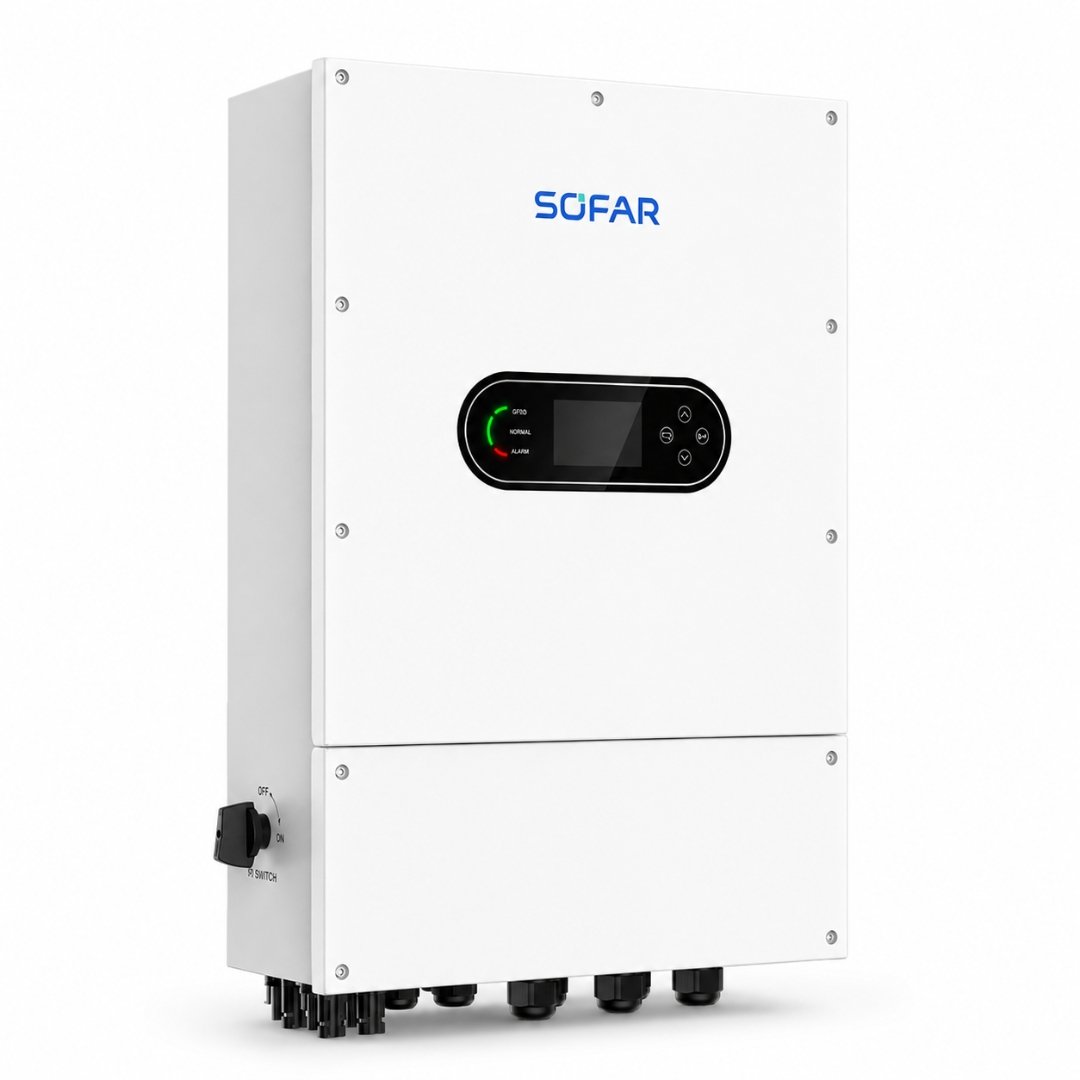

Brand: SOFAR

Model: HYD-10K-LS1

Product Type: Hybrid Inverter

Phase: Single Phase

Rated Output Power: 10KW

Solar PV Input

Recommended Maximum PV Power: 20kWp

Maximum Input Voltage: 550V DC

Start-Up Voltage: 90V DC

Rated Input Voltage: 360V DC

MPP Voltage Range: 60–500V DC

Number of MPPTs: 2

Maximum Input Strings per MPPT: 2 / 2

Maximum Input Current: 40A / 40A

Maximum Isc: 50A / 50A

Battery Specifications

Battery Voltage Range: 40–60V DC

Battery Input Channels: 1

Maximum Charging Power: 10KW

Maximum Discharging Power: 10KW

Maximum Charging Current: 210A

Maximum Discharging Current: 210A

Battery Type: Lead-acid or Lithium-ion

BMS Communication: RS-485 / CAN

AC Backup Output

Rated Output Voltage: 220 / 230 / 240V AC

Rated Frequency: 50 / 60Hz

Rated Output Power: 10KW

Rated Output Current: 45.5 / 43.5 / 41.7A

Rated Apparent Power: 10kVA

Maximum Apparent Power: 11kVA

Maximum Output Current: 50.0 / 47.8 / 45.8A

Peak Output: 2× rated power for 10 seconds

THDv at Linear Load: Less than 3%

Switching Time: 4ms default

AC Smartload / Generator

Rated Output Voltage: 220 / 230 / 240V AC

Rated Frequency: 50 / 60Hz

Rated Output Power: 10KW

Rated Output Current: 45.5 / 43.5 / 41.7A

Rated Apparent Power: 10kVA

Maximum Apparent Power: 11kVA

Maximum Output Current: 50.0 / 47.8 / 45.8A

AC Grid

Rated Voltage: 220 / 230 / 240V AC

Rated Frequency: 50 / 60Hz

Rated Output Power: 10KW

Rated Output Current: 45.5 / 43.5 / 41.7A

Rated Apparent Power: 10kVA

Maximum Apparent Power: 11kVA

Maximum Output Current: 50.0 / 47.8 / 45.8A

Maximum Grid-to-Load Passthrough Current: 50A

THDi: Less than 3%

Power Factor Range: 0.8 lagging to 0.8 leading

Efficiency

Maximum MPPT Efficiency: 99.9%

Maximum Efficiency: 97.6%

European Efficiency: 97.0%

Maximum Battery Charging / Discharging Efficiency: 95.0%

Protection Features

DC Switch: Yes

PV Reverse Connection Protection: Yes

Battery Reverse Connection Protection: Yes

Output Short Circuit Protection: Yes

Output Overcurrent Protection: Yes

Output Overvoltage Protection: Yes

Insulation Impedance Detection: Yes

Residual Current Detection: Yes

Anti-Islanding Protection: Yes

PV Surge Protection: Type II

AC Surge Protection: Type II

AFCI Protection: Integrated

General Specifications

Inverter Topology: Non-Isolation

Protective Class: Class I

IP Rating: IP66

Overvoltage Category: AC III, DC II

Operating Temperature: -30°C to +60°C

Derating: Above +45°C

Relative Humidity: 5%–95%

Maximum Operating Altitude: 4000m

Altitude Derating: Above 2000m

Standby Self-Consumption: Less than 15W

Installation Method: Wall Mounted

Dimensions: 410 × 620 × 270mm

Cooling Mode: Intelligent Airflow

Weight: 30kg

Communication: RS485; optional WiFi / 4G / LAN

Display: LCD and APP

Recommended Solar System Size

The SOFAR 10KW LS1 supports a recommended maximum PV input of 20kWp, but this does not mean every installation should automatically use a 20kW solar array.

Actual PV design depends on:

• Solar panel wattage
• Panel Voc
• Panel Vmp
• Panel Isc
• Panel Imp
• Number of modules per string
• MPPT current
• Maximum inverter voltage
• Minimum and maximum site temperatures
• Roof orientation
• Shading
• Cable and protection design

Final string design should keep all voltage and current values safely within the inverter’s operating limits.

Hybrid Inverter Use in Pakistan

Hybrid inverter systems are particularly useful in Pakistan because they can combine daytime solar generation with energy storage and backup during grid outages.

The SOFAR 10KW LS1 can help a properly designed system use solar power during the day, charge compatible batteries and provide backup power when the grid becomes unavailable.

Its 4ms backup switching, high battery current capability and 10KW backup output make it suitable for larger single-phase installations where load shedding is a major concern.

The IP66 enclosure also provides strong environmental protection, but outdoor suitability does not remove the need for correct installation. Proper shade, ventilation, earthing, surge protection, cable sizing and breaker selection remain important.

SOFAR 10KW LS1 Single Phase Hybrid Inverter Price in Pakistan

The current price of the SOFAR 10KW LS1 Single Phase Hybrid Inverter in Pakistan is Rs. 380,000 per inverter.

Customers searching for sofar 10kw price in pakistan, sofar 10kw inverter price, sofar 10kw price, sofar inverter price in pakistan or sofar 10kw inverter price in pakistan should compare more than price alone.

The exact model, battery voltage, BMS compatibility, backup requirement, PV string design and warranty route should all be checked before purchase.

Hajvery Solar Energy is a SOFAR Official Distributor supplying genuine SOFAR hybrid inverter solutions for residential, installer and commercial requirements.

Hajvery Verified Product Information

The exact product model is HYD-10K-LS1.

It is a 10KW single-phase hybrid inverter supporting solar PV, low-voltage battery storage, grid interaction, backup output, generator integration and system monitoring.

Buyers searching sofar solar 10kw inverter, solar sofar 10kw, sofarsolar 10kw, sofar hyd 10kw hybrid inverter or sofar solar hybrid inverter 10kw should confirm the exact HYD-10K-LS1 identity before making a purchase.

As a SOFAR authorized dealer, Hajvery Solar Energy can help customers check the important system requirements before purchase, including battery voltage, backup requirements, PV array limits and system compatibility.

Warranty and After-Sales Support

The SOFAR 10KW LS1 Single Phase Hybrid Inverter comes with a 10-year replacement warranty.

Warranty coverage is provided through SOFAR official warranty, with the claim route through SOFAR service centers.

Hajvery Solar Energy can guide customers regarding the applicable warranty process and product identification.

Choosing Hajvery Solar Energy as an Official SOFAR Distributor gives buyers a clear point of contact for product selection, warranty guidance and system planning.

Before You Buy

Before buying the SOFAR 10KW LS1, confirm the following points.

Check Your Electrical Phase

This is a single-phase inverter. It should not be selected for a three-phase requirement without proper system engineering.

Check Battery Voltage

The battery must operate within the inverter’s 40–60V DC range.

Check Lithium Battery Communication

For lithium batteries, check BMS communication through RS-485 or CAN as well as the battery’s complete compatibility requirements.

Calculate Required Backup Load

Do not select backup capacity from inverter wattage alone.

Consider:

• Continuous load
• Motor and compressor starting current
• Battery discharge capability
• Battery energy capacity
• Required backup hours

Check PV String Design

The selected solar array must remain within:

• 550V maximum input voltage
• 60–500V MPPT range
• 40A per MPPT maximum input current
• 50A per MPPT maximum Isc

Confirm Generator Requirement

If generator integration is part of the system, it should be included in the system design before installation.

Select Monitoring Accessories

WiFi, 4G and LAN are optional communication choices, so confirm the required monitoring accessory before ordering.

Buying through Hajvery Solar Energy, an authorized SOFAR dealer, also gives customers access to compatibility and product-selection guidance before installation.

Frequently Asked Questions

What is the sofar 10kw price in pakistan?

The current price of the SOFAR 10KW LS1 Single Phase Hybrid Inverter is Rs. 380,000 per inverter.

The final purchase decision should also consider battery compatibility, installation requirements and warranty support.

What is the sofar 10kw inverter price?

The SOFAR HYD-10K-LS1 is currently priced at Rs. 380,000 per inverter. Pricing may change with market conditions, exchange rates and supply.

Is the SOFAR 10KW inverter single phase?

Yes. The HYD-10K-LS1 is a single-phase hybrid inverter.

What is the recommended maximum solar capacity?

The inverter supports a recommended maximum PV power of 20kWp.

The actual solar array must still comply with the inverter’s PV voltage and current limits.

How many MPPTs does the SOFAR 10KW inverter have?

It has 2 independent MPPTs.

Each MPPT supports up to 40A input current and 50A Isc.

Does the SOFAR 10KW inverter support lithium batteries?

Yes. It supports lithium-ion batteries as well as lead-acid batteries.

Battery voltage must remain within the 40–60V operating range, and lithium battery communication compatibility should be checked before installation.

What is the maximum battery charging current?

Maximum charging current is 210A.

Maximum discharging current is also 210A.

Does the SOFAR 10KW inverter support generator input?

Yes. Generator operation is supported through its AC Smartload/Generator capability.

Can the SOFAR 10KW inverter be used during load shedding?

Yes. It has dedicated backup functionality with a rated 10KW backup output and default 4ms switching time.

Actual backup duration depends mainly on battery capacity and connected load.

What is the IP rating of the SOFAR 10KW inverter?

The inverter is rated IP66.

What is the sofar 10kw inverter datasheet model number?

The exact model is HYD-10K-LS1.

This model identity should be checked when reviewing the sofar 10kw inverter datasheet or planning the installation.

Is a sofar 10kw hybrid inverter datasheet important before installation?

Yes. Electrical limits such as PV voltage, MPPT current, battery range and backup output need to be matched with the planned solar and battery system before installation.

Buy SOFAR 10KW LS1 Single Phase Hybrid Inverter from Hajvery Solar

The SOFAR 10KW LS1 is suited to buyers who need a high-capacity single-phase hybrid solution with solar PV, low-voltage battery storage, backup output and generator support in one platform.

Hajvery Solar Energy supplies genuine solar products for retail customers, installers and dealers. Customers can contact Hajvery Solar for current availability, quantity-based pricing, battery compatibility guidance and system-selection assistance.

For buyers comparing Sofar 10KW options, confirming the HYD-10K-LS1 model before ordering helps ensure the selected inverter matches the site’s electrical phase, PV design, battery system and backup requirement.
