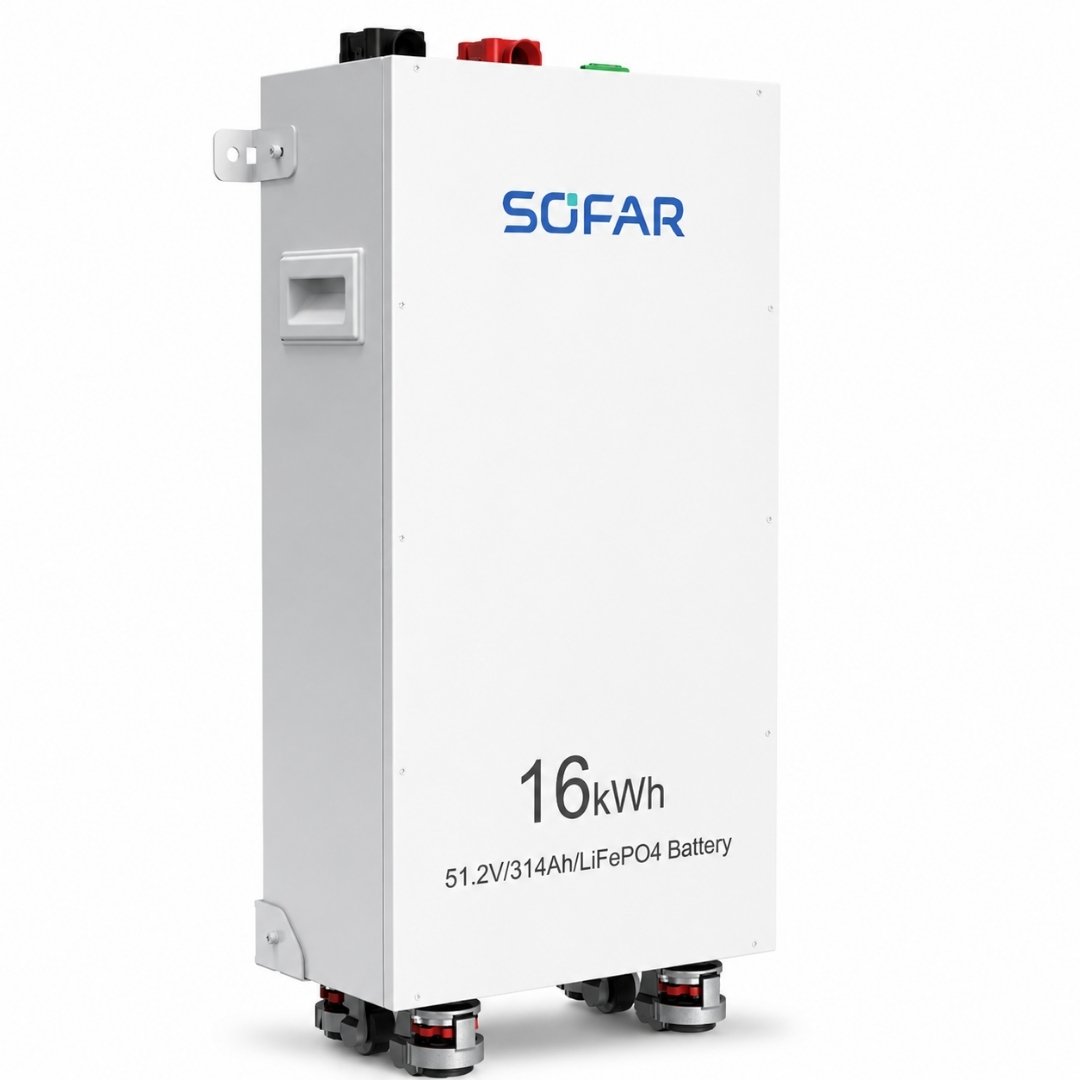

SOFAR 16KWh Lithium Battery

₨ 555,000

Available Pricing
In Stock
Per Product₨ 555,000
Last updated: 2026-11-02 00:33:01

The SOFAR 16kWh 51.2V 314Ah Lithium Battery is a high-capacity, low-voltage LiFePO₄ storage solution for compatible residential and commercial solar systems. It provides 16kWh total energy, 7.5kW rated charging and discharging power, 150A rated current and CAN communication. Its intelligent BMS provides protection from cell to module level, while floor and wall installation options support different system layouts. Up to 16 batteries can be connected in parallel for a manufacturer-stated maximum capacity of 256kWh. The product comes with a 10-year replacement warranty.

Quick Highlights

  • Exact Model: SF-16KWH-L1
  • Total Energy: 16kWh
  • Rated Voltage: 51.2V
  • Battery Capacity: 314Ah
  • Chemistry: LiFePO₄
  • Rated Charge/Discharge Power: 7.5kW / 7.5kW
  • Rated Charge/Discharge Current: 150A / 150A
  • Maximum Charge/Discharge Current: 150A / 200A
  • Communication: CAN
  • Protection Rating: IP20
  • Parallel Support: Up to 16 batteries
  • Maximum Expanded Capacity: 256kWh
  • Installation: Floor or wall mounted
  • Warranty: 10-Year Replacement Warranty
Categories: ,
Description

SOFAR 16kWh 51.2V 314Ah Lithium Battery Overview

The SOFAR SF-16KWH-L1 combines 16kWh of energy storage with 7.5kW rated charging and discharging power. This balance makes it suitable for compatible solar systems that need substantial stored energy and strong battery-side power. If you are planning to install a solar battery, check the SOFAR 16kWh lithium battery price in Pakistan before making your purchase.

Some buyers search for a SOFAR 16kW lithium battery. However, the correct energy-capacity term is 16kWh. Its rated charging and discharging power is 7.5kW.

The battery uses 51.2V LiFePO₄ cells, an intelligent Battery Management System (BMS) and CAN communication. It also supports automatic battery networking, remote monitoring and over-the-air (OTA) updates through a compatible SOFAR inverter. Furthermore, you can connect up to 16 units in parallel for larger residential or commercial energy-storage projects.

The product comes with a 10-year replacement warranty, subject to the applicable coverage conditions and claim requirements.

Key Features and Buyer Benefits

16kWh Energy Storage

The SF-16KWH-L1 provides 16kWh of total energy. This capacity gives buyers more stored energy for evening electricity use, load shedding and selected commercial backup requirements.

A separate usable-energy figure is not available. Therefore, include a suitable battery reserve when planning backup time instead of assuming that the complete 16kWh will always be available.

314Ah Low-Voltage Design

The battery has a 51.2V rated voltage and 314Ah capacity. It is designed for compatible low-voltage inverter systems rather than high-voltage battery architecture.

Its operating-voltage range is 44.8V to 57.6V. However, do not use this range automatically as an inverter charging-voltage setting. Follow the applicable SOFAR instructions and verified inverter settings during installation.

High Charge and Discharge Capability

The battery provides 7.5kW rated charging power and 7.5kW rated discharging power. Its rated charging and discharging current is 150A. Maximum charging current is also 150A, while maximum discharging current reaches 200A.

A separate product claim mentions up to 10kW continuous output. However, the rated charging and discharging power is 7.5kW. For conservative system sizing, use 7.5kW as the rated value unless SOFAR confirms the exact operating conditions for 10kW output.

Intelligent Battery Management System

A built-in intelligent BMS provides protection from cell to module level. It helps manage the battery cells and modules during charging and discharging.

For correct system operation, check the applicable protection settings and inverter configuration. Installers should confirm the required overvoltage, undervoltage, short-circuit and temperature protection thresholds before commissioning.

CAN Communication and SOFAR Monitoring

The battery supports CAN communication. It also supports automatic battery networking, remote monitoring and OTA functionality through a compatible SOFAR inverter.

However, these features depend on the connected inverter. Before installation, check the inverter model, supported protocol, firmware and communication-cable pinout.

Expandable Storage Capacity

You can connect up to 16 batteries in parallel for a maximum total storage capacity of 256kWh.

This feature gives buyers the option to start with one battery and expand the system later. However, the inverter limits, system design, communication requirements, cabling and protection equipment must support the planned installation.

Easier Battery Movement

The battery includes 500kg-rated casters to help with movement. This feature can make handling easier because one battery weighs 115kg.

Even so, final placement must be stable and secure. Follow the applicable installation requirements when positioning the unit.

10-Year Replacement Warranty

The SOFAR SF-16KWH-L1 comes with a 10-year replacement warranty. Warranty eligibility, covered faults, installation requirements, required documents and the replacement procedure depend on the applicable warranty terms.

Customers should confirm the complete warranty conditions and claim requirements before purchase.

Best For

The SOFAR SF-16KWH-L1 can be considered for:

  • Larger residential backup requirements
  • Compatible low-voltage hybrid solar systems
  • Selected commercial backup loads
  • Systems that require substantial battery storage
  • Users planning future battery expansion
  • Installations requiring floor or supported wall mounting
  • Buyers replacing a properly assessed lead-acid or lithium battery bank
  • Systems requiring CAN communication with a compatible inverter
  • Buyers who prefer a 10-year replacement warranty

Not Ideal For

Another battery or system design may be more suitable when:

  • The inverter requires a high-voltage battery.
  • Required continuous power exceeds the verified 7.5kW rated output.
  • CAN protocol or firmware compatibility cannot be confirmed.
  • Outdoor exposure is required without suitable additional protection.
  • The installation area cannot safely support a 115kg battery.
  • Published usable-energy or cycle-life values are essential before purchase.
  • The system exceeds the battery’s voltage, current or environmental limits.

Therefore, check the inverter and installation requirements before selecting this battery.

Battery Capacity: kWh, Ah and Usable Energy Explained

Battery ampere-hours (Ah) and kilowatt-hours (kWh) are related measurements, but they describe different things.

Use this formula to calculate nominal energy:

Voltage × Ampere-hours ÷ 1,000 = Nominal kilowatt-hours

For this battery:

51.2V × 314Ah ÷ 1,000 = 16.0768kWh

This calculated value is close to the rounded 16kWh energy rating. The product’s rated total energy remains 16kWh.

A practical SOFAR lithium battery review should examine more than capacity alone. Rated power, charging and discharging current, BMS communication, IP rating, installation requirements, usable energy and warranty conditions all influence the buying decision.

Battery Chemistry and Cycle Life

The SF-16KWH-L1 uses lithium iron phosphate chemistry, also known as LiFePO₄ or LFP.

Several factors can affect battery service life:

  • Operating temperature
  • Charging current
  • Discharging current
  • Depth of discharge
  • Daily cycling frequency
  • Inverter settings
  • Installation conditions

Buyers asking how long lithium solar batteries last should compare the cycle-life conditions for the exact battery model instead of relying on a general figure. Also, the 10-year replacement warranty should not automatically be treated as a specific cycle-life guarantee. Warranty duration and battery cycle performance are separate considerations.

Battery Management System and Safety

The built-in intelligent BMS provides protection from cell to module level. Correct inverter configuration also remains important for safe and reliable operation.

The battery has an IP20 protection rating. This rating does not establish outdoor weather protection. Therefore, choose an installation location that protects the battery from rain, water, direct sunlight, excessive dust and unsuitable environmental exposure.

Before commissioning, check battery voltage, current limits, communication protocol, firmware and cable pinout. These checks help reduce compatibility and configuration issues.

Charging and Discharging Performance

The following table summarises the battery’s electrical ratings:

Electrical Parameter Value
Operating Voltage Range 44.8V–57.6V
Rated Charging Power 7.5kW
Rated Discharging Power 7.5kW
Rated Charging Current 150A
Rated Discharging Current 150A
Maximum Charging Current 150A
Maximum Discharging Current 200A

The operating duration and conditions for the 200A maximum discharge current are not established here. Therefore, use the 150A rated current and 7.5kW rated power for continuous-load planning unless SOFAR confirms other operating conditions.

Inverter Compatibility

Battery compatibility depends on more than voltage alone. Before installation, verify the following:

  • Low-voltage battery architecture
  • Operating-voltage range
  • Charging and discharging current limits
  • CAN communication protocol
  • Inverter and battery firmware
  • Communication-cable pinout
  • Supported inverter model
  • Required battery quantity
  • Applicable protection equipment

Remote monitoring and OTA functionality require a compatible SOFAR inverter. Do not assume that another inverter brand supports these features without official compatibility confirmation.

Hajvery Solar can help customers review available voltage, current and communication information before purchase.

Parallel Expansion

You can connect up to 16 SF-16KWH-L1 batteries in parallel, providing a maximum total storage capacity of 256kWh.

This expansion option can support projects that need more storage over time. However, parallel installations require correct battery networking, communication, protection equipment and power cabling. The inverter must also support the planned battery system.

Installers should follow the applicable SOFAR installation and commissioning requirements when setting up a parallel battery bank.

Technical Specifications

The following table covers the SOFAR SF-16KWH-L1 product specifications and the verified Hajvery warranty information.

Specification Value
Brand SOFAR
Model SF-16KWH-L1
Product Type Low-Voltage Lithium Battery
Battery Chemistry LiFePO₄ / Lithium Iron Phosphate
Rated Voltage 51.2V
Capacity 314Ah
Total Energy 16kWh
Calculated Nominal Energy 16.0768kWh
Operating Voltage Range 44.8V–57.6V
Rated Charging Power 7.5kW
Rated Discharging Power 7.5kW
Rated Charging Current 150A
Rated Discharging Current 150A
Maximum Charging Current 150A
Maximum Discharging Current 200A
BMS Built-in Intelligent BMS
Communication CAN
Parallel Support Up to 16 Batteries
Maximum Expanded Capacity 256kWh
Dimensions 425 × 235 × 860mm (W × H × D)
Weight 115kg
Protection Rating IP20
Cooling Natural
Charging Temperature 0°C to +55°C
Discharging Temperature −20°C to +60°C
Humidity 5%–95%
Installation Floor or Wall Mounted
Casters 500kg-Rated
Maximum Operating Altitude 4,000m
Warranty 10-Year Replacement Warranty

Estimated Backup Time

To calculate lithium battery run time, consider battery energy, usable-energy limits, inverter efficiency and average load.

The following illustration uses these assumptions:

  • 16kWh total energy
  • The complete stated energy is available
  • 90% inverter efficiency
  • Constant average load

Formula: 16kWh × 90% ÷ Load in kW

Average Load Illustrative Backup Time
500W Approximately 28.8 Hours
1,000W Approximately 14.4 Hours
2,000W Approximately 7.2 Hours
3,000W Approximately 4.8 Hours
5,000W Approximately 2.9 Hours
7,500W Approximately 1.9 Hours

These figures are estimates, not guaranteed lithium battery run times. Actual results will normally be lower because battery reserve, inverter losses, temperature, aging, system settings and changing loads affect runtime.

For a more accurate estimate, calculate the expected load and usable battery energy for the actual installation.

Lithium Battery Use in Pakistan

The battery’s charging-temperature range is 0°C to +55°C, while its discharging-temperature range is −20°C to +60°C.

During hot weather in Lahore and other parts of Punjab, choose a protected and ventilated installation location. The battery uses natural cooling, so do not block airflow around the enclosure.

Because it has an IP20 rating, do not treat it as an outdoor weatherproof battery. Correct inverter settings, compatible CAN communication and sensible load planning are particularly important where the battery will cycle frequently during load shedding.

SOFAR 16kWh Lithium Battery Price in Pakistan

The current price of SOFAR 16kWh Lithium Battery in Pakistan is Rs. 555,000.

Prices may change because of exchange rates, shipment costs, distributor pricing and stock availability. Therefore, customers should confirm the latest price and availability before ordering.

When comparing a lithium battery price for solar, buyers should evaluate total energy, rated power, inverter compatibility, BMS communication, expansion support, installation requirements and warranty—not price alone.

Retail customers, installers, dealers and bulk buyers can contact Hajvery Solar for current stock and quantity-based pricing.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy helps customers review the exact product model and available technical information before purchase. Customers can request:

  • Battery and inverter compatibility checking
  • Product model verification
  • Available serial-information checking
  • Current stock confirmation
  • Applicable replacement-warranty information
  • Retail, dealer and wholesale availability
  • Delivery information for Lahore and other cities in Pakistan

Hajvery Solar Energy is an SOFAR Official Distributor. Customers can contact the team for product details and buying support.

Warranty

The SOFAR SF-16KWH-L1 comes with a 10-year replacement warranty.

Warranty coverage, eligible product faults, installation requirements, required documents and the replacement-claim procedure depend on the applicable warranty policy. Customers should confirm the complete coverage conditions and claim process with Hajvery Solar before purchase.

Hajvery Solar Energy is an authorized SOFAR dealer. Contact the team to discuss applicable warranty information before ordering.

Before You Buy

Confirm these points before ordering:

  1. Your inverter supports compatible low-voltage battery architecture.
  2. CAN protocol, firmware and cable pinout are supported.
  3. Continuous loads remain within the verified 7.5kW rated power.
  4. Battery capacity meets the required backup duration.
  5. The installation location is suitable for an IP20 battery.
  6. The floor or wall can safely support the 115kg battery.
  7. Required parallel-expansion equipment is available.
  8. The 10-year replacement-warranty conditions have been reviewed.
  9. The applicable SOFAR installation instructions are available.

For a SOFAR 16kWh lithium battery replacement, compare the existing system’s voltage, current, communication and inverter requirements before removing or replacing the current battery bank.

For additional information click SOFAR Official Website.

Frequently Asked Questions

Is this a 16kW or 16kWh lithium battery?

It is a 16kWh energy-storage battery. Its rated charging and discharging power is 7.5kW. A separate product claim mentions up to 10kW continuous output, but its detailed operating conditions need confirmation.

What is the capacity of the SOFAR SF-16KWH-L1?

The battery has a rated voltage of 51.2V, a capacity of 314Ah and 16kWh total energy.

Are lithium batteries good for solar systems?

LiFePO₄ batteries can be suitable for solar energy storage when their voltage, current, BMS communication and power limits match the inverter and required backup design.

What are the best lithium batteries for solar?

There is no single best battery for every solar system. Buyers should compare battery capacity, rated power, chemistry, BMS communication, protection rating, expansion support, installation requirements, warranty and inverter compatibility.

How long will this 16kWh lithium battery run?

Using an illustration based on 16kWh total energy and 90% inverter efficiency, backup is approximately 14.4 hours at a 1kW load, 7.2 hours at a 2kW load or 2.9 hours at a 5kW load. Actual runtime will normally be lower.

How many batteries are required for a 20kW solar system?

Battery quantity cannot be determined from solar panel capacity alone. Daily energy use, nighttime consumption, backup duration, inverter output, battery charge limits and required reserve must all be calculated.

Can multiple SOFAR 16kWh batteries be connected?

Yes. You can connect up to 16 units in parallel for a maximum total storage capacity of 256kWh, subject to correct system design and communication.

What is the SOFAR 16kWh lithium battery price and warranty in Pakistan?

The current price of SOFAR 16kWh Lithium Battery in Pakistan is Rs. 555,000. The product comes with a 10-year replacement warranty. Confirm current stock, final price and warranty conditions before ordering.

Buy SOFAR 16kWh Lithium Battery from Hajvery Solar

Buy the SOFAR SF-16KWH-L1 Lithium Battery from Hajvery Solar for residential, commercial, retail, dealer or wholesale requirements.

Customers can request product verification, inverter compatibility checking, current stock information and complete 10-year replacement-warranty details before purchase.

Hajvery Solar Energy is an Official SOFAR Distributor. Visit Hajvery Solar at 280K Block J-1, Johar Town, Lahore, or contact the team for delivery availability across Pakistan.

To explore more options click the link given below:
SOFAR Lithium Batteries In Pakistan.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SOFAR 16KWh Lithium Battery”

Your email address will not be published. Required fields are marked *

About brand
Explore the SOFAR inverter and battery range in Pakistan at Hajvery Solar. This brand collection brings together available SOFAR hybrid inverters, on-grid inverters, low-voltage LiFePO₄ batteries, and related energy storage products as they are added to the store. Each product page is prepared using the applicable manufacturer datasheet or official documentation. Buyers can compare rated power, solar-input limits, battery architecture, energy capacity, charging and discharging limits, communication, installation requirements and other verified specifications relevant to the selected product. System suitability should not be decided from brand name or capacity alone. Inverter phase, PV limits, battery voltage, BMS communication, firmware and actual load requirements may all affect compatibility. Hajvery Solar can help customers review available specifications, current prices, stock, applicable warranty information and system-matching requirements before purchase. Hajvery Solar serves residential customers, commercial buyers, solar installers and dealers through its Lahore store and delivery availability across Pakistan.
Shipping and Delivery

Hajvery Solar Energy provides nationwide delivery across Pakistan for all major solar energy products. We ensure safe, reliable, and timely delivery to residential, commercial, and industrial locations.

Products Available for Delivery

We deliver the following products all over Pakistan:

  • Solar Panels

  • Solar Inverters

  • VFDs (Variable Frequency Drives)

  • Lithium Batteries

  • Solar Accessories & Related Equipment

Contact for Orders & Delivery

Our team will guide you regarding product availability, pricing, delivery timelines, and logistics based on your location.
