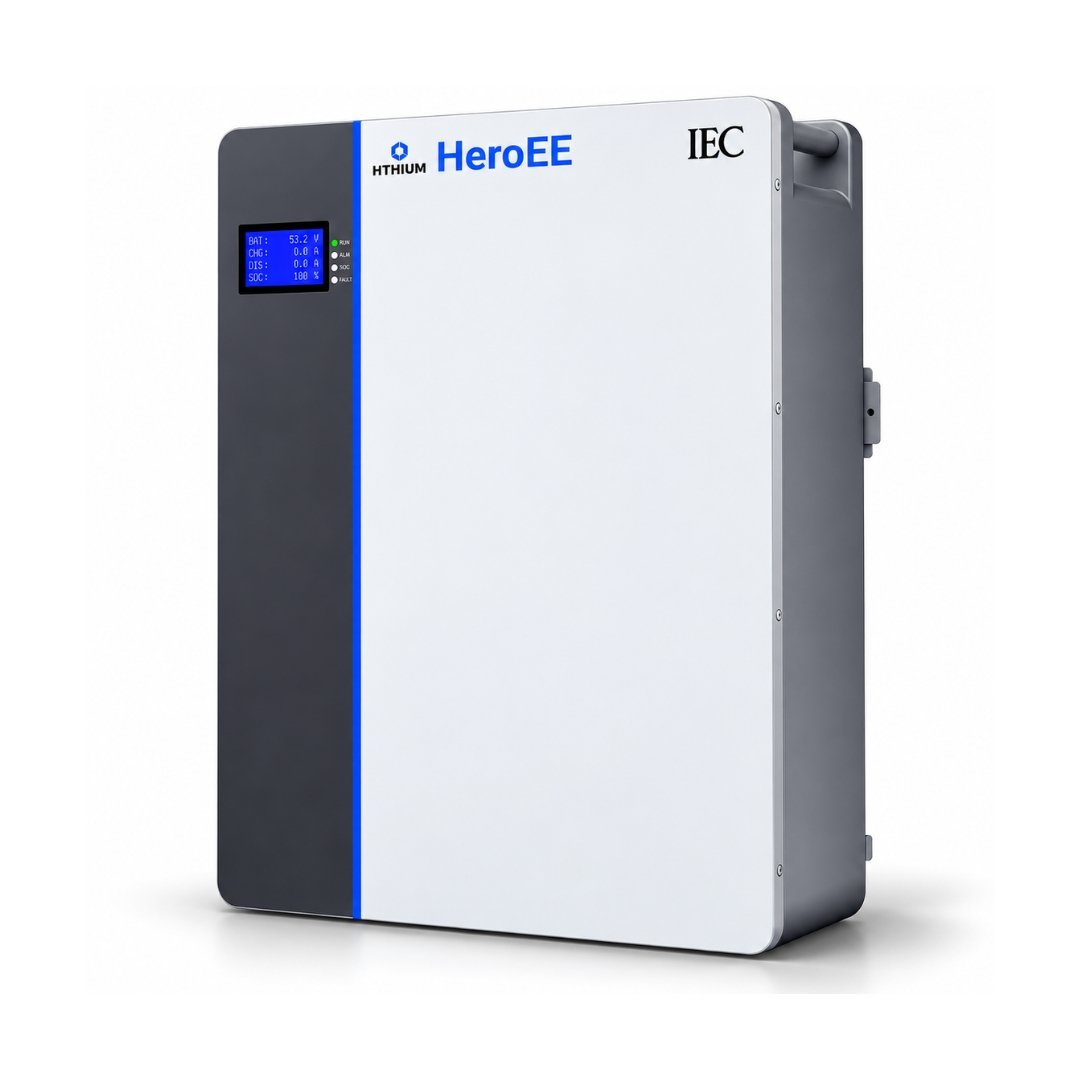

HITHIUM HeroEE 5 5.12kWh Lithium Battery Overview

The HITHIUM HeroEE 5 is a 5.12kWh low-voltage lithium battery built around LiFePO₄ chemistry for solar storage and backup applications. With a 51.2V nominal voltage and 50Ah cell capacity, it provides a practical energy-storage platform for compatible low-voltage solar systems.

The battery offers 90% DoD, allowing a substantial portion of its nominal capacity to be used during normal operation. Its built-in LCD screen provides a convenient way to view battery information, while CAN and RS485 communication support communication with compatible energy-storage equipment.

The HeroEE 5 also provides for system expansion by allowing up to 16 batteries to be connected in parallel, giving a stated system capacity of 82kWh. As a result, the platform is suitable for use in cases where storage needs may increase over time.

Key Features and Buyer Benefits

LiFePO₄ Battery Chemistry

The HITHIUM HeroEE 5 uses LiFePO₄ chemistry, a lithium battery chemistry designed for energy-storage applications. This battery provides a rated energy capacity of 5120Wh at a nominal voltage of 51.2V.

8000-Cycle Battery Life

The battery’s cycle rating is given as 8000 cycles at 25°C, 100% depth of discharge, 1C and 70% state of health. It is important to take these conditions into account when interpreting the cycle figure since the cycle life of a battery depends on the test conditions used.

90% Depth of Discharge

A 90% DoD rating allows a significant portion of the battery’s nominal energy to be used during a discharge cycle. The actual available energy in a complete system can vary with operating conditions, inverter efficiency, battery temperature and load.

High Charge and Discharge Capability

The suggested charge and discharge current is 50 amperes, the maximum charge and discharge current being 100 amperes; the inverter should be properly configured so that it stays within the electrical limits specified for the battery.

CAN and RS485 Communication

The battery is provided with CAN/RS485 communication jacks so that it can communicate with compatible equipment. It is necessary to check the communication between the battery and the inverter before carrying out the installation to make sure that the voltage, current and BMS communication requirements are the same.

Expandable Energy Storage

The HeroEE 5 supports up to 16 batteries in parallel, with a stated maximum system capacity of 82kWh. This allows the storage system to be expanded when higher energy capacity is required.

Built-in LCD Screen

An LCD screen which is built into the device offers a local display facility for battery information so that each of the basic checks does not have to be carried out via external monitoring equipment.

Best For

The HITHIUM HeroEE 5 is suitable for:

• Residential solar energy storage
• Low-voltage hybrid solar systems
• Solar backup applications
• Homes requiring additional battery storage
• Systems that may need parallel battery expansion
• Solar installations using compatible CAN/RS485-enabled inverters

Not Ideal For

The HeroEE 5 should not be selected without further compatibility checking when:

• The inverter requires a high-voltage battery system
• The inverter does not support the battery’s 51.2V operating structure.
• The inverter does not support compatible CAN/RS485 BMS communication
• Required loads exceed the battery’s permitted charge/discharge limits
• The installation environment falls outside the specified operating conditions

Battery Capacity: kWh, Ah and Usable Energy Explained

Battery capacity is usually given in both kWh and Ah, but the two figures refer to different aspects of the battery.

The HeroEE 5 has a cell capacity of 50Ah and a nominal voltage of 51.2V, with the stated battery energy being 5120Wh or 5.12kWh.

The basic relationship is:

Voltage × Ah ÷ 1000 = nominal kWh

For this battery:

51.2V × 50Ah ÷ 1000 = 2.56kWh per 50Ah cell configuration equivalent

The 5120Wh battery capacity stated by the manufacturer is still the main specification for the product’s energy, and therefore the 5.12kWh figure should be used when sizing the entire battery system.

Battery Chemistry and Cycle Life

The LiFePO₄ chemistry is intended for use in rechargeable energy-storage systems, and the HeroEE 5 has an 8000-cycle rating when the specified test conditions of 25°C, 100% DOD, 1C and 70% SOH are met.

The real service life of the battery can differ depending on the operating temperature, the conditions of charging and discharging, the system configuration, and the way it is used. The figure of 8000 cycles should therefore be understood in light of the test conditions mentioned.

Battery Management System and Safety

The HeroEE 5 incorporates multiple protection functions covering:

• Overtemperature
• Undertemperature
• Overcharge
• Overcurrent
• Short circuit
• Undervoltage
• Reverse connection
• Failure protection

They are intended to help ensure that the battery is protected in the event of abnormal electrical or temperature conditions.

Charging and Discharging Performance

The battery has a charge voltage range of 43.2 to 58.4 volts and the same 43.2 to 58.4 volts for discharge. The recommended charge and discharge current is 50 amperes, the maximum charge and discharge current being 100 amperes.

The battery is rated at 90% DoD and the charging method is CC-CV.

Inverter Compatibility

The HITHIUM HeroEE 5 is a 51.2V low-voltage battery, therefore the inverter that is being used must be capable of supporting the required battery voltage range.

Compatibility should be checked using:

• Battery voltage range
• Charge current limit
• Discharge current limit
• CAN/RS485 communication
• BMS communication requirements
• Compatible communication wiring and configuration

One should only choose specific inverter models after having checked the compatibility of the entire battery-inverter system.

Parallel Expansion

The HeroEE 5 can be expanded by connecting batteries in parallel and the system supports up to 16 batteries connected in parallel with a maximum combined capacity of 82kWh.

Before installing any additional battery units in an expandable setup, one should take into account the inverter capacity, the battery communication arrangement, the current limits, the method of installation and the protection required.

Technical Specifications

Estimated Backup Time

The theoretical battery energy can be worked out using the stated nominal energy of 5.12kWh and a DoD of 90 per cent. This results in approximately 4.61kWh before allowing for inverter losses and other system losses.

The figures given are estimates of battery energy, not guaranteed running times; the actual backup time will vary according to inverter efficiency, the conditions under which the battery is operating, changes in the load, the battery’s limits and other losses in the system.

Lithium Battery Use in Pakistan

For solar systems in Pakistan, battery selection should consider load-shedding requirements, daily cycling, installation temperature, ventilation and inverter compatibility.

The HeroEE 5 has a specified charging temperature range of 0°C to 50°C and discharging range of -15°C to 50°C. Proper installation conditions are important, particularly during periods of high ambient temperature.

The fact that the device has an IP20 enclosure rating means that its installation should be based on the required indoor or environmental conditions rather than considering it to be a weatherproof unit suitable for outdoor use.

HITHIUM HeroEE 5 Price in Pakistan

The current price of the HITHIUM HeroEE 5 5.12kWh 51.2V Lithium Battery in Pakistan is Rs. 205,000.00 per unit.

The hithium heroee 5kwh lithium battery price in pakistan can vary with market conditions and quantity requirements. Buyers looking for hithium lithium battery price in pakistan can contact Hajvery Solar for current availability and purchasing information.

Hajvery Solar Energy is an HITHIUM Official Distributor for lithium battery products.

Hajvery Compatibility and Authenticity Check

Before purchasing, confirm the exact HeroEE 5 model, battery voltage, required charge/discharge current and inverter communication requirements.

As an HITHIUM authorized dealer, Hajvery Solar Energy can help buyers with product selection and compatibility checking.

For customers searching for HITHIUM Lithium Battery, the exact model and capacity should be matched with the intended solar-storage system before ordering.

Hajvery Solar Energy is also an Official HITHIUM Distributor, providing a direct route for product enquiries and applicable warranty support.

Warranty

The HITHIUM HeroEE 5 comes with a 5-year replacement warranty.

Warranty claims must be dealt with in accordance with the relevant warranty terms and requirements. If you need any clarification regarding the claim process or the coverage, you should contact Hajvery Solar Energy before making the purchase.

Buying through Hajvery Solar Energy, an authorized HITHIUM dealer, provides a clear route for product and warranty guidance.

Before You Buy

Before you buy this 5.12kWh lithium battery, make sure to check:

• Make sure that the inverter is compatible with 51.2V low-voltage batteries.
• Check compatibility with the inverter regarding CAN/RS485 and BMS communication.
• The required load is one that corresponds to the battery’s current limits when matched with the intended loads.
• Check whether parallel battery expansion is necessary.
• When installing it, remember the temperature and the IP20 environmental requirements.
• When charging, make sure that the inverter’s charging settings stay within the battery’s stated limits.

FAQs

What is the capacity of the HITHIUM HeroEE 5 battery?

The battery has a 5120Wh / 5.12kWh nominal energy capacity and a 51.2V nominal voltage.

Is the HITHIUM HeroEE 5 a LiFePO₄ battery?

Yes. The HeroEE 5 uses LiFePO₄ battery chemistry.

What is the HITHIUM HeroEE 5kWh lithium battery price in Pakistan?

The current price of the HITHIUM HeroEE 5 5.12kWh Lithium Battery in Pakistan is Rs. 205,000.00 per unit.

What is the HITHIUM HeroEE 5kWh lithium battery specifications?

Key hithium heroee 5kwh lithium battery specifications include 5.12kWh capacity, 51.2V nominal voltage, LiFePO₄ chemistry, 50Ah cell capacity, 90% DoD, 50A recommended charge/discharge current, 100A maximum charge/discharge current, CAN/RS485 communication and up to 16 batteries in parallel.

How many batteries can be connected in parallel?

Up to 16 batteries can be connected in parallel, with a stated maximum combined capacity of 82kWh.

Does the battery have CAN and RS485 communication?

Yes. The HeroEE 5 has built-in CAN/RS485 communication ports.

What is the cycle life of the HeroEE 5?

The battery is rated for 8000 cycles under the specified conditions of 25°C, 100% DOD, 1C and 70% SOH.

What warranty does the HITHIUM HeroEE 5 have?

The battery comes with a 5-year replacement warranty.

Buy HITHIUM HeroEE 5 from Hajvery Solar

The HITHIUM HeroEE 5 5.12kWh 51.2V Lithium Battery is available from Hajvery Solar Energy for compatible solar energy-storage applications. Contact the team for product availability, inverter compatibility checking and battery system requirements.
