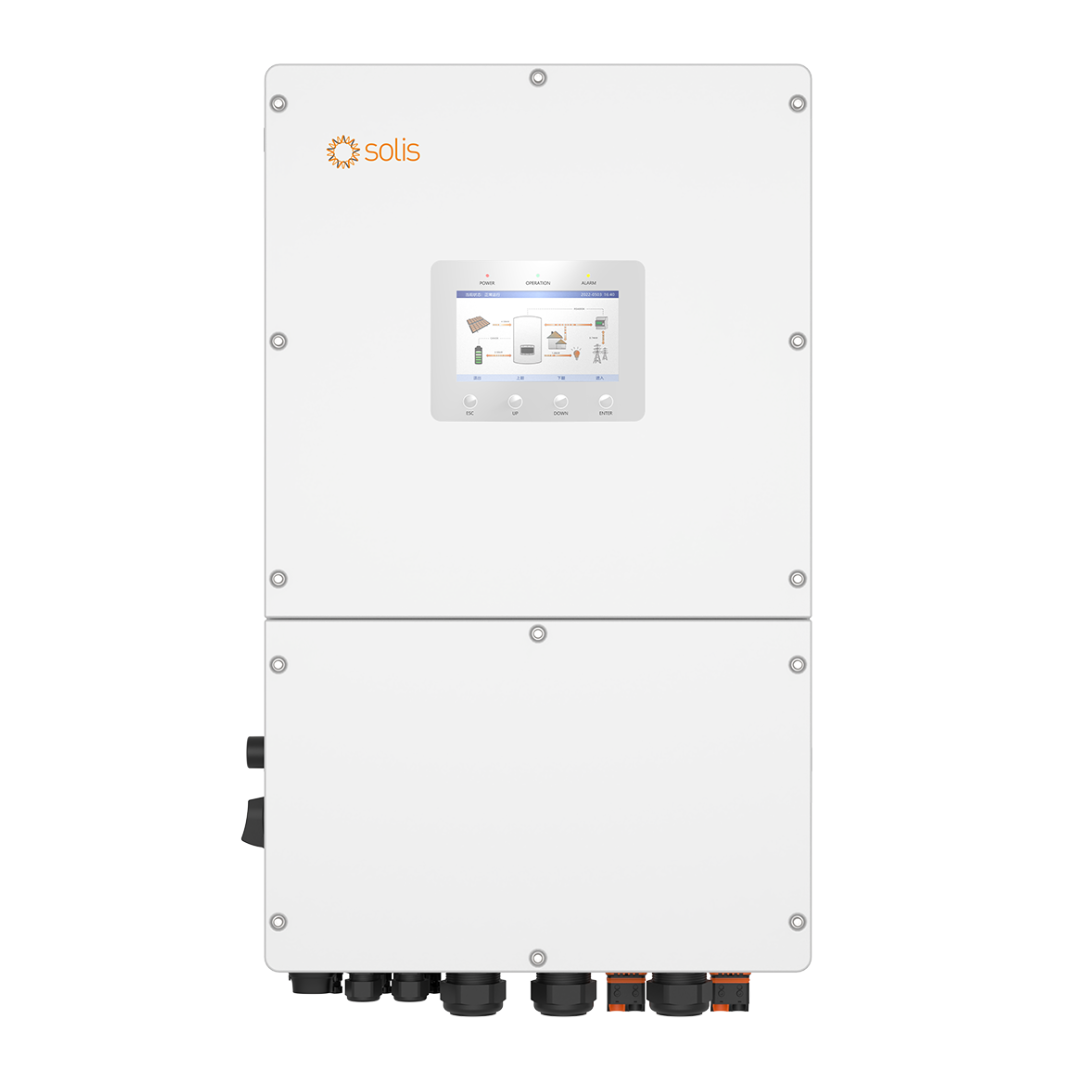

Solis 30KW Solarator Hybrid Inverter Overview

The Solis 30KW Solarator Hybrid Inverter is built for high-capacity solar energy systems that need more than daytime PV generation. Its three-phase architecture combines solar generation, high-voltage lithium-ion storage, grid supply and backup power in one energy-management platform.

With a 30kW rated AC output, the inverter can serve substantial residential, commercial and selected industrial loads, while its 60kW maximum usable PV input provides considerable solar generation capacity. The high-voltage battery section operates from 150V to 800V and provides two battery ports, giving system designers more flexibility when configuring storage.

A particularly useful feature for Pakistan is the backup output with a switching time below 10ms. The inverter also supports backup operation at 1.6 times rated power for two seconds, helping it handle short-duration higher loads when the connected system is correctly designed.

Its IP66 enclosure, intelligent fan cooling and operating temperature range of -25°C to +60°C also make environmental and thermal planning important parts of installation.

Why This Hybrid Inverter Stands Out

High PV Capacity for a 30kW Inverter

The inverter has a recommended maximum PV array size of 60kW and a maximum usable PV input of 60kW, which means that the 30kW model has plenty of solar-side capacity when the amount of PV generation available is considerably greater than the inverter’s AC rating.

The last PV design must still take into account the maximum allowable DC voltage of 1,000V, the MPPT operating range, the current limits, and the module’s Voc and Isc together with the voltage changes associated with temperature.

High-Voltage Battery Architecture

The battery side uses Li-ion batteries with a 150–800V operating range. Two battery ports are available, while maximum charge/discharge power for the 30K model reaches 33kW.

The inverter supports 70A × 2 charge/discharge current, with support for a parallel 140A input configuration. CAN and RS485 communication are available for battery communication and system integration.

Fast Backup Switching

The specified switching time for the backup output is under 10 milliseconds, which makes the inverter especially suitable for systems in which certain loads need to switch rapidly to battery-backup operation when the grid fails.

The backup output has a rating of 30kW and its maximum apparent output power reaches 1.6 times the rated power for a duration of 2 seconds.

IP66 Protection

The IP66 ingress protection rating provides strong enclosure protection for appropriately installed indoor or outdoor applications. The inverter uses intelligent fan cooling and is rated for an ambient operating temperature of -25°C to +60°C.

Flexible Energy-System Integration

The system can handle both DC and AC coupling at the same time and includes battery reserve functions as well as smart load prioritisation. It also has a SMARTLOAD/GEN/INV port which allows for a flexible connection of supported energy sources and equipment.

Best For

The Solis 30KW Solarator Hybrid Inverter is particularly suitable for:

• Commercial solar systems requiring substantial PV generation and battery storage
• Larger homes or estates with significant three-phase loads
• Businesses affected by load shedding that require battery-backed operation
• High-voltage lithium battery systems
• Installations with large PV arrays
• Projects requiring fast backup switching
• Systems requiring generator integration
• Installations where future parallel expansion is being considered
• Solar projects requiring outdoor-capable IP66 protection

Not Ideal For

It might not be the most suitable inverter to use in the case of a small residential setup where a lower power rating would be enough.

It is also unsuitable for use with a system that makes use of low-voltage batteries since the battery design works within a voltage range of 150 to 800 volts. The choice of both PV system and battery must stay within the inverter’s electrical limitations.

Before buying a system that uses a particular brand or model of battery, it is necessary to check its compatibility based on the battery’s voltage range, the BMS communication requirements and the communication protocol it supports.

Solar PV Input and MPPT Performance

The 30K model includes three MPPTs and can handle six maximum input strings. The section which accepts photovoltaic input has a maximum input voltage of 1,000V, a rated voltage of 600V, a startup voltage of 180V and an MPPT voltage range from 150 to 850V.

The maximum current input for PV is 40A and the maximum short-circuit current is 60A; the recommended maximum size for the PV array is 60kW and the maximum usable PV input power is also 60kW.

When choosing how many modules to install and what string configurations to use, it is important for installers to ensure that the string voltage stays within the MPPT operating range and that the module’s Voc in cold weather and its Isc remain within the inverter’s specified limits.

Battery Compatibility and Energy Storage

The inverter is based on a high-voltage Li-ion battery design and has a battery voltage range going from 150 to 800 volts.

It provides:

• Battery Type: Li-ion
• Battery Voltage Range: 150–800V
• Maximum Charge/Discharge Power: 33kW
• Maximum Charge/Discharge Current: 70A × 2
• Battery Ports: 2
• Maximum Charge/Discharge Power per Input: 33kW
• Communication: CAN / RS485

The inverter also has the capability of using battery modules with a capacity ranging from 100 to 280Ah. However, the battery communication must be properly set up via the supported BMS communication interface before commissioning.

The only way to match specific battery brands is by first verifying the voltage, the BMS protocol, the communication wiring, and the compatibility requirements for the particular installation.

Backup Power and Load-Shedding Performance

The fact that this inverter has a backup section makes it one of the main options for use in Pakistan’s situation with load-shedding.

The backup output is rated at 30kW, matching the inverter’s rated AC output. Its specified backup switching time is below 10ms, while backup apparent power can reach 1.6 times the rated power for 2 seconds.

The backup output operates at 3/N/PE, 220V/380V or 230V/400V, with 50Hz/60Hz operation. THDv at a linear load is specified below 2%.

When choosing the loads to connect to the backup, one should still refer to their continuous power, starting current, and operating characteristics. The battery capacity must also be determined according to the required backup duration.

Generator and Parallel Operation

The inverter supports a generator input with maximum input power of 30kW for the 30K model. Generator input voltage is 3/N/PE, 220V/380V or 230V/400V, with 50Hz/60Hz frequency support.

Parallel operation is also supported, with the system allowing up to 10 units in parallel. For installations using more than six units, the product material recommends a suitable Solis power distribution cabinet.

The SMARTLOAD/GEN/INV port also enables the flexible integration of supported equipment, for example grid-connected inverters and diesel generators.

Monitoring and Communication

The inverter has a number of ways to enable communication and monitoring.

Available interfaces include:

• CAN
• RS485
• Ethernet
• Optional Wi-Fi
• Optional Cellular
• Optional LAN
• Bluetooth + APP
• LED indicator display

Installers and system owners can use these communication options to monitor inverter operation, battery communication and system performance via the available interfaces.

Technical Specifications

Solar PV Input

Battery

AC/Grid Output

Backup Output

General

The target 30K values above are isolated from the 30K column/section of the supplied multi-model PDF.

Recommended Solar System Size

The inverter has an AC rated output of 30kW and the PV array that is recommended is 60kW; these are different values for system design.

A PV array of 60kW means that the DC side has a high capacity in relation to an inverter with a rating of 30kW, but the system design should not be determined merely on the basis of wattage. The installers should check:

• Module Voc
• Module Isc
• MPPT voltage range
• Maximum input current
• String configuration
• Temperature-adjusted voltage
• Local installation conditions

The figure of 60kW is the maximum PV array size that is recommended for this model, not a general recommendation that all installations should have a 60kW array.

Hybrid Inverter Use in Pakistan

In large Pakistani houses, in commercial buildings and for businesses a high-capacity hybrid system can use solar power generated during the day together with battery storage and power from the grid.

In the day the PV system can meet the connected loads and charge the battery; during a power outage the backup output can supply the loads that have been appropriately selected provided that there is enough energy stored in the battery.

Since it is common for Pakistan to have high temperatures in the summer, proper airflow must be ensured and the inverter’s environmental requirements observed. Although the device has useful environmental features such as an operating temperature range of -25°C to +60°C, intelligent fan cooling and IP66 protection, correct installation is still essential.

All the aspects concerning protection equipment, battery sizing, cable selection, PV string configuration and load management should be designed on the basis of the actual installation.

Solis 30KW Solarator Hybrid Inverter Price in Pakistan

The solis 30kw hybrid inverter price in pakistan depends on the current Hajvery Solar selling price and applicable commercial factors.

The current price of the Solis 30KW Solarator Hybrid Inverter in Pakistan is Rs. 1,070,000.00.

Buyers searching for the solis 30kw inverter price in pakistan, solis 30kw inverter price or solis 30kw hybrid inverter price can use this page for the current Hajvery Solar price. Dealers and commercial buyers can contact Hajvery Solar for availability and quantity-based enquiries.

Hajvery Solar Energy is a Solis Official Distributor for this product category and also operates as a Solis authorized dealer, helping customers with product selection and compatibility considerations.

Search Intent and Product Type Clarification

The solis 30kw on grid inverter search phrase refers to a different product category from this page. This product is a 30kW three-phase high-voltage hybrid inverter, with battery storage and backup functionality.

Similarly, buyers searching for solis 30kw on grid inverter price in pakistan or solis 30kw on grid inverter datasheet should verify that they are looking for a hybrid system rather than an on-grid-only configuration.

The phrase solis 30kw hv three phasse is also used as a search variation; the correct product description is 30kW high-voltage three-phase hybrid inverter.

Hajvery Verified Product Information

• Brand: Solis
• Product Name: Solis 30KW Solarator Hybrid Inverter
• Exact Model: S6-EH3P(30-50)K-H-ND — 30K variant
• Product Type: Three-Phase High-Voltage Hybrid Inverter
• Rated Output: 30kW
• Battery Architecture: High Voltage
• Battery Type: Li-ion
• PV Input: Up to 60kW usable
• Protection Rating: IP66
• Warranty: 5-year manufacturer/replacement warranty

Hajvery Solar Energy is an Official Solis Distributor, providing customers with a direct route for product selection, compatibility guidance and applicable warranty support.

Warranty and After-Sales Support

The Solis 30KW Solarator Hybrid Inverter comes with a 5-year manufacturer/replacement warranty.

Hajvery Solar Energy provides product guidance and after-sales assistance for customers purchasing through its authorized sales channel. As an authorized Solis dealer, Hajvery Solar can help buyers with product identification, system requirements and compatibility considerations before purchase.

For warranty claims, customers should retain the product model and serial information and confirm the applicable warranty process at the time of purchase.

Before You Buy

Before purchasing the solis 30kw hybrid inverter, confirm the following:

1. Your building requires a three-phase inverter.
2. The planned battery system operates within the 150–800V range.
3. The lithium battery that has been chosen is capable of carrying out the necessary BMS communication.
4. The PV strings stay within the maximum input and MPPT limits of 1000V.
5. The current PV produces stays within the inverter’s input-current limits.
6. The required backup load can be supported by the 30kW backup output.
7. Battery capacity is sufficient for the required backup duration.
8. Generator requirements are compatible with the available generator input.
9. Parallel operation is properly engineered if system expansion is planned.
10. Installation provides suitable ventilation and protection for the operating environment.

Frequently Asked Questions

What is the solis 30kw hybrid inverter?

The Solis 30KW Solarator Hybrid Inverter is a three-phase high-voltage hybrid inverter with solar PV, lithium-ion battery, grid and backup functionality. It has a rated AC output of 30kW.

What is the maximum PV capacity of the Solis 30KW hybrid inverter?

The inverter has a recommended maximum input capacity for the PV array of 60kW and a maximum usable PV input of 60kW.

What battery voltage does the Solis 30KW hybrid inverter support?

It supports a 150–800V battery voltage range and uses Li-ion battery technology. The battery system should also meet the required BMS communication and electrical limits.

Is the Solis 30KW hybrid inverter three phase?

Yes. The product is a three-phase high-voltage hybrid inverter with 3/N/PE grid and backup output.

What is the solis 30kw inverter manual used for?

The solis 30kw inverter manual is important for installation, commissioning, wiring, operating procedures and safety requirements. Installers should use the exact manual applicable to the S6-EH3P(30-50)K-H-ND series and installed configuration.

Where can I check the solis 30kw hybrid inverter datasheet?

The datasheet for the solis 30kw hybrid inverter is useful when carrying out system planning as it allows you to check the PV, battery, AC output, backup and general electrical limits. When carrying out an installation the exact 30K model should always be matched to the specification.

What is the backup switching time?

The switching time for the backup is less than 10 milliseconds and the backup output has a rating of 30 kW, the maximum apparent power being 1.6 times the rated power for a duration of two seconds.

What is the current solis 30kw hybrid inverter price in pakistan?

The current price is Rs. 1,070,000.00. Buyers can contact Hajvery Solar for current availability and purchase enquiries.

Buy Solis 30KW Solarator Hybrid Inverter from Hajvery Solar

Hajvery Solar Energy supplies the Solis 30KW Solarator Hybrid Inverter for high-capacity solar and energy-storage applications. The company is an authorized Solis dealer and can assist buyers with product selection, battery compatibility and system requirements.

For customers researching the solis 30kw inverter, solis 30kw hybrid inverter datasheet, solis 30kw inverter datasheet pdf or solis 30kw hv three phase specifications, the key point is to match the exact 30K variant with the intended PV, battery and backup system design.
