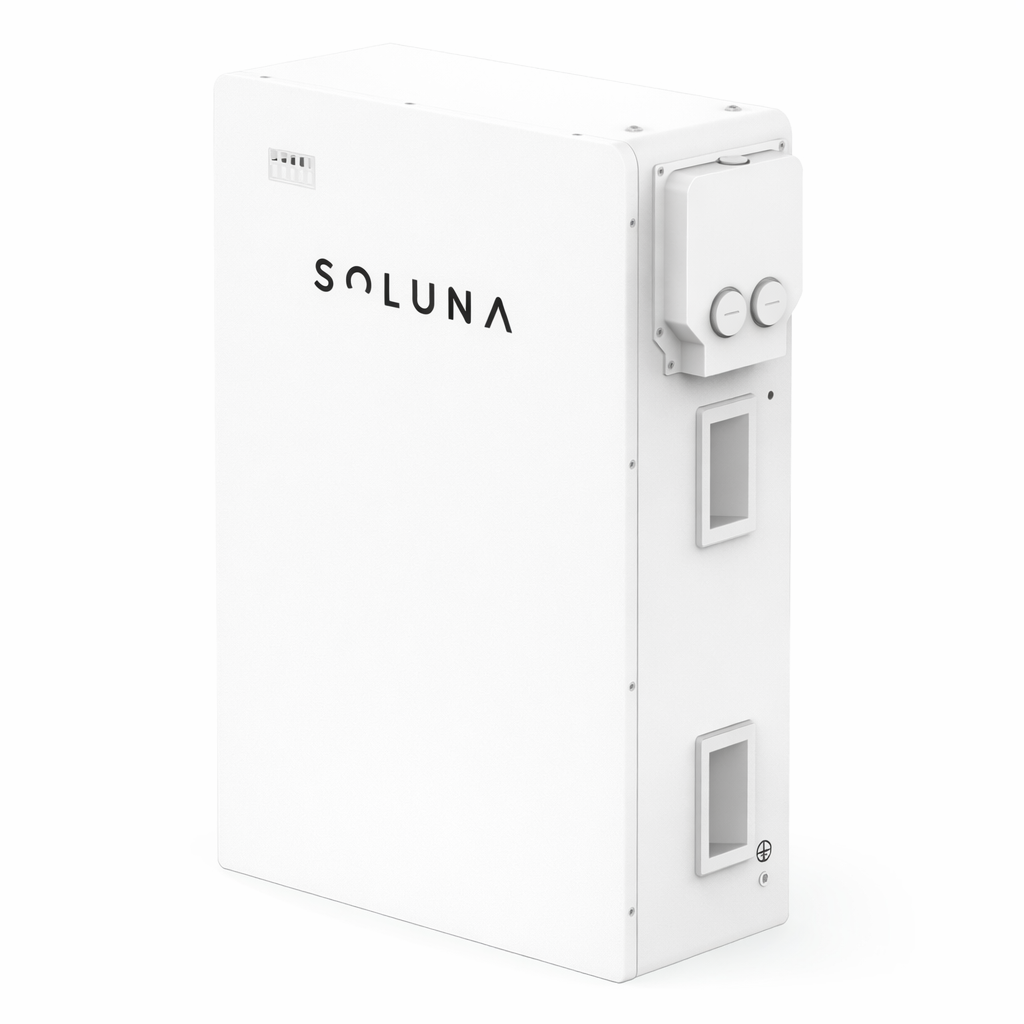

Soluna 10K Pack LV 51.2V 200Ah
Specifications
Physical Specifications
-
Dimensions (W × D × H): 500 × 215 × 760 mm
-
Weight: 100 kg
-
Installation: Indoor / Outdoor
-
Mounting Options: Floor Mounted / Wall Mounted
Electrical Specifications
-
Battery Chemistry: LiFePO₄ (LFP)
-
Nominal Voltage: 51.2 V
-
Nominal Capacity: 200 Ah
-
Total Energy Capacity: 10.24 kWh
-
Usable Energy Capacity: 9.2 kWh
-
Voltage Range: 48 – 57.6 V
-
Max Charge Current: 100 A
-
Max Discharge Current: 200 A
-
Recommended Depth of Discharge: 80%
-
Maximum Depth of Discharge: 90%
-
Round Trip Efficiency: >95%
-
Internal Resistance: ≤60 mΩ
-
Cycle Life: ≥8000 cycles (25°C standard conditions)
-
DC Disconnect: Contactor / Fuse
BMS & Communication
-
Communication Interface: CAN
-
Monitoring Parameters:
-
System Voltage
-
System Current
-
Cell Voltage
-
Cell Temperature
-
-
Power Consumption:
-
Working Mode: <3 W
-
Sleep Mode: <100 mW
-
Operating Conditions
-
Operating Temperature: -10°C to 50°C
-
Recommended Operating Temperature: 15°C to 30°C
-
Recommended Storage Temperature: 15°C to 30°C
-
Humidity: 5% – 95%
-
Maximum Altitude: 2000 m
-
Cooling Method: Natural Convection
Protection, Certification & Warranty
-
Ingress Protection: IP65
-
Certifications: UL1642, UN38.3, UL1973, UL9540A, IEC62619, CE, RoHS
-
Transportation Standard: UN38.3
-
Parallel Connection: Up to 30 Units
-
Maximum System Capacity: 300 kWh
-
Warranty: 10 Years
Soluna 10K Pack LV – 51.2V 200Ah LiFePO₄ Lithium Battery | 10.24kWh Energy Storage, IP65
Product Description
The Soluna 10K Pack LV is a high-performance lithium energy storage solution designed for residential and small commercial solar systems. Built with advanced LiFePO₄ (LFP) battery technology, it provides exceptional safety, long operational life, and reliable energy backup for modern hybrid and off-grid applications.
Each battery unit delivers 10.24kWh total energy capacity with 9.2kWh usable energy, ensuring efficient daily energy storage and backup performance. The integrated intelligent Battery Management System (BMS) continuously monitors voltage, current, temperature, and cell performance to maintain safe and stable operation.
The system supports parallel expansion up to 30 batteries, allowing scalability up to 300kWh, making it ideal for growing energy demands. With IP65 protection, flexible wall or floor mounting, and an extended 10-year warranty, the Soluna 10K Pack LV offers a dependable and future-ready energy storage solution.
Soluna 10K Pack LV 51.2V 200Ah
Key Features
-
Advanced LiFePO₄ (LFP) battery technology
-
10.24kWh energy capacity per unit
-
Expandable up to 300kWh (30 units parallel)
-
Integrated intelligent BMS protection
-
Long lifespan up to 8000 cycles
-
High efficiency (>95% round-trip efficiency)
-
IP65 rated for indoor & outdoor installation
-
Flexible wall-mounted or floor-standing installation
-
Suitable for residential & small commercial energy storage
