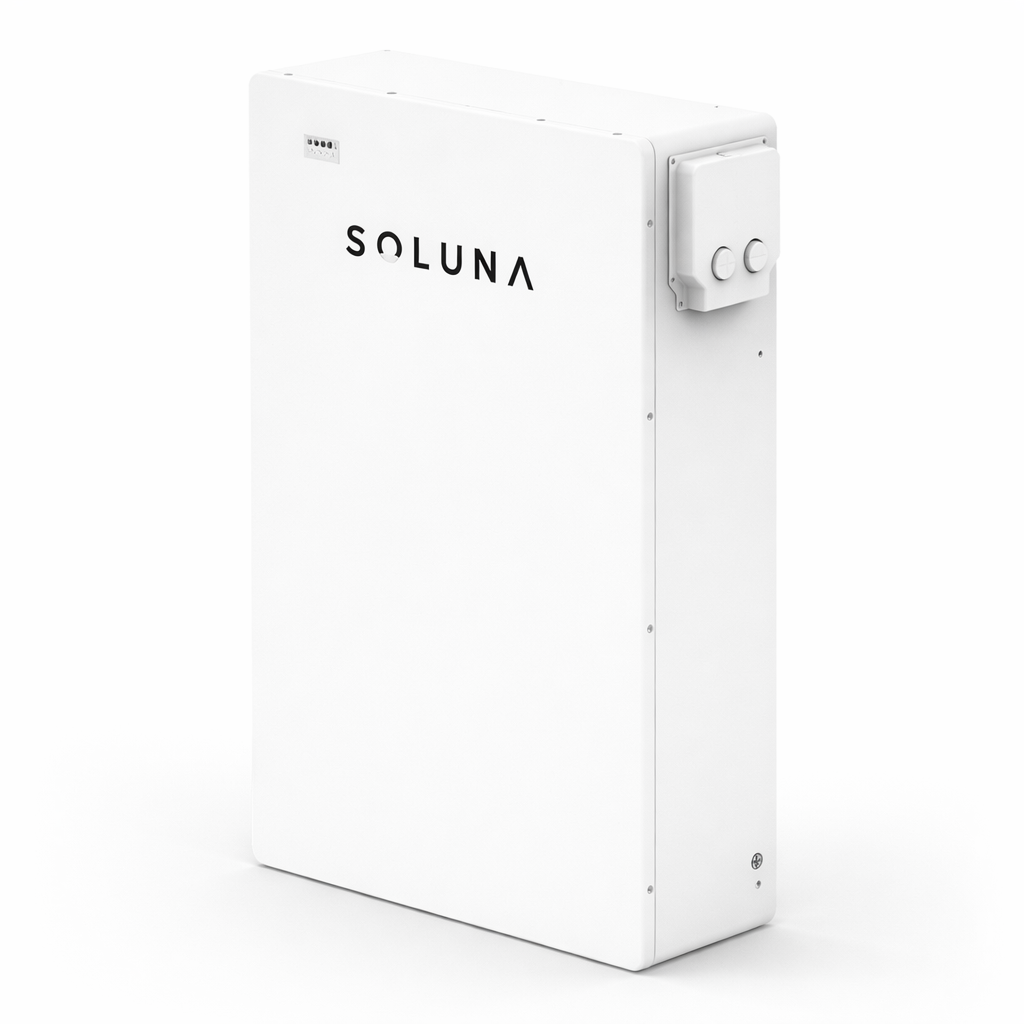

Soluna Jupiter 32K Pack LV 51.2V 628Ah
Specifications
Physical Specifications
-
Dimensions (W × D × H): 665 × 220 × 1125 mm
-
Weight: 260 kg
-
Installation: Indoor / Outdoor
-
Mounting Options: Floor Mounted / Wall Mounted
Electrical Specifications
-
Battery Chemistry: LiFePO₄ (LFP)
-
Nominal Voltage: 51.2 V
-
Nominal Capacity: 628 Ah
-
Total Energy Capacity: 32.153 kWh
-
Usable Energy Capacity: 28.937 kWh
-
Usable Voltage Range: 44.8 – 56.8 V
-
Charge / Discharge Current: 314 A
-
Max Charge Current: 314 A
-
Max Discharge Current: 314 A
-
Charge / Discharge Power: 16 kW
-
Max Charge / Discharge Power: 16 kW
-
Recommended Depth of Discharge: 80%
-
Maximum Depth of Discharge: 90%
-
Cycle Life: ≥8000 cycles (25°C standard conditions)
-
DC Disconnect: Contactor / Fuse
BMS & Communication
-
Communication Interface: CAN
-
Monitoring Parameters:
-
System Voltage
-
System Current
-
Cell Voltage
-
Cell Temperature
-
SOC (State of Charge)
-
SOH (State of Health)
-
Operating Conditions
-
Operating Temperature: -10°C to 50°C
-
Recommended Operating Temperature: 15°C to 30°C
-
Storage Temperature: -20°C to 60°C
-
Humidity Range: 5% – 95%
-
Maximum Altitude: 2000 m
-
Cooling Method: Natural Convection
Protection, Certification & Warranty
-
Ingress Protection Rating: IP65
-
Certifications: IEC62619, EMC, RoHS
-
Transportation Standard: UN38.3
-
Parallel Connection: Up to 30 Units
-
Maximum System Capacity: 960 kWh
-
Warranty: 10 Years
Soluna Jupiter 32K Pack LV – 51.2V 628Ah LiFePO₄ Lithium Battery | 32.15kWh Energy Storage, IP65
Product Description
The Soluna Jupiter 32K Pack LV is a high-capacity lithium energy storage battery engineered for residential, commercial, and large-scale solar energy systems. Utilizing advanced LiFePO₄ (LFP) battery technology, it delivers exceptional safety, durability, and long-term performance for energy storage and backup applications.
With a total energy capacity of 32.15kWh and 28.93kWh usable energy, this battery provides powerful and efficient energy management for high-demand installations. The integrated intelligent Battery Management System (BMS) continuously monitors voltage, current, temperature, SOC, and SOH to ensure maximum operational safety and system reliability.
Designed for scalability, the Jupiter 32K Pack LV supports parallel connection of up to 30 units, enabling system expansion up to 960kWh, making it ideal for large residential properties, commercial facilities, and hybrid solar storage systems. Its IP65-rated enclosure, flexible installation options, and 10-year warranty make it a future-ready and dependable energy storage solution
Key Features
-
Advanced LiFePO₄ (LFP) lithium battery technology
-
High-capacity 32.15kWh energy storage per unit
-
Expandable system up to 960kWh
-
Intelligent integrated BMS protection
-
Long lifespan up to 8000 cycles
-
High-power charge and discharge performance
-
IP65 protection for indoor & outdoor installation
-
Flexible floor or wall-mounted installation
-
Suitable for residential and commercial energy storage systems
