Sunflx FlxWall 5.0-24 25.6V 200Ah
Technical Specifications – Sunflx FlxWall 5.0-24
Electrical Specifications
| Specification | Value |
|---|---|
| Nominal Capacity | 5.12 kWh (200 Ah) |
| Nominal Voltage | 25.6 V DC |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Cell Configuration | 8S (8 cells in series) |
| Usable DOD | 100% (Settable) |
| Standard Charge Current | 200 A (1C) |
| Standard Discharge Current | 200 A (1C) |
| Peak BMS Protection Current | 240 A (2 s), 280 A (0.2 s) |
| Cycle Life | >6000 cycles @25 °C (0.5C, 80% DOD) |
| Voltage Operating Range | 20.8 – 29.2 V DC |
| Voltage Cut-off (Low / High) | 23.2 V / 29.2 V |

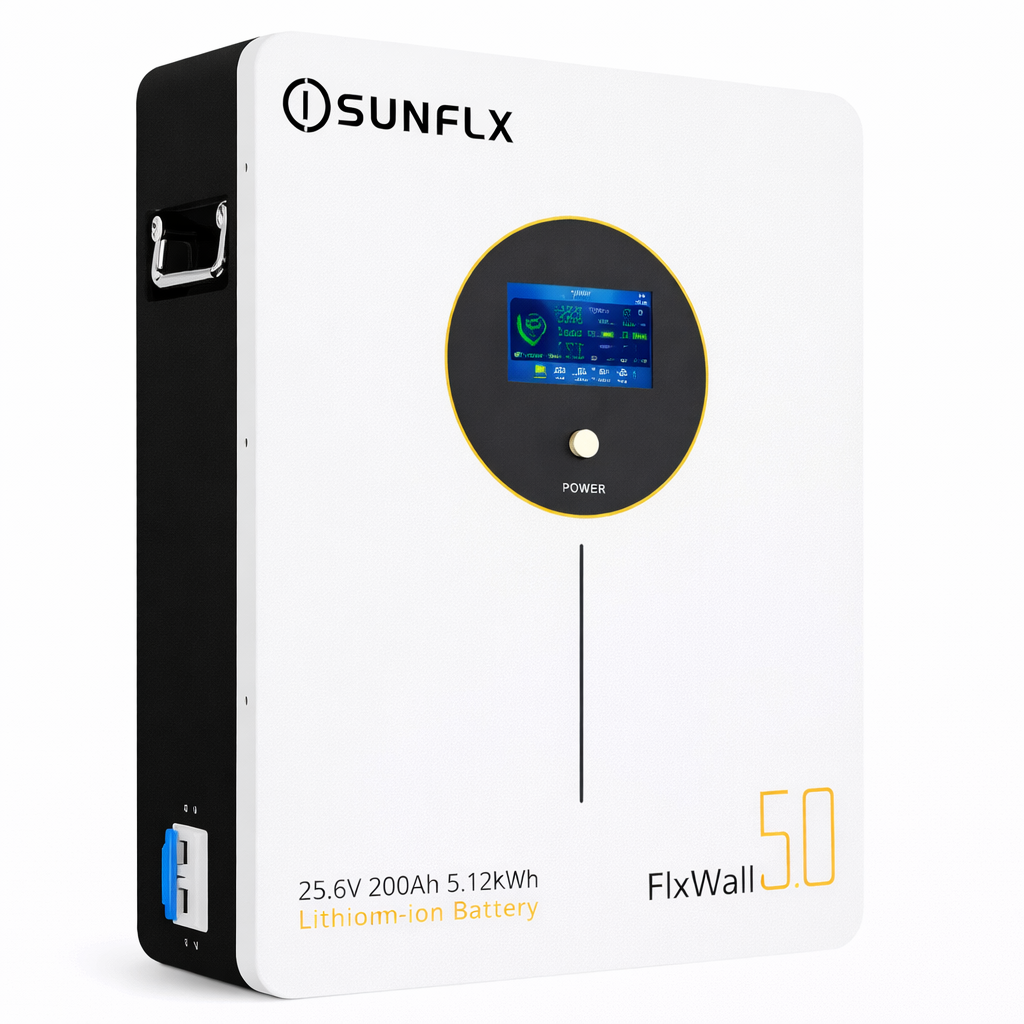

Sunflx FlxWall 5.0-24 — 25.6V 200Ah Lithium Battery
Product Description
The Sunflx FlxWall 5.0-24 (25.6V 200Ah) is a high-performance LiFePO₄ (Lithium Iron Phosphate) energy storage battery designed for residential and commercial solar systems. Featuring premium A+ grade prismatic cells and advanced Battery Management System (BMS) protection, this battery delivers reliable, long-lasting power with enhanced safety and efficiency.
With a nominal energy capacity of 5.12 kWh and 100% depth of discharge (DOD), the Sunflx FlxWall 5.0-24 maximizes usable energy while extending battery life. Its durable design supports high continuous charge and discharge currents, making it ideal for demanding home energy storage, self-consumption, and backup power applications.
Built-in Wi-Fi & Bluetooth monitoring, an intuitive touchscreen display, and versatile communication interfaces ensure seamless integration with major hybrid and off-grid inverters. The modular architecture also allows up to 15 units in parallel to deliver scalable energy storage for expanding system needs.
General & Mechanical
| Feature | Details |
|---|---|
| Dimensions (HxWxD) | 400 × 380 × 160 mm |
| Weight | ~56 kg |
| Mounting Type | Wall mount or floor stand |
| Cooling Method | Natural convection |
| Maximum Parallel Units | Up to 15 batteries |
| Display | 4.3″ Touchscreen + LED |
| Protection Rating | IP20 |
Communication & Monitoring
-
RS232, RS485, CAN communication ports
-
Wi-Fi & Bluetooth real-time monitoring
-
Compatible with major hybrid/off-grid inverters
Environmental Specifications
| Condition | Range |
|---|---|
| Charge Temperature | 0 °C to +50 °C |
| Discharge Temperature | -20 °C to +60 °C |
| Storage Temperature | -10 °C to +50 °C |
| Relative Humidity | ≤95% (non-condensing) |
| Maximum Operating Altitude | ≤4000 m |
Built-In Protection Features
-
Over-charge & over-discharge protection
-
Over-current protection
-
Short-circuit protection
-
Over/under temperature protection
-
Cell balancing
-
MOS temperature protection
-
Integrated DC circuit breaker
Certifications & Warranty
-
Certifications: UN38.3, MSDS, RoHS
-
Warranty: 5 years
-
Designed Lifespan: 10 years
