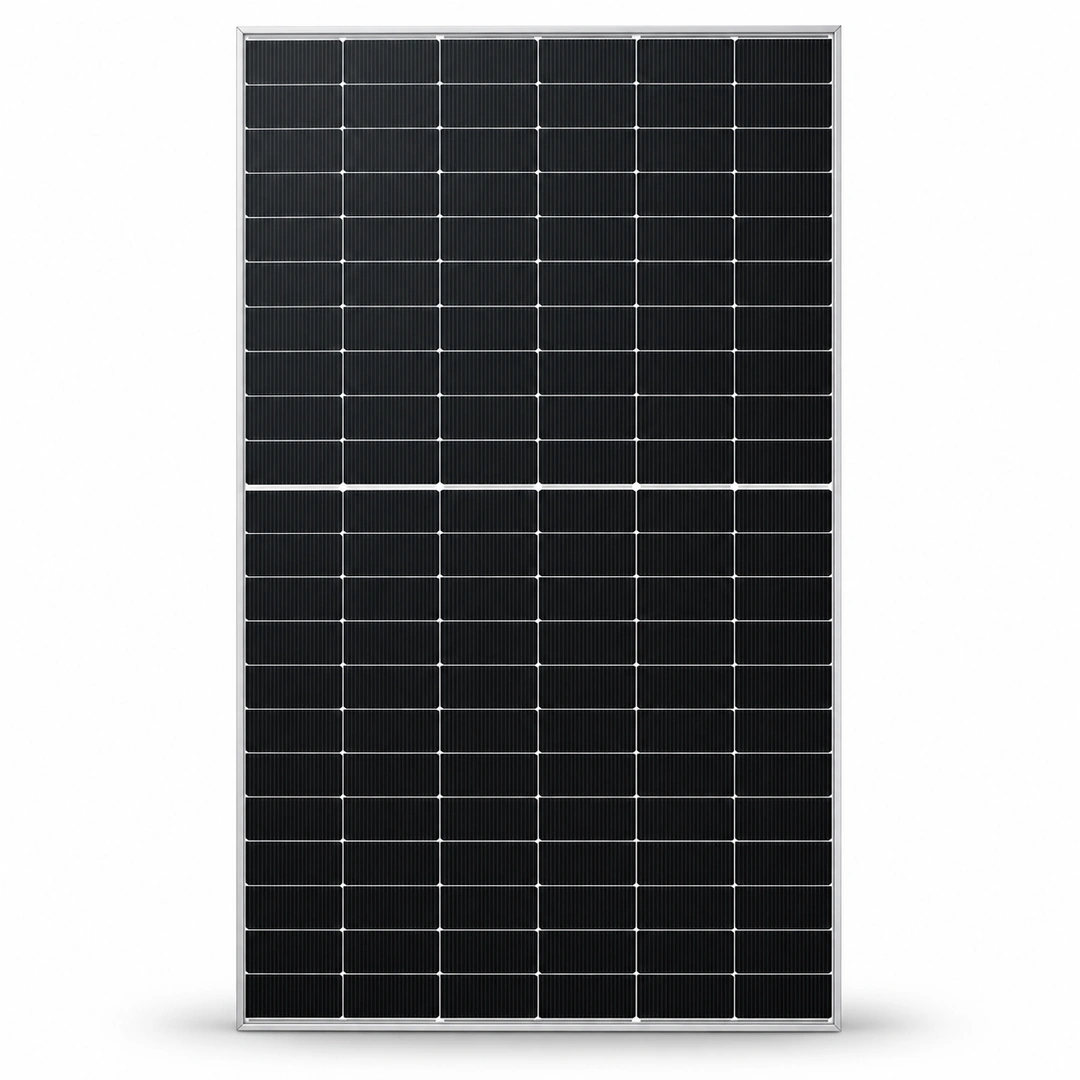

Taekmo 650W Bifacial Solar Panel

Taekmo 650W Bifacial Solar Panel Overview

The Taekmo 650W Bifacial Solar Panel is designed for solar installations that require high power output from each module and efficient use of available space. It combines N-Type TBC cell technology with a bifacial construction, allowing the panel to capture sunlight from both the front and rear sides. For the latest Taekmo 650W solar panel price in Pakistan, contact Hajvery Solar Energy for assistance with your solar requirements.

Under standard test conditions, the module delivers a rated output of 650W and achieves 24.1% efficiency. Moreover, its bifaciality factor of 70% ± 5% allows the rear side to contribute additional energy when reflected light reaches it. However, actual rear-side generation depends on mounting height, surface reflectivity, panel spacing and surrounding conditions.

The panel features a double-glass construction with 2.0 mm front glass and 2.0 mm rear glass. In addition, its anodized aluminium alloy frame provides structural support, while the IP68-rated junction box and three bypass diodes form part of its electrical design.

Therefore, homeowners, businesses, installers and solar dealers can consider this 650-watt bifacial module when their system design accommodates its physical dimensions and electrical characteristics.

Key Features and Benefits

N-Type TBC Cell Technology

The panel uses N-Type TBC cells designed for high-output solar module applications. With a rated module efficiency of 24.1%, it can deliver substantial rated power from the available panel area compared with lower-efficiency modules of similar dimensions.

However, actual energy production depends on several factors, including sunlight, temperature, shading, orientation and installation quality. For this reason, buyers should assess the complete system design rather than relying on efficiency alone.

For more technical information, visit the official website below:

Taekmo Solar Panel Official Website

Bifacial Energy Generation

The bifacial design allows the panel to receive sunlight from both sides. While the front side receives direct sunlight, the rear side can collect reflected and scattered light from the surrounding surface.

The 70% ± 5% bifaciality factor describes the rear-side power capability relative to the front-side reference under the applicable test conditions. However, this figure does not mean that every installation will produce 70% extra energy. Instead, actual rear-side contribution varies with the installation environment.

For better use of bifacial technology, installers should consider light-coloured surfaces, suitable mounting clearance and reduced rear-side obstruction.

High Module Efficiency

With 24.1% module efficiency, the Taekmo 650W panel suits projects where installers need to use available roof or ground space efficiently. Furthermore, its high rated output can help reduce the number of modules required to reach a target DC capacity, depending on the system design.

Nevertheless, installers must check the inverter’s electrical limits and the planned string configuration before selecting the final panel quantity.

Double-Glass Construction

The panel uses 2.0 mm coated semi-tempered front glass and 2.0 mm semi-tempered back glass. Together, these layers form the double-glass construction that supports its bifacial design.

Additionally, the module features an anodized aluminium alloy frame. Its maximum front static loading rating is 5400 Pa, while its maximum rear static loading rating is 2400 Pa. Installers should still assess the mounting structure and local installation conditions before installation.

Partial-Shading Optimisation

The Taekmo panel includes partial-shading optimisation as a technical feature. However, shading from trees, nearby buildings, parapet walls or other panels can still reduce energy production.

Therefore, installers should position the modules carefully and design the electrical strings according to the installation layout. Proper planning helps reduce avoidable shading losses.

Best For

The Taekmo 650W Bifacial Solar Panel may suit the following applications:

• Residential solar systems with sufficient installation space.
• Commercial rooftops requiring high-output modules.
• Industrial solar installations.
• Ground-mounted solar arrays where rear-side light can reach the panels.
• Solar installers designing systems around 650W bifacial solar panels.
• Buyers looking for a high-efficiency, double-glass solar module.

However, suitability depends on the roof or mounting structure, inverter limits, electrical string configuration and local installation conditions. Consequently, buyers should confirm these requirements before purchasing.

When Another Panel May Be Better

A different solar panel may be more suitable if the installation has limited space for this module’s dimensions. Similarly, another option may work better if the inverter cannot accommodate the panel’s operating current or the required string configuration does not match its voltage characteristics.

A monofacial module may also be worth considering when rear-side light cannot reach the panel. In that situation, bifacial construction may offer little practical benefit.

Before purchasing, check the mounting layout and inverter specifications rather than selecting a panel based on wattage alone. This approach helps ensure that the chosen module fits the project’s actual requirements.

Cell and Module Technology

The Taekmo 650W bifacial solar panel uses N-Type TBC cell technology and a bifacial double-glass construction. Its 144-cell layout follows a 6 × 24 configuration.

Because the module has a bifacial design, both surfaces can contribute to energy generation under suitable conditions. Meanwhile, its electrical output depends on rated power, operating voltage and current.

For installation planning, installers should review the maximum power voltage, maximum power current, open-circuit voltage and short-circuit current. These values help them assess string length, operating conditions and inverter compatibility.

Technical Specifications

Electrical Output Under Different Test Conditions

The following table presents the electrical values for the 650W rating under standard test conditions (STC) and nominal operating cell temperature conditions (NOCT).

STC and NOCT represent different test conditions, so their power figures are not interchangeable. As a result, actual output at a solar installation will vary with operating conditions.

Performance and Degradation

The panel carries a 30-year linear output warranty alongside its 15-year product warranty. These warranties cover different aspects of the panel, so buyers should review their applicable terms separately.

The temperature coefficient of maximum power is −0.26%/°C. In practical terms, power output decreases as cell temperature rises above the applicable reference temperature, all else being equal.

Similarly, the temperature coefficient of open-circuit voltage is −0.22%/°C. Installers should consider this value when calculating the maximum string voltage in cold conditions. Meanwhile, the temperature coefficient of short-circuit current is +0.05%/°C.

Before quoting year-specific guaranteed output percentages, check the applicable warranty terms. This ensures that any degradation or performance claim reflects the relevant warranty conditions.

Performance Considerations for Pakistan

Pakistan’s hot summers, dust and changing sunlight conditions make proper solar system design especially important. Therefore, buyers and installers should consider the following points before installation.

• High temperatures: Module temperature affects output. For this reason, installers should consider the panel’s −0.26%/°C maximum-power temperature coefficient when estimating performance in hot conditions.
• Dust and cleaning: Dust accumulation reduces the sunlight reaching the cells. Regular inspection and appropriate cleaning can help maintain energy production.
• Rear-side clearance: Bifacial performance depends on how much light reaches the rear glass. Therefore, avoid unnecessary obstructions beneath or behind the panel.
• Mounting and ventilation: Correct mounting and sufficient airflow help manage operating temperature.
• String design: Installers must check the maximum system voltage, inverter input limits and temperature-adjusted open-circuit voltage before installation.

Although a 650W rating helps buyers compare modules, it cannot guarantee a fixed amount of energy generation or electricity-bill savings. Actual results depend on sunlight, shading, orientation, temperature, system design and other operating conditions.

Taekmo 650W Bifacial Solar Panel Price in Pakistan

The Taekmo 650w solar panel price in pakistan is an important consideration for buyers comparing high-wattage bifacial modules for residential, commercial and industrial installations.

The current price of the Taekmo 650W Bifacial Solar Panel in Pakistan is Rs. 24,180 per panel.

The total panel cost depends on the number of modules required for the project. In addition, buyers should account for installation, mounting structures, inverter selection, cables, protection equipment and other system components when estimating the complete project cost.

Dealers, installers and bulk buyers can contact Hajvery Solar Energy to discuss quantity requirements and current availability. However, a positive listed price does not by itself guarantee stock availability, so confirm availability before placing an order.

Tier 1, A-Grade and Product Authenticity

Buyers searching for 650 watt bifacial solar panels should consider the exact model, module efficiency, electrical characteristics, construction and applicable warranty rather than relying on wattage alone.

However, Tier 1 classification and A-grade condition require separate verification for the relevant product and stock. Buyers should not assume either status from the brand name or panel appearance.

Before ordering, confirm the model identification, product condition, serial information and applicable warranty arrangements with the seller. This helps buyers check that the supplied panel matches their requirements.

Hajvery Solar Product Verification

Hajvery Solar Energy can help buyers review relevant product details before purchase. First, confirm that the supplied panel matches the intended 650W model. Then, check whether its electrical specifications suit the planned solar system.

Installers should compare the panel’s Voc, Vmp, Isc and Imp with the inverter’s maximum DC voltage, MPPT operating range and current limits. They should also account for the number of panels per string and temperature-related voltage changes.

For bifacial installations, confirm that the mounting arrangement allows suitable rear-side light exposure. In addition, ensure that the supporting structure meets the requirements of the installation environment.

You can verify your Taekmo Solar Panel through Hajvery Solar Energy using the verification link below:

Taekmo Panel Verification Link

Warranty

The Taekmo 650W Bifacial Solar Panel has a 15-year product warranty and a 30-year linear output warranty.

These warranties cover different aspects of the panel and should not be treated as identical. Therefore, buyers should confirm the applicable warranty terms, claim process, coverage conditions and responsible warranty provider with Hajvery Solar Energy before ordering.

Before You Buy

Before selecting the Taekmo 650W Bifacial Solar Panel, check the following points:

• Confirm that a 650W module fits the available roof or mounting space.
• Check inverter compatibility using voltage and current limits, not wattage alone.
• Calculate string voltage under the expected minimum temperature.
• Confirm that the string operating voltage falls within the inverter’s MPPT range.
• Check the maximum permitted input current and short-circuit current.
• Confirm that the mounting structure can accommodate the panel’s dimensions and weight.
• Consider rear-side clearance and reflected light to support bifacial generation.
• Confirm the product and linear output warranty terms.
• Finally, check current availability and the required quantity before arranging installation.

Frequently Asked Questions

1. What is the Taekmo 650W Bifacial Solar Panel?

The Taekmo 650W Bifacial Solar Panel is a 650W solar module that uses N-Type TBC cell technology and double-glass construction. Its design allows it to generate power from the front side while also receiving additional light at the rear when installation conditions are suitable.

2. What is the efficiency of the Taekmo 650W solar panel?

The panel has a rated module efficiency of 24.1%. However, actual energy production depends on sunlight, temperature, shading, orientation and installation quality.

3. What are the specifications of the Taekmo 650W Bifacial Solar Panel?

The panel has a rated output of 650W, Vmp of 44.87V, Imp of 14.49A, Voc of 54.22V and Isc of 15.14A under STC. In addition, it measures 2382 × 1134 × 30 mm and weighs 32.3 kg ± 3%.

4. What is the bifaciality factor of this panel?

The bifaciality factor is 70% ± 5%. However, actual additional energy generation from the rear side depends on reflected light, mounting height, surface conditions and surrounding obstructions.

5. What is the weight and size of the Taekmo 650W panel?

The panel measures 2382 × 1134 × 30 mm and weighs 32.3 kg ± 3%. Therefore, buyers should confirm that the mounting structure and handling arrangements can accommodate its dimensions and weight.

6. What is the Taekmo 650W solar panel price in Pakistan?

The current price of the Taekmo 650W Bifacial Solar Panel in Pakistan is Rs. 24,180 per panel. Contact Hajvery Solar Energy to confirm current availability and quantity-based pricing before ordering.

7. What warranty comes with the Taekmo 650W Bifacial Solar Panel?

The panel has a 15-year product warranty and a 30-year linear output warranty. However, buyers should confirm the applicable conditions and claim process before purchase.

8. Is this panel suitable for a home solar system?

The panel may suit a residential solar system if the available space, inverter electrical limits, string configuration and mounting arrangement are compatible. Therefore, a qualified installer should check the complete system design before installation.
