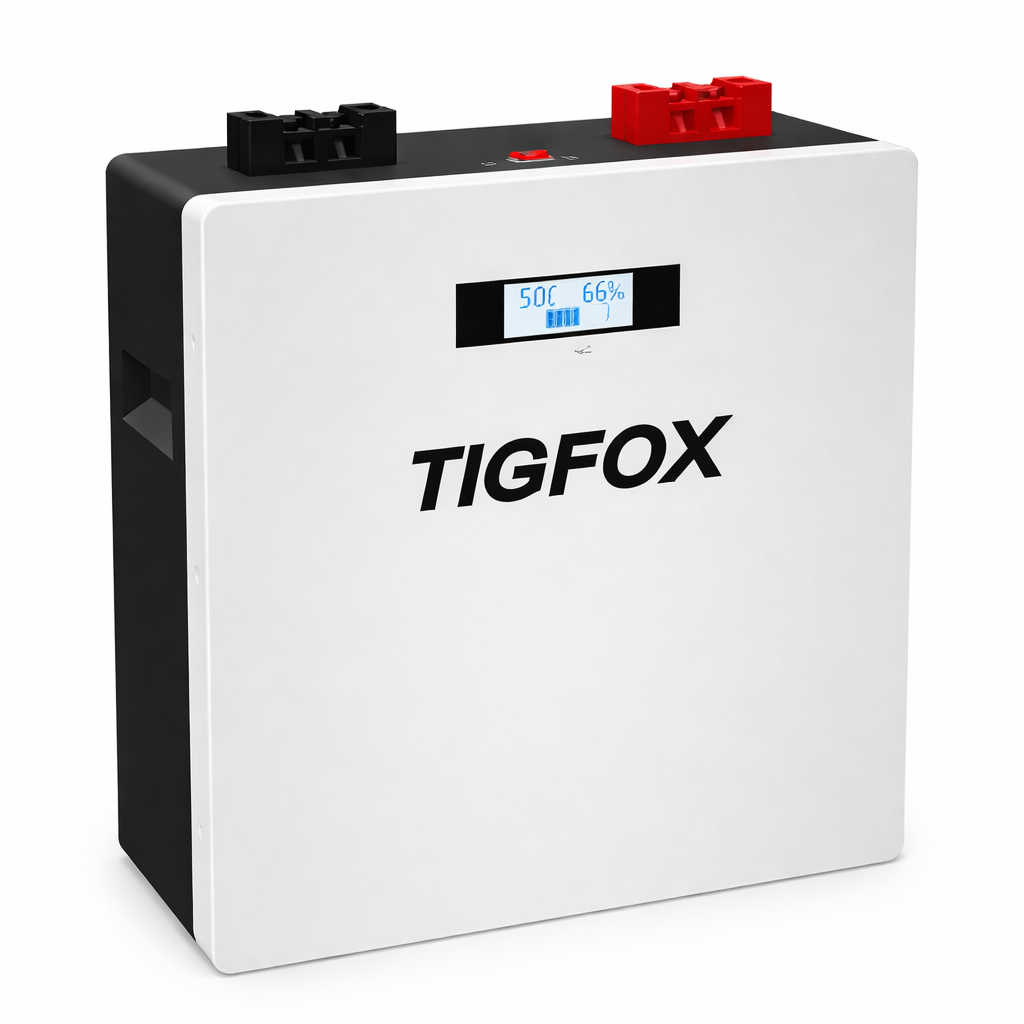

TIGFOX 25.6V 100Ah Lithium Battery

TIGFOX 25.6V 100Ah Lithium Battery Overview

The TIGFOX 25.6V 100Ah Lithium Battery is designed to store solar energy for residential backup and everyday electricity requirements. Its LiFePO₄ chemistry provides a nominal energy capacity of 2.56kWh, with 2.43kWh of usable energy at 95% DoD.

The TB2560 model operates at a nominal voltage of 25.6V and supports a maximum charging current of 100A and maximum discharging current of 150A. These electrical characteristics make it important to match the battery with an inverter that supports its voltage, charging requirements and discharge limits.

Its wall-mounted construction helps keep the battery installation organised, while IP54 protection provides protection against dust ingress and water splashes under the specified protection conditions.

Key Features and Buyer Benefits

LiFePO₄ Battery Technology

The battery uses Lithium Iron Phosphate (LiFePO₄) chemistry. This battery technology is widely used in solar energy storage because of its suitability for repeated charging and discharging applications.

It provides a practical option for households looking to store daytime solar energy for use when solar generation decreases.

2.56kWh Nominal Energy Capacity

The TB2560 provides 2.56kWh nominal energy and 2.43kWh usable energy at 95% DoD.

This capacity helps users store electricity generated through solar panels and use the stored energy according to their household backup requirements.

High Charging and Discharging Current

The battery supports:

• Maximum charging current: 100A
• Maximum discharging current: 150A

These limits are important when selecting an inverter and planning the connected load. Actual charging and discharging performance also depends on inverter settings and operating conditions.

More Than 6,000 Cycles

The battery offers a cycle life of more than 6,000 cycles at 25°C and 60% end-of-life (EOL) capacity.

This provides buyers with a useful indication of its expected cycling performance under the specified test conditions. Actual battery life depends on operating temperature, charging habits, discharge depth and installation conditions.

IP54 Protection

The IP54 protection rating makes the battery suitable for installations requiring protection against dust ingress and water splashes.

Correct installation and protection from unsuitable environmental conditions remain important.

Best For

The TIGFOX TB2560 is suitable for:

• Residential solar energy storage.
• Home backup applications.
• Compatible 24V-class solar inverter systems.
• Households looking to store excess daytime solar generation.
• Users replacing an existing compatible battery system.
• Small-scale energy storage applications within the battery’s electrical limits.

Not Ideal For

This battery may not be suitable for:

• Inverter systems requiring a 48V or high-voltage battery.
• Installations requiring more than 2.43kWh of usable energy from a single battery.
• Loads exceeding its maximum discharge current.
• Inverters with charging voltages or charging profiles outside its permitted limits.
• Installations requiring unverified parallel expansion or battery communication features.

Always check the complete inverter and battery compatibility before installation.

Battery Capacity: kWh, Ah and Usable Energy Explained

Understanding battery capacity is important when selecting a lithium battery for a solar system.

The 25.6V rating represents nominal battery voltage, while 100Ah represents its ampere-hour capacity. The nominal energy capacity is 2.56kWh.

The battery provides the following energy figures:

• Nominal Energy: 2.56kWh
• Usable Energy: 2.43kWh
• Depth of Discharge: 95%

Usable energy is the portion of stored electricity available within the specified discharge limit.

The 95% DoD rating means that approximately 95% of nominal stored energy is available for use under the specified operating conditions.

Battery Chemistry and Cycle Life

The TIGFOX TB2560 uses LiFePO₄ (Lithium Iron Phosphate) battery chemistry.

Its cycle life exceeds 6,000 cycles at 25°C with 60% EOL capacity. EOL refers to the remaining battery capacity at the end-of-life measurement point.

For better long-term performance:

• Follow the recommended charging voltage.
• Avoid exceeding the maximum charging current.
• Keep the battery within its specified operating temperature.
• Use a compatible inverter and charging profile.
• Ensure suitable ventilation and installation conditions.

Battery life can vary depending on actual operating conditions.

Charging and Discharging Performance

The TB2560 supports a maximum charging current of 100A and a maximum discharging current of 150A.

Its charging voltage is 28.8V, while its working voltage range is 22.4V to 28.8V DC.

These electrical limits should be considered when configuring a solar inverter. The inverter must support the battery’s nominal voltage, charging voltage and maximum current requirements.

Using incorrect charging settings can affect battery performance and service life.

Inverter Compatibility

Battery compatibility should be checked before purchasing or connecting the TIGFOX TB2560 to a solar inverter.

Important compatibility factors include:

• Nominal battery voltage.
• Supported battery chemistry.
• Charging voltage.
• Maximum charging current.
• Maximum discharging current.
• Inverter battery settings.
• BMS communication requirements, where applicable.

The battery is a 25.6V nominal system. An inverter must support the correct battery voltage and electrical limits.

Do not assume that every hybrid inverter supports this battery. Confirm compatibility with the inverter supplier before installation.

Technical Specifications

Estimated Backup Time

The actual backup time of the TIGFOX TB2560 depends on connected appliances, inverter efficiency, battery operating limits and load variations.

The battery offers 2.43kWh usable energy at the specified 95% DoD.

For practical backup planning, consider:

• Total connected load in watts.
• Appliance starting current.
• Inverter conversion losses.
• Battery discharge limits.
• Operating temperature.
• Battery condition and age.

A higher connected load will reduce backup duration. For this reason, actual runtime should be estimated using the complete system configuration rather than battery capacity alone.

Lithium Battery Use in Pakistan

Lithium batteries are increasingly relevant for households and businesses looking to store solar electricity and manage backup requirements.

The TIGFOX TB2560 can be considered for compatible residential solar installations in Pakistan where a 25.6V battery system meets the required electrical and energy needs.

During installation, pay attention to:

• Suitable indoor installation conditions.
• Protection from direct water exposure.
• Correct inverter charging settings.
• Proper cable sizing.
• Electrical protection and secure mounting.
• Operating temperature and ventilation.

A qualified solar installer should check the complete system before commissioning.

TIGFOX 25.6V 100Ah Lithium Battery Price in Pakistan

The TIGFOX TB2560 is available at Hajvery Solar Energy for customers looking for a 25.6V 100Ah LiFePO₄ lithium battery.

The current price of TIGFOX 25.6V 100Ah Lithium Battery in Pakistan is Rs. 120,000 per unit.

Hajvery Solar Energy is a TIGFOX Official Distributor, helping customers purchase genuine battery products with applicable warranty support.

For current availability, installation guidance and dealer enquiries, contact Hajvery Solar Energy in Johar Town, Lahore.

Hajvery Compatibility and Authenticity Check

Choosing the correct battery is important for safe and reliable solar system operation.

Hajvery Solar Energy is a TIGFOX authorized dealer and helps buyers understand the important electrical requirements before purchasing.

Customers should check:

• Exact battery model and identification details.
• Nominal voltage and capacity.
• Inverter charging voltage.
• Maximum charging and discharging current.
• Battery condition and physical appearance.
• Applicable warranty information.
• Compatibility with the intended solar inverter.

Hajvery Solar Energy can help customers assess their battery requirements before purchasing.

As an Official TIGFOX Distributor, Hajvery Solar Energy provides product purchasing guidance for residential solar storage requirements.

Warranty and After-Sales Support

The TIGFOX TB2560 comes with a 5-year warranty.

Customers should retain their purchase invoice and product identification details for future warranty enquiries.

For warranty-related information, contact Hajvery Solar Energy to confirm the applicable coverage and claim requirements.

Hajvery Solar Energy is an authorized TIGFOX dealer, providing customers with product purchasing guidance and assistance with applicable warranty enquiries.

Before You Buy

Before purchasing the TIGFOX 25.6V 100Ah Lithium Battery, consider the following points:

1. Inverter Voltage: Confirm that your inverter supports a 25.6V nominal battery.
2. Battery Capacity: Check whether 2.43kWh usable energy meets your backup requirements.
3. Charging Voltage: Ensure the inverter supports 28.8V charging.
4. Charging Current: Check the maximum 100A charging limit.
5. Discharging Current: Ensure connected loads remain within the 150A maximum discharge limit.
6. Battery Chemistry: Confirm support for LiFePO₄ batteries.
7. Installation: Provide a suitable wall-mounted installation location.
8. Operating Conditions: Keep the battery within its specified temperature and humidity limits.
9. Warranty: Confirm the applicable 5-year warranty arrangements.

Frequently Asked Questions

1. What is the TIGFOX 25.6V 100Ah Lithium Battery price in Pakistan?

The current price of TIGFOX 25.6V 100Ah Lithium Battery in Pakistan is Rs. 120,000 per unit. Contact Hajvery Solar Energy for availability and purchasing information.

2. What is the model number of this TIGFOX lithium battery?

The model number is TB2560.

3. What is the battery capacity?

The battery has a nominal capacity of 100Ah and nominal energy of 2.56kWh.

4. How much usable energy does this battery provide?

It provides 2.43kWh usable energy at 95% depth of discharge.

5. What type of battery technology does it use?

It uses LiFePO₄ (Lithium Iron Phosphate) battery chemistry.

6. What is the maximum charging and discharging current?

The maximum charging current is 100A, while the maximum discharging current is 150A.

7. How many cycles does the TIGFOX TB2560 support?

It offers more than 6,000 cycles at 25°C and 60% EOL capacity.

8. What is the warranty period?

The TIGFOX TB2560 comes with a 5-year warranty.

9. Is this battery compatible with every solar inverter?

No. Compatibility depends on the inverter’s battery voltage, charging voltage, current limits and supported battery configuration. Confirm compatibility before installation.

10. What is the protection rating of this battery?

It has an IP54 protection rating.

Buy TIGFOX 25.6V 100Ah Lithium Battery from Hajvery Solar Energy

Looking for a TIGFOX lithium battery in Pakistan for your home solar system?

Hajvery Solar Energy offers product purchasing guidance for customers looking for lithium battery storage solutions.

Visit our store in Johar Town, Lahore, or contact our team for product availability, inverter compatibility guidance and warranty enquiries.
