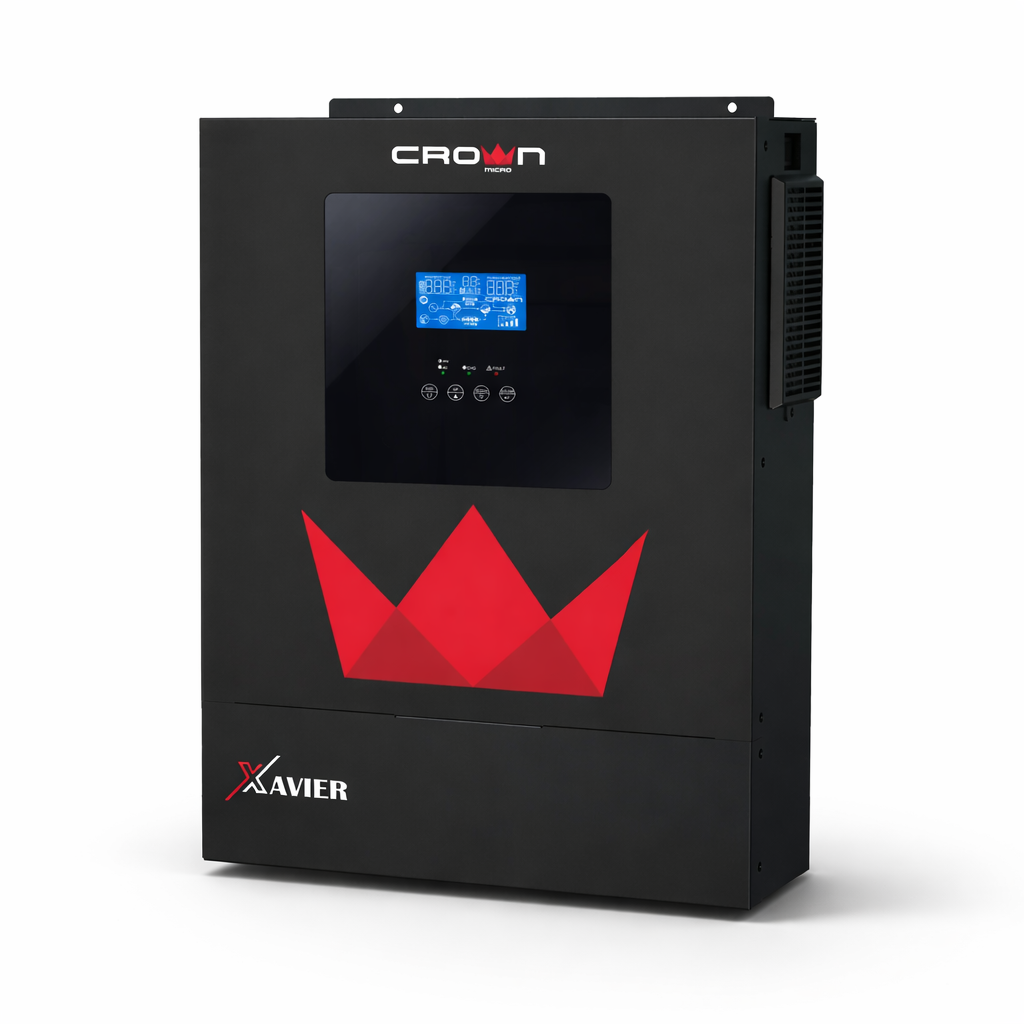

Xavier 1.5KW PV-2500 Solar Inverter
📊 Xavier 1.5KW PV-2500 Specifications
| Category | Specification |
|---|---|
| Model | Xavier 1.5KW PV-2500 |
| Rated Power | 1500VA / 1500W |
| Waveform | Pure Sine Wave |
| Efficiency (Peak) | 93% |
🔌 Input
| Parameter | Value |
|---|---|
| Voltage | 230VAC |
| Selectable Voltage Range | 170–280VAC (Computers) |
| 90–280VAC (Home Appliances) | |
| Frequency | 50Hz / 60Hz (Auto Sensing) |
⚡ Output
| Parameter | Value |
|---|---|
| AC Voltage Regulation | 230VAC ±5% |
| Output Power | 1500W (PV + Battery) |
| 1200W (Battery Only) | |
| Surge Power | 2400VA |
| Transfer Time | 10ms |
🔋 Battery
| Parameter | Value |
|---|---|
| Battery Voltage | 12VDC |
| Floating Charge Voltage | 13.5VDC |
| Overcharge Protection | 16VDC |
| Battery Type | Lithium / Lead-acid |
☀️ Solar Charger & AC Charger
| Parameter | Value |
|---|---|
| Solar Charger Type | MPPT |
| Max PV Open Circuit Voltage | 400VDC |
| Max PV Array Power | 2500W |
| MPPT Operating Range | 30–400VDC |
| Max Solar Charge Current | 80A |
| Max AC Charge Current | 80A |
| Max Charge Current | 80A |
📐 Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions (D × W × H) | 90 × 288 × 357 mm |
| Net Weight | 6.6 kg |
| Communication Interface | RS232 |
🌡️ Operating Environment
| Parameter | Value |
|---|---|
| Humidity | 5% – 95% (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
The Xavier 1.5KW PV-2500 is a high-performance pure sine wave solar inverter designed for reliable and efficient energy conversion in residential and small commercial applications. Equipped with an advanced MPPT (Maximum Power Point Tracking) solar charger, it maximizes solar energy utilization while ensuring stable and clean power output.
This inverter features a compact, user-friendly design with a built-in LCD display and touch controls, making operation simple and intuitive. Its battery optimization technology enhances battery life and performance, while the wide PV input range ensures flexibility in solar system design.
With built-in protection features, anti-dust design, and high efficiency up to 93%, the Xavier PV-2500 delivers dependable performance even in demanding environments.
⭐ Key Features
- Pure sine wave output for stable power
- Advanced MPPT solar charge controller
- Wide PV input voltage range (starting from 30VDC)
- High efficiency up to 93%
- Battery equalization to extend battery life
- LCD display with touch pad control
- Built-in anti-dust kit for durability
- Supports lithium and lead-acid batteries
- Fast transfer time (10ms)
- Compact and easy installation (12V system)
