Pylontech Force H3 FH10050 Overview

The Pylontech Force H3 FH10050 is a high-voltage 5.12kWh lithium battery module built around Li-ion LFP chemistry. With a nominal voltage of 102.4V and capacity of 50Ah, it is designed to form part of a modular high-voltage energy storage system.

The FH10050 is made up of 32 cells, each having a nominal voltage of 3.2V, and with a module capacity of 5.12kWh, it offers a practical solution for customers who wish to scale up their battery storage in accordance with their energy needs. The Force H3 platform allows for configurations consisting of between 2 and 7 battery modules, and it is also possible to connect multiple groups in parallel in order to create larger storage systems.

If someone is looking for a pylontech force h3 high voltage battery, then this module is the FH10050 battery unit that is used in the Force H3 high-voltage stack. The fact that the design is modular means that the total storage capacity can be increased without having to replace the entire battery system.

Key Features and Buyer Benefits

High-Voltage 102.4V Battery Module

Because its nominal voltage is 102.4V the FH10050 is classified as a high-voltage battery module not as a standard low-voltage 48V battery; this design is meant to be used in high-voltage energy storage systems that are compatible with it and therefore calls for an inverter or PCS that is suitable for the relevant battery voltage range.

5.12kWh Storage Capacity

Each FH10050 provides 5.12kWh nominal battery capacity. The 50Ah capacity combined with 102.4V nominal voltage gives the module its 5.12kWh rating.

For customers comparing a pylontech force h3 5.12 kwh battery, the FH10050 is the individual module that forms the basis of the expandable Force H3 system.

Li-ion LFP Chemistry

The battery is based on Li-ion (LFP) cell technology and the LFP chemistry is typically employed in stationary energy storage applications where a long service life and the ability to undergo repeated charging and discharging are important.

The FH10050 is therefore suitable for buyers specifically looking for a pylontech lithium battery for a compatible high-voltage solar storage setup.

95% Depth of Discharge

The Force H3 system is rated for 95% depth of discharge. This allows a substantial portion of the nominal battery capacity to be used during normal energy storage operation. Actual usable energy depends on system operating conditions and battery management limits.

50A Normal Charge and Discharge

The system has a normal charge and discharge current of 50A, with a peak current of 55A which may be reached for a period of 15 minutes. When pairing the battery with an inverter or when evaluating the loads that the entire storage system has to support, this current rating should be taken into account.

Long Cycle Life

The Force H3 system has a specified cycle life of more than 8,000 cycles at 25°C, with the cycle-life figure dependent on the defined operating conditions. The system also has a stated 15+ year design life at 25°C.

Best For

The Pylontech Force H3 FH10050 is suitable for:

• High-voltage solar energy storage systems
• Residential hybrid solar installations using compatible HV battery inverters
• Backup energy storage where the inverter supports the battery architecture
• Buyers who want expandable lithium battery storage
• Solar users replacing suitable high-voltage storage batteries
• Installers designing modular battery systems
• Customers comparing pylontech force h3 price in pakistan on a per-module basis

The battery must be chosen at the same time as a compatible inverter, a BMS communication setup and the full system configuration.

Not Ideal For

The FH10050 isn’t the appropriate choice for all solar systems.

It should not be selected for a low-voltage battery system simply because the battery has a 5.12kWh capacity. Its 102.4V nominal module voltage requires an appropriate high-voltage system architecture.

It is also unsuitable for use with an inverter that fails to support the necessary battery voltage, the required communication protocol, or the integration with Pylontech batteries.

Before purchasing a pylontech force h3 high voltage battery, confirm the inverter’s supported battery voltage range, BMS communication, charge/discharge limits and approved battery compatibility.

Battery Capacity: kWh, Ah and Usable Energy Explained

kWh and Ah refer to different aspects of a battery.

The FH10050 has:

Nominal Voltage: 102.4V

Capacity: 50Ah

Nominal Energy: 5.12kWh

The basic energy relationship is:

Voltage × Ah ÷ 1000 = nominal kWh

For this module:

102.4V × 50Ah ÷ 1000 = 5.12kWh

The 5.12kWh figure stated by the manufacturer is still the main specification for the product’s capacity.

The Force H3 system uses a 95% depth of discharge, so theoretical energy available before considering inverter losses and other operating factors is approximately 4.86kWh per module. Actual usable energy can vary with operating conditions, system settings, temperature, battery age and inverter efficiency.

Battery Chemistry and Cycle Life

The FH10050 uses Li-ion (LFP) chemistry with 32 battery cells. Each cell has a nominal voltage of 3.2V and a 50Ah capacity.

The operation cycle life stated is 8,000 cycles, although the actual results will depend on the test and operating conditions. The battery is also given a design life of 15 years or more at 25°C.

As a result, the battery can be used in applications that involve repeated cycling for energy storage, as long as it is operated within the relevant installation and battery-management limits.

Battery Management System and Safety

The H3 system has a special battery management architecture with which it monitors and manages the battery system.

The battery system can communicate with compatible energy-storage equipment using Modbus RTU/CAN at the system level, and the control module is also capable of carrying out CANBUS/Modbus RTU communication.

The H3 system has an IP55 rating, and the operating conditions and protection requirements apply to the entire installed system and not to the FH10050 module individually as a standalone IP-rated enclosure.

Charging and Discharging Performance

The Force H3 system provides a 50A normal charge/discharge current and supports up to 55A for 15 minutes.

The inverter that is used should have battery-current requirements which do not exceed the applicable limits. In the case of high-load applications, several modules may be needed so that the entire battery bank can supply the required energy and current.

Temperature is also a factor; the specified charging operating temperature lies within the range rated for the Force H3 system, and the battery’s charging and discharging power can be limited by BMS operation under certain temperature conditions.

Inverter Compatibility

The Pylontech Force H3 FH10050 is a high-voltage battery module, so compatibility should not be judged from battery capacity alone.

Before installation, confirm:

• Compatible battery voltage range
• BMS communication protocol
• CAN/Modbus communication requirements
• Maximum charge current
• Maximum discharge current
• Required number of battery modules
• Inverter manufacturer’s supported battery list
• Correct communication cable and configuration

Customers searching for a pylontech force h3 compatibility list should verify the exact inverter model and the applicable Pylontech compatibility information before ordering.

Parallel Expansion

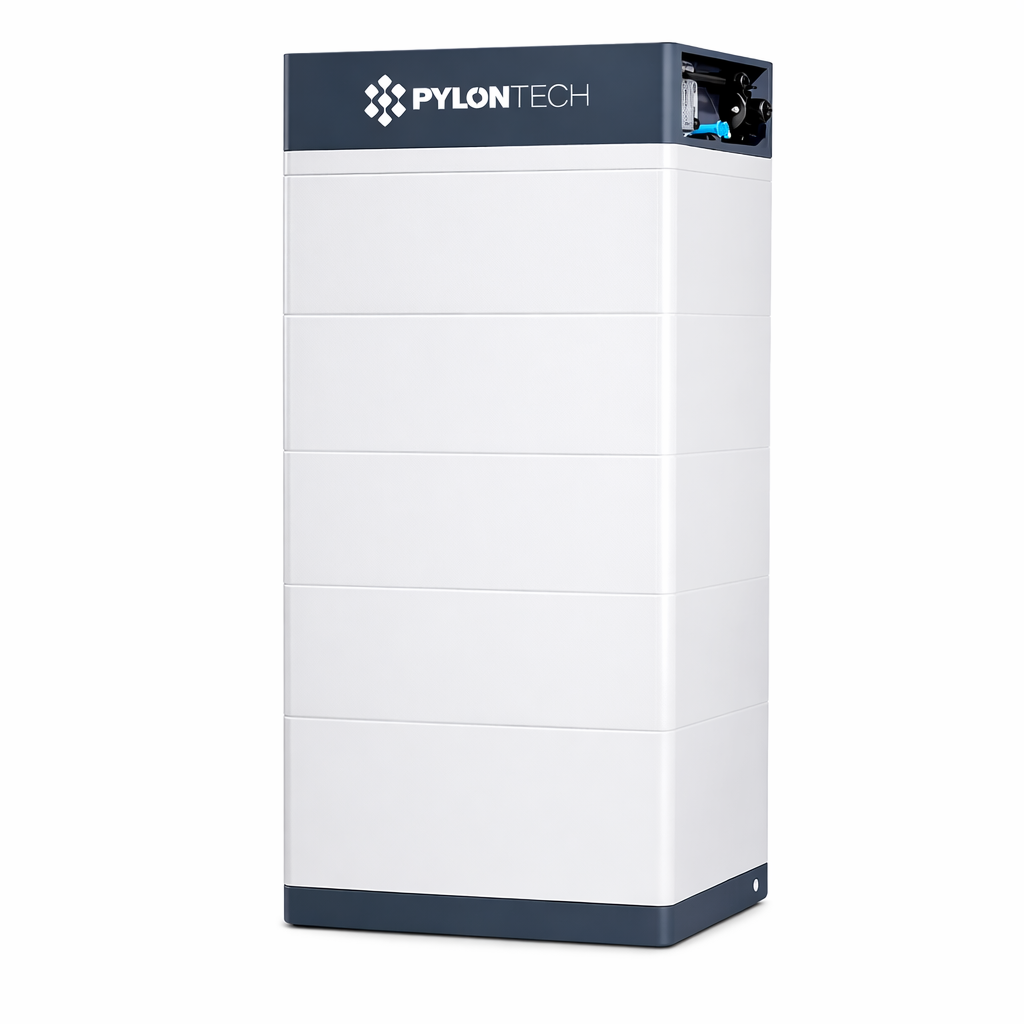

The Force H3 platform is designed around a modular structure. A complete battery stack can use 2 to 7 FH10050 modules, allowing the system capacity to increase as additional modules are added.

The Force H3 system supports up to 6 groups in parallel, subject to the complete system configuration and applicable equipment requirements.

Because of its modular design, installers are given the flexibility needed to design various storage capacities without having to alter the basic FH10050 module.

Technical Specifications

Brand: Pylontech

Series: Force H3

Model: FH10050

Battery Type: High-voltage stackable lithium battery module

Cell Technology: Li-ion (LFP)

Nominal Voltage: 102.4V DC

Capacity: 50Ah

Nominal Energy: 5.12kWh

Cell Quantity: 32

Cell Voltage: 3.2V

Depth of Discharge: 95%

Normal Charge/Discharge Current: 50A

Maximum Charge/Discharge Current: 55A for 15 minutes

Communication: Modbus RTU/CAN

Module Dimensions: 540 × 350 × 170mm

Module Weight: 39kg

Operation Temperature: -10°C to 55°C

Storage Temperature: -20°C to 60°C

Design Life: 15+ years at 25°C

Cycle Life: More than 8,000 cycles

System Protection Rating: IP55

Maximum Parallel Groups: 6 groups

Certification: IEC62040-1, IEC62477-1, IEC62619, IEC63056, UL1973, UL9540A, UN38.3, VDE-AR-E 2510-50

Estimated Backup Time

The amount of time that can be covered by the backup power depends on the battery’s usable energy, the efficiency of the inverter, and the actual load that is connected. The figures mentioned are theoretical and are based on about 95 per cent of the 5.12kWh nominal capacity of the module, before taking into account the losses of the inverter and other real-world factors.

• 500W load: approximately 9.73 hours
• 1kW load: approximately 4.86 hours
• 2kW load: approximately 2.43 hours
• 3kW load: approximately 1.62 hours
• 5kW load: approximately 0.97 hours

The runtime given here is only an estimate and not a guarantee; the actual time taken for the backup will vary depending on inverter efficiency, battery temperature, the age of the battery, changes in load, and the operating limits of the BMS.

Lithium Battery Use in Pakistan

For solar systems in Pakistan, battery selection needs to account for load-shedding requirements, daily cycling, inverter compatibility and installation temperature.

Since the FH10050 is a high-voltage battery module, careful system design is essential. The person carrying out the installation must make sure that the inverter chosen is one that has been designed for the Force H3 voltage system and supports the necessary BMS communication.

When it is hot, the battery should still be installed within the prescribed operating conditions. Proper ventilation, an appropriate amount of installation space and the right inverter battery settings all contribute to ensuring safe and reliable operation.

Pylontech Force H3 FH10050 Price in Pakistan

The current price of Pylontech Force H3 FH10050 5.12kWh 102.4V 50Ah Lithium Battery in Pakistan is Rs. 285,000 per module.

The listed price is for one FH10050 battery module. A complete Force H3 battery stack requires multiple modules plus the applicable control/BDU components, so the total system price depends on the selected configuration.

For customers comparing pylontech force h3 high voltage price, pylontech force h3 high voltage battery price, pylontech force h3 high voltage price, or pylontech force h3 price in pakistan, the module price and complete-stack price should be treated separately.

Hajvery Solar Energy is a Pylontech Official Distributor, providing product availability and purchase guidance for the FH10050.

Hajvery Compatibility and Authenticity Check

Before purchasing, confirm the exact FH10050 model, required number of modules and compatible inverter configuration.

Hajvery Solar Energy, as a Pylontech authorized dealer, can help buyers check the battery configuration and compatibility requirements before purchase.

For customers researching pylontech force h3 battery, pylontech force h3 bms, or pylontech force h3 installation manual, the important buying step is to match the battery system with the complete inverter and BMS communication setup rather than selecting the battery on capacity alone.

Choose Hajvery Solar Energy as an Official Pylontech Distributor for product enquiries and battery configuration guidance.

Warranty and After-Sales Support

The Pylontech Force H3 FH10050 comes with a 10-year replacement warranty as confirmed for this product listing.

Warranty coverage is still governed by the relevant warranty terms and conditions. Buyers should keep the product and serial number needed for warranty support.

Hajvery Solar Energy is an authorized Pylontech dealer, providing a direct route for product enquiries, compatibility guidance and applicable warranty support.

Before You Buy

Before ordering the Pylontech Force H3 FH10050, confirm:

• Battery voltage: The module is 102.4V nominal.
• Required capacity: One module provides 5.12kWh nominal energy.
• System configuration: Force H3 stacks use multiple modules.
• Inverter compatibility: Confirm exact HV battery compatibility.
• BMS communication: Confirm CAN/Modbus requirements.
• Charge/discharge current: Check the inverter against the battery limits.
• Installation location: Follow the applicable temperature and installation requirements.
• Expansion requirement: Determine the required number of battery modules before purchase.
• Warranty: Confirm the applicable 10-year replacement warranty terms.

Frequently Asked Questions

What is the Pylontech Force H3 FH10050?

The FH10050 is a 5.12kWh, 102.4V, 50Ah Li-ion LFP battery module for the Pylontech Force H3 high-voltage storage system.

What is the Pylontech Force H3 battery capacity?

One FH10050 module has 5.12kWh nominal capacity. Force H3 systems can be built using multiple modules for larger storage capacity.

Is the Pylontech Force H3 a high-voltage battery?

Yes. The FH10050 module has a 102.4V nominal voltage and is designed for the Force H3 high-voltage battery architecture.

What is the Pylontech Force H3 battery price in Pakistan?

The current price of Pylontech Force H3 FH10050 in Pakistan is Rs. 285,000 per module.

What is the Pylontech Force H3 cycle life?

The Force H3 system has a specified cycle life of more than 8,000 cycles at 25°C, subject to the defined operating conditions.

What communication does the Pylontech Force H3 use?

The Force H3 system supports Modbus RTU/CAN communication for compatible energy-storage equipment.

Can the FH10050 be used with any solar inverter?

No. The battery requires a compatible high-voltage inverter/PCS and supported BMS communication. Voltage compatibility alone is not sufficient.

What warranty is available with the FH10050?

The product listing carries a 10-year replacement warranty, subject to the applicable warranty terms.

Buy Pylontech Force H3 FH10050 from Hajvery Solar

The Pylontech Force H3 FH10050 is a modular high-voltage lithium battery module for expandable solar energy storage. With 5.12kWh capacity, 102.4V nominal voltage, 95% DoD and more than 8,000 specified cycles, it can be used as a building block for compatible Force H3 storage systems.

Contact Hajvery Solar Energy for current availability, battery configuration and inverter compatibility guidance.
