ZNShine Solar 595W N-Type Bifacial Monocrystalline Solar Panel

ZNShine Solar 595W N-Type Bifacial Monocrystalline Solar Panel | ZXM7-GPLDD144 Series

For Price Updates
WhatsApp Us

The ZNShine Solar 595W Bifacial N-Type Solar Panel is a high-efficiency double glass PV module designed for strong power output, long-term durability, and improved energy generation from both front and rear sides. With up to 23.02% module efficiency, SMBB half-cell technology, and up to 25% additional rear-side power gain, it is an excellent choice for commercial, industrial, and large-scale solar installations.

The ZNShine Solar ZXM7-GPLDD144 595W is a premium N-Type bifacial double glass monocrystalline solar panel engineered for high performance and reliable long-term operation. Its bifacial technology allows the panel to generate extra power from the rear side depending on ground reflection and installation conditions, offering up to 25% additional power gain.

Built with SMBB half-cell technology, the module reduces electrical resistance and improves power output. The double glass structure provides enhanced mechanical strength and durability, making it suitable for harsh outdoor environments including salt, ammonia, sand, high temperature, and high humidity conditions.

This panel also features Anti-PID protection, better weak-light performance, and an IP68 junction box for reliable operation in demanding solar projects. ZNShine Solar provides a 12-year product warranty and 30-year output guarantee, making this module a strong option for long-term solar investment.

Specification	Details
Brand	ZNShine Solar
Series	ZXM7-GPLDD144 Series
Product Type	N-Type Bifacial Double Glass Monocrystalline PV Module
Rated Power	595W
Module Efficiency	23.02%
Solar Cells	N-Type Monocrystalline
Cell Layout	144 Cells, 6 × 24
Technology	SMBB Half-Cell, Bifacial
Maximum Power Voltage	43.40V
Maximum Power Current	13.71A
Open Circuit Voltage	52.10V
Short Circuit Current	14.51A
Module Dimensions	2279 × 1134 × 30 mm
Weight	31.5 ± 1.0 kg
Glass	2.0mm + 2.0mm High Transmission AR Coated Heat Strengthened Glass
Junction Box	IP68, 3 Diodes
Cable	4mm², 900mm with Connectors
Connector	MC4-Compatible
Maximum System Voltage	1500V DC
Operating Temperature	-40°C to +85°C
Maximum Series Fuse	30A
Front Side Maximum Static Loading	Up to 5400Pa
Rear Side Maximum Static Loading	Up to 2400Pa
NMOT	44°C ± 2°C
Temperature Coefficient of Pmax	-0.30 ± 0.03%/°C
Temperature Coefficient of Voc	-0.25%/°C
Temperature Coefficient of Isc	0.046%/°C
Rear Side Power Gain	Up to 25%, depending on albedo
Product Warranty	12 Years
Output Guarantee	30 Years
Packaging	36 Pieces per Box
Container Loading	720 Pieces per 40’HQ

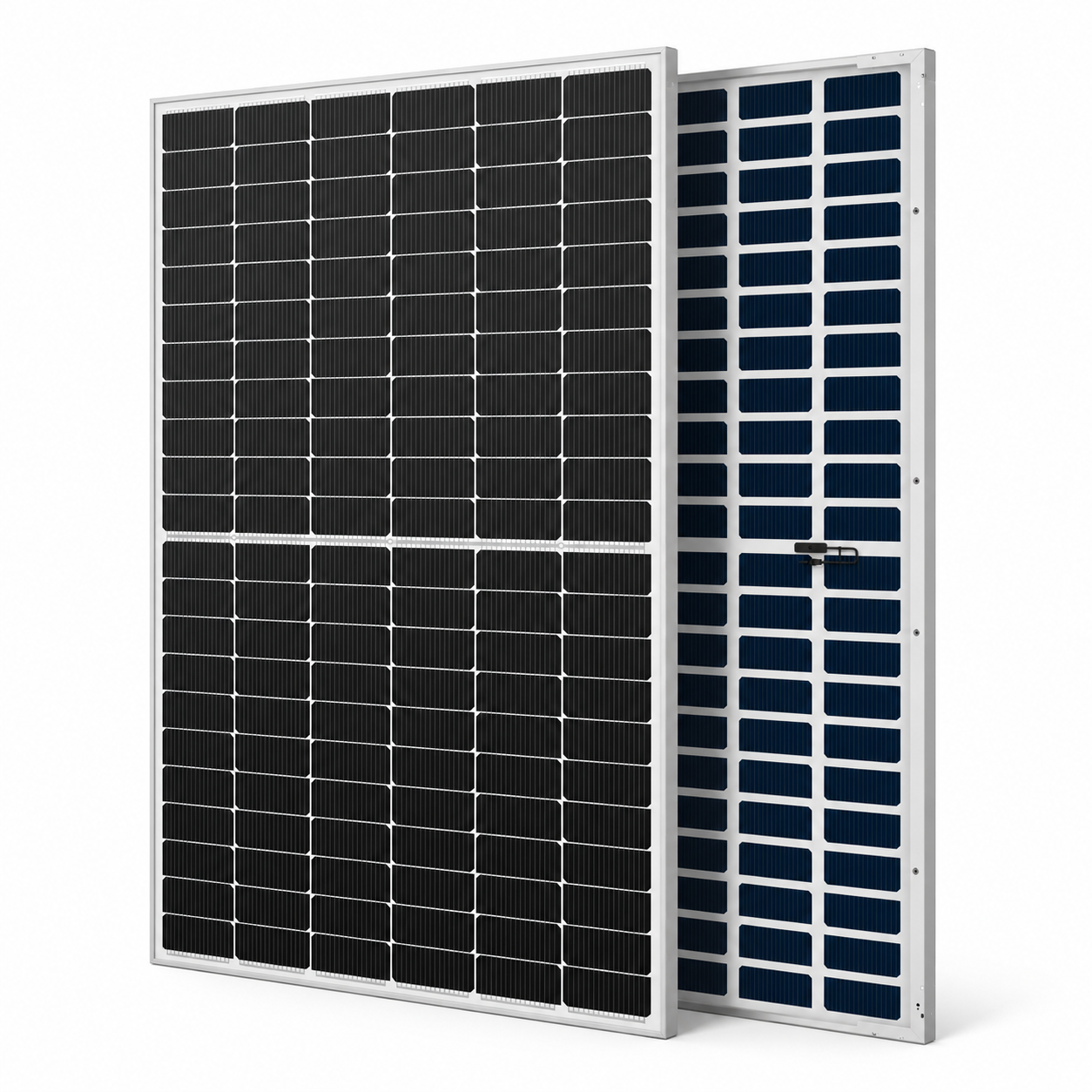

ZNShine Solar 595W N-Type Bifacial Monocrystalline Solar Panel | ZXM7-GPLDD144 Series - Image 1

Click to enlarge

DATA SHEET

Add to wishlist

Categories: SOLAR PANELS, ZNShine

Description

Specification	Details
Brand	ZNShine Solar
Series	ZXM7-GPLDD144 Series
Product Type	N-Type Bifacial Double Glass Monocrystalline PV Module
Rated Power	595W
Module Efficiency	23.02%
Solar Cells	N-Type Monocrystalline
Cell Layout	144 Cells, 6 × 24
Technology	SMBB Half-Cell, Bifacial
Maximum Power Voltage	43.40V
Maximum Power Current	13.71A
Open Circuit Voltage	52.10V
Short Circuit Current	14.51A
Module Dimensions	2279 × 1134 × 30 mm
Weight	31.5 ± 1.0 kg
Glass	2.0mm + 2.0mm High Transmission AR Coated Heat Strengthened Glass
Junction Box	IP68, 3 Diodes
Cable	4mm², 900mm with Connectors
Connector	MC4-Compatible
Maximum System Voltage	1500V DC
Operating Temperature	-40°C to +85°C
Maximum Series Fuse	30A
Front Side Maximum Static Loading	Up to 5400Pa
Rear Side Maximum Static Loading	Up to 2400Pa
NMOT	44°C ± 2°C
Temperature Coefficient of Pmax	-0.30 ± 0.03%/°C
Temperature Coefficient of Voc	-0.25%/°C
Temperature Coefficient of Isc	0.046%/°C
Rear Side Power Gain	Up to 25%, depending on albedo
Product Warranty	12 Years
Output Guarantee	30 Years
Packaging	36 Pieces per Box
Container Loading	720 Pieces per 40’HQ
