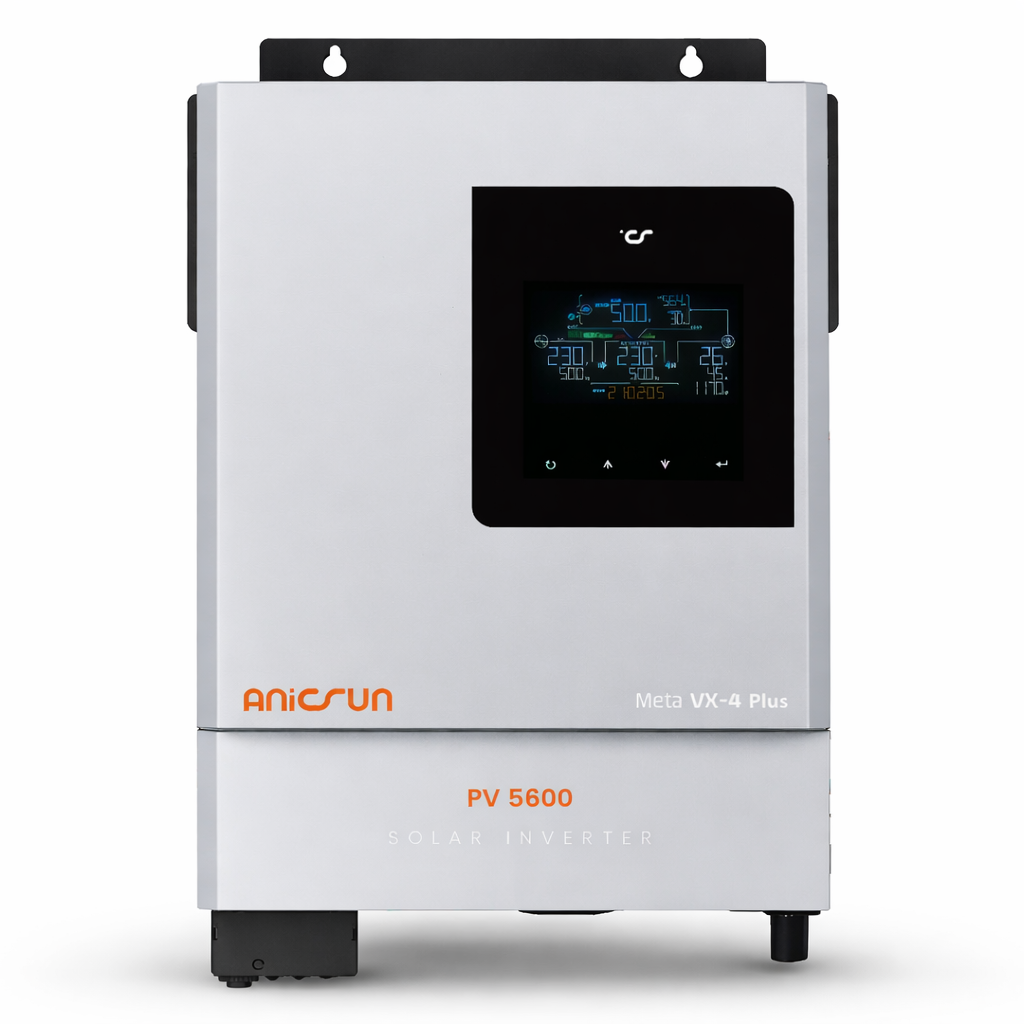

Anicrun Meta VX 4KW Plus

📊 Product Specification

🔹 General Specifications

Parameter	Specification
Model	Meta VX 4 Plus
Rated Power	4000VA / 4000W
Surge Power	8000VA
Efficiency (Peak)	90% – 93%
Waveform	Pure Sine Wave
Transfer Time	10ms (PC), 20ms (Appliances)

🔹 Input Specifications

Parameter	Specification
Voltage Range	170–280 VAC (PC), 90–280 VAC (Appliances)
Frequency Range	50Hz / 60Hz (Auto Sensing)

🔹 Output Specifications

Parameter	Specification
Output Voltage	230 VAC
Voltage Regulation	±10%

🔹 Battery Specifications

Parameter	Specification
Battery Voltage	24 VDC
Floating Charge Voltage	27 VDC
Overcharge Protection	33 VDC

🔹 Solar Charger & AC Charger

Parameter	Specification
Solar Charger Type	MPPT
Max PV Array Power	5600W
Max PV Open Circuit Voltage	500 VDC
MPPT Voltage Range	60 – 450 VDC
Max Solar Charge Current	120A
Max AC Charge Current	120A
Max Charging Current	40A
Max PV Input Current	100A

🔹 Physical Specifications

Parameter	Specification
Dimensions (D × W × H)	136 × 300 × 400 mm
Net Weight	Not clearly specified

🔹 Communication & Connectivity

Parameter	Specification
Communication Ports	USB, RS-232, RS-485
Wireless Connectivity	Wi-Fi
Additional	Dry Contact

🔹 Operating Environment

Parameter	Specification
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
Humidity	5% – 95% (Non-condensing)

Description

The Anicrun Meta VX 4KW Plus is a high-performance hybrid solar inverter engineered to deliver reliable and efficient energy management for residential and small commercial applications. Designed with advanced MPPT technology and pure sine wave output, this inverter ensures stable power delivery for sensitive electronics and heavy-load appliances alike.

With support for battery-less operation, integrated Wi-Fi monitoring, and dual output functionality, the Meta VX 4KW Plus offers flexibility and smart energy control. Its wide PV input range and high solar charging capacity make it ideal for maximizing solar energy utilization, even under varying environmental conditions.

The system is fully compatible with modern battery management systems (BMS), ensuring seamless integration with energy storage solutions. Built with robust safety features, fast transfer times, and high efficiency, this inverter guarantees uninterrupted power and long-term durability.
