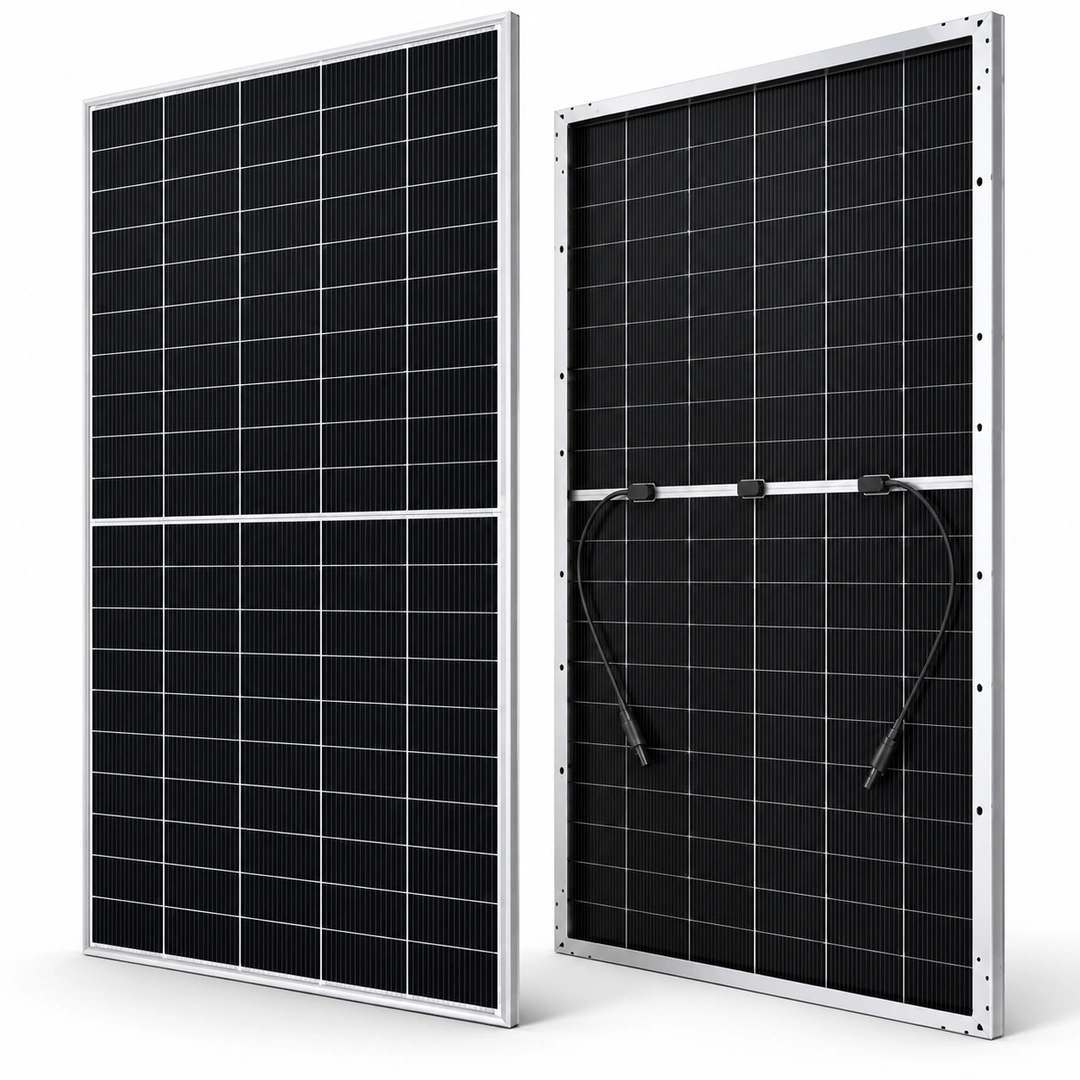

Canadian 630W X20 Bifacial Solar Panel

Canadian 630W X20 Bifacial Solar Panel Overview

The Canadian 630W X20 Bifacial Solar Panel is designed for solar installations that require high individual module output. Its 630W rated capacity helps installers achieve the required array power with fewer modules than a lower-wattage design, subject to the project’s electrical and physical requirements. Buyers can check Canadian 630W X20 Bifacial Solar Panel price in pakistan before buying.

The panel uses N-type TOPCon cells and a bifacial structure. While the front side produces power from direct sunlight, the rear side can capture reflected light from the surrounding surface. The additional energy produced by the rear side depends on factors such as mounting height, tilt angle, ground reflectivity and installation layout.

With a 23.3% module efficiency, this panel makes effective use of the available installation area. Its temperature coefficient of -0.29%/°C also helps buyers assess how output changes as cell temperature rises above standard test conditions.

The panel is suitable for properly designed residential, commercial and industrial solar projects. Final selection should always consider the inverter’s voltage and current limits, the required string configuration and the available installation space.

Key Features and Benefits

N-Type TOPCon Cell Technology

The module uses N-type TOPCon cells to deliver its rated power output. This cell technology is designed for efficient solar energy conversion and supports the panel’s high-output design.

For buyers, the combination of rated power and module efficiency helps when planning an array for a limited roof area or a larger ground-mounted installation.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Solar Energy Generation

The bifacial design allows the module to collect sunlight from its front and rear surfaces. The rear-side contribution can increase total energy generation when the mounting structure and ground surface allow sufficient reflected light to reach the back of the panel.

Canadian Solar specifies a power bifaciality of 80% ± 5% for this module. This is a cell/module performance characteristic, not a promise of a fixed percentage increase in total system output.

High Module Efficiency

The 630W rated output and 23.3% module efficiency make this panel suitable for projects where available space and the number of modules are important considerations.

Actual energy production will depend on sunlight, shading, orientation, temperature, dust and the overall system design.

Dual-Glass Construction

The panel has 2.0mm heat-strengthened glass on both the front and rear sides. Its anodized aluminium-alloy frame supports the module structure, while the IP68-rated junction box includes three bypass diodes.

These construction features are relevant when evaluating the panel for outdoor installation. Proper handling, mounting and installation remain essential.

Low Power Degradation

The panel’s stated degradation limits are:

• First-year power degradation: No more than 1%.
• Subsequent annual power degradation: No more than 0.4%.

These figures help buyers understand the long-term power-performance warranty. Actual output will still depend on operating and environmental conditions.

Best For

The Canadian 630W X20 Bifacial Solar Panel is worth considering for:

• Residential solar systems where roof space and high module output are important.
• Commercial rooftops requiring a carefully designed high-capacity solar array.
• Industrial solar installations with suitable mounting structures and electrical infrastructure.
• Ground-mounted solar projects where rear-side light exposure can be improved.
• Solar installers and dealers planning systems around high-wattage bifacial modules.

When Another Panel May Be Better

This panel may not be the right choice when the available mounting area cannot accommodate its dimensions, the inverter cannot accept its electrical characteristics, or the installation does not provide suitable clearance for a bifacial module.

Projects with strict module-size limits or different string-voltage and current requirements should be designed around the actual site conditions rather than wattage alone.

Cell and Module Technology

The Canadian 630W X20 Bifacial Solar Panel combines N-type TOPCon cell technology with a dual-glass bifacial construction.

Its front side receives direct sunlight, while the rear side can collect reflected light. The amount of additional rear-side generation varies with ground reflectivity, module height, tilt, shading and mounting arrangement.

The module has 132 cells arranged in a 2 × (11 × 6) configuration. Its power bifaciality is rated at 80% with a tolerance of ±5%.

Technical Specifications

Bifacial Power Gain Reference

Bifacial gain depends on the amount of light reaching the rear surface. The following values are calculated module-power figures under the stated bifacial-gain assumptions, not guaranteed system output.

These figures use the 630W front-side rated power as the baseline. Actual rear-side gain depends on site and mounting conditions.

Performance and Degradation

The panel’s first-year power degradation is no more than 1%, followed by subsequent annual degradation of no more than 0.4%. Its 30-year linear power performance warranty covers long-term power performance under the applicable warranty terms.

The temperature coefficient of -0.29%/°C indicates how maximum power changes as cell temperature rises above the reference temperature of 25°C. It is useful for comparing module temperature behaviour, but it does not predict total daily or annual energy production on its own.

Solar output also depends on irradiance, shading, dust, orientation, installation quality and inverter performance.

Performance Considerations for Pakistan

In Pakistan, summer temperatures can raise solar-cell temperatures well above ambient air temperature. The panel’s -0.29%/°C power temperature coefficient is therefore a useful factor when assessing expected performance in hot weather.

Dust accumulation can reduce light reaching the cells, so cleaning should follow suitable manufacturer maintenance guidance and safe working practices.

For bifacial installations, rear-side clearance and the reflectivity of the ground surface can affect additional energy generation. The mounting structure should avoid unnecessary rear-side shading while providing appropriate mechanical support.

Installers should also check temperature-adjusted open-circuit voltage, operating current and inverter limits before deciding how many modules to connect in series or parallel.

Canadian 630W X20 Bifacial Solar Panel Price in Pakistan

The Canadian 630W X20 Bifacial Solar Panel price in pakistan is an important consideration for buyers planning a new solar system or expanding an existing installation.

For a complete project, the total panel cost depends on the number of modules required. Inverter capacity, mounting structure, wiring, protection equipment and installation labour are separate system-design considerations.

Buyers looking for the canadian 630w x20 bifacial solar panel price in Pakistan should confirm the latest price and availability with Hajvery Solar before placing an order.

Hajvery Solar Energy serves solar buyers, installers and dealers from Johar Town, Lahore. Bulk orders and project quantities can be discussed directly with the sales team.

Canadian Solar Panel Authenticity and Product Verification

Before purchasing a Canadian 630 watt solar panel, check the exact model code, serial information, product condition and applicable warranty. The model identifier for this 630W version is CS6.2-66TB-630.

A panel’s wattage or appearance alone does not establish authenticity. Buyers should retain their purchase documentation and confirm the relevant warranty terms and product identification with the seller.

Hajvery Solar can help buyers with product-selection questions and system compatibility checks before an order is finalised.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian 630W X20 Bifacial Solar Panel comes with a 12-year enhanced product warranty covering materials and workmanship and a 30-year linear power performance warranty, subject to the applicable Canadian Solar Limited Warranty Statement and its terms.

Product warranty and power performance warranty cover different aspects of the panel. Buyers should confirm the applicable warranty conditions, coverage and claim process before purchasing.

Before You Buy

Before selecting this panel, confirm the following:

• The mounting area can accommodate the panel’s dimensions and weight.
• The inverter supports the module’s operating voltage and current.
• Temperature-adjusted string voltage remains within the inverter’s permitted limits.
• The maximum series fuse rating and system voltage limits are respected.
• The mounting arrangement provides suitable mechanical support.
• The rear side has appropriate clearance if bifacial generation is an important design objective.
• The applicable product and performance warranty terms are understood.

A qualified solar installer should check the full array design against the inverter specifications and site conditions.

Frequently Asked Questions

1. What is the Canadian 630W X20 Bifacial Solar Panel price in Pakistan?

The current price of the Canadian 630W X20 Bifacial Solar Panel in Pakistan is Rs. 26,460 per panel. Confirm current availability and any quantity-based offer with Hajvery Solar.

2. What are the specifications of the Canadian 630W X20 Bifacial Solar Panel?

The panel has a rated output of 630W, N-type TOPCon cells, 23.3% module efficiency, a 41.6V maximum-power voltage and a 15.16A maximum-power current.

3. Is the Canadian 630W X20 a bifacial solar panel?

Yes. Its bifacial design allows the rear side to collect reflected light. Additional generation depends on mounting height, tilt, ground reflectivity and rear-side shading.

4. What is the efficiency of this Canadian Solar panel?

The 630W version has a module efficiency of 23.3% under standard test conditions.

5. What is the warranty on the Canadian 630W X20 Bifacial Solar Panel?

It has a 12-year product warranty covering materials and workmanship and a 30-year linear power performance warranty, subject to the applicable warranty terms.

6. Is this panel suitable for residential and commercial solar systems?

It can be used in suitably designed residential and commercial systems. The final selection depends on installation space, inverter compatibility, string configuration and project requirements.

7. What is the exact model number of the Canadian 630W X20?

The exact model number is CS6.2-66TB-630.

8. How much additional power can the bifacial design produce?

The additional output varies with installation conditions. A 10% bifacial-gain calculation gives 693W from the 630W front-side rating, but this is an illustrative calculation rather than guaranteed operating output.

Buy Canadian 630W X20 Bifacial Solar Panel from Hajvery Solar

Choose Hajvery Solar Energy for product enquiries and guidance on selecting solar panels for your project. Whether you are planning a residential installation, a commercial rooftop or a larger solar array, confirm the exact model, price, availability and warranty terms before ordering.
