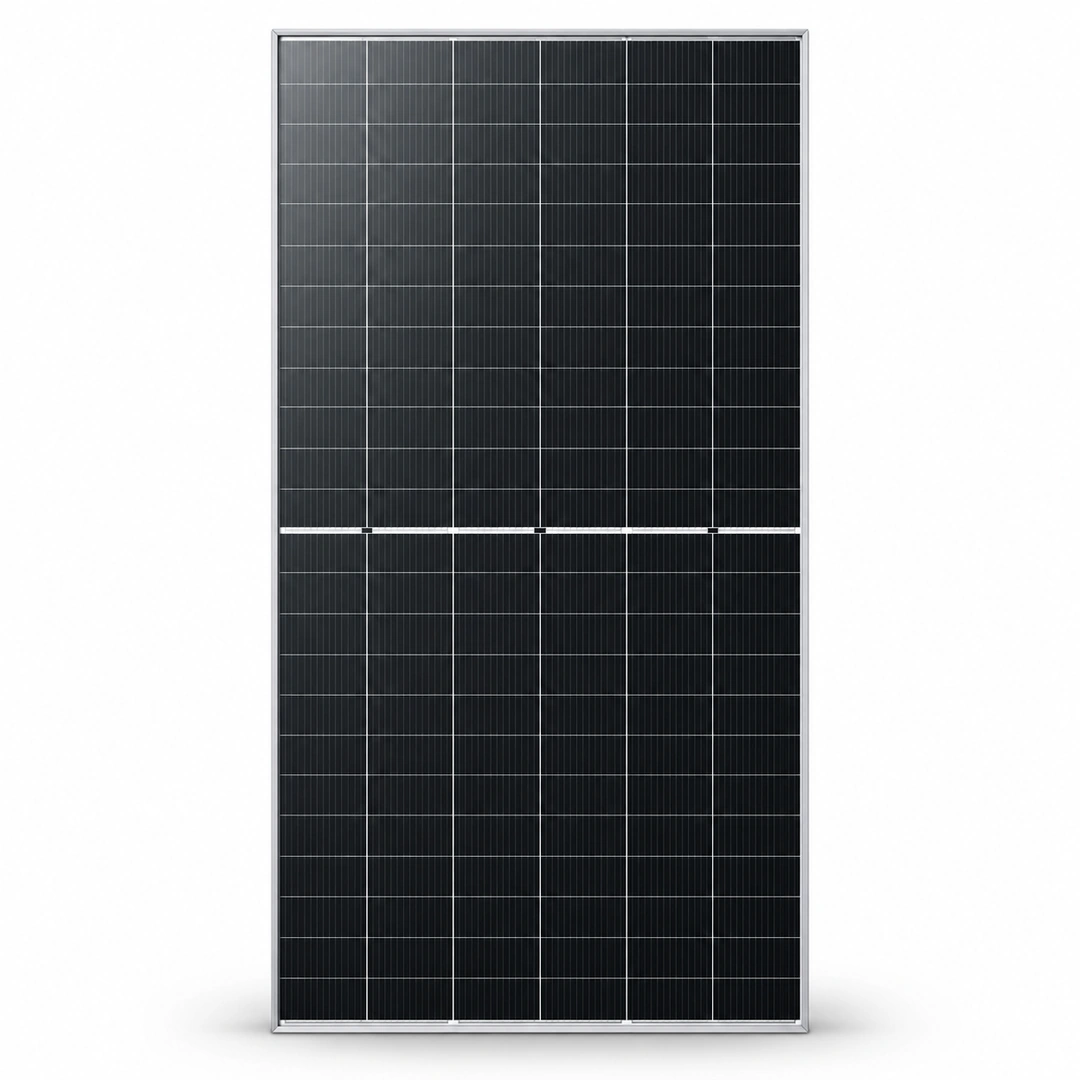

Canadian 710W Bifacial Solar Panel

Canadian 710W Bifacial Solar Panel Overview

The Canadian 710W Bifacial Solar Panel combines high rated power with N-Type TOPCon technology and a dual-glass bifacial design. It is intended for solar installations that need substantial output from each module, including commercial rooftops, industrial sites and suitable ground-mounted solar projects. Buyers can check the Canadian Solar 710W panel price in Pakistan with Hajvery Solar Energy and confirm current availability before ordering.

The front side converts direct sunlight into electricity, while the rear side can capture reflected light from the installation surface. The additional energy gained from the rear depends on ground reflectivity, mounting structure, panel height, tilt angle and surrounding conditions. Bifacial gain is therefore not a fixed increase in every installation.

With a rated output of 710W and module efficiency of 22.9%, this panel can help reduce the number of modules required for a given DC capacity compared with lower-output modules, subject to the project’s electrical and physical design. Its large dimensions and electrical characteristics must be considered before selecting mounting structures, inverters and string configurations.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type TOPCon cells, a technology designed for high module output and low power degradation. Its 710W rating makes it suitable for projects that need high-capacity modules and efficient use of available installation space.

The module’s rated efficiency is 22.9%. Actual system performance will depend on operating conditions, orientation, shading, temperature and other installation factors.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Energy Generation

The bifacial design allows the panel to collect light from both sides. The rear side can contribute additional power when reflected sunlight reaches the cells.

For better results, installers should consider mounting height, ground reflectivity, row spacing and shading behind the module. A suitable light-coloured or reflective surface may improve rear-side energy collection, but the actual gain varies by site.

High Power Output

With 710W rated power, this module is designed for installations that need substantial output per panel. High-wattage modules can help reduce the number of panels required for a target system capacity, although roof dimensions, weight limits, string voltage and inverter current limits must also be checked.

Low Temperature Coefficient

The temperature coefficient of maximum power is -0.29%/°C. Solar modules generally produce less power as cell temperature rises above the reference test temperature. A lower absolute temperature coefficient helps limit this temperature-related reduction.

For Pakistan’s hot summers, suitable mounting clearance, airflow and installation design remain important for managing module temperature.

Dual-Glass Construction

The panel has 2.0mm heat-strengthened glass on both the front and rear sides, with an anodized aluminium alloy frame. This construction is suited to installations requiring a glass-glass bifacial module.

The junction box has an IP68 rating and includes three bypass diodes. Correct handling, mounting and electrical protection are still necessary during installation.

Low Power Degradation

The panel has a maximum first-year power degradation of 1%, followed by a maximum annual degradation of 0.4% for subsequent years under the stated linear power performance warranty terms.

This gradual degradation framework helps buyers assess long-term power performance. Actual output will also depend on operating conditions, maintenance, shading and system design.

Best For

The Canadian 710W Bifacial Solar Panel may suit:

• Commercial solar installations requiring high-output modules.
• Industrial solar projects with suitable mounting space and electrical infrastructure.
• Ground-mounted solar systems where rear-side light collection can be planned effectively.
• Large rooftop installations with adequate structural capacity and space for large modules.
• Solar developers and installers designing high-capacity PV arrays.
• Projects seeking N-Type TOPCon technology and long-term power performance coverage.

When Another Panel May Be Better

This panel may not be the right choice where:

• The available roof space cannot accommodate its large dimensions.
• The mounting structure cannot safely support the module’s weight and installation loads.
• The inverter’s maximum DC voltage or input-current limits do not suit the panel.
• The project requires smaller modules for easier handling or a specific mounting layout.
• The installation cannot provide suitable rear-side light access and the project does not benefit from bifacial generation.

Always assess module dimensions, electrical limits, structural requirements and the complete system design before purchase.

Cell and Module Technology

The Canadian 710W N-Type TOPCon Bifacial Solar Panel uses TOPCon cell technology and a bifacial module structure. These features address two different aspects of solar generation: cell-level conversion performance and the ability to collect light from the rear side.

The front side receives direct sunlight, while the rear side can use reflected light from the ground or nearby surfaces. The amount of additional generation depends on installation conditions rather than the wattage rating alone.

The module contains 132 cells arranged in a 2 × (11 × 6) configuration. Its glass-glass construction includes 2.0mm heat-strengthened front glass with an anti-reflective coating and 2.0mm heat-strengthened rear glass.

Technical Specifications

Important installation note: The selected module configuration must remain within the inverter’s maximum DC voltage, MPPT operating range and input-current limits. The maximum system voltage option must be matched to the applicable module rating and system design.

Performance and Degradation

The panel’s performance warranty provides a framework for evaluating its long-term power output.

• First-year degradation: No more than 1%.
• Subsequent annual degradation: No more than 0.4% per year.
• Performance warranty: 30-year linear power performance warranty.

These figures describe the stated power-performance warranty terms, not a guarantee of fixed annual electricity production. Real energy generation depends on sunlight, temperature, installation angle, shading, dust, cleaning and system losses.

The -0.29%/°C temperature coefficient is particularly relevant when assessing module output during hot weather. Good ventilation behind the panels can help reduce operating temperature, depending on the mounting design.

Performance Considerations for Pakistan

Pakistan’s solar installations experience seasonal changes in sunlight, high summer temperatures and dust accumulation. The panel’s high rated output can be useful for commercial and industrial projects, but the system must be designed around the actual installation environment.

Temperature management: Provide appropriate mounting clearance and ventilation to support airflow behind the modules.

Dust and cleaning: Dust can reduce the sunlight reaching the cells. Establish a suitable cleaning schedule based on the site’s dust levels, rainfall and operating conditions.

Bifacial installation: Rear-side generation depends on reflected light. Avoid unnecessary shading from mounting rails, cable routing, nearby structures and adjacent panel rows.

Electrical design: The 710W rating alone does not determine how many modules can be connected in a string. The installer must check voltage, current, temperature-adjusted open-circuit voltage and inverter limits.

Structural planning: Each panel weighs 37.8kg and measures 2384 × 1303mm. The mounting structure and roof must be assessed for module weight, wind loading and applicable installation requirements.

Canadian 710W Bifacial Solar Panel Price in Pakistan

The canadian 710w bifacial solar panel price in pakistan is an important consideration for buyers planning a commercial, industrial or large-scale solar installation.

The current price of the Canadian 710W Bifacial Solar Panel in Pakistan is Rs. 29,820 per panel.

The final project cost depends on the number of modules, mounting structure, inverter selection, protection equipment, cabling, transport and installation requirements. Dealers, installers and bulk buyers can contact Hajvery Solar Energy to confirm availability and quantity-based pricing.

For buyers comparing the canadian 710w bifacial solar panel price, it is important to evaluate efficiency, bifacial design, module dimensions, electrical compatibility and warranty coverage along with the per-panel rate.

Tier 1, A-Grade and Product Authenticity

Buyers evaluating solar panels should consider the exact model, product condition, serial identification and applicable warranty terms rather than relying on wattage alone.

Before ordering, confirm that the supplied module matches CS7N-710TB-AG, inspect its physical condition and check the applicable warranty arrangements. Do not assume an A-grade condition, stock status or any additional certification without verification.

Hajvery Solar Product Verification

Hajvery Solar Energy helps buyers assess product identity and installation requirements before purchase. For this module, the main checks include:

• Confirm the exact 710W model.
• Verify module dimensions and mounting compatibility.
• Check the inverter’s voltage and current limits.
• Confirm the appropriate connector and cable arrangement.
• Review the product and power performance warranty terms.
• Confirm current availability and the final quantity-based price before ordering.

Installers should also evaluate string configuration and system voltage under expected temperature conditions before finalising the design.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian 710W Bifacial Solar Panel has a 12-year enhanced product warranty covering materials and workmanship and a 30-year linear power performance warranty.

The stated power degradation limits are no more than 1% in the first year and no more than 0.4% annually in subsequent years. Product and performance warranties are separate forms of coverage and should not be treated as interchangeable.

Before purchase, confirm the applicable warranty statement, eligibility requirements and claim procedure with the seller. Warranty coverage remains subject to the applicable terms and conditions.

Before You Buy

Check the following points before selecting this module for your project:

1. Roof or mounting space: Confirm that the available area accommodates the module dimensions.
2. Structural capacity: Account for the module’s weight and installation loads.
3. Inverter compatibility: Check maximum DC voltage, MPPT range and input-current limits.
4. String design: Calculate the number of modules per string using the inverter specifications and temperature-adjusted voltage.
5. Bifacial installation: Assess rear-side clearance, reflective surfaces and potential shading.
6. Electrical protection: Select suitable cables, connectors, fuses and other protective equipment.
7. Warranty: Confirm product coverage and power performance terms.
8. Price and availability: Verify the current rate and quantity before placing the order.

Frequently Asked Questions

Is the Canadian 710W Bifacial Solar Panel an N-Type panel?

Yes. It uses N-Type TOPCon cell technology and has a rated output of 710W.

What is the efficiency of the Canadian 710W Bifacial Solar Panel?

The module efficiency is 22.9%. Actual energy production depends on installation and operating conditions.

Does the Canadian 710W panel generate electricity from both sides?

Yes. Its bifacial design allows the rear side to collect reflected light. Additional generation varies with mounting height, ground reflectivity, tilt angle and shading.

What are the dimensions of the Canadian 710W solar panel?

The module measures 2384 × 1303 × 33mm and weighs 37.8kg.

What is the Canadian 710w solar panel price in pakistan?

The current price is Rs. 29,820 per panel. Contact Hajvery Solar Energy to confirm current availability and bulk pricing.

What warranty does the Canadian 710W Bifacial Solar Panel have?

It has a 12-year product warranty covering materials and workmanship, along with a 30-year linear power performance warranty. Applicable conditions should be confirmed before purchase.

How do I check the Canadian 710W panel’s inverter compatibility?

Check the module’s voltage and current specifications against the inverter’s maximum DC voltage, MPPT operating range and input-current limits. String design should account for temperature-related voltage changes.

Where can I find the Canadian 710w bifacial solar panel manual?

For installation guidance, ask your supplier or installer for the applicable Canadian 710w bifacial solar panel manual and confirm that it matches model CS7N-710TB-AG before installation.

Buy Canadian 710W Bifacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy serves solar buyers, installers, dealers and commercial customers from 280K Block J-1, Johar Town, Lahore. Contact the team to enquire about the Canadian 710W Bifacial Solar Panel, confirm availability and discuss your project’s module and inverter compatibility requirements.
