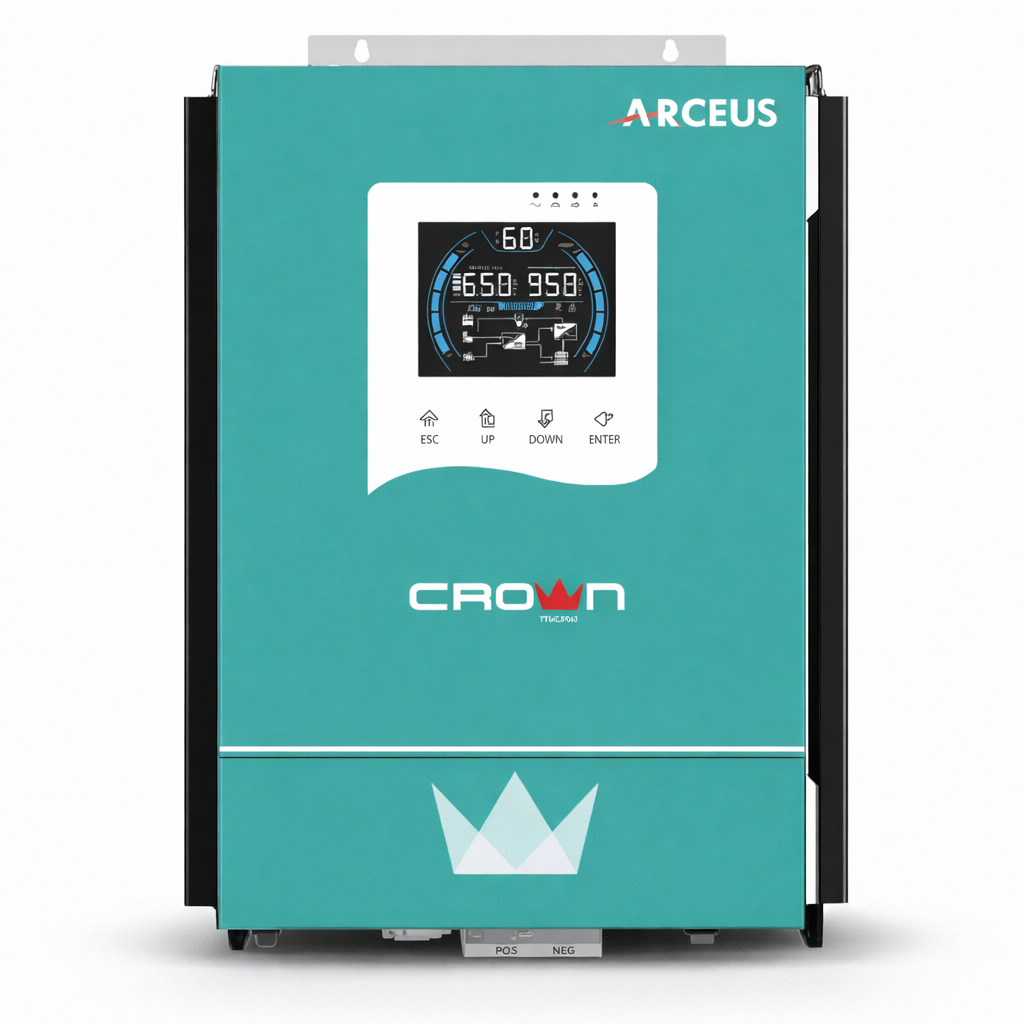

Arceus 5.8KW PV-6000 Hybrid Solar Inverter
📊 Technical Specifications (Arceus 5.8KW PV-6000)
🔹 General
| Parameter | Value |
|---|---|
| Model | Arceus 5.8KW |
| Rated Power | 5800VA / 5800W |
| Power Factor | 1.0 |
🔌 Input
| Parameter | Value |
|---|---|
| Input Sources | AC Mains / Generator |
| Rated Input Voltage | 208 / 220 / 230 / 240 VAC |
| Voltage Range | 90–280VAC (APP Mode) |
| 170–264VAC (UPS Mode) | |
| Frequency | 50Hz / 60Hz (Auto adaptive) |
⚡ Output
| Parameter | Value |
|---|---|
| Output Voltage | 208 / 220 / 230 / 240 VAC ±5% |
| Output Frequency | 50 / 60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms |
| Peak Power | 11600VA |
| Efficiency (Battery Mode) | >94% |
🔋 Battery
| Parameter | Value |
|---|---|
| Battery Voltage | 48VDC |
| Max Discharge Current | 128A |
| Constant Charging Voltage | 51.75V |
☀️ Solar Charger (MPPT)
| Parameter | Value |
|---|---|
| Solar Charger Type | MPPT |
| Max PV Input Power | 6000W |
| MPPT Voltage Range | 120–450VDC |
| Max PV Input Voltage | 500VDC |
| Max PV Input Current | 18A |
| Max PV Charging Current | 100A |
| Max AC Charging Current | 80A |
| Max Charging Current | 100A |
📡 Communication & Interface
| Parameter | Value |
|---|---|
| Display | LCD (Loads/Input/Output Info) |
| Communication Ports | RS232 |
| Additional Interface | Wi-Fi / USB / CAN / RS485 |
| Parallel Support | Yes |
🌡️ Operating Environment
| Parameter | Value |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 20% – 85% (Non-condensing) |
| Altitude | ≤1000m (Derating above) |
📐 Physical Specifications
| Parameter | Value |
|---|---|
| Ingress Protection | IP20 |
| Noise Level | ≤50dB |

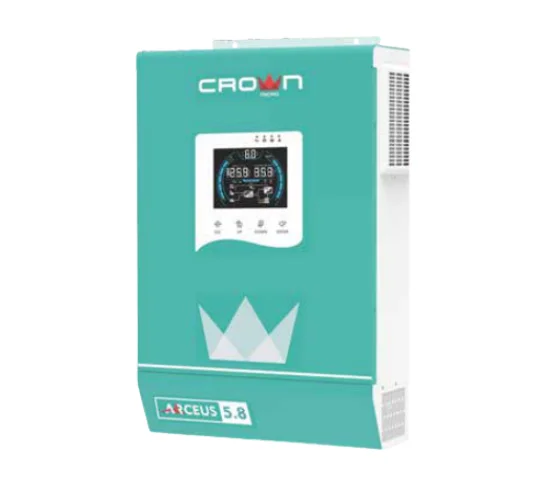

🔋 Arceus 5.8KW PV-6000 Hybrid Solar Inverter
📌 Product Description
The Arceus 5.8KW PV-6000 is a reliable and efficient pure sine wave hybrid solar inverter designed for residential and small commercial energy systems. Built with advanced MPPT technology, it ensures optimal solar energy harvesting while delivering stable and clean power output.
This inverter supports AC mains and generator input, along with a battery-independent design, providing flexible installation and uninterrupted power supply. Equipped with a 5-inch LCD display, Wi-Fi connectivity, and intelligent control features, it enables real-time monitoring and easy configuration.
With power factor up to 1.0, high efficiency (above 94%), and parallel operation up to 9 units, the Arceus inverter offers scalability and dependable performance. Its configurable AC/Solar input priority, fast transfer time, and wide voltage range make it suitable for both sensitive electronics and heavy appliances.
⭐ Key Features
- Pure sine wave MPPT-based inverter
- Output power factor up to 1.0
- Supports AC mains and generator input
- Battery-independent operation
- Built-in Wi-Fi module for monitoring
- 5” LCD display with touch interface
- Configurable AC/Solar input priority
- Fast transfer time (10ms)
- Parallel operation up to 9 units (optional)
- Wide input voltage range for appliances and computers
