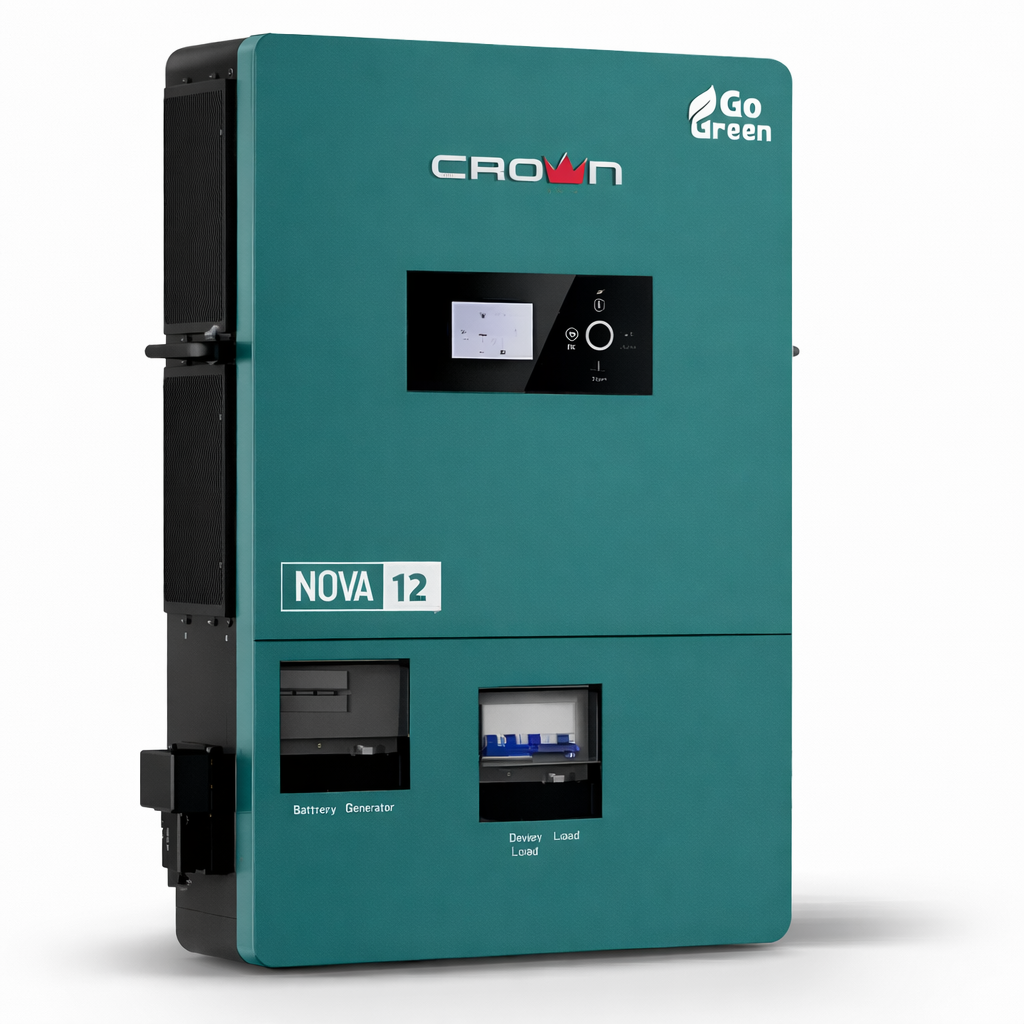

Nova 12.6KW PV-24000 Hybrid Solar Inverter
₨0.00
?? Technical Specifications (Nova 12.6KW PV-24000)
?? General
| Parameter | Value |
|---|---|
| Model Name | Nova – 12.6KW |
| Rated Power | 12600VA / 12600W |
?? PV Input (DC)
| Parameter | Value |
|---|---|
| Max PV Array Power | 24000W (12000W ? 2) |
| Rated PV Voltage | 320V |
| MPPT Inputs | 2 (4 Strings Total) |
| PV Voltage Range | 100 ? 480V |
| MPPT Voltage Range | 120 ? 440V |
| Start-up Voltage | 100V |
| Max PV Input Current (per MPPT) | 35A / 35A |
| Max Short Circuit Current (per MPPT) | 44A / 44A |
?? Battery
| Parameter | Value |
|---|---|
| Battery Type | Lithium-ion / Lead-acid |
| Rated Battery Voltage | 48V / 51.2V |
| Battery Voltage Range | 46.4?60V / 38.4?60V |
| Max Charge / Discharge Current | 250A |
| Max Charge / Discharge Power | 12600W |
| PV & Grid Wake-up Function | Yes |
?? Grid / AC Input
| Parameter | Value |
|---|---|
| Rated AC Voltage | 230V |
| Acceptable Voltage Range | 90?280V |
| Rated Frequency | 50Hz / 60Hz |
| Rated AC Input Current | 100A |
| Rated AC Input Power | 24000W |
| Power Factor | 0.99 |
| THDi | <5% |
| Max Continuous AC Passthrough Current | 100A |
? Output (UPS Mode)
| Parameter | Value |
|---|---|
| Rated Output Power | 12600W |
| Output Voltage | 230V |
| Output Current | 50A |
| Output Frequency | 50 / 60Hz |
| Surge Power | 2? Rated Power (5s) |
| Transfer Time | <7ms (Single) / <10ms (Parallel) |
| Waveform | Pure Sine Wave |
| THDv | 3% |
? Generator Input (GEN)
| Parameter | Value |
|---|---|
| Max AC Input Voltage | 280V |
| Max AC Input Current | 63A |
| Transfer Time | <10ms (Single) / <20ms (Parallel) |
?? Efficiency
| Parameter | Value |
|---|---|
| Max Efficiency | 93.5% |
| Charge / Discharge Efficiency | 93% |
| MPPT Efficiency | 99% |
??? Protection
| Parameter | Value |
|---|---|
| PV Reverse Polarity Protection | Yes |
| Over Current / Voltage Protection | Yes |
| AC Short Circuit Protection | Yes |
| Grid Monitoring | Yes |
| Surge Protection | Type III |
| Battery Reverse Protection | Yes |
?? Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions (D ? W ? H) | 150 ? 530 ? 830 mm |
| Weight | 40 kg |
Crown Nova 12.6kW Hybrid Inverter – Reliable Solar Power Solution in Pakistan
The Crown Nova 12.6kW Hybrid Inverter is a powerful and efficient solution for residential and commercial solar systems that require reliable energy management. Designed with advanced hybrid technology, the Crown 12.6kW Hybrid Inverter intelligently combines solar power, battery storage, and grid electricity to maximize energy savings while ensuring uninterrupted power during load shedding. Whether you are upgrading an existing solar setup or installing a new one, this inverter delivers stable performance and high conversion efficiency.
The Crown Nova PV-24000 Inverter supports high-capacity solar panel installations, making it an excellent choice for homes, offices, factories, and commercial buildings. With intelligent battery charging, pure sine wave output, built-in safety protections, and smart energy monitoring, it helps optimize your solar investment while reducing electricity costs. If you are searching for a 12.6kW Hybrid Solar Inverter Pakistan, this model offers dependable performance, durability, and long-term value.
If you’re comparing the Crown Hybrid Inverter Price in Pakistan, it’s important to consider product authenticity, warranty, and after-sales support alongside pricing. Choosing a trusted supplier ensures better performance and peace of mind throughout the inverter’s lifespan.
At Hajvery Solar, we proudly supply genuine Crown Solar Inverter Pakistan models along with premium solar panels, lithium batteries, and complete solar energy solutions. As one of Pakistan’s trusted suppliers of solar panels and solar accessories, Hajvery Solar provides expert guidance to help customers select the right inverter for their energy requirements. Our experienced team is committed to delivering authentic products, competitive prices, professional installation support, and reliable customer service across Pakistan.
Whether you need a high-performance hybrid inverter for your home or business, the Crown Nova 12.6kW Hybrid Inverter offers the efficiency, flexibility, and reliability required for modern solar systems. Contact Hajvery Solar today to get the latest Crown Hybrid Inverter Price in Pakistan and expert advice on building a cost-effective, future-ready solar power solution.
