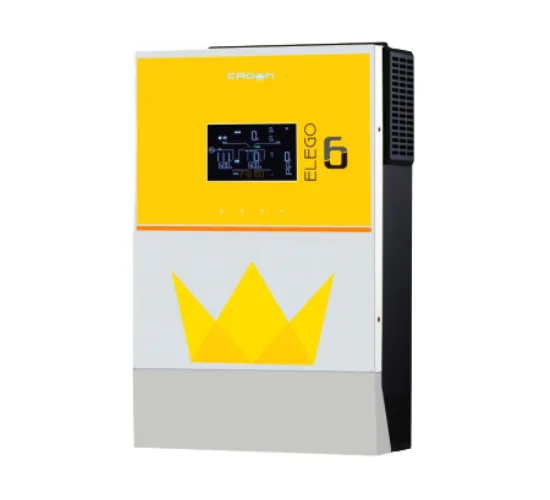

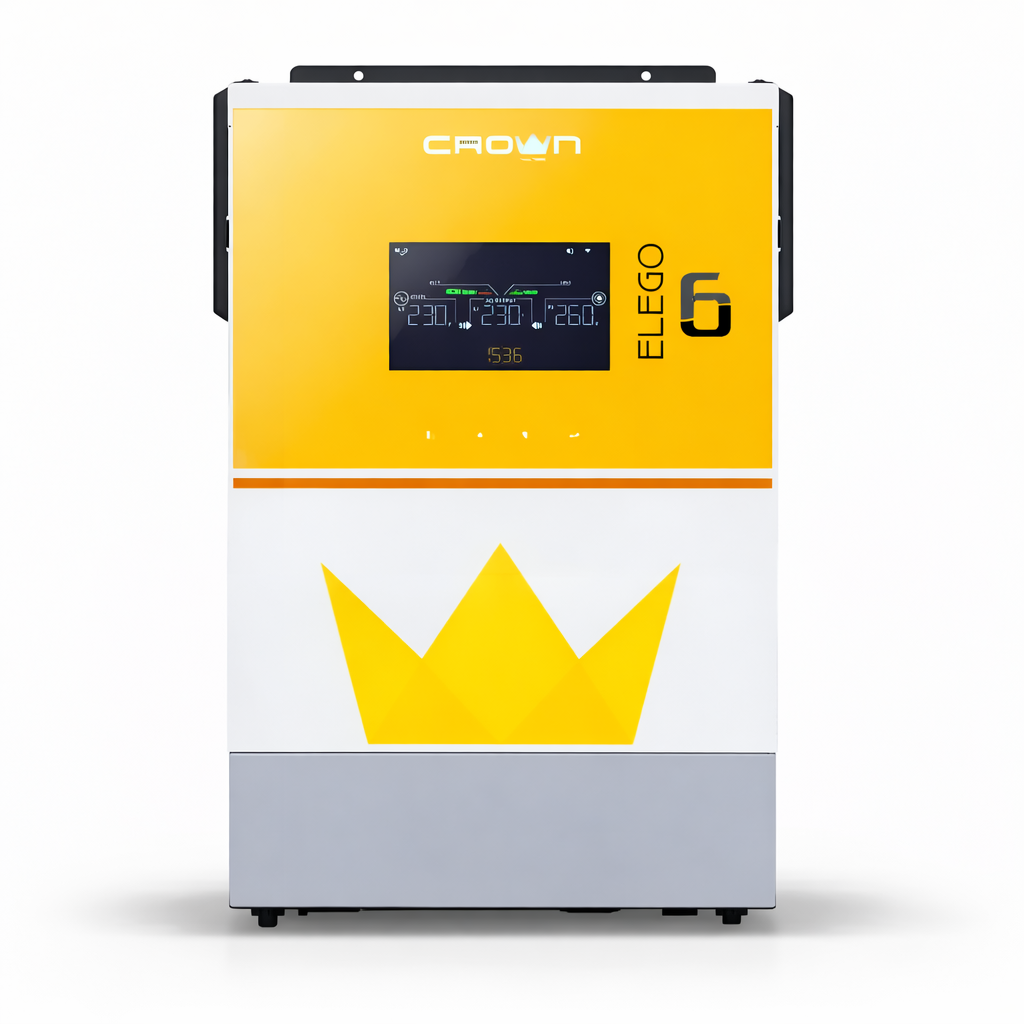

Elego 6KW PV-7000 Hybrid Solar Inverter
₨0.00
Technical Specifications (Elego 6KW PV-7000)
?? General
| Parameter | Value |
|---|---|
| Model Name | Elego-VI-6KW |
| Model Number | EOI-VI-6KW |
| Phase | 1 Phase In / 1 Phase Out |
| Rated Output Power | 6000W |
| Maximum Charging Power | 6000W |
?? PV Input (DC)
| Parameter | Value |
|---|---|
| Max PV Input Power | 7000W |
| Nominal DC Voltage | 360VDC |
| Max DC Voltage | 500VDC |
| Start-up Voltage | 130VDC |
| Initial Feeding Voltage | 150VDC |
| MPPT Voltage Range | 120?430VDC |
| MPPT Trackers / Max Input Current | 1 / 27A |
? Grid Output (AC)
| Parameter | Value |
|---|---|
| Nominal Output Voltage | 220 / 230 / 240 VAC |
| Output Voltage Range | 184?264.5 VAC or 195.5?253 VAC (Selectable) |
| Nominal Output Current | 26A |
| Power Factor | >0.99 |
?? AC Input
| Parameter | Value |
|---|---|
| Acceptable Input Voltage Range | 90?280 VAC or 170?280 VAC |
| AC Start-up Voltage | 120?140 VAC |
| Auto Restart Voltage | 180 VAC |
| Max AC Input Current | 40A |
?? Battery & Charger
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 48VDC |
| Max Solar Charging Current | 120A |
| Max AC Charging Current | 120A |
| Max Charging Current | 120A |
? Output (Battery Mode)
| Parameter | Value |
|---|---|
| Output Voltage | 220 / 230 / 240 VAC |
| Waveform | Pure Sine Wave |
| Efficiency (DC to AC) | 93% |
?? Efficiency
| Parameter | Value |
|---|---|
| Max Conversion Efficiency | 95% |
?? Physical Specifications
| Parameter | Value |
|---|---|
| Dimensions (D ? W ? H) | 120 ? 295 ? 468 mm |
| Net Weight | 12 kg |
?? Communication & Interface
| Parameter | Value |
|---|---|
| Parallel Function | Yes (Up to 9 Units) |
| Communication Port | USB / RS-232 / Dry Contact |
??? Environment
| Parameter | Value |
|---|---|
| Humidity | 0?90% RH (Non-condensing) |
| Operating Temperature | -10?C to 50?C |
Elego 6KW PV-7000 Hybrid Solar Inverter
The Elego 6KW PV-7000 Hybrid Solar Inverter is a powerful and energy-efficient solution designed for homeowners and businesses seeking reliable solar energy. Equipped with advanced MPPT technology, this 6KW hybrid solar inverter maximizes solar power generation while intelligently managing electricity from solar panels, batteries, and the utility grid. It delivers stable performance, uninterrupted backup power, and helps reduce monthly electricity bills.
Advanced Performance & Smart Energy Management
The Elego PV-7000 supports both LiFePO4 lithium batteries and lead-acid batteries, providing flexible energy storage for different solar systems. Its pure sine wave output, fast battery charging, and high conversion efficiency ensure smooth operation for sensitive appliances. Whether you need backup during load shedding or want to maximize self-consumption of solar energy, this inverter offers dependable performance in all conditions.
Why Choose the Elego 6KW PV-7000?
- High-efficiency MPPT solar charging
- Compatible with lithium and lead-acid batteries
- Pure sine wave output for safe appliance operation
- Intelligent battery management system
- Ideal for residential and small commercial solar systems
- Reliable backup power during grid outages
Buy from Hajvery Solar
Looking for the best Elego 6KW PV-7000 Hybrid Solar Inverter price in Pakistan? Hajvery Solar is your trusted supplier of hybrid solar inverters, solar panels, and lithium batteries. We provide genuine products, competitive prices, expert installation, and professional after-sales support. Buy the Elego 6KW Hybrid Solar Inverter from Hajvery Solar today and enjoy a reliable, cost-effective, and sustainable solar energy solution for your home or business.
Hajvery Solar Energy provides nationwide delivery across Pakistan for all major solar energy products. We ensure safe, reliable, and timely delivery to residential, commercial, and industrial locations.
