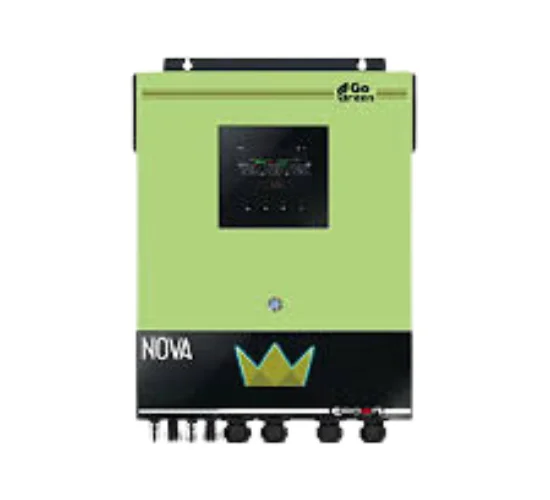

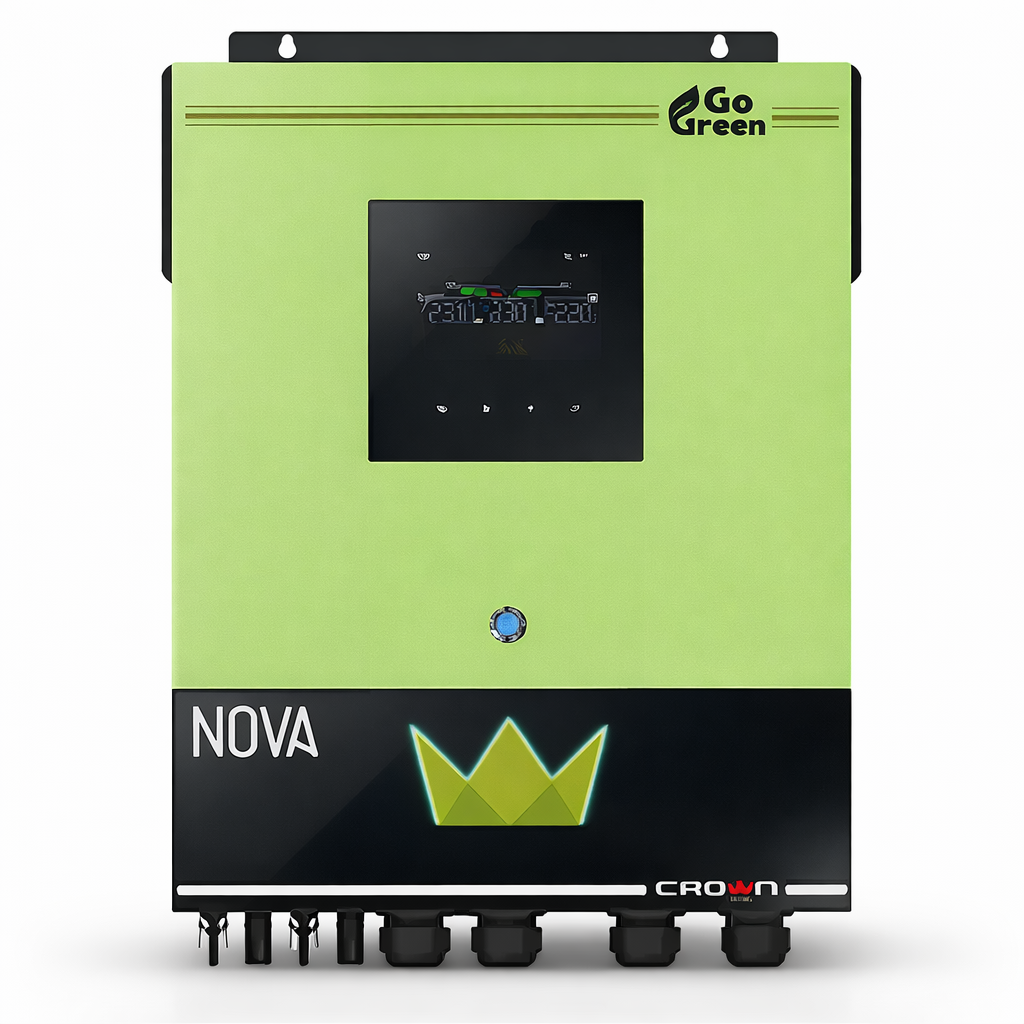

Nova 8.2KW PV-12000 Hybrid Solar Inverter

📊 Technical Specifications (Nova 8.2KW PV-12000)

🔹 General

Parameter Value
Model Name Nova – 8.2KW
Model Number NV-8.2KW
Rated Power 8200VA / 8200W
Parallel Capability Yes (Up to 6 Units)

🔌 Input

Parameter Value
Voltage 230VAC
Selectable Voltage Range 170–280VAC (Computers)
90–280VAC (Home Appliances)
Frequency 50Hz / 60Hz (Auto sensing)

⚡ Output

Parameter Value
AC Voltage Regulation 230VAC ±5%
Surge Power 16000VA
Efficiency (Peak) 93%
Transfer Time 10ms (PC) / 20ms (Appliances)
Waveform Pure Sine Wave

🔋 Battery

Parameter Value
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC

☀️ Solar Charger & AC Charger

Parameter Value
Solar Charger Type MPPT
Max PV Array Power 12000W (6000W × 2)
MPPT Operating Range 90–450VDC
Max PV Open Circuit Voltage 500VDC
Max PV Input Current 27A × 2 (Max 40A)
Max Solar Charge Current 150A
Max AC Charge Current 150A
Max Charge Current 150A

📐 Physical Specifications

Parameter Value
Dimensions (D × W × H) 158.4 × 503.6 × 530.8 mm
Net Weight 20 kg
Communication Interface USB / RS232 / RS485 / Wi-Fi / Dry Contact

🌡️ Operating Environment

Parameter Value
Humidity 5% – 95% (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Description

🔋 Nova 8.2KW PV-12000 Hybrid Solar Inverter

📌 Product Description

The Nova 8.2KW PV-12000 is a high-capacity pure sine wave hybrid solar inverter designed for advanced residential and commercial energy systems. Built with dual MPPT technology and a massive PV input capacity of up to 12,000W, it ensures maximum solar energy harvesting and superior performance.

This inverter supports grid feed-in, battery-independent operation, and generator compatibility, offering flexible and reliable energy management. With dual output functionality, it allows smart load distribution between critical and non-critical appliances.

Equipped with built-in Wi-Fi, BMS communication support, and a 5” LCD touch display, the Nova inverter provides real-time monitoring and intelligent control. Its high charging capacity (up to 150A) and parallel operation capability (up to 6 units) make it ideal for scalable solar installations.

With enhanced safety features, anti-dust protection, and modern design, the Nova 8.2KW PV-12000 is a powerful and reliable solution for high-demand solar energy systems.


⭐ Key Features

  • Pure sine wave MPPT-based hybrid inverter
  • Dual MPPT input for maximum solar efficiency
  • High PV input capacity up to 12,000W
  • Built-in Wi-Fi for mobile monitoring
  • BMS communication support
  • Dual output for smart load management
  • Battery-independent design
  • Compatible with utility mains and generator
  • Configurable AC/PV usage and priority settings
  • High charging current up to 150A
  • Parallel operation up to 6 units
  • RGB status lighting with modern interface
