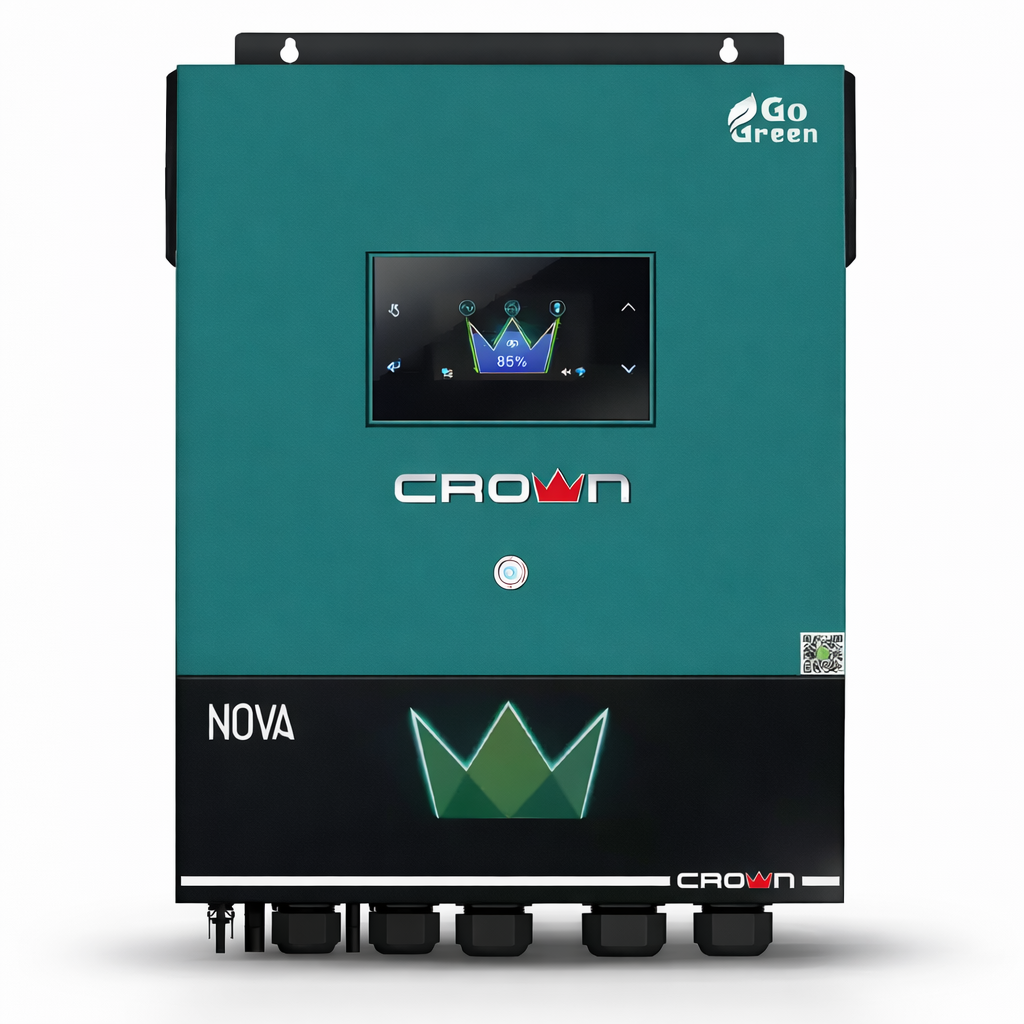

Nova 9.8KW PV-14000 Hybrid Solar Inverter

📊 Technical Specifications (Nova 9.8KW PV-14000)

🔹 General

Parameter	Value
Model Name	Nova – 9.8KW
Rated Power	9800VA / 9800W
Parallel Capability	Yes (Up to 6 Units)

🔌 Input

Parameter	Value
Voltage	230VAC
Selectable Voltage Range	170–280VAC (Computers)
	90–280VAC (Home Appliances)
Frequency	50Hz / 60Hz (Auto sensing)

⚡ Output

Parameter	Value
AC Voltage Regulation	230VAC ±5%
Surge Power	22000VA
Efficiency (Peak)	93%
Transfer Time	10ms (PC) / 20ms (Appliances)
Waveform	Pure Sine Wave

🔋 Battery

Parameter	Value
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	63VDC

☀️ Solar Charger & AC Charger

Parameter	Value
Solar Charger Type	MPPT
Max PV Array Power	14000W (7000W × 2)
MPPT Operating Range	90–450VDC
Max PV Open Circuit Voltage	500VDC
Max PV Input Current	27A × 2 (Max 40A)
Max Solar Charge Current	150A
Max AC Charge Current	150A
Max Charge Current	150A

📐 Physical Specifications

Parameter	Value
Dimensions (D × W × H)	147.4 × 432.5 × 553.6 mm
Net Weight	20 kg
Communication Interface	USB / RS232 / RS485 / Wi-Fi / Dry Contact

🌡️ Operating Environment

Parameter	Value
Humidity	5% – 95% (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Description

🔋 Nova 9.8KW PV-14000 Hybrid Solar Inverter

📌 Product Description

The Nova 9.8KW PV-14000 is a high-capacity pure sine wave hybrid solar inverter designed for demanding residential and commercial solar applications. Featuring dual MPPT technology and an impressive PV input capacity of up to 14,000W, it ensures maximum solar energy utilization and superior system performance.

This inverter supports grid feed-in, battery storage, and generator integration, making it a complete and flexible energy solution. Its dual output system allows intelligent load distribution between critical and non-critical loads, ensuring uninterrupted power supply.

Equipped with a built-in 150A MPPT solar charger, Wi-Fi connectivity, and BMS compatibility, the Nova 9.8KW provides advanced monitoring and optimized battery performance. The intuitive LCD touch display and smart configuration options enable users to manage power flow efficiently.

With parallel operation support (up to 6 units), high surge capacity, and robust protection features, the Nova 9.8KW PV-14000 is ideal for scalable and high-load solar energy systems.

⭐ Key Features

Pure sine wave hybrid inverter
Dual MPPT input for maximum solar efficiency
High PV input capacity up to 14,000W
Built-in 150A MPPT solar charger
Dual output for smart load management
Built-in Wi-Fi for remote monitoring
BMS communication support
Compatible with grid and generator input
Configurable power priority (Solar / Battery / Grid)
Parallel operation up to 6 units
LCD with touch pad interface
High surge handling capability
